500mm T8 Lead Screw 8mm Thread 2mm Pitch with Copper Nut (500mm T8 Lead Screw)

Specifications:
Material: Stainless steel lead screw, copper nut
Screw diameter: 8mm
Length: 500mm
Screw spacing: 2mm
Lead of thread: 8mm
Range: Reprap makerbot 3d printer accessories

3D engraving machine lead screw 400mm length with nut.
Nut turn a round, move +- 8mm

Package includes:
1x 500mm lead screw
1x Brass Nut
R389.90  Inc VAT
Machifit 24V NEMA17 Stepper Motor with 400mm T8 Lead Screw Mounted Ball Bearing and Shaft Coupling (24V stepper with T8 screw and nut)

Specifications:
Lead screw
Materialstainless steel
Diameter8mm
Pitch2mm
Lead4
Total Length400mm
Screw nut
Materialbrass
Diameter
8mm
Pitch2mm
Lead4
Mounted ball bearing
Materialzinc alloy
Bore diameter8 mm8mm
Total length55mm
Height29mm
Shaft coupling
Materialaluminium
Shaft6.35 x 8 mm
Length25 mm
Diameter20mm
Motor
Voltage24V
Step angle1.8°
Accuracy of step angle ±5%
Accuracy of resistance±10%
Accuracy of inductance±20%
Insulation resistance100mΩmin 500VDC
Radial clearance0.02Max
Axial clearance0.08Max
Radial maximum tolerance28N
Axial maximum tolerance10N

Features:
3D printer T8 400mm Stainless Steel Lead Screw + Screw nut + Mounted ball bearing+Shaft coupling+Motor.
Screw mainly use for Stepping motor driving guide rail,machine tool, and other equipment.
Screw without processing, direct connected to bearing.
T shape design, make of high quality stainless steel material.
Easy to install and convenient to use.
Fine producing and practical.
Suitable for Industrial automation equipment, stepper motor rails;
Fit for 3D printer; engraving machine; XYZ module; slider; lifts ect.

How to install:
1. Put screw nut into the lead screw.
2. Then the 2 Mounted ball bearing separately install at both ends of the Lead screw.
3. According to the size of you need to adjust the distance between the nut and Mounted ball bearing.
4. Put shaft coupling into the Lead screw beside the Mounted ball bearing.

Package Includes:
1 x 400mm Lead screw
1 x Screw nut
2 x Mounted ball bearing
1 x Shaft coupling
1 x Motor
R729.90  Inc VAT
40x40x10mm 24V Nozzle Cooling Fan For 3D Printer Ender-3 (fan 24V 40x40x10)
Features:

High speed cooling fan

Specifications:

Size: 40mm x 40mm x 10mm
Voltage: DC 24V 0.1A
Cable length: 200mm
Application: For 3D Printer Ender-3


Package Includes:

1 x Creality 3D® cooling fan
R34.90  Inc VAT
1M PTFE Nozzle Feed Teflon Tube For 3D Printer 1.75mm Filament (print feed tube 1m)
Features:

1. Resistance to high and low temperature, from -190℃ to  280℃
2. Corrosion resistance
3. Feed tube for 3D printer 1.75mm filament


Specifications:

Length: 1 meter
Diameter: 2mm x 4mm(inner diameter x outer diameter)
Color: Milky white
Temperature: -190℃ to 280℃


Package Includes:

1m 3D Printer Teflon Tube
R29.90  Inc VAT
Machifit 8mm Lock Collar for T8 Lead Screw (T8 lock collar)
Description:
Machifit 8mm Lock Collar for T8 Lead Screw Lock Ring Lock Block

Specification:
ModelT8
Material
stainless steel
Inner diameter8mm
Outter diameter14mm
Width7mm
Quantity1pcs

Package Includes:
1 x T8 Lead Screw Lock Collar
R19.90  Inc VAT
Shock Absorber Stepper Motor Vibration Damper for 3D Printer Nema17 Stepper Motor (stepper damper)
Features:

Effective to reduce shock.
Antivibration dampers for mostly applied stepper motors are available.
Energy-absorbing rubber mounts with a metal mounting face.
Stepper motors are affected by resonance.
Resonance is caused by parts vibrating in concert with each other, which can be lessened by fitting a stepper motor antivibration damper.

Specifications:

Material: Alloy
Size: 3.7cm x 3.7cm /1.5 Inch x 1.5 Inch
Fit for: 3D Printer stepper motors

Package Includes:


1 x Shock Absorber
R44.90  Inc VAT
Creality 3D® 235x235mm Flexible Cmagnet Build Surface Plate Soft Magnetic Heated Bed Sticker With Back Glue For Ender-3 3D Printer (magnetic hot bed plate)
Description:

- Upgrade Cmagnet Build Surface plate
- Easy removal 3D printing platform for PLA and PLA-based materials. To use it, simply stick the bottom plate onto your build plate and start printing, peel up the top plate with finished prints, then peel off the top plate from the prints. Snap the top plate back into place for the next round of printing.

Specifications:

Size: 235mm x 235mm
Applications: For Ender-3


Package Includes:

1x Top magnet plate
1x Bottom magnet plate with double sided tape
R429.90  Inc VAT

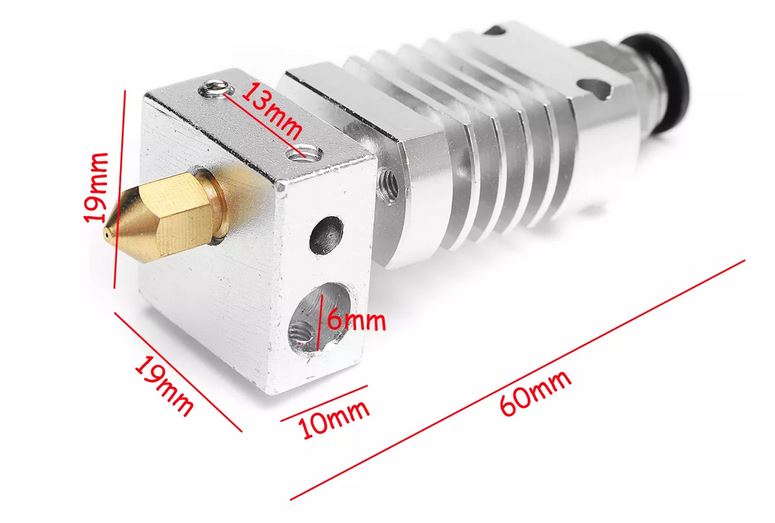

12V Silver/Red V6 1.75mm J-Head Hotend Remote Extruder Kit with Heating Tube for CR10/CR8 3D Printer (12V red hotend)
Specifications:
- Color: Silver/Red
- Nozzle size:1.75mm
- Nozzle material: Brass
- Heating Block size: 19mm x 19mm x 10mm
- Heating Block/Heatsink Material: Aluminum Alloy
- Working Temperature: 260°C
- Heating Tube: 12v 40W
- Suitable: CR8/CR10 3D printer
- White wire is temperature thermistor, red wire is heating tube.

Package includes:

1 x Aluminum block(red and silver)
1 x Heating tube




R219.90  Inc VAT
V6 J-Head Metal Hot End Fixed Bracket For RepRap 3D Printer Extruder (extruder bracket)
Specifications:

Type: E3D V6
Material: Metal
Bracket Width: 35.6mm
Holder Height: 50mm
Holder Depth: 33.6mm
Fit for: 3D Printer Extruder


Package Includes:

1x E3D V6 Bracket
R129.90  Inc VAT
3D Printer Stepstick Drv8825 Stepper Motor Driver replace A4988 (purple print driver)
Product Features

1 simple steps and direction control interface
2 six different steps resolutions: full step, half step, 1/4-step1/8-step1/16-step, 1/32-step
3.CAN interface directly with 3.3 V and 5 V systems
4 Over-temperature thermal shutdown, overcurrent shutdown, undervoltage lockout
5 short to ground short circuit load protection
6.4 Layer 2 oz copper PCB, in order to improve heat dissipation
7 exposed solder ground below the bottom of the driver IC on the printed circuit board pad
8 module size, pin and interface matching A4988 stepper motor driver operators in many ways
9 adjustable current control lets you set a potentiometer, which lets you use the stepper motor's rated voltage or more, in order to achieve a higher rate of maximum output current step
10 Intelligent chopping control automatically selects the correct current decay mode (fast decay or slow decay)
11 Maximum 45 V supply voltage
12 built-in voltage regulator (the need for any external logic supply voltage)


How to control a stepper motor with Arduino
R44.90  Inc VAT
50cm DuPont line HX2.54 4pin to 6pin White Terminal stepper Motor Connector cable (stepper cable 4 to 6pin)
Description:
  • Four-lead motor connector XH2.54 white terminal 4pin-6pin motor line
  • 3D Printer Stepper Motor Line
  • Connector : 4pin to 6pin
  • Length: 50cm


Package Includes:

1 x 3D Printer Stepper Motor Line 50cm Length
R44.90  Inc VAT
100K ohm 100cm NTC Thermistors with cable for Reprap Mend glass sealed thermistor 3950 Resistant hotend sensor (thermistor cable)
Description

(1) Electrical characteristics
A: Resistance value: R(25°C)=100K±1%
B: B Value: B=3950±1% (calculated from resistance value at 25°C and 50C)
C: Insulation resistance 50MΩ or over by DC500V megger (between glass and lead wire)
(2) Thermal time constant (τ): τ≤10~17s (in still air)
(3) Thermal dissipation constant (δ): δ=1.1~1.6mW/°C (in still air)
(4) Operating temperature range:-50~+260°C

Package Includes:
1 x  NTC Thermistor with cable
R42.90  Inc VAT
1.75mm 0.4mm V6 Hardened Steel Nozzle For J-Head Hotend Extruder 3D Printer (steel 3d nozzle)
Features:

- Using steel material, in overall hardening treatment
- The hardness reaches 50-60 degrees, so durable to use.


Specifications:

Type: E3D
Material: Hardened Steel
Nozzle Thread: M6
Size: 0.4mm
Fit for: 1.75mm filament

Package Includes:

1 x Nozzle
R69.90  Inc VAT
Silver 1/8 Teeth Thread Nozzle Quick Direct Pneumatic Connector For 3D Printer (Pneumatic connector 4)
Specifications:

Color: Silver
Screw thread: 1/8 teeth
Application: For 3D printer
The upper part can be used to insert a 4mm pipe and self lock


Package Includes:

1 x Pneumatic connector
R39.90  Inc VAT
Creality 3D® Ultrabase 235*235*3mm Glass Plate Platform Heated Bed Build Surface for Ender-3 MK2 MK3 Hot bed (tempered glass bed)
Notes: Due to the different product batch, the position of Logo in the galss plate may change, thank you for your understanding.

Features:

- Excellent adhesion: Ultrabase covered by microporous coating, shows strong adhesion in printing.
- Easy to take off models by hand or with a little help from the scrapper for very large model
- Ultrabase integrated with heated bed: Super Flatness, Fast and uniform heating
- Durable: The special coating is inorganic and has a hardness of 8 Mohs, and it is capable to work at 400ºC.
- Easy to clean: Ultrabase is easy to clean by alcohol/water.

Specifications:

Size:
 235 x 235 x 3mm
Material: Tempered glass
Application: For ender-3/pro 3D printer


Temperature Settings For Different Filaments:
1.PLA: 50-65ºC
2. ABS: 80-120ºC
3. PC: 100-125ºC
4. Nelon: 100-130ºC
5. PP: 100-130ºC
6. PETG: 70-90ºC
7. TPU: 40-60ºC

Package Includes:


1x Creality 3D® Glass Platform
R659.90  Inc VAT
3D Printer Nozzle Cleaning Tool Drill Bit 0.4mm Size For Extruder (0.4mm nozzle clean tool)
Specifications:

Applicable models: 3D printer nozzle 0.4mm
Material: Stainless steel


Package includes:

1 x Nozzle-clearing drill
R29.90  Inc VAT
Ceramic Cartridge Heater 24V 40W 620 with 1M Wire for 3D Printer DIY Kit (24V heat cartridge)
Features:
Cartridge heater widely used for 3D printers.
Voltage 24V and power 40W, can provide uniform distribution of heat.
Consisting of a cylindrical stainless steel tube for corrosion prevention.
High quality wire core with fine and quick heat conductivity.
The cable is approx. 1 meter. The stainless steel part is 6mm in diameter and 20mm in length.

Specifications:
Voltage: 24V
Power: 40W
Diameter: 6mm, Length: 20mm (stainless steel part)
Wire Length: Approx. 1m

Note:
The item only includes the cartridge heater.
Heating pipe should be stored in a dry place, not damp.

Packing List:
1 x Cartridge Heater
R119.90  Inc VAT
Hotend Heating Block Silicone Cover Case For Creality CR-10/10S/10S4/10S5/Ender 3/CR20 3D Printer Part (black silicone hotend cover)

Description:

- Non-stick silicone material made
- Keep the hotend temperature extremely stable.
- Extend the life of the heater block and extruder by keeping it cleaner.
- High-temperature resistance: 280℃.

Package Includes:

1 x Heater Block Silicone Cover

R43.90  Inc VAT
Full Graphic 12864 Smart Controller RAMPS 1.4 LCD 12864 LCD Control Panel Blue Screen for 3D Printer (12864 3d printer display)
LCD control panel for 3D printers. LCD control panel through which you can achieve spooling as the 3D model Gcode files are copied to the SD card and then print the file via the LCD control panel. This version is an upgraded version of the reprap smart controller.

Package Includes:
1 x 12864 LCD Controller pcb board
R289.90  Inc VAT
2x4 PTFE Tube Cutter Kit for 3D Printer (PTFE cutter kit)
Features:

In order to  properly seat your Bowden tube, it is key to have a clean, square end. Without this, you risk oozing, or worse, clogging in the hot end. This super-sharp tubing cutter is the perfect tool for obtaining a clean, square cut in your tubing, every time.

This kit includes:


3 x PC4-01 pneumatic plugs
3 x KJH 04-M6 pneumatic plugs
1m  ID2mm OD4mm blue PTFE tube
1 x flat screwdriver
1 x cutter with a replacement blade
2 x Blue cable buckles
2 x 10 * 25mm yellow springs
R269.90  Inc VAT
