ANENG AN8002 Digital Multimeter AC/DC Current Voltage Frequency Resistance Temperature ℃/℉ (multimeter AN8002)
Description:
It is a Auto-ranging digital MultiMate using double-integral style A/D transform as the core.
Can be used to measures Temperature AC/DC Voltage AC/DC Current Resistance Capacitance Diode and Continuity testing temperature Frequency and Etc.
The products are battery powered they are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading are an ideal tools for lavatory radio fans and family use.
Features:
- Auto Range.
- True RMS measurement.
- Resistance capacitance frequency file high voltage 550V protection.
- Large screen display, the maximum of 6000 words.
- Sampling rate: about 3 times per second.
- Temperature measuring.
- Backlight display.
- Data retention.
- Polarity automatic recognition.
- Low voltage display.
- 10A large current measurement MA level small current measurement Automatic shutdown.
- Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance.
- Diode / off measurement, frequency and duty ratio measurement.
Specification:
| Function | Range | Resolution | Accuracy | MAX.Value | Other |
| DC Voltage | 6.000V | 0.001V | ±(0.5% 3) | 1000V | Input Resistance:10MΩ |
| 60.00V | 0.01V | ||||
| 600.0V | 0.1V | ||||
| 1000V | 1V | ||||
| 60.00mV | 0.01mV | 600mV | |||
| 600.0mV | 0.1mV | ||||
| AC Voltage | 6.000V | 0.001V | ±(1.0% 3) | 750V | Input Resistance:10MΩ(600mV range, >60MΩ) Frequency Response: 40Hz-1kHz |
| 60.00V | 0.01V | ||||
| 600.0V | 0.1V | ||||
| 750V | 1V | ||||
| 60.00mV | 0.01mV | 600mV | |||
| 600.0mV | 0.1mV | ||||
| DC Current | 6.000A | 0.001A | ±(1.2% 3) | 10A | MAX.Current: 10A(no more than 15 seconds) No Voltage input at this mode Frequency Response(AC): 40Hz-1kHz |
| 10.00A | 0.01A | ||||
| 60.00mA | 0.01mA | 600mA | |||
| 600.0mA | 0.1mA | ||||
| AC Current | 6.000A | 0.001A | ±(1.5% 3) | 10A | |
| 10.00A | 0.01A | ||||
| 60.00mA | 0.01mA | 600mA | |||
| 600.0mA | 0.1mA |
| Resistance | 600.0Ω | 0.1Ω | ±(0.5% 3) | 60MΩ | No Voltage input at this mode | |||||
| 6.000kΩ | 0.001kΩ | |||||||||
| 60.00kΩ | 0.01kΩ | |||||||||
| 600.0kΩ | 0.1kΩ | |||||||||
| 6.000MΩ | 0.001MΩ | |||||||||
| 60.00MΩ | 0.01MΩ | ±(1.5% 3) | ||||||||
| Capacitance | 9.999nF | 0.001nF | ±(5.0% 20) | 9.999mF | No Voltage input at this mode | |||||
| 99.99nF | 0.01nF | ±(2.0% 5) | ||||||||
| 999.9nF | 0.1nF | |||||||||
| 9.999μF | 0.001μF | |||||||||
| 99.99μF | 0.01μF | |||||||||
| 999.9μF | 0.1μF | |||||||||
| 9.999mF | 0.001mF | ±(5.0% 5) | ||||||||
| Frequency | 99.99Hz | 0.01Hz | ±(0.1% 2) | 9.999MHz | ||||||
| 999.9Hz | 0.1Hz | |||||||||
| 9.999kHz | 0.001kHz | |||||||||
| 99.99kHz | 0.01kHz | |||||||||
| 999.9kHz | 0.1kHz | |||||||||
| 9.999MHz | 0.001MHz | |||||||||
| Duty Cycle | 1%~99% | 0.1% | ±(0.1% 2) | |||||||
| Diode | √(DC forward current is 5mA, voltage is 3V) | No Voltage input at this mode | ||||||||
| Continuity | √(no more than 50Ω) | |||||||||
Temperature | -20~1000℃ | 1℃ | ±(2.5% 5) | 1000℃ | ||||||
| -4~1832℉ | 1℉ | 1832℉ | ||||||||
- Measurement mode: double-integral style A/D transform
- Sample rate: 3 times per second
- Over range indication: OL
- Powered by 2 x AAA batteries (Not included).
- Working Environment: 0-40 degrees relative humidity: <80%
- Product size: approx. 130 x 65 x 30mm/5.11 x 2.55 x 1.18''
- Net weight: approx. 170g
- Gross weight: approx.238g
Package included:
1 x ANENG AN8002 Digital Ture RMS 6000 Counts Multimeter
2 x Test Lead Set
1 x Temperature Sensing Cable
1 x Storage Bag
1 x English User Manual
5K Ohm 2W Multi Turn Potentiometer 10 Turns (Blue 5K potentiometer)
Description:
This 10 turn potentiometer 5K Ohm is widely used to adjust timer, speed, temperature in all kinds of equipment such as medical instruments, welding machines, wire-cutting machines and virtually any industrial control system that requires a potentiometer.
Specifications:
Material: Plastic and Metal
Shape:Round
Resistance: 5K ohm
Resistance tolerance: 5%
Independent linear accuracy: 0.25%
Power: 2W
Max. Operating Voltage: 315V
Storage temperature: -55 ~ 125℃
Rotating life: 1000000
Load life: 1000 hours
Angle of Rotation :3600±5°
Package includes:
1 x 5K Ohm potentiometer set
Resources:
Python Library
Definition, Types, And Working Principle
This 10 turn potentiometer 5K Ohm is widely used to adjust timer, speed, temperature in all kinds of equipment such as medical instruments, welding machines, wire-cutting machines and virtually any industrial control system that requires a potentiometer.
Specifications:
Material: Plastic and Metal
Shape:Round
Resistance: 5K ohm
Resistance tolerance: 5%
Independent linear accuracy: 0.25%
Power: 2W
Max. Operating Voltage: 315V
Storage temperature: -55 ~ 125℃
Rotating life: 1000000
Load life: 1000 hours
Angle of Rotation :3600±5°
Package includes:
1 x 5K Ohm potentiometer set
- 1pcs 10 turn potentiometer
- 1pcs rotary dial knob
- 1pcs small Hexagonal spanner
Resources:
Python Library
Definition, Types, And Working Principle
10K Ohm 2W Multi Turn Potentiometer 10 Turns (Blue 10K potentiometer)
Description:
This 10 turn potentiometer 10K Ohm is widely used to adjust timer, speed, temperature in all kinds of equipment such as medical instruments, welding machines, wire-cutting machines and virtually any industrial control system that requires a potentiometer.
Specifications:
Material: Plastic and Metal
Shape: round
Turns: 10 turns
Technics: wirewound
Independent linearity: ±0.25%
Resistance: 10K Ω
Resistance tolerance: ±2 ~ ±10%
Power-rating: 2W
Angle of rotation: 3600±5°
Rotational life (no load) cycles: 1,000,000
Shaft diameter: 6.35mm
Operating temperature range: 1℃ ~ 125℃
Storage temperature: -55 ~ 125℃
Package includes:
1 x 10K Ohms potentiometer set
Resources:
Setup
Python Library
Definition, Types, And Working Principle
This 10 turn potentiometer 10K Ohm is widely used to adjust timer, speed, temperature in all kinds of equipment such as medical instruments, welding machines, wire-cutting machines and virtually any industrial control system that requires a potentiometer.
Specifications:
Material: Plastic and Metal
Shape: round
Turns: 10 turns
Technics: wirewound
Independent linearity: ±0.25%
Resistance: 10K Ω
Resistance tolerance: ±2 ~ ±10%
Power-rating: 2W
Angle of rotation: 3600±5°
Rotational life (no load) cycles: 1,000,000
Shaft diameter: 6.35mm
Operating temperature range: 1℃ ~ 125℃
Storage temperature: -55 ~ 125℃
Package includes:
1 x 10K Ohms potentiometer set
- 1pcs 10 turn potentiometer
- 1pcs rotary dial knob
- 1pcs small Hexagonal spanner
Resources:
Setup
Python Library
Definition, Types, And Working Principle
Industrial 8-Channel Relay Module for Raspberry Pi Pico, Multi Protection (Pico 8-ch relay module)
PLEASE NOTE: Raspberry Pi Pico is NOT included.
Industrial 8-Channel Relay Module For Raspberry Pi Pico, Power Supply Isolation, Photocoupler Isolation
Description:
Embedded Protections: Power Supply Isolation & Photocoupler Isolation
Features:
Specifications:
What's in the box?
Pinout definition
Outline dimensions
Industrial 8-Channel Relay Module For Raspberry Pi Pico, Power Supply Isolation, Photocoupler Isolation
Description:
Embedded Protections: Power Supply Isolation & Photocoupler Isolation
Features:
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
- High quality relay, contact rating: 10A 250V AC or ≤10A 30V DC
- ABS protection enclosure with rail-mount support, easy to install, safe to use
- Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure
- PWR indicator, RGB LED, and passive buzzer outside the enclosure
- Comes with development resources and manual (Raspberry Pi Pico C/C and MicroPython examples)
Specifications:
| OPERATING VOLTAGE | - 5V | RELAY CHANNEL | - 8 ch |
|---|---|---|---|
| COMMUNICATION PROTOCOL | - USB | CONTACT FORM | - 1NO 1NC |
| COMMUNICATION INTERFACE | - Micro USB |
What's in the box?
- ABS protection enclosure (top and bottom) x1
- Pico-Relay-B x1
- Screwdriver x1
- Screws pack x1
- Raspberry Pi Pico header
- Relay screw terminal
for connecting external devices - Power supply screw terminal
the multi relays are connected in parallel - Pogo pins
- USB communication port
connected via pogo pins - BOOT key
connected via pogo pins - Reset key
Pico reset - Passive buzzer
controllable sound frequency
- Power indicator
- WS2812
RGB LED, cool! - 8-channel quality relays
contact rating per channel: ≤10A 250V AC or ≤10A 30V DC - Relay operating indicator
- Photocoupler isolation
prevent interference from external high-voltage circuit connected to the relay - Power supply isolation
provides stable isolated voltage, needs no extra power supply for the isolated terminal - Thickened tracks
allows large current devices
Outline dimensions
LCD Digital Multimeter AC/DC 750/1000V With Probe (LCD Digital Multimeter)
LCD Digital Mini Handheld Multimeter AC/DC 750/1000V With Probe
Description :
LCD Digital Multimeter AC/DC 750/1000V Handheld multimeter for voltmeter, ammeter Ohm tester meter with probes.
Specifications:
What's in the box ?
Description :
LCD Digital Multimeter AC/DC 750/1000V Handheld multimeter for voltmeter, ammeter Ohm tester meter with probes.
Specifications:
- Brand Name: Rainwayer
- DIY Supplies: ELECTRICAL
- Certification: NONE
- Origin: CN(Origin)
- Model Number: Digital Multimeter
- AC Current: /
- Is Smart Device: No
- AC Voltage: 200-750V
- Measuring Resistance Range: 20k-2000k
- Operating Mode: Manual
- Measuring Inductance Range: /
- Display Type: Digital Display
- DC Current: 200u-2000u-20m-200m-10A
- DC Voltage: 200m-2000m-20-200-1000V
- Measuring Capacitance Range: /
- Dimensions: 126 x 70 x 24mm
- Operating Temperature: 0 - 40 ℃
- Colour: Black
What's in the box ?
1 x Digital Multimeter
2 x Probe Cables
1 x Manual
Solar Power Manager (C), Supports 3x 18650 Batteries, Multi Protection Circuits (WS solar manager 3x18650)
Description
Compatible with 6V~24V solar panels, supports 3x 18650 batteries recharged from solar panel, or TYPE-C power adapter. 5V/3A regulated output.
SAFETY PRECAUTIONS
Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
Do not reversely connect the polarities when recharging or discharging the battery.
Do not use inferior charger/charging panel to recharge the battery.
Do not mix use old batteries with new ones, avoid using batteries of different brands.
When buying a Lithium battery, you should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturers and ensure the batteries will work stably and safely by aging test.
Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
Batteries should be stored carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
Product features
The Solar Power Manager (C) is compatible with general 6V~24V solar panels. It can recharge the 18650 rechargeable Li-ion batteries through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP).
The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar powered, low-power IoT, and other environmental protection projects.
Supports 6V~24V solar panels
5-level voltage switch, for setting solar panel input voltage to improve efficiency
3x 18650 batteries support
Embedded battery holder for rechargeable Li-ion batteries
Application example
solar-powered control system for MCUs / development boards like:
Raspberry Pi / Jetson Nano / Arduino...
Note: for reference ONLY, the Raspberry Pi, display, solar panel are NOT included.
Resources introduction
Outline Dimensions
What's in the box?
1 x solar manager
Resources & Services
Compatible with 6V~24V solar panels, supports 3x 18650 batteries recharged from solar panel, or TYPE-C power adapter. 5V/3A regulated output.
SAFETY PRECAUTIONS
Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
Do not reversely connect the polarities when recharging or discharging the battery.
Do not use inferior charger/charging panel to recharge the battery.
Do not mix use old batteries with new ones, avoid using batteries of different brands.
When buying a Lithium battery, you should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturers and ensure the batteries will work stably and safely by aging test.
Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
Batteries should be stored carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
Product features
The Solar Power Manager (C) is compatible with general 6V~24V solar panels. It can recharge the 18650 rechargeable Li-ion batteries through solar panel or USB TYPE-C connection, and provides 5V / 3A regulated output (with multi protocols support including PD/QC/FCP/PE/SFCP).
The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep operating with high-efficiency, stability, and safety. It is suitable for solar powered, low-power IoT, and other environmental protection projects.
- Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel.
- Flexible battery recharging: from solar panel or USB TYPE-C power adapter.
- Compatible with 6V~24V solar panels, DC-002 jack input or screw terminal input
- Onboard MPPT SET switch, select the level closed to input level to improve recharging efficiency
- Onboard aluminum electrolytic capacitor and SMD ceramic capacitor, reducing the ripple, stable performance
- Embedded battery holder, supports 3x 18650 rechargeable Li-ion batteries
- Several LED indicators, for monitoring the status of solar panel and battery
- Multi protection circuits: over charge / over discharge / reverse-proof / over heat / over current, stable and safe to use
Supports 6V~24V solar panels
5-level voltage switch, for setting solar panel input voltage to improve efficiency
3x 18650 batteries support
Embedded battery holder for rechargeable Li-ion batteries
Application example
solar-powered control system for MCUs / development boards like:
Raspberry Pi / Jetson Nano / Arduino...
Note: for reference ONLY, the Raspberry Pi, display, solar panel are NOT included.
Resources introduction
- Solar panel input
recharging through DC-002 jack or screw terminal - TYPE-C recharging/output port
supports 5V power adapter for recharging
supports PD protocol quick charge adapter
supports PD/QC/FCP/PE/SFCP multi protocols output - USB output port
5V/3A regulated output
supports PD/QC/FCP/PE/SFCP multi protocols output
- Battery on/off switch
- BOOT button
- Quick charge indicator
- Solar panel status indicators
Solar Warning: lights up if solar panel is reversed
Solar Charge: lights up when recharging from solar panel
Solar Done: lights up when the battery is fully recharged - Battery life indicators
Outline Dimensions
What's in the box?
1 x solar manager
Resources & Services
Wiki: Solar_Power_Manager_(C)
2-Channel Isolated CAN FD Expansion HAT for Raspberry Pi, Multi Protections (CAN fd hat for pi)
Description:
The 2-CH CAN FD HAT is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi, supports CAN FD (CAN with Flexible Data-Rate). It will enable CAN bus for your Raspberry Pi, not only the original CAN 2.0 protocol, but also the CAN FD extension, with higher data throughput.
Thanks to multi onboard protection circuits, including 500W lightningsurge, ESD protection, short circuit protection, and electrical isolation, it make the communication more safe and more reliable.
Specifications
What Can It Do?
Designed For Raspberry Pi Series
Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
2-Channel CAN Support
MCP2518FD CAN Controller MCP2562FD CAN Transceiver
Electrical Isolation Circuitry Safe & Stable
SM24CANB TVS Diode, ESD Protection, Transient Peak Voltage Protection
Flexible With Handy Jumpers
Easily Select 3.3V / 5V Operating Voltage, Or Enable/Disable 120Ω Terminal Resistor, Via Onboard Jumpers
What's On Board
Pinout Definition
Outline Dimensions
Resources & Services
The 2-CH CAN FD HAT is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi, supports CAN FD (CAN with Flexible Data-Rate). It will enable CAN bus for your Raspberry Pi, not only the original CAN 2.0 protocol, but also the CAN FD extension, with higher data throughput.
Thanks to multi onboard protection circuits, including 500W lightningsurge, ESD protection, short circuit protection, and electrical isolation, it make the communication more safe and more reliable.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports both traditional CAN2.0 and CAN FD protocols
- Breakout SPI control pins, for connecting with host control boards like STM32/Arduino
- Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability
- Onboard lightningproof, ESD protection, short circuit protection, more safe communication
- Onboard voltage translator, select 3.3V/5V operating voltage by jumper
- Onboard 120Ω terminal resistor, configured by jumper
- Comes with development resources and manual (examples for Raspberry Pi/Arduino)
Specifications
| CAN CONTROLLER | MCP2518FD | CAN TRANSCEIVER | MCP2562FD |
|---|---|---|---|
| CONTROL BUS | SPI | POWER SUPPLY | External power supply terminal OR Raspberry Pi |
| SCREW TERMINALINPUT VOLTAGE | DC 8~26V | OPERATING VOLTAGE | 5V |
| LOGIC LEVEL | 3.3V/5V | DIMENSIONS | 65.0 × 56.5mm |
What Can It Do?
Enable Isolated And Stable CAN FD Capability For Your Raspberry Pi
Designed For Raspberry Pi Series
Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
2-Channel CAN Support
MCP2518FD CAN Controller MCP2562FD CAN Transceiver
Electrical Isolation Circuitry Safe & Stable
SM24CANB TVS Diode, ESD Protection, Transient Peak Voltage Protection
Flexible With Handy Jumpers
Easily Select 3.3V / 5V Operating Voltage, Or Enable/Disable 120Ω Terminal Resistor, Via Onboard Jumpers
What's On Board
- MCP2518FD controller
- MCP2562FD transceiver
- SI8642ED digital isolator
- MP1584EN power chip
- RT9193-33 power chip
- B0505LS-1W power supply isolation module
- Standard Raspberry Pi 40PIN GPIO header
- CAN bus screw terminal
- External power supply terminal
8~26V DC input - MCU control pins
for use with host boards like Arduino
- 120Ω terminal resistor switch
- 3.3V/5V logic level switch
- CAN operating mode selection
A: CAN_0 and CAN_1 use two separated SPI (default)
B: CAN_0 and CAN_1 share a single SPI - Power indicator
- 2A fast resettable fuse
- Power supply reverse-proof diode
- Power supply flow backward proof diode
- Freewheeling diode
- SM24CANB TVS diode
Pinout Definition
Outline Dimensions
Resources & Services
WIKI: 2-CH_CAN_FD_HAT
Multi Colour RJ45 Network Cable Lead Connector Boot for Cat 5 5e 6 (10 pack) (coloured RJ45 boots(10))
Images are for illustration purposes only. Colors may vary
Description:
Snagless boots for CAT5 CAT5E CAT6 CAT6E Networking Cable
Suitable for Round 0.25 Diameter UTP Cable
Made of high density polyethylene (HDPE)
Protect the plug latch from snagging when pulling cords
Features:
Material:PC .
Protect the adapter Plug Cable.
Color : random
Package includes:
10 X RJ45 Cap Boots Modular Plug Cover
Description:
Snagless boots for CAT5 CAT5E CAT6 CAT6E Networking Cable
Suitable for Round 0.25 Diameter UTP Cable
Made of high density polyethylene (HDPE)
Protect the plug latch from snagging when pulling cords
Features:
Material:PC .
Protect the adapter Plug Cable.
Color : random
Package includes:
10 X RJ45 Cap Boots Modular Plug Cover
Sense HAT (B) for Raspberry Pi Multi Powerful Sensors for Raspberry Pi (WS Sense)
Overview
What's on Board
Development Resources
The Sense HAT (B) is specially designed for Raspberry Pi, integrates multi powerful sensors such as gyroscope, accelerometer, magnetometer, barometer, temperature and humidity sensor, etc. It is communicated via I2C interface, and allows to connect more external sensors if you need.
Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice.
Features- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Onboard ICM20948 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic
- Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment
- Onboard LPS22HB barometric pressure sensor, allows monitoring the environment
- Onboard TCS34725 color sensor, identifies the color of nearby object
- Onboard ADS1015 ADC, 4-ch 12-bit precision, AD expansion to support more external sensors
- Brings I2C control pins, for connecting other host boards like STM32
- Comes with development resources and manual (examples for Raspberry Pi/STM32)
- Operating voltage: 3.3V
- Communication interface: I2C
- Logic level: 3.3V

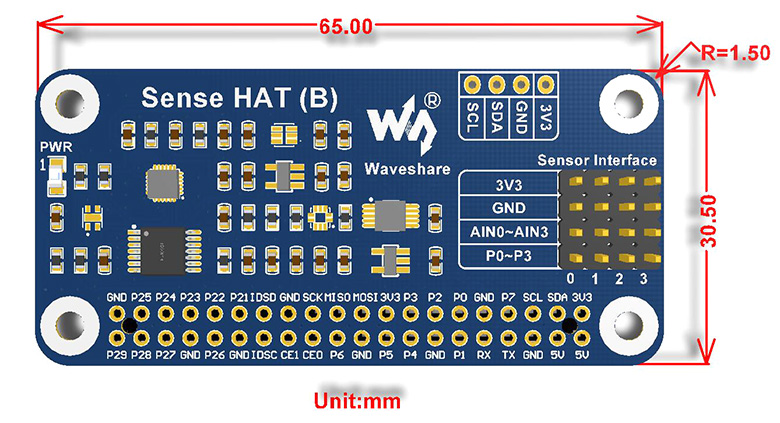

- Dimensions: 65mm x 30.5mm

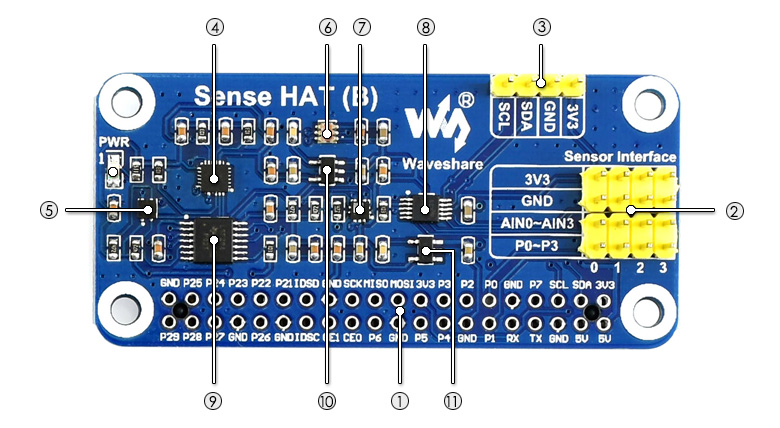

What's on Board
- Raspberry Pi GPIO connector: for connecting with Raspberry Pi
- Sensor Interface: for external sensors
- I2C extension header: for connecting host boards like Arduino/STM32
- ICM-20948: 9-axis movement sensor
- SHTC3: temperature and humidity sensor
- TCS34725: color sensor
- LPS22HB: barometric pressure sensor
- ADS1015: 12-bit ADC
- LSF0204PWR: 4-ch voltage level translator
- RT9193-18: 1.8V linear regulator
- RT9193-33: 3.3V linear regulator
Development Resources- 1
