D-Link 24 port DGS-1024C Unmanaged Gigabit Ethernet Switch (D-Link 24 port switch)
Description:
The DGS-1024C lets you enjoy fast wired connectivity with 24 Gigabit LAN ports, and easy Plug-and-play installation. It even reduces power to a port when there is no traffic, and optimizes power usage for a port for the length of cable connected to it, giving you more energy efficiency in your SOHO or SMB network.
Specifications:
What's in the box?
1 x D-Link DGS-1024C switch
The DGS-1024C lets you enjoy fast wired connectivity with 24 Gigabit LAN ports, and easy Plug-and-play installation. It even reduces power to a port when there is no traffic, and optimizes power usage for a port for the length of cable connected to it, giving you more energy efficiency in your SOHO or SMB network.
Specifications:
- 24 Gigabit LAN ports for high-speed wired connections
- Plug-and-play installation for convenience
- Auto-negotation on all ports
- Half/full-duplex, auto MDI/MDIX, and store-and-forward switching
- Full wire-speed data transmission
- Energy-efficient design
What's in the box?
1 x D-Link DGS-1024C switch
D-Link DGS-1008PE 8 port Unmanaged Switch with POE on 4 of the ports (DL DGS-1008PE 8 port switch)
Description:
Switch type: Unmanaged.
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000),
Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex.
MAC address table: 8000 entries,
Switching capacity: 16 Gbit/s.
Networking standards: IEEE 802.3,IEEE 802.3ac,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x.
Power connector: DC-in jack.
Power over Ethernet (PoE): 4 ports
Power Over Ethernet
The first four ports of the DGS-1008P support the IEEE 802.3at PoE protocol. Each of the four ports can supply up to 30 watts, for a total PoE budget of 68 watts, allowing users to attach an IEEE 802.3at-compliant device to the DGS-1008P that requires no additional power.
What's in the box?
1 x DGS-1008PE unmanaged switch
Switch type: Unmanaged.
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000),
Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex.
MAC address table: 8000 entries,
Switching capacity: 16 Gbit/s.
Networking standards: IEEE 802.3,IEEE 802.3ac,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x.
Power connector: DC-in jack.
Power over Ethernet (PoE): 4 ports
Power Over Ethernet
The first four ports of the DGS-1008P support the IEEE 802.3at PoE protocol. Each of the four ports can supply up to 30 watts, for a total PoE budget of 68 watts, allowing users to attach an IEEE 802.3at-compliant device to the DGS-1008P that requires no additional power.
What's in the box?
1 x DGS-1008PE unmanaged switch
D-Link DGS-1016C 16 Port Gigabit Unmanaged Switch (DL DGS-1016C 16 port switch)
Description:
Fast Connectivity meets Energy Efficiency
The DGS-1016C lets you enjoy fast wired connectivity with 16 Gigabit LAN ports, and easy Plug-and-play installation. It even reduces power to a port when there is no traffic, and optimizes power usage for a port for the length of cable connected to it, giving you more energy efficiency in your SOHO or SMB network.
Reliable Plug and Play Installation
The DGS-1016C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices. All ports on the switch have up to 4 kV surge protection in order to improve network reliability.
Specifications:
What's in the box?
1 x DGS-1016C switch
Fast Connectivity meets Energy Efficiency
The DGS-1016C lets you enjoy fast wired connectivity with 16 Gigabit LAN ports, and easy Plug-and-play installation. It even reduces power to a port when there is no traffic, and optimizes power usage for a port for the length of cable connected to it, giving you more energy efficiency in your SOHO or SMB network.
Reliable Plug and Play Installation
The DGS-1016C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices. All ports on the switch have up to 4 kV surge protection in order to improve network reliability.
Specifications:
- Gigabit Unmanaged Switch
- 1000Base-T Interface: 16
- Switching Capacity: 32Gbps
- Packet Forwarding Rate: 23.808 Mpps
- Full Wire-Speed Data Transmission
- Plug-and-Play
What's in the box?
1 x DGS-1016C switch
D-Link DES-1008C 8-Port 10/100 Unmanaged Switch (DL DES-1008C 8 port switch)
Description:
Fast Networking Made Easy
With data transfer speeds of up to 200 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.
Economical, Plug-and-play Networking Switch
The DES-1008C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It gives you eight 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Conserve Energy
The DES-1008C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. It can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The DES-1008C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Specifications:
100Base-TX Interface 8
Standby Power Consumption 0.55 watts
Maximum Heat Dissipation 0.691 BTU/h
MTBF 1,579,582 hours
Power Input DC: 5V, 0.55A
What's in the box?
1 x Unmanaged Switch
Fast Networking Made Easy
With data transfer speeds of up to 200 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.
Economical, Plug-and-play Networking Switch
The DES-1008C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It gives you eight 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Conserve Energy
The DES-1008C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. It can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The DES-1008C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Specifications:
100Base-TX Interface 8
Standby Power Consumption 0.55 watts
Maximum Heat Dissipation 0.691 BTU/h
MTBF 1,579,582 hours
Power Input DC: 5V, 0.55A
What's in the box?
1 x Unmanaged Switch
Multi Colour RJ45 Network Cable Lead Connector Boot for Cat 5 5e 6 (10 pack) (coloured RJ45 boots(10))
Images are for illustration purposes only. Colors may vary
Description:
Snagless boots for CAT5 CAT5E CAT6 CAT6E Networking Cable
Suitable for Round 0.25 Diameter UTP Cable
Made of high density polyethylene (HDPE)
Protect the plug latch from snagging when pulling cords
Features:
Material:PC .
Protect the adapter Plug Cable.
Color : random
Package includes:
10 X RJ45 Cap Boots Modular Plug Cover
Description:
Snagless boots for CAT5 CAT5E CAT6 CAT6E Networking Cable
Suitable for Round 0.25 Diameter UTP Cable
Made of high density polyethylene (HDPE)
Protect the plug latch from snagging when pulling cords
Features:
Material:PC .
Protect the adapter Plug Cable.
Color : random
Package includes:
10 X RJ45 Cap Boots Modular Plug Cover
RJ45 CAT6 Panel Mount RJ45 Female to Female Network Connector (RJ45 panel connect no cable)
Description:
Ideal for connecting 2 network cables together to create single longer cable. Or to extend your network port when mounting your device
Specifications:
Product Usage:
Application range:
What's in the box?:
1 x RJ45 panel connector
Ideal for connecting 2 network cables together to create single longer cable. Or to extend your network port when mounting your device
Specifications:
- Zinc alloy casing integrated
- Integrated through Gigabit network module
- PA nylon wrapped chip
- High quality chip 6U gold plated
- Clear Gigabit Network Identification
- Screw hole lead angle, more beautiful
- Unit weight: 21.9g
Product Usage:
- Two network cables are connected in series to form a longer network cable.
- If you need to plug and unplug the network cable frequently, this product can be used to protect the device interface and extend the life of the device.
Application range:
- Winding reel
- Standard aluminum alloy 86 type panel: floor box, wall box, desktop box
- Cabinet panel
What's in the box?:
1 x RJ45 panel connector
WIZnet Ethernet HAT for Pico (wiznet ethernet for pico)
Raspberry Pi Pico not included
Description

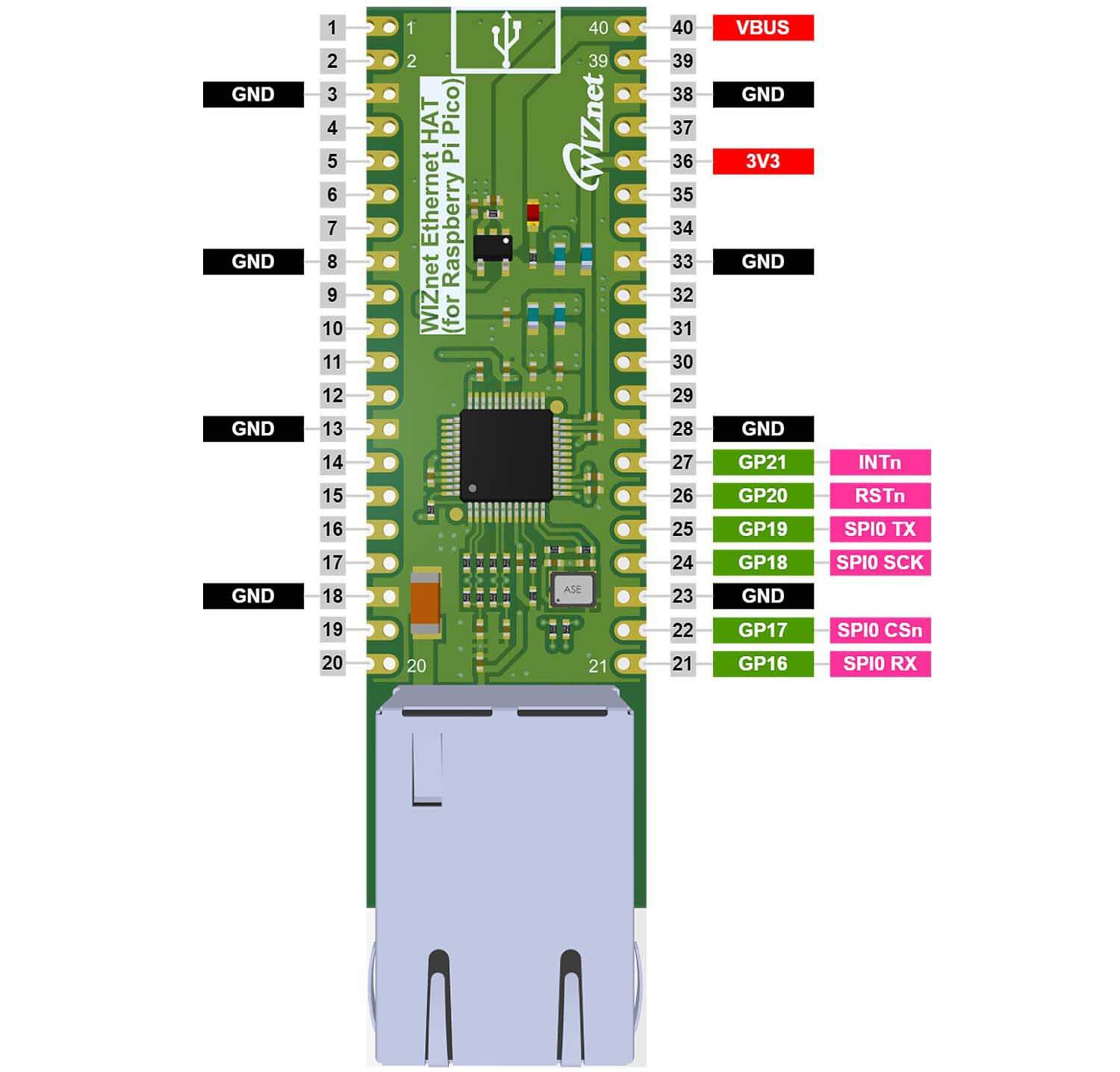

Pin Description
ResourcesPackage Contents
Description
The WIZnet Ethernet HAT is a Raspberry Pi Pico add-on board that utilizes the W5100S embedded internet controller chip to provide an Ethernet connection to your Raspberry Pi Pico via SPI.
The board supports both 3.3V & 5V and can be mounted directly to your Pico as the HAT pinout matches the Raspberry Pi Pico pin footprint
About the W5100S Embedded Internet ControllerThe W5100S is an embedded Internet controller designed as a full hardwired TCP/IP with WIZnet technology. W5100S provides internet connectivity to your Pico by using SPI (Serial Peripheral Interface). SPI provides an easy connection via external MCU to W5100S. The clock speed of W5100S SPI supports up to 70MHz.
Since the W5100S integrates the hardwired TCP/IP stack with 10/100 Ethernet MAC and PHY, it is truly a one-chip solution for stable internet connectivity. WIZnet’s hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE - and it has been proven through various applications over the last decade.
The W5100S provides four independent sockets to be used simultaneously and 16KB internal memory for data communication. Users can develop an Ethernet application easily by using the simple W5100S socket program instead of handling a complex Ethernet Controller. W5100S also provides WOL (Wake on LAN) and a Power Down Mode in order to reduce power consumption.
Features- Utilises the W5100S embedded internet controller
- Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
- Supports 4 Independent Hardware SOCKETs simultaneously
- Internal 16 Kbytes Memory for TX/ RX Buffers
- Operation Voltage 3.3V / 5V
- Built-in LDO (LM8805SF5-33V)
- SPI Interface
- 5V I/O tolerance
- 10 / 100 Ethernet PHY embedded
- Supports Auto Negotiation
- Full / Half Duplex
- 10 / 100 Based
- Built-in RJ45 (RB1-125BAG1A)
Pin Description
| I/O | Pin Name | Description |
| P | VBUS | Power supply, 4.3~5.5 Voltage |
| P | 3V3 | Power supply, 3.3 Voltage |
| P | GND | Power ground |
| I | INTn | W5100S Interrupt Low activity. |
| I | RSTn | W5100S Reset: Low activity |
| I | SPI0 TX | SPI MOSI (Master Out Slave In) |
| I | SPI0 SCK | SPI Clock |
| I | SPI0 CSn | SPI Slave Select |
| O | SPI0 RX | SPI MISO(Master In Slave Out) |
ResourcesPackage Contents
- 1x WIZnet Ethernet HAT
- 2x 20-pin female headers
Coming soon. Pricing is currently estimated. Please login to your account and add this product to your wishlist to be notified when stock arrives.
WIZnet W5100S-EVB-Pico - RP2040 Board with Ethernet (w5100s evb pico rp2040)
Description
Pinout
The W5100S-EVB-Pico is a microcontroller evaluation board based on the Raspberry Pi RP2040 microcontroller chip and a full hardwired TCP/IP controller W5100S chip.
As the board uses the same pin layout as the Raspberry Pi Pico and includes W5100S embedded ethernet controller, giving you the power of a Raspberry Pi Pico with Ethernet connectivity in a single board!
There's a detailed getting started guide and firmware examples, and it's also the first RP2040-based device to receive AWS IoT Core Qualification!
Don't forget to grab a micro-USB cable for programming. The board comes with a pair of male headers
Features- RP2040 microcontroller with 2MB Flash
- Dual-core Cortex M0+ at up to 133MHz
- 264kByte multi-bank high-performance SRAM
- External Quad-SPI Flash with eXecute In Place (XIP)
- High-performance full-crossbar bus fabric
- 30 multi-function General Purpose IO (4 can be used for ADC)
- 1.8-3.3V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3V)
- 12-bit 500ksps Analogue to Digital Converter (ADC)
- Various digital peripherals
- 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels
- 1 × Timer with 4 alarms, 1 × Real Time Counter
- 2 × Programmable IO (PIO) blocks, 8 state machines total
- Flexible, user-programmable high-speed IO
- Can emulate interfaces such as SD Card and VGA
- Includes W5100S Embedded Ethernet Controller
- Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
- Supports 4 Independent Hardware SOCKETs simultaneously
- Internal 16 Kbytes Memory for TX/ RX Buffers
- SPI Interface
- Other Features
- Micro-USB B port for power and data (and for reprogramming the Flash)
- 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
- 3-pin ARM Serial Wire Debug (SWD) port
- 10 / 100 Ethernet PHY embedded
- Supports Auto-Negotiation
- Full / Half Duplex
- 10 / 100 Based
- Built-in RJ45(RB1-125BAG1A)
- Built-in LDO (LM8805SF5-33V)

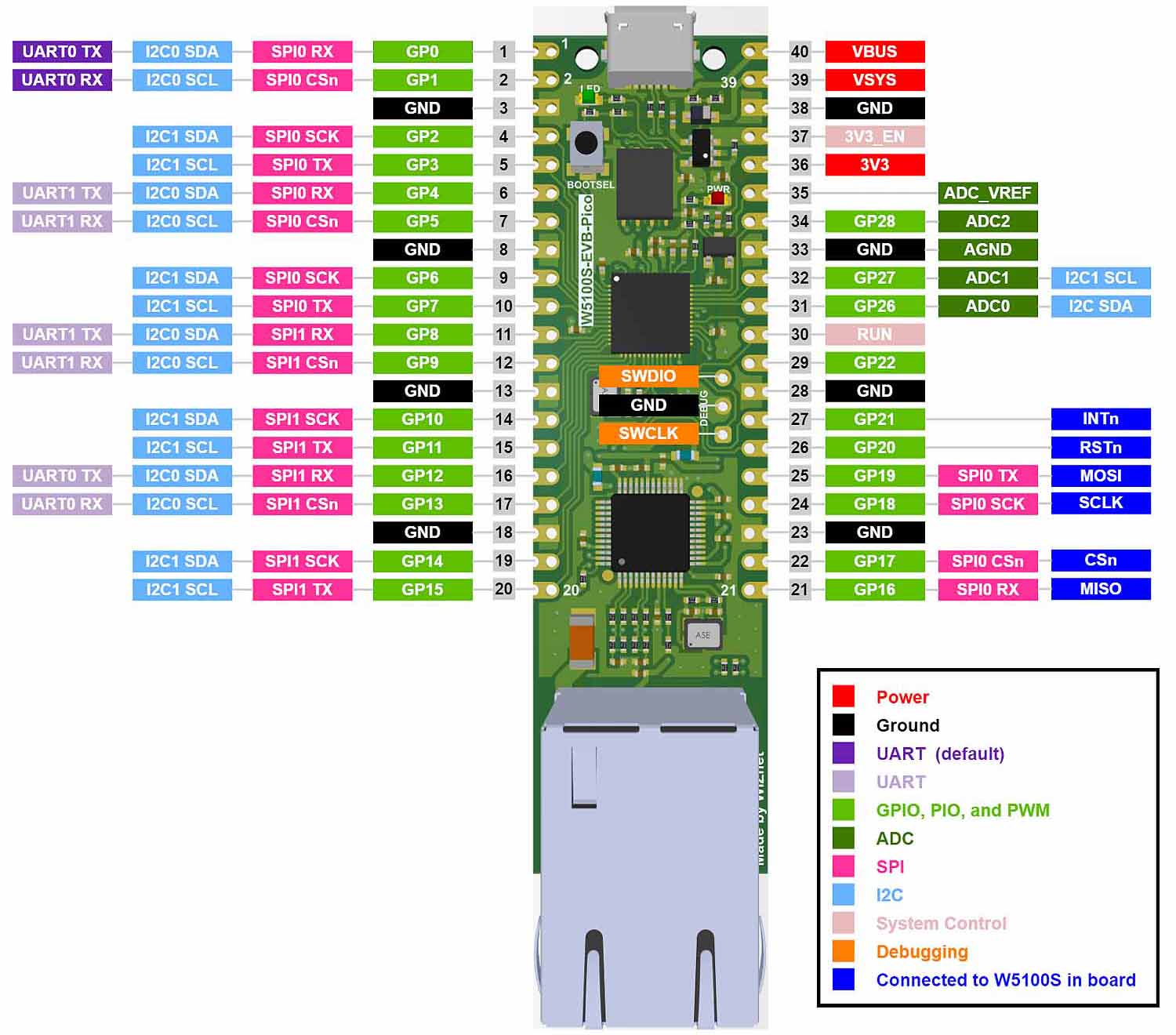

Pinout
The W5100S-EVB-Pico pinout is directly connected to the GPIO of RP2040 as shown in the picture above. It has the same pinout as the Raspberry Pi Pico board. However, GPIO16, GPIO17, GPIO18, GPIO19, GPIO20, GPIO21 are connected to W5100S inside the board. These pins enable SPI communication with W5100S to use the Ethernet function.
If you are using the Ethernet function, these pins cannot be used for any other purpose.
The RP2040 GPIO used inside W5100S-EVB-Pico is as follows.
| I/O | Pin Name | Description |
| I | GPIO16 | Connected to MISO on W5100S |
| O | GPIO17 | Connected to CSn on W5100S |
| O | GPIO18 | Connected to SCLK on W5100S |
| O | GPIO19 | Connected to MOSI on W5100S |
| O | GPIO20 | Connected to RSTn on W5100S |
| I | GPIO21 | Connected to INTn on W5100S |
| I | GPIO24 | VBUS sense - high if VBUS is present, else low |
| O | GPIO25 | Connected to user LED |
| I | GPIO29 | Used in ADC mode (ADC3) to measure VSYS/3 |
Apart from GPIO and ground pins, there are 7 other pins on the main 40-pin interface:
| Pin | Name | Description |
| 40 | VBUS | Micro-USB input voltage, connected to micro-USB port pin 1. Nominally 5V |
| 39 | VSYS | Main system input voltage, which can vary in the allowed range 4.3V to 5.5V, and is used by the on-board LDO to generate the 3.3V |
| 37 | 3V3_EN | Connects to the on-board LDO enable pin. To disable the 3.3V (which also de-powers the RP2040 and W5100S), short this pin low |
| 36 | 3V3 | Main 3.3V supply to RP2040 and W5100S, generated by the on-board LDO |
| 35 | ADC_VREF | ADC power supply (and reference) voltage, and is generated on W5100S-EVB-Pici by filtering the 3.3V supply |
| 33 | AGND | Ground reference for GPIO26-29 |
| 30 | RUN | RP2040 enable pin, To reset RP2040, short this pin low |
Operating Conditions
| Item | Description |
| Operation Temperature MAX | 85C (including self-heating) |
| Operation Temperature MIN | -20C |
| VBUS | DC 5V (+/- 10%) |
| VSYS Min | DC 4.3V |
| VSYS Max | DC 5.5V |
Recommended maximum ambient temperature of operation is 70C.
Resources- Getting Started
- Firmware Examples
- AWS Device Catalog
- Getting Started with AWS IoT Core
- RP2040 Datasheet
- W5100S Datasheet
- Schematic
- Schematic Parts List/Gerber
- 1x W5100S-EVB-Pico
- 2x 20-pin male headers
Coming soon. Pricing is currently estimated. Please login to your account and add this product to your wishlist to be notified when stock arrives.
