Arcade

Arcade related kits and bundles
Sort By:
We bundled a few arcade parts in a kit and slapped some discount on for you.
R319.90  Inc VAT
R349.66
R999.90  Inc VAT
Coming Soon. Login and add this item to your wishlist to be notified when stock arrives. Pricing is estimated at this stage and might change.
R799.90  Inc VAT
Coming Soon. Login and add this item to your wishlist to be notified when stock arrives. Pricing is estimated at this stage and might change.
R1,729.90  Inc VAT
Arcade Kit DIY Replacement Parts USB Encoder to PC Joystick and Buttons (C23 Arcade kit)
Features :

Each encoder can support one joystick.
Use them to DIY your own Arcade game machine.
The Zero Delay USB Arcade Encoder is a fully compatible plug and play solution, simply plug in your joystick and buttons into the encoder, plug the USB cable into the Pi, map your buttons in RetroPi and away you go - it really is that easy! You can use multiple encoders at the same time, so they're great for multiplayer arcade machines!

Specifications :

Joystick Size: Approx. 95x60x100mm
Encoder Board Size: Approx. 85x35mm
USB Cable Length: Approx. 1.8m
Colour: Red

We have tested this unit on Raspberry Pi using Retropie and a Windows 7 PC using MAME.

Package includes :

1 x Encoder Board
1 x USB Cable
1 x 5 pin Cable for Joystick
1 x 5 Pin Joystick
8 x 30mm Push Buttons
2 x 24mm Push Buttons
13 x Cables for Buttons
R499.90  Inc VAT
Blade Type DIY Arcade Kit (Blade arcade kit)
Perfect for your DIY arcade project.
Replacement blades are available for the joystick and buttons

This kit includes:
1 x blade type 8-way arcade
1 x blade type red button
1 x blade type purple button
1 x blade type green button
1 x blade type yellow button
1 x blade type blue button
1 x blade type orange button
2 x blade type white buttons
1 x zero delay usb encoder board
1 x joystick/buttons connector cable set(You will have to change the lugs)
1 x usb connector cable

We have tested this unit on Raspberry Pi using Retropie and a Windows 7 PC using MAME.
We bundled a few arcade parts in a kit and slapped some discount on for you.
R319.90  Inc VAT
R349.66
Zero Delay Arcade USB Encoder & Wire Set(Lugs joystick) (3A3 Arcade lugs controller board)

Please note: cable colours will vary. Pic is for illustration purposes only.

Looking for a Rasberry Pi compatible encoder for your Arcade Project? The Zero Delay USB Arcade Encoder is what you need! It's a fully compatible plug and play solution, simply plug in your joystick and buttons into the encoder, plug the USB cable into the Pi, map your buttons in RetroPi and away you go - it really is that easy! You can use multiple encoders at the same time, so they're great for multiplayer arcade machines! This set includes all wiring hardware required to connect a 4 lug type joystick and up to 12 buttons (12 x unmapped, 4 x pre-set).

Features

  • "Zero Delay" Lag-Free USB Encoder
  • Plug and Play USB Encoder
  • Fully Compatible with Raspberry Pi (in addition to Windows/XP etc.)
  • Includes Wiring Loom
    • USB to Microcontroller
    • 16 x 2 Pin JST Button Wires
  • Encoder Inputs
    • 1 x 5 Pin Joystick Input(Cable not supplied in this kit)
    • 1 x 10 Pin Joystick Input
    • 12 x Unmapped Button Inputs
    • 4 x Hardware Preset Button Input
      • AUTO - For autofire
      • TURBO - For rapidfire
      • CLR - Clears AUTO/TURBO
      • MODE - Sets thumb-joystick mode
  • Dimensions: 85mm x 35mm x 10mm
We have tested this unit on Raspberry Pi using Retropie and a Windows 7 PC using MAME.

Wiring guide(for ribbon type - not this kit)
R169.90  Inc VAT
Picade DIY kit - 8 inch display (3B1 Picade 8inch)

Picade

The ultimate desktop retro arcade machine! Picade is a Raspberry Pi-powered mini arcade that you build yourself, with authentic arcade controls, a high resolution 4:3 display that's ideal for retro gaming, and a punchy speaker to hear those 8-bit game soundtracks at their best

The all-new Picade has been completely redesigned, from the inside out! There's new artwork, a new display and display driver board, dedicated power button, an all-new Picade X HAT, easier wiring, easier access to the interior of the cabinet, beautiful new packaging, a bunch of extra goodies (stickers and an enamel Picade pin), and a gorgeous Picade poster and assembly instructions.

Picade comes in kit form, and it'll take around two to three hours to build. The cabinet is made from powder-coated MDF, giving it a quality look and feel similar to a full-size arcade. All you'll need to add is a Raspberry Pi, power supply, and micro-SD card.

You can watch a video on  Picade at https://youtu.be/5iUuOH1Ip4A

Cabinet features

  • Black, powder-coated panels
  • Acrylic marquee and console with authentic artwork
  • Push-fit arcade buttons
  • Joystick with black ball top
  • 3" speaker (5W, 4Ω)
  • Easy access with removable back panel
  • Dedicated illuminated power button
  • Grippy rubber feet
  • Dimensions: 350x230x210mm

8-inch display features

  • 1024x768 (4:3 ratio) IPS (wide viewing angle) display
  • Pimoroni-designed and manufactured HDMI display driver board and keypad controls
  • Powered by micro-USB cable (included) from your Pi

10-inch display features

  • 1024x768 (4:3 ratio) IPS (wide viewing angle) display
  • Pimoroni-designed and manufactured HDMI display driver board and keypad controls
  • Powered by micro-USB cable (included) from your Pi

Picade X HAT features

  • Easy DuPont connectors for buttons and joystick
  • Push-fit speaker terminals
  • I2S audio DAC with 3W amplifier (mono)
  • Power management, power switch pins, and power button
  • 4-way joystick inputs
  • 6 player buttons
  • 4 utility buttons
  • Metal standoffs to hold your Picade X HAT securely

Extras

  • Picade enamel pin badge
  • Pimoroni Super Sticker Selection
  • Picade poster / assembly instructions

What's new!?

The cabinet is more compact, so it fits more neatly on your desk, but has a higher resolution 8"  or 10" display (1024x768). The display is driven by a new Pimoroni-designed and manufactured driver board, with keypad controls. It's an IPS panel, so it looks great from any viewing angle!

The all-new Picade X HAT is packed full of useful features. We've moved from more fiddly screw terminals to simple DuPont connectors that just push in, and the speaker terminals are the same easy push-fit connectors that we use on pHAT BEAT.

There's dedicated power management on-board Picade X HAT; just plug your micro-USB power supply into the HAT and it'll power your Pi through its pins. The power button connected to the HAT means that once your Pi is safely shutdown, the power will be cut completely to the Pi. A simple press of the power button will boot your Picade up again.

The new buttons in Picade are lower profile, and the new joystick has a single connector rather than the eight spade connectors on our previous Picade joystick.

A gorgeous new neon-look Picade logo on the marquee, and rainbow stripes on the console and screen-surround, evoke classic consoles, as do the assembly instructions and poster.

Building your Picade

We hope the included assembly instructions have everything you need to build your Picade, but we've also filmed a complete build video of Picade that you can watch as you build and learn some handy tips and tricks. Find it at https://youtu.be/gTgu1fUVsmw

The sections are also available separately in a playlist here.

We've also put together an online tutorial that incorporates the assembly instructions, important tips and amendments, and the videos for each section, so do check that out!

Software setup

We recommend the RetroPie operating system for your Picade. You can download it from the RetroPie website and then burn it to a micro-SD card with Etcher.

Connect a USB keyboard to your Pi, and connect to Wi-Fi in the RetroPie menu. Press F4 to exit to the terminal and then type curl https://get.pimoroni.com/picadehat | bash to run the Picade HAT installer.

Reboot your Pi, if it doesn't prompt you to. Press the "Alt" key on your keyboard and then select "Configure input" to configure your Picade's controls. You'll find that the sound and power button should both be working now too!

Notes

If your Picade display doesn't show anything when you first power it up, then it could be because the HDMI display is not being detected by the Raspberry Pi. This can happen because power isn't supplied to the USB ports on the Raspberry Pi for the first few seconds of booting. The solution is to edit the /boot/config.txt file on your RetroPie SD card, and add hdmi_force_hotplug=1 on a new line at the bottom of the file.

If you'd like to design your own artwork for your Picade, then we've made a handy PDF that has the outlines and dimensions of the marquee, screen shim, and console. You can download it from the Picade HAT GitHub repo here.

Where to find ROMs for RetroPie (free and legally) https://howchoo.com/g/otiwyjhlnzb/where-to-find-roms-for-retropie

and here http://cvaddict.com/article.php?articleid=15

R2,499.90  Inc VAT
Picade Console DIY kit (3B1 Picade console)

Power-up your TV with Picade Console! It's a compact, Raspberry Pi-powered retro games machine with authentic arcade controls that plugs right into your TV, monitor, or other HDMI display.

Picade Console is fight stick-style arcade console that riffs off our new Picade with the same retro feel, same joystick and buttons, dedicated power button, and driven by the same powerful combo of the Raspberry Pi and Picade X HAT. It's beautifully packaged, comes with stickers and a neon-infused A3 Picade Console poster, and full assembly instructions.

It comes in kit form and takes an hour or two to build. The enclosure is made from powder-coated MDF and acrylic, giving it an authentic arcade look and feel. All you'll need to add is a Raspberry Pi, power supply, HDMI cable, and micro-SD card.

*TV not included! Using a CRT TV requires additional adaptors.

Video available on this unit at https://youtu.be/TiFBHOZROrw

Features

  • Black, powder-coated panels
  • Acrylic console with retro artwork
  • Push-fit arcade buttons
  • Joystick with black ball top
  • Speaker (3W, 4Ω, 2.5" driver)
  • Easy access with removable back panel
  • Dedicated illuminated power button
  • Grippy rubber feet
  • Dimensions (assembled): 245x120x140mm

Picade X HAT features

  • Easy DuPont connectors for buttons and joystick
  • Push-fit speaker terminals
  • I2S audio DAC with 3W amplifier (mono)
  • Power management, power switch pins, and power button
  • 4-way joystick inputs
  • 6 player buttons
  • 4 utility buttons
  • Metal standoffs to hold your Picade X HAT securely

Extras

  • Picade Console poster / assembly instructions
  • Picade stickers

What's new!?

Picade Console is more compact and easier to build, but has a bunch of new features liked a dedicated power button, better cable routing out the back of the console with a panel-mount micro-USB connector for power, and slick new artwork.

The new buttons in Picade are lower profile, and the new joystick has a single connector rather than the eight spade connectors on our previous Picade joystick.

Picade X HAT is all-new and packed full of useful features. We've moved from more fiddly screw terminals to simple DuPont connectors that just push in, and the speaker terminals are the same easy push-fit connectors that we use on pHAT BEAT.

There's dedicated power management on-board Picade X HAT; just plug your micro-USB power supply into the HAT and it'll power your Pi through its pins. The power button connected to the HAT means that once your Pi is safely shutdown, the power will be cut completely to the Pi. A simple press of the power button will boot your Picade Console up again.

Software setup

We recommend the RetroPie operating system for your Picade. You can download it from the RetroPie website and then burn it to a micro-SD card with Etcher.

Connect a USB keyboard to your Pi, and connect to Wi-Fi in the RetroPie menu. Press F4 to exit to the terminal and then type curl https://get.pimoroni.com/picadehat | bash to run the Picade HAT installer.

Reboot your Pi, if it doesn't prompt you to. Press the "Alt" key on your keyboard and then select "Configure input" to configure your Picade Console's controls. You'll find that the sound and power button should both be working now too!


Where to find ROMs for RetroPie (free and legally) https://howchoo.com/g/otiwyjhlnzb/where-to-find-roms-for-retropie

and here http://cvaddict.com/article.php?articleid=15

R999.90  Inc VAT
Arcade-D-1P USB Arcade Control Box (WS USB arcade console)

Overview

Arcade-D-1P is a 1 player USB arcade control box, provides classic joystick and colorful buttons. Due to its multi platform compatibility, it can be plugged into host such as Raspberry Pi / PC / Tablet / Smart TV, etc. Driver free, plug and play.

Relive your arcade time in childhood.

Features

  • Adopts PC / PS3 / Android Little-Red, the high-speed professional competition-grade chip, fast response, driver free, multi platform compatibility
  • Alloy bottom case, UV silk print acrylic panel, premium craft design, conform to human engineering
  • Complete buttons, allows user-defined

Specifications

  • Product category: Arcade Control Box
  • Supported device: Raspberry Pi / PC / Notebook / OTG Android Phone / Tablet / Smart TV
  • Enclosure material: alloy bottom case, UV silk print acrylic panel
  • Connectivity: USB
  • Arcade control: joystick and 8x buttons
  • Power supply: 5V
  • Dimension: 30cm × 21.5cm × 7.5cm



Development Resources

Wiki : www.waveshare.com/wiki/Arcade-D-1P


Coming Soon. Login and add this item to your wishlist to be notified when stock arrives. Pricing is estimated at this stage and might change.
R799.90  Inc VAT
Arcade-C-1P Arcade Console Powered by Raspberry Pi (WS RPi arcade console)

Overview

Arcade-C-1P is a 1 player arcade console powered by Raspberry Pi 3B+, provides classic arcade control: the durable joystick, and of course the colorful buttons.

Thanks to the RetroPie gaming system, thousands of games are available. Once get tired, you can also use the awesome KODI to watch videos, or listen music, enjoy and relax.

Relive your arcade time in childhood.

Features

  • Raspberry Pi 3B+ controller, 64-bit 1.4G quad-core CPU, 1G SDRAM, provides 60fps smooth gaming experience(Pi included)
  • Supports RetroPie gaming system, thousands of game ROMs are available, the only limit is your TF card size
  • Supports KODI home media center, see a movie, listen music, watch live show, never be a problem
  • HDMI port, connecting to your monitor, TV, or projector, supports 1080P display, configurable resolution
  • Onboard 2.4GHz/5GHz dual-band WiFi, make it possible to eliminate the mess wiring
  • 4x USB ports for connecting USB gamepad, mouse, and keyboard, ect.
  • Embedded left / right dual track stereo speakers, listen to the familiar BGM from the old days

Specifications

  • Product category: Arcade Console
  • Controller: Raspberry Pi 3B+ (64-bit quad-core CPU, 1G SDRAM, with WiFi / Bluetooth)
  • Storage: 16G (supports up to 256G TF card)
  • Enclosure material: alloy bottom case, UV silk print acrylic panel
  • Connectivity: HDMI / USB / Ethernet
  • Resolution: 1080P, configurable
  • Games: thousands of games are available, added by user
  • Arcade control: joystick and 8x buttons, allows user-defined
  • Power supply: 5V

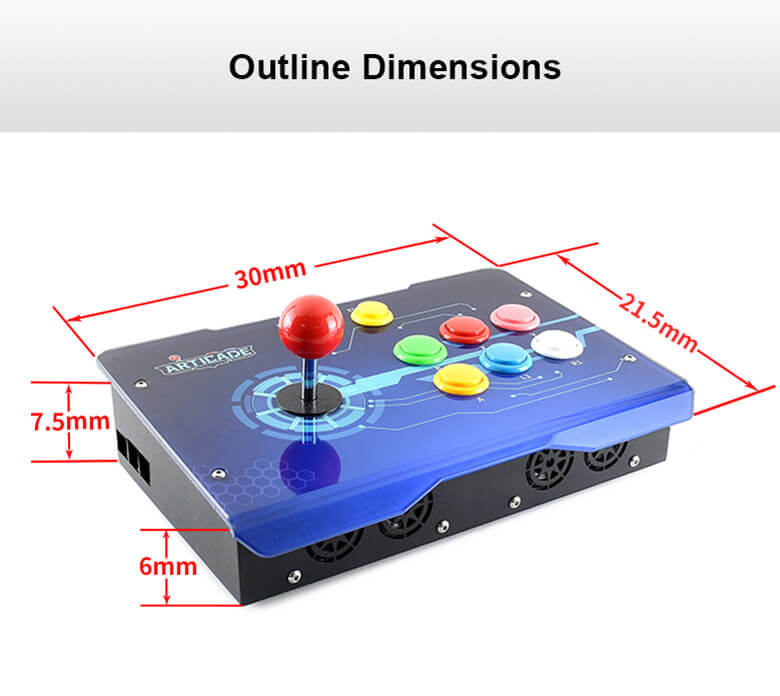

  • Dimension: 30cm × 21.5cm × 7.5cm



Development Resources

Wiki : www.waveshare.com/wiki/Arcade-C-1P

Coming Soon. Login and add this item to your wishlist to be notified when stock arrives. Pricing is estimated at this stage and might change.
R1,729.90  Inc VAT
