Headers and Terminals
These electrical connectors are designed for ribbon cables and telecommunications applications. They are also referred to as insulation-piercing contacts (IPCs).
Specifications:
- 40 Pins Male Standard 0.1" 2.54mm Row spacing
- Low Profile with mounting ears
- 0.1" Pin spacing 0.1" Row spacing, Mates with IDC & PCB male Receptacles
- Insulation Displacement Connector terminates to 0.050" (1.27mm) flat ribbon cable
1 x 40-PIN IDC SOCKET CABLE MOUNT
RASPBERRY PI NOT INCLUDED(Neither the key-ring and keys for those who wondered)

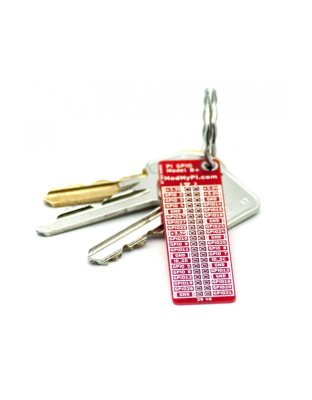

This cute little GPIO reference board from allows you to quickly and easily distinguish between the different pins of the Raspberry Pi Model B , Raspberry Pi 2B, Pi 3B and Pi 4B . It's even got a key chain hole, so you can carry it around and keep it handy - you'll never know when you need to hack a Pi!
The GPIO reference board features BCM numbering on one side and the pin names on the other. It can be soldered for permanent referencing, or slipped on and off when required.
On the RPi3 and later you'll have to snip off a little bit of the corner closest to pin 39 thanks to the new POE pins on the board
What's in the box?
1 x GPIO reference board

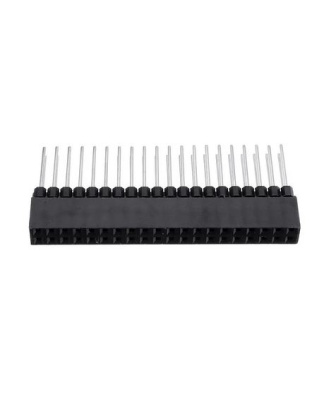

- 40 Pin Double Row (2x20) Socket Connector
- Extension for the Raspberry Pi GPIO Connectors
- Pitch 2.54mm
- Fully Tested on the Raspberry Pi Model B
What's in the box?
1 x 2x20 female header.
These headers easily cut to size if needed
Ideal for
- Arduino
- Pi Zero
- Pico
- Electronic projects
- Printed circuit boards

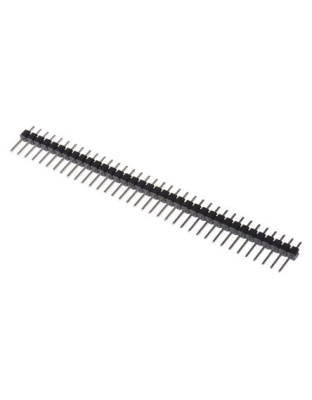

- Gender: Male
- No. of Contacts: 20
- No. of Pins: 20
- Termination: Straight Pins Solder Tail
- Pitch: 2.54mm
- Row Positions: Single Row
What's in the box?
1 x Single Row Header 40-PIN

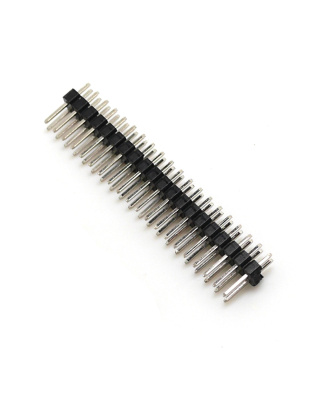

These header pin blocks use the industry standard spacing of 2.54mm and are designed for soldering directly into printed circuit boards (PCB's).
Ideal for:
- Pi Zero
- Electronic projects
- Printed circuit boards
- Gender: Male
- No. of Contacts: 2 x 20
- No. of Pins: 2 x 20
- Termination: Straight Pins Solder Tail
- Size: 2.54mm
- Row Positions: Double Row
What's in the box?
1 x Double Row Pin Header 40 PIN
Looking for a neat way to connect data transmission devices? This 40-way flat ribbon cable is commonly used with computers and audio and digital equipment. It provides a simple solution to mass termination.
Features:
28 AWG
Extended temperature rating: -20oC to 85oC
Insulation: Polyvinyl chloride (PVC)
Stranded copper wire
Sold Per 2 Meter length
What's in the box?:
2m x Flat Ribbon Cable

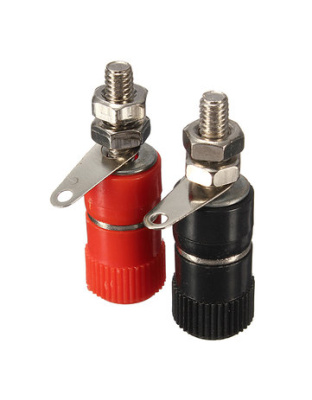

A binding post is a connector commonly used on electronic test equipment to terminate (attach) a single wire or test lead. They are also found on loudspeakers and audio amplifiers as well as other electrical equipment.
Specifications:
Type : Banana plug or lug
Solid hard plastic shell
Quantity : 4pcs ( 2 x red and 2 x black )
Easy installation with screws and nuts
Suitable for : 4mm banana plugs, lugs or bare wire
Package Included :
2 pair of speaker binding posts (2 x red and 2 x black)

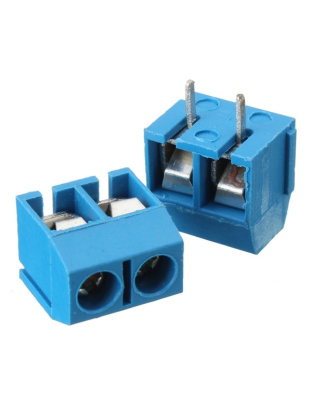

Electrical Properties
- Rated voltage: 300V
- Rated current: 16A
- Contact resistance: 20mΩ
- Insulation resistance: 5000MΩ/1000V
- Withstanding voltage: AC1500V/1Min
Mechanical Properties
- Temp. Range: -30℃~ 120℃
- Max Soldering: 250℃ for 5 Sec
- Torque: 0.5Nm
Specifications
- Screws: M2.5 steel Zinc plated
- Contact: phosphor bronze Ni plated or stainless steel
- Pin header: Brass, Tin plated
- Housing: PBT, UL94V-0
- Pitch: 5.08mm
- Poles: 2P
- Colour: Blue
What's in the box?
5 x 2 pin Terminal Blocks
Raspberry Pi Zero not included!
Absolutely no soldering required! All that's needed is a few gentle taps with a hammer and bazinga! Your header is securely attached to your Pi Zero or pHAT.
If your soldering isn't quite up to scratch, or you just don't own a soldering iron yet, then these nifty hammer headers might be just the job. They come in male and female flavours, and use crafty little retaining nubbins to grip tightly into the holes on the PCB.
The installation jig kit contains two acrylic base pieces, onto which your Pi Zero or pHAT sits, two nylon bolts, an acrylic top piece onto which you hammer, and both a male and female header. Make sure you carefully read our guide for fitting hammer headers.
What's in the box?
2 x Nylon nuts and bolts
1 x Installation Jig
1 x Male header
1 x Female header
We strongly recommend using our installation jig! If you want to try without it then godspeed to you but it is a delicate and tricky process! The female headers are simpler to insert than the male headers as you can hammer straight onto the plastic of the header, but the male ones are particularly tricky without the jig.
Please note: we can't be held responsible for any damage that you may cause to your Pi Zero, pHAT, fingers, or headers while fitting them. If you follow our guide carefully then you should be fine. If this worries you, then get yourself a soldering iron instead!
Loose Male hammer headers are also available.
Tutorial on using the jig
Watch our demo of how to fit the hammer headers on Bilge Tank, below.
Absolutely no soldering required! All that's needed is a few gentle taps with a hammer and bazinga! your header is securely attached to your Pi Zero or pHAT.
If your soldering isn't quite up to scratch, or you just don't own a soldering iron yet, then these nifty hammer headers might be just the job. They come in male and female flavours, and use crafty little retaining nubbins to grip tightly into the holes on the PCB.
The installation jig kit contains two acrylic base pieces, onto which your Pi Zero or pHAT sits, two steel bolts, an acrylic top piece onto which you hammer, and both a male and female header. Make sure you carefully read our guide for fitting hammer headers.
We strongly recommend using our installation jig! If you want to try without it then godspeed to you but it is a delicate and tricky process! The female headers are simpler to insert than the male headers as you can hammer straight onto the plastic of the header, but the male ones are particularly tricky without the jig.
Please note: we can't be held responsible for any damage that you may cause to your Pi Zero, pHAT, fingers, or headers while fitting them. If you follow our guide carefully then you should be fine. If this worries you, then get yourself a soldering iron instead!
Description:

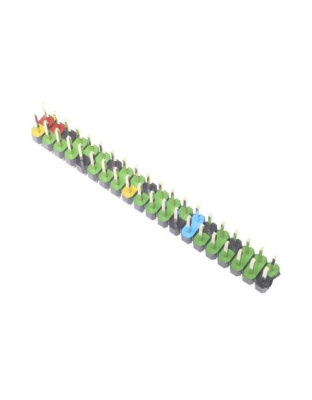

Colour-coded GPIO pins that make locating that ground or power connection you need super simple!
These 40-pin 2x20 male headers from our friends at The Pi Hut can be used on a Raspberry Pi Zero and are colour-coded for your prototyping convenience.
You'll never have to search for a ground pin again!
The colour coding is nice and simple:
- Red = 5V
- Yellow = 3V3
- Black = GND
- Blue = DNC (Reversed I2C)
For hard-mode try installing the header the wrong way round and throwing away your normal pin reference! ;-)
- Gender: Male
- No. of Contacts: 20
- No. of Pins: 20
- Termination: Straight Pins Solder Tail
- Size: 2.54mm
- Row Positions: Double Row
What's in the box:
1 x Colour-coded GPIO Header
Specifications
- Contact Material: Copper
- Insulator Material: ABS plastic
- Colour: Black
- Maximum rated voltage: 600V
- AMPS Maximum Rated: 15A
- Poles: 12-pin (two rows)
- Weight: 244g(appr.)
- Size: 12.7x2.2x1.6cm (appr.)
What's in the box?
1 X Terminal Electric connector Strip Block
It makes it easy to connect wires to your pcb.

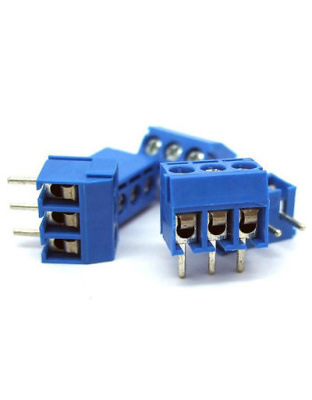

Electrical Properties
- Rated voltage: 300V
- Rated current: 16A
- Contact resistance: 20mΩ
- Insulation resistance: 5000MΩ/1000V
- Withstanding voltage: AC1500V/1Min
Mechanical Properties
- Temp. Range: -30℃~ 120℃
- Max Soldering: 250℃ for 5 Sec
- Torque: 0.5Nm
Specifications
- Screws: M2.5 steel Zinc plated
- Contact: phosphor bronze Ni plated or stainless steel
- Pin header: Brass, Tin plated
- Housing: PBT, UL94V-0
- Pitch: 5.08mm
- Poles: 3P
- Colour: Blue
What's in the box?
5 x 3 pin Terminal Blocks
Specifications

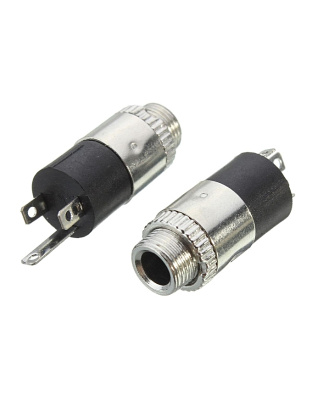

- Model: PJ-392
- Size(LxWxH): Approx. 22.5mmx 8mm x 8mm/ 0.89x3.15x3.15"
What's in the box?
1 x Stereo Headphone Audio Video Jack Socket
JST XH connectors were developed based on the high reliability and versatility of the NH series connectors
What's in the box?
2pin = 10Sets =20PCS
3pin = 10Sets =20PCS
4pin = 10Sets =20PCS
5pin = 10Sets =20PCS
Pin Connector Terminal :150PCS

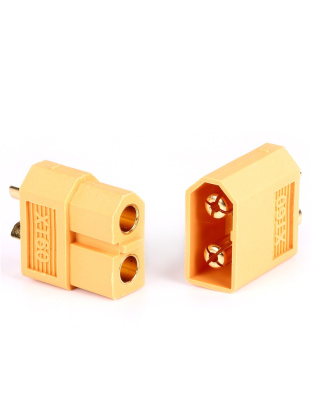

- Solid and durable.
- Ensures high-amp connection.
- Low resistance for high current capacity.
- Superior technology suited to today's high power applications.
- Ergonomically designed and easy to grip.
- Easy to un-solder and reuse.
- Used in RC battery and motor projects
Specifications
- Model: XT60
- Color: Yellow (as picture)
- Size: Approx. 23mm x 16mm
- Material: Copper PA66
1 x pair XT60 Bullet Connector Plugs(1 x Male 1 x Female)
The Raspberry Leaf GPIO template is a great way of identifying the GPIO pins on your Raspberry Pi. Small and effective, always handy to have in your spares box !
What's in the box ?
1 x Raspberry Leaf GPIO templates

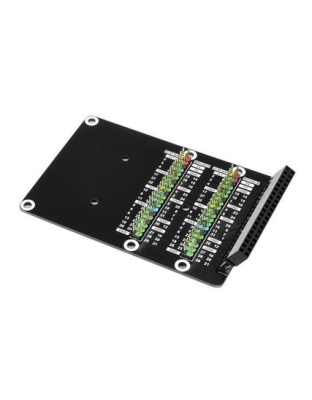

Make It More Convenient To Use With HATs Like SPI/DPI Display
Dimensions
What's in the box ?
1 x PI400 GPIO Leaning adapter

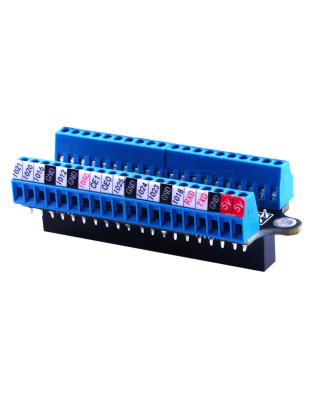

- Tiny size & solidly built
- Well made terminal block
- Legible miniscule printing of the labels of each of the GPIO pin's function
- Secure connection to the Raspberry Pi
What's in the box?
1 x Terminal block
1 x Screwdriver
1 x Acrylic board
2 x Nuts
2 x M2.5x11 brass standoffs
4 x M2.5x5 6 brass standoffs
6 x Screws
Resources
Wiki - Raspberry Pi GPIO Terminal Board
(* Raspberry Pi NOT included - ONLY GPIO screw terminal*)
(* Raspberry Pi NOT included - ONLY GPIO screw terminal*)
Ideal for
- Pico
- Electronic projects
- Printed circuit boards
- Gender: Female
- No. of Contacts: 20
- No. of Pins: 20
- Termination: Straight Pins Solder Tail
- Size: 2.54mm
- Row Positions: Single Row
What's in the box?
1 x Single Row Female Header
