Display Cases/Frames
Protect your new 7" Raspberry Pi Touchscreen with this lovely little display frame from Pimoroni! Designed with a slimline profile, it's perfect for keeping your Raspberry Pi screen upright, and at an ideal viewing angle!
Please note: Raspberry Pi Touchscreen and Raspberry Pi are not included
Pimoroni's Touchscreen Display Frame Features:
- Slim profile made up of only 3 layers keeps the screen protected
- 2 Legs hold the screen at an ideal viewing angle
- Provides support and protection to the back of the screen
- All Raspberry Pi Ports accessible
- Leaves touchscreen free for touching
- No tools required for assembly
Protect your new 7" Raspberry Pi Touchscreen with this premium black case! Designed to house a Raspberry Pi B+/2/3 and the official 7" LCD Touchscreen, it leaves the touchscreen front and Raspberry Pi ports fully available, but encloses the unit completely.
It's also fitted with two non-slip rubber feet, and an edge bezel that improves the appearance of the screen, whilst keeping the board neatly tucked away behind it. It's even got a slot in the top for the Raspberry Pi camera!
Please note: Raspberry Pi Touchscreen and Raspberry Pi are not included
Features
- Durable and hard-wearing ABS Plastic
- Cut-outs for all connections (USB/HDMI/Composite/Power etc.)
- Micro SD card hidden for security
- Fully enclosed touchscreen and Pi increases portability
- Camera board connector slot
- Wall mount feature
- Includes 4 x fixing screws to attach the touchscreen
- Clip-off rear cover for Pi access
The fabulously designed SmartiPi Touch case provides a neat, sleek and sturdy look for the official Raspberry Pi 7" touch display and Raspberry Pi. The case features a LEGO®* mountable front, camera mount, wall mounts and is fully HAT compliant.
The display is secured into the case with four screws, and a Raspberry 3, Pi 2, B+ or A+ can then be enclosed in the compartment on the back of the case. A simple door covers the the Pi when it is in the compartment and the ribbon cable that comes with the display connects into the Raspberry Pi DSI port. The stand has a pivot that allows you to adjust the angle of the screen, and includes a dual split micro USB cable for powering.
The SmartiPi Touch Case Features
- A large base with rubber feet to prevent slipping on smooth surfaces.
- 125° smooth pivot that allows you to adjust the angle of the screen
- Base holes for stand or wall mounting
- 75mm M4 VESA mount points on the back in a square pattern
- The micro USB Y power cable (included) will allow you to power the display and Raspberry Pi simultaneously
- Includes the popular LEGO® compatible camera case that works with Pi camera version 1 and 2.
- It has a LEGO® compatible back and can attach to the case on the LEGO® plate on the back or the front.
- You can even cut out the knockout in the door with a razor blade and use heat sinks with the door.
- HAT boards can be added to the Pi whilst in situ
*LEGO® is a trademark of the LEGO Group of companies which does not sponsor, authorize or endorse this product.
Got one of those shiny new Raspberry Pi 7" Touchscreen Displays, and need some way to mount it?! Well, we're proud to introduce ModMyPi's 7" Touchscreen Case and Stand! Made with our trademark stealth-matte black acrylic, and accented with clear (to leave the good bits visible), the case itself is constructed of 7 layers. The rear is protected with a plate of acrylic, so you can leave it flat, or mount it as you wish! Alternatively, we've included a nifty skeleton stand which the case slots into, and the whole unit comes complete with non-slip rubber feet - it is a touchscreen after all, so you don't want it walking across your desk when everyone's poking it!
The case includes an optional clear front layer, which you can leave on or take off if you like the matte finish. You can also sandwich the artwork of your choice in between the two layers, and really customise your Touchscreen case - There's a guide on how to do it here!
Features
- Raspberry Pi 7" Touchscreen Case & Stand
- 7 Piece Case
- 5 Piece Stand with Rubber Non-Slip Feet (Included)
- Stand Features 2 x M3 Holes for Extra Secure Mounting (Screws not included)
- Customisable Front Panel
- Touchscreen Accessible
- Raspberry Pi & Breakout Board Covered & Protected
- Easy Access to all Raspberry Pi Ports
- Assembly Guide
Specification
- Case dimensions (LxWxD): 240mm x 140mm x 53mm
- Stand dimensions (LxWxD): 189mm x 150mm x 50mm
Please Note. Raspberry Pi & Touchscreen are not included.
Protect your new 7" Raspberry Pi Touchscreen with this lovely little display frame from Pimoroni! Designed with a slimline profile, it's perfect for keeping your Raspberry Pi screen upright, and at an ideal viewing angle!
Please note: Raspberry Pi Touchscreen and Raspberry Pi are not included
Pimoroni's Touchscreen Display Frame Features:
- Slim profile made up of only 3 layers keeps the screen protected
- 2 Legs hold the screen at an ideal viewing angle
- Provides support and protection to the back of the screen
- All Raspberry Pi Ports accessible
- Leaves touchscreen free for touching
- No tools required for assembly
Protect your new 7" Raspberry Pi Touchscreen with this lovely little display frame from Pimoroni! Designed with a slimline profile, it's perfect for keeping your Raspberry Pi screen upright, and at an ideal viewing angle!
Please note: Raspberry Pi Touchscreen and Raspberry Pi are not included
Pimoroni's Touchscreen Display Frame Features:
- Slim profile made up of only 3 layers keeps the screen protected
- 2 Legs hold the screen at an ideal viewing angle
- Provides support and protection to the back of the screen
- All Raspberry Pi Ports accessible
- Leaves touchscreen free for touching
- No tools required for assembly
Features:
-Touch display with pen
-320×480 resolution, better display.
-Driver provided (works with custom Raspbian directly).
-Supports any revision of Raspberry Pi (directly-pluggable).
-Designed for Raspberry Pi, an ideal alternative solution for monitor.
-Support software keyboard (system interaction without keyboard/mouse).
-The protective case consists of six-piece PMMA enclosure that snaps together around Raspberry Pi 3 Model B.
-Provides the best available protection/accessibility for Model B
-Replace the case top with the display.
Specifications:
Backlight: LED
LCD Type: TFT
Aspect Ratio: 8:5
LCD Interface: SPI
Resolution: 320 x 480 DOTS
Package includes:
1 x Touch Screen LCD
1 x Protective Case
1 x Touch Pen
4 x screws, nuts and spacers
Installation help available at https://www.elecrow.com/wiki/index.php?title=3.5_Inch_480x320_TFT_Display_with_Touch_Screen_for_Raspberry_Pi

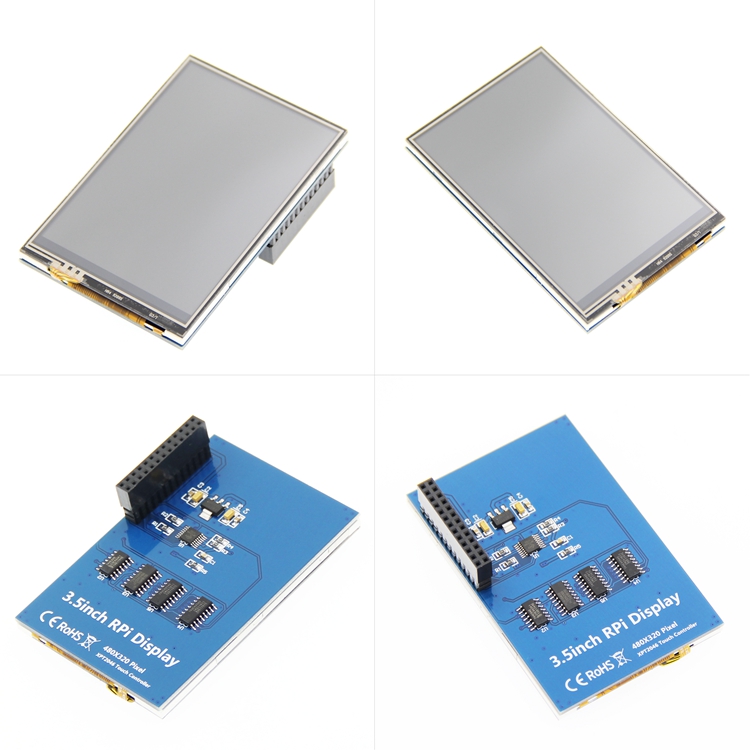

This is the newest raspberry pi 3 model B+ 3.5 inch touchscreen and case.
Features:
1. 9-layer Acrylic Case , well protective , needn't use the screw hole on raspberry pi.
2. 3.5 inch LCD TFT Touch Screen
3. Please remove the protective film sticker on the surface of the acrylic layers.
4. Easy to install
5. Only supports Raspberry Pi 3 Model B+ , not for Raspberry Pi 3 Model B
6. To use this touchsreen , you need to configure the raspberry pi system first.
More info available at https://github.com/goodtft/LCD-show
Image available for download
https://drive.google.com/open?id=1E8u7hUHfwypc9eUGHFPCXX2cWjCGD3RW
Package list:
1 x 3.5 inch LCD Touchscreen
1 x 9-layer Acrylic Case ( not include raspberry pi )
1 x Stylus Pen
Installation help available at https://www.elecrow.com/wiki/index.php?title=3.5_Inch_480x320_TFT_Display_with_Touch_Screen_for_Raspberry_Pi
Features :
1. Dual use :
1). This case support to install 3.5 inch touchscreen , and need to remove the cover board and fan in this using way. ( You can not install the 3.5 inch screen and fan at the same time )
2). When you don't use the 3.5 inch touchscreen , it is a general case with cooling fan.
2. Full access for Raspberry Pi :
We leave every hole for SD card , HDMI , AV , Ethernet , USB , POE , Camera , MIPI DSI ports.
3. Support cooling fan :
You can install the cooling fan on the cover board , which make the best heat dissipation and extend the using life of Raspberry Pi. ( You can not install the 3.5 inch screen and fan at the same time )
4. Mounting holes on the bottom :
We make 2 holes on the bottom so that you can mount the case on the wall or something or somewhere else . This design is very convenient when using the 3.5 inch touchscreen.
5. There are Black / Gray / White / Transaperent color to chose for the case. This model is the black case.
6. About the pad - use to support the screen
1). Install the Raspberry Pi on the base board
2). Please stick the pad on the back of the 3.5 inch touchscreen ( as the picture shows ) , then insert the 3.5 inch touchscreen on Raspberry Pi by GPIO pin correctly.
3). Install the cover board
Note:
This touchscreen need the driver , and we provide the system image (Raspbian) by following link:
1. for Raspberry Pi 3 :
https://mega.nz/#!vc4zjRRR!A9OMnL4tVjXUwH5Tt4T0ES2WxJyA4DGUg-gid_JHQVA
2. for Raspberry Pi 3 Modle B+ :
https://mega.nz/#!SQRl3BSS!ZwuE1VsoQSpUwHm2sa6zk1GPsU36M7793Q35NvdSYVY
or refer to configure it at this link :
https://github.com/goodtft/LCD-show
Manually configure method for Raspbian system:
This LCD Module need install driver first.
Step 1：Download the Raspbian IMG
https://www.raspberrypi.org/downloads/raspbian/
Step 2: Burn the system image
If you don't know how to do that,you can refer to the Raspberry Pi official tutorials
Step 3: Open terminal(SSH) and install the driver on RaspberryPi
(tested on RaspberryPi 3B+,3B,2B,2B+,1B,ZERO)
Run:
sudo rm -rf LCD-show
git clone https://github.com/goodtft/LCD-show.git
chmod -R 755 LCD-show
cd LCD-show/
sudo ./LCD35-show
Wait a few minutes for the system to reboot.
Package Includes:
1. LCD with Case
1 x 3.5 inch Touchscreen ( Raspberry Pi is not included )
1 x Touch Pen
1 x ABS Case
Installation help available at https://www.elecrow.com/wiki/index.php?title=3.5_Inch_480x320_TFT_Display_with_Touch_Screen_for_Raspberry_Pi
