Raspberry Pi Compute Module I/O Dev Board (Compute 3 DEV board)

The Compute Module 3 I/O Development Board (CMIO V3) is suitable for the development of Compute Module 3 or Compute Module 3 Lite. The IO Board features an SD card socket to support the Compute Module Lite 3 variant and breaks out the compute modules I/O's to various ports and 120 x standard pitch 0.1" headers.

To start the development, plug the Compute Module 3 or Compute Module 3 Lite into the IO Board, and power the development board using a micro USB 5V 2.5A Raspberry Pi Power Supply. The development board contains all of the necessary interface ports to allow an engineer to design and test their own prototype application. The modules simplify the design process engineers need to undertake when developing a System on Module (SoM) solution into their final product. Engineers do not need to concern themselves with the complexities of interfacing with the BCM2837 processer directly and instead can concentrate on designing the interfaces to their own IO board and their application software . This simplicity fosters rapid development.

Please Note, this is the IO Board only, compute module is not included.

The Raspberry Pi Compute Module I/O Dev Board Features the Following Interfaces:

  • Multiple GPIO interfaces on 2 x 60 way 0.1" Headers
  • 1 x Micro USB connector type B - USB Slave
  • 1 x USB connector type A - USB Host
  • 2 x CSI ports for camera boards
  • 2 x DSI ports for display boards
  • Full size HDMI port
  • Micro USB power connector
  • Micro SD connector
  • Software - ARMv7 Instruction Set, and a mature and stable Linux software stack

Downloads

Compute Module Datasheet

Shematics & Interface Information

Add to Cart
R1,876.00

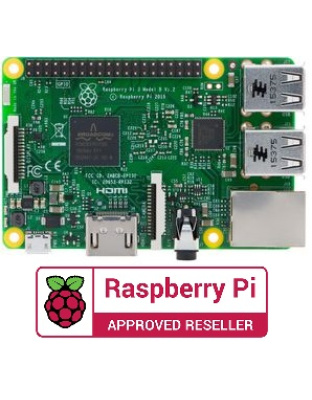

Raspberry Pi 3 - Model B (Pi3 model B)


The stunning new Raspberry Pi 3 Model B has landed.! This third generation model maintains the same popular board format as the Raspberry Pi 2 and Raspberry Pi B+, but boasts a faster 1.2GHz 64Bit SoC, and on board WiFi and Bluetooth!

We only stock UK made Raspberry Pi's manufactured in Sony's Pencoed factory in South Wales.

Back-Compatibility note: The Raspberry Pi 3 Model B has the same footprint and layout as the previous Model 2/B+ version, so will fit all Model 2/B+ items. However, the addition of a WiFi & Bluetooth Antenna has resulted in the ACT and PWR LEDs being moved to the opposite side of the SD card slot. Cases for the 2/B+ with LED light pipes will fit the new RPi 3, but the light pipes will not match up with the LEDs.

Specifications

  • Processor
    • Broadcom BCM2387 chipset.
    • 1.2GHz Quad-Core ARM Cortex-A53 (64Bit)
    • 802.11 b/g/n Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
  • GPU
    • Dual Core VideoCore IV® Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode.
    • Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
  • Memory
    • 1GB LPDDR2
  • Operating System
    • Boots from Micro SD card, running a version of the Linux operating system or Windows 10 IoT
  • Dimensions
    • 85 x 56 x 17mm
  • Power
    • Micro USB socket 5V, 2.5A if you want to add some power hungry USB devices

Connectors

  • Ethernet
    • 10/100 BaseT Ethernet socket
  • Video Output
    • HDMI (rev 1.3 & 1.4)
    • Composite RCA (PAL and NTSC)
  • Audio Output
    • Audio Output 3.5mm jack
    • HDMI
    • USB 4 x USB 2.0 Connector
  • GPIO Connector
    • 40-pin 2.54 mm (100 mil) expansion header: 2x20 strip
    • Providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines
  • Camera Connector
    • 15-pin MIPI Camera Serial Interface (CSI-2)
  • Display Connector
    • Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane
  • Memory Card Slot
    • Push/pull Micro SDIO
Add to Cart
R610.00
R715.00
Raspberry Pi Compute Module 3 (Compute 3)

The Raspberry Pi Compute Module 3 (CM3) is a DDR2-SODIMM-mechanically-compatible System on Module (SoMs) containing the same processor, memory, and supporting power circuitry as the Raspberry Pi 3.

These modules allow designers to leverage the Raspberry Pi hardware and software stack in their own custom systems and form factors. In addition the modules have extra IO interfaces over and above what is available on the Raspberry Pi boards, providing more options for the designer. The Raspberry Compute Modules 3 are suitable for designers who are happy with Raspberry Pi 3 functionality but require a smaller form factor (67.6 mm x 31 mm) for their embedded designs.

Flash memory is connected directly to the processor on the board, but the remaining processor interfaces are available to the user via the connector pins. You get the full flexibility of the BCM2837 SoC (which means that many more GPIOs and interfaces are available as compared to the Raspberry Pi), and designing the Module into a custom system should be relatively straightforward as all the tricky bits are pre-built into the module.

The Compute Module 3 Lite contains the following components contained within a 200 pin SODIMM design:

  • Broadcom BCM2837 Processor (1.2GHz)
  • 1GB LPDDR2 RAM
  • 35u Hard Gold Plated IO Pins
  • DDR2-SODIMM, Mechanically-Compatible System on Modules (SoMs)
  • 4 GB eMMC Flash memory. Also these modules have extra input/output (I/O) interfaces in addition to the Raspberry Pi model A/B boards.
  • 67.6mm x 31mm Board

Downloads

Compute Module Datasheet

Shematics & Interface Information

Add to Cart
R607.62
Raspberry Pi Compute Module 3 Lite (Compute 3 Lite)

The Raspberry Pi Compute Module 3 Lite (CM3L) is a DDR2-SODIMM-mechanically-compatible System on Module (SoMs) containing the same processor, memory, and supporting power circuitry as the Raspberry Pi 3. The CM3L is not fitted with eMMC Flash or the SD/eMMC interface. But pins are available for the designer to connect their own SD/eMMC device.

These modules allow designers to leverage the Raspberry Pi hardware and software stack in their own custom systems and form factors. In addition the modules have extra IO interfaces over and above what is available on the Raspberry Pi boards, providing more options for the designer. The Raspberry Compute Modules 3 are suitable for designers who are happy with Raspberry Pi 3 functionality but require a smaller form factor (67.6 mm x 31 mm) for their embedded designs.

You get the full flexibility of the BCM2837 SoC (which means that many more GPIOs and interfaces are available as compared to the Raspberry Pi), and designing the Module into a custom system should be relatively straightforward as all the tricky bits are pre-built into the module.

The Compute Module 3 Lite contains the following components contained within a 200 pin SODIMM design:

  • Broadcom BCM2837 Processor (1.2GHz)
  • 1GB LPDDR2 RAM
  • 35u Hard Gold Plated IO Pins
  • DDR2-SODIMM, Mechanically-Compatible System on Modules (SoMs)
  • 67.6mm x 31mm Board

Downloads

Compute Module Datasheet

Shematics & Interface Information

Add to Cart
R534.66
Raspberry Pi , Model B+ (B+)
RASPBERRY PI BOARD, MODEL B+, 512MB
  • Core Architecture:  ARM
  • Core Sub-Architecture:  ARM1176JZF-S
  • No. of Bits:  32bit
  • Silicon Core Number:  BCM2835
  • Silicon Family Name:  BCM2xxx
  • Silicon Manufacturer:  Broadcom
  • Clock Frequency Max:  700MHz
Features
  • 40 Pin extended GPIO header
  • x4 USB 2 ports up to 1.2A
  • Combined 4-pole jack for stereo audio and composite video output
  • MicroSD card slot for loading your operating system and storing data
  • Micro USB power source(Power supply not included)
  • CSI and DSI for connecting the Raspberry Pi camera and touchscreen display
  • The first x26 GPIO pins are 100% backward compatible with Model B
  • HDMI video output for 1080P Hi-definition video
  • 10/100 Ethernet port for network connectivity
  • More energy efficient
Legislation and Environmental
  • RoHS Compliance:  Yes
Out Of Stock
R570.00
Raspberry Pi 2 - Model B (Pi2 B)

SPECIAL PROMOTIONAL PRICE -  We were able to secure the same bulk deal and will stay on the existing promotional price.

The brand NEW Raspberry Pi 2 Model B has landed at PiShop! The ultra-low-cost, deck-of-cards sized Linux computer has had yet another makeover, this time the Raspberry Pi Foundation have gone all out! The Raspberry Pi 2 Model B is on a completly new level to its predecessors by being a staggering 6x faster than the Raspberry Pi Model B+.

Back-Compatibility note: The Raspberry Pi 2 Model B has the same footprint and layout as the previous Model B+ version, so will fit all Model B+ items.

Raspberry Pi 2 Model B Features:

  • 6x Faster - Broadcom BCM2836 ARMv7 Quad Core Processor powered Single Board Computer running at 900MHz
  • Double Memory - 1GB RAM so you can now run bigger and more powerful applications
  • Identical board layout and footprint as the Model B+, so all cases and 3rd party add-on boards designed for the Model B+ will be fully compatible.
  • Fully HAT compatible
  • 40pin extended GPIO to enhance your “real world” projects. GPIO is 100% compatible with the Model B+ and A+ boards. First 26 pins are identical to the Model A and Model B boards to provide full backward compatibility across all boards.
  • Connect a Raspberry Pi camera and touch screen display (each sold separately)
  • Stream and watch Hi-definition video output at 1080P
  • Micro SD slot for storing information and loading your operating systems.
  • Advanced power management:
    • You can now provide up to 1.2 Amp to the USB ports – enabling you to connect more power hungry USB devices directly to the Raspberry PI. (This feature requires a 2Amp micro USB Power Supply)
  • 10/100 Ethernet Port to quickly connect the Raspberry Pi to the Internet
  • Combined 4-pole jack for connecting your stereo audio out and composite video out

Technical Specification:

  • Broadcom BCM2836 ARMv7 Quad Core Processor powered Single Board Computer running at 900MHz
  • 1GB RAM
  • 40pin extended GPIO
  • 4 x USB ports
  • 4 pole Stereo output and Composite video port
  • Full size HDMI
  • CSI camera port for connecting the Raspberry Pi camera
  • DSI display port for connecting the Raspberry Pi touch screen display
  • Micro SD port for loading your operating system and storing data
  • Micro USB power source

More on the Pi 2 B:


Some performance testing:


Out Of Stock
R669.00
Raspberry Pi, Model A+ (RPI-0006 - A+)


Raspberry Pi Model A+ has 40pin extended GPIO so user can build even bigger and better projects than ever before. The first 26 pins are identical to the Model A and B and B+ to provide 100% backward compatibility for your projects. Micro SD slot instead of the full size SD slot for storing information and loading your operating systems. The Board can now provide up to 1.2 AMP to the USB port enabling user to connect more power hungry USB devices directly to the Raspberry PI. (This feature requires a 2Amp micro USB Power Supply) The A+ board now uses less power (600mA) than the Model A Board (750mA) when running.
  • 700MHz Broadcom BCM2835 CPU with 256MB RAM
  • 40pin extended GPIO
  • 1 x USB 2 ports
  • 4 pole Stereo output and Composite video port
  • Full size HDMI
  • CSI camera port for connecting the Raspberry Pi camera
  • DSI display port for connecting the Raspberry Pi touch screen display
  • Micro SD port for loading your operating system and storing data
  • Micro USB power source(Power supply not included)
  • Smaller board footprint and is fully HAT compatible
  • Stream and watch Hi-definition video output at 1080P
  • Combined 4-pole jack for connecting your stereo audio out and composite video out

Model A+ to Model A Comparison:

  • Same Broadcom BCM2835 Chipset
  • Same 256MB RAM
  • Same full size HDMI port
  • Same CSI camera port and DSI display ports
  • Same micro USB power supply connection

Key Improvements from Model A to Model A+:

  • More energy efficient / uses less power
  • Supports a smarter board layout including an expanded GPIO header (40 pin instead of 26)
  • Micro SD Card port protecting your SD card from damage
  • Improved power management – now possible to drive ‘power hungry’ USB devices directly from your Raspberry Pi.
Out Of Stock
R446.58
