This board is what you need to start your journey with arduino. Loads of projects with examples available
Motor Control Shield is capable of driving 4 DC motors or 2 stepping motors at one time.
ATMEGA8 ATMEGA8A-PU DIP28 (2A4 Arduino IC)
Description:
The ATMEGA8A-PU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 8kb ISP flash memory with read-while-write capabilities, 512B EEPROM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte oriented two-wire serial interface, 6-channel 10-bit A/D converter (8-channel in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, SPI serial port and five software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
Applications:
Building Automation, Consumer Electronics, Motor Drive & Control, Industrial, Automation & Process Control, Metering
The ATMEGA8A-PU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 8kb ISP flash memory with read-while-write capabilities, 512B EEPROM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timer/counters with compare modes, internal and external interrupts, serial programmable USART, a byte oriented two-wire serial interface, 6-channel 10-bit A/D converter (8-channel in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, SPI serial port and five software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
- High-performance, Low-power AVR® 8-Bit Microcontroller
- Advanced RISC Architecture
- High Endurance Non-volatile Memory Segments
- Atmel QTouch® Library Support
- Power-on Reset and Programmable Brown-out Detection
- Internal Calibrated RC Oscillator
- External and Internal Interrupt Sources
- Idle, ADC Noise Reduction, Power-save, Power-down and Standby Sleep Modes
- 2.7 to 5.5V, 0 to 16MHz Operating Voltage
- 3.6mA Active, 1.0mA Idle Mode and 0.5µA Power-down Mode Power Consumption
Applications:
Building Automation, Consumer Electronics, Motor Drive & Control, Industrial, Automation & Process Control, Metering

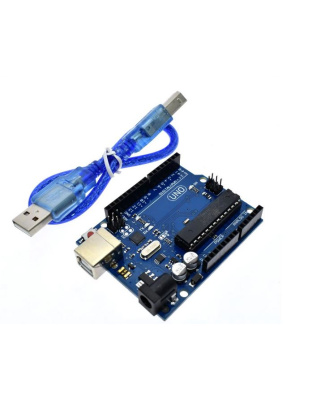

UNO R3 MEGA328P ATMEGA16U2 for Arduino Compatible (2A4 Uno DIP IC)
Arduino is an open-source electronics platform based on easy-to-use hardware and software. Arduino boards are able to read inputs - light on a sensor, a finger on a button, or a Twitter message - and turn it into an output - activating a motor, turning on an LED, publishing something online.
Find more info on Arduino at https://www.arduino.cc/en/guide/introduction
Description:
Microcontroller ATmega328
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328)
EEPROM 1 KB (ATmega328)
Clock Speed 16 MHz
Length 68.6 mm
Width 53.4 mm
Package includes:
1 x UNO R3
1 x USB cable
Geekcreit® ATmega328P Arduino Compatible Nano V3 Improved Version With USB cable (2A4 Arduino nano and cable)
This Arduino Nano comes with the old bootloader
Specifications:
Microcontroller Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz
Package includes:
1 x Arduino Compatible Improved Version Nano V3.0 with headers pre-soldered
1 x USB cable
Getting started with Arduino products
Specifications:
Microcontroller Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz
Package includes:
1 x Arduino Compatible Improved Version Nano V3.0 with headers pre-soldered
1 x USB cable
Getting started with Arduino products
Now available with pre-soldered headers and USB cable

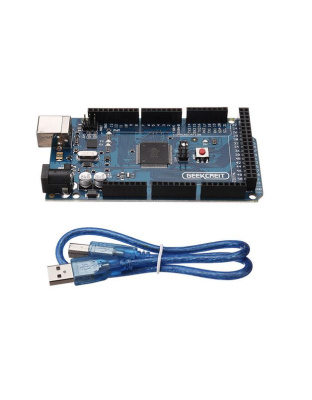

Geekcreit® MEGA 2560 R3 ATmega2560-16AU MEGA2560 Development Board With USB Cable (2A4 Arduino Mega)
Description:
Arduino compatible R3 Mega2560 ATmega2560-16AU control board with USB cable
Arduino Mega is an ATmega2560 core microcontroller development board. Itself has 54 digital input/output terminals (14 PWM outputs), 16 simulation inputs, 4 UARTs (hardware serial ports), using the 16 MHz crystal oscillator. With the bootloader, download the program directly via USB without having to go through other external writers. Supply part of the optional USB power, or external power using a AC-to-DC adapter and battery.
Rapid growth due to open original code, as well as the concept of using Java (cross-platform) C language development environment for Arduino module. The Arduino can easily use the Arduino language with Flash or Processing ... software communication, to make multimedia interactive works. Arduino development IDE interface is based on open-source principles, allows you to download for use in projects.
Power supply design:
There are two options for the power supply system of the Arduino Mega. USB direct power supply or external power supply. The power supply will be switched automatically. External supply AC-to-DC adapter or the battery can be selected on this control panel. Limit the voltage range of 6V ~~ 12V, but if the voltage supplied is less than 6V, I / O port may not be supplied to a voltage of 5V, and therefore not stable; If the voltage is greater than 12V, the regulator device may possibly overheat and damage the Arduino MEGA. It is therefore recommended that for the operating supply of 6.5 ~ 12V, the recommended power supply is 7.5V or 9V.
The development board have been rigorously tested at the factory.
Specification:
Microcontroller: ATmega2560
Operating voltage: 5V
Input voltage (recommended): 7-12V
Digital I/O pins: 54 (of which 14 provide PWM output)
Analog input pins: 16
DC current per I/O pin: 40 mA
DC current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 4 KB is used by the bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16MHz
Getting started with Arduino products
Package includes:
1 x Control board
1 x USB cable
Arduino compatible R3 Mega2560 ATmega2560-16AU control board with USB cable
Arduino Mega is an ATmega2560 core microcontroller development board. Itself has 54 digital input/output terminals (14 PWM outputs), 16 simulation inputs, 4 UARTs (hardware serial ports), using the 16 MHz crystal oscillator. With the bootloader, download the program directly via USB without having to go through other external writers. Supply part of the optional USB power, or external power using a AC-to-DC adapter and battery.
Rapid growth due to open original code, as well as the concept of using Java (cross-platform) C language development environment for Arduino module. The Arduino can easily use the Arduino language with Flash or Processing ... software communication, to make multimedia interactive works. Arduino development IDE interface is based on open-source principles, allows you to download for use in projects.
Power supply design:
There are two options for the power supply system of the Arduino Mega. USB direct power supply or external power supply. The power supply will be switched automatically. External supply AC-to-DC adapter or the battery can be selected on this control panel. Limit the voltage range of 6V ~~ 12V, but if the voltage supplied is less than 6V, I / O port may not be supplied to a voltage of 5V, and therefore not stable; If the voltage is greater than 12V, the regulator device may possibly overheat and damage the Arduino MEGA. It is therefore recommended that for the operating supply of 6.5 ~ 12V, the recommended power supply is 7.5V or 9V.
The development board have been rigorously tested at the factory.
Specification:
Microcontroller: ATmega2560
Operating voltage: 5V
Input voltage (recommended): 7-12V
Digital I/O pins: 54 (of which 14 provide PWM output)
Analog input pins: 16
DC current per I/O pin: 40 mA
DC current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 4 KB is used by the bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16MHz
Getting started with Arduino products
Package includes:
1 x Control board
1 x USB cable
LilyPad 328 Main Board ATmega328P ATmega328 16M For Arduino (Lilypad)
This is the LilyPad main board consisting of an ATmega328 using 5V DC power.
The latest version of the LilyPad supports automatic reset for even easier programming.
The back side of the LilyPad is now completely flat! We now use a surface mount programming connector to keep the header from poking through.
This version of the LilyPad now uses the new ATmega328 at 8MHz. 0016 supports the Pro Mini 328/8MHz/16MHZ. Use this setting when using this new LilyPad 328.
LilyPad is a wearable e-textile technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing.
Various input, output, power, and sensor boards are available. They're even washable!
Package Includes:
1 x 328 Main Board
Pro Mini ATMEGA328P 5V/16MHz for arduino (2A2 Pro Mini ATMEGA328P)
It's blue! It's thin! It's the Arduino Pro Mini! SparkFun's minimal design approach to Arduino. This is a 5V Arduino running the 16MHz bootloader. Arduino Pro Mini does not come with connectors populated so that you can solder in any connector or wire with any orientation you need. We recommend first time Arduino users start with the Uno R3. It's a great board that will get you up and running quickly. The Arduino Pro series is meant for users that understand the limitations of system voltage (5V), lack of connectors, and USB off board.
We really wanted to minimize the cost of an Arduino. In order to accomplish this we used all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Arduino Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you're supplying unregulated power to the board, be sure to connect to the “RAW” pin and not VCC.
Features:
Getting Started
Getting started with Arduino products
We really wanted to minimize the cost of an Arduino. In order to accomplish this we used all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Arduino Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you're supplying unregulated power to the board, be sure to connect to the “RAW” pin and not VCC.
Features:
- ATmega328 running at 16MHz with external resonator (0.5% tolerance)
- 0.8mm Thin PCB
- USB connection off board
- Supports auto-reset
- 5V regulator
- Max 150mA output
- Over current protected
- Weighs less than 2 grams!
- DC input 5V up to 12V
- On board Power and Status LEDs
- Analog Pins: 8
- Digital I/Os: 14
Getting Started
Getting started with Arduino products
Ethernet Shield W5100 R3 Support PoE For Arduino UNO Mega 2560 Nano (2A4 Arduino Ethernet R3)
Description:
With this Ethernet Shield, your Arduino board can be used to connect to the internet.
Can be used as server or client.
Directly plug puzzle board, no soldering required.
This is the latest version of the ethernet shield.
Fits all versions of Arduino main boards, 2009, UNO, mega 1280, mega 2560.
This Arduino Ethernet Shield which is based on the Wiznet W5100 ethernet chip gives you an easy way to get your Arduino online.
Specification:
Controller: w5100
Size: 7.4 x 5.4 x 2.4 (2.91 x 2.12 x 0.94inch)
MAC address: 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED }
Feature:
It is directly supported by Arduino official Ethernet Library.
It adds a micro-SD card slot, which can be used to store files for serving over the network.
It is compatible with the Arduino Duemilanove (168 or 328), UNO as well as Mega (1280/2560) and can be accessed using the SD library.
The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP.
It supports up to four simultaneous socket connections.
Use the Ethernet library to write sketches which connect to the internet using the shield.
Package included:
1 x W5100 ethernet shield
Resources:
Overview
Wiki
With this Ethernet Shield, your Arduino board can be used to connect to the internet.
Can be used as server or client.
Directly plug puzzle board, no soldering required.
This is the latest version of the ethernet shield.
Fits all versions of Arduino main boards, 2009, UNO, mega 1280, mega 2560.
This Arduino Ethernet Shield which is based on the Wiznet W5100 ethernet chip gives you an easy way to get your Arduino online.
Specification:
Controller: w5100
Size: 7.4 x 5.4 x 2.4 (2.91 x 2.12 x 0.94inch)
MAC address: 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED }
Feature:
It is directly supported by Arduino official Ethernet Library.
It adds a micro-SD card slot, which can be used to store files for serving over the network.
It is compatible with the Arduino Duemilanove (168 or 328), UNO as well as Mega (1280/2560) and can be accessed using the SD library.
The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP.
It supports up to four simultaneous socket connections.
Use the Ethernet library to write sketches which connect to the internet using the shield.
Package included:
1 x W5100 ethernet shield
Resources:
Overview
Wiki
Geekcreit® ATmega328P Arduino Compatible Nano V3 + Nano Shield Expansion Board Kit (3A4 nano expansion kit)
Changed the USB chip, improve the download speed and stability of WIN7/WIN8
Microcontroller Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz
NANO Shield Expansion Board Description:
This Nano Mult-Function expansion board is designed specially for Arduino Nano, solving the problem of confusing wiring when a variety of sensors connected.
Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface.
Lead out the I2C interface of mainboard for convenient connection.
Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.
Package includes:
1 x ATmega328P Arduino Compatible Nano V3 with USB cable
1 x NANO Shield Expansion Board
Getting started with Arduino products
Microcontroller Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz
NANO Shield Expansion Board Description:
This Nano Mult-Function expansion board is designed specially for Arduino Nano, solving the problem of confusing wiring when a variety of sensors connected.
Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface.
Lead out the I2C interface of mainboard for convenient connection.
Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.
Package includes:
1 x ATmega328P Arduino Compatible Nano V3 with USB cable
1 x NANO Shield Expansion Board
Getting started with Arduino products

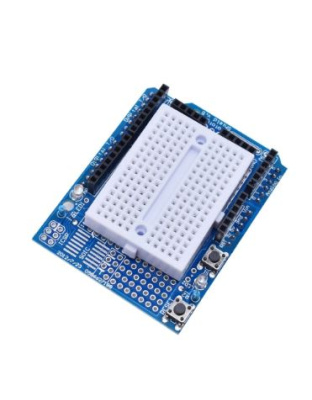

328 ProtoShield Prototype Expansion Board Compatible Arduino (2A4 Arduino prototype shield)
Description:
The ProtoShield is a prototype expansion board with 2 LEDs and 2 buttons, which can be used directly with more convenience. All the pins and power have been lead out. It is very suitable for building prototype circuits with Arduino.
Features:
ProtoShield for Arduino Duemilanove
To build prototype circuits
Directly soldering components on board
Connecting through the mini breadboard
Package includes:
1x Arduino compatible 328 protoshield prototype expansion board
The ProtoShield is a prototype expansion board with 2 LEDs and 2 buttons, which can be used directly with more convenience. All the pins and power have been lead out. It is very suitable for building prototype circuits with Arduino.
Features:
ProtoShield for Arduino Duemilanove
To build prototype circuits
Directly soldering components on board
Connecting through the mini breadboard
Package includes:
1x Arduino compatible 328 protoshield prototype expansion board
Multi-functional Learning Expansion Board for Arduino (2A5 Arduino multi-function board)
Features:
Code examples available below
http://arduinolearning.com/code/multi-function-shield-examples.php
http://www.cohesivecomputing.co.uk/hackatronics/arduino-multi-function-shield/
files.cohesivecomputing.co.uk/Hackatronics-Arduino-Multi-function-Shield.pdf
Package includes:
1 x Multi-function Shield For Arduino
- - This is an open-source code base and Simple I/O platform, and with the use of a similar java, C language development environment. You can quickly use the language with Flash or Processing ... and other software to make interactive projects. Can be used to complete the development of electronic projects such as Switches, Sensors or other controllers, LED, stepper motors or other output devices. It can also operate independently as a software platform that can communicate with.
- - 4-way LED indicator
- - DS18B20 temperature sensor interface that can be used to measure temperature, this board does not include the DS18B20 sensor
- - LM35 temperature sensor interface that can be used to measure temperature of the experiment, this board does not include the LM35 sensor
- - 3296 precision adjustable potentiometer, analog input port (can be used for controlling LED brightness, steering angle , digital voltage, etc.)
- - integrated infrared receiver that can fit any infrared remote control experiments , this board does not include the receiver
- - four digital 7 segment display (using 74HC595 driver provincial IO learning SPI), for digital display experiments (can display temperature, voltage, counter value, etc.).
- - three separate buttons.
- - buzzer
- - Bluetooth, wireless interfaces, voice module , voice recognition module can be used for wireless communication experiment.
- - servo interface, easy to drive servos.
- - infrared detection interface
Code examples available below
http://arduinolearning.com/code/multi-function-shield-examples.php
http://www.cohesivecomputing.co.uk/hackatronics/arduino-multi-function-shield/
files.cohesivecomputing.co.uk/Hackatronics-Arduino-Multi-function-Shield.pdf
Package includes:
1 x Multi-function Shield For Arduino
This board is what you need to start your journey with arduino. Loads of projects with examples available
WS Motor Control Shield for Arduino (1D4 WS Arduino Motor Control Shield)
What's on Board
Overview
Motor Control Shield is capable of driving 4 DC motors or 2 stepping motors at one time.
Features
- Configurable motor power supply via onboard jumper
- when using 5V motor power supply : drives four 5V DC motors at one time
- when using adjustable motor power supply : drives two 1.25V-6.45V DC motors at one time (9V external power supply is required)
- Onboard dual H-bridge driver L293D x 2
- each L293D can drive 2 DC motors or 1 stepping motor at one time
- totally 4 channel H-bridge, with 600mA output current (peak 1.2A) per single bridge
- ESD protection
What's on Board
- External power supply jack
- Power input/output pinheader
- Stepping motor interface
- DC motor interface
- M_PWR configuration : connects M_PWR (motor power) to 5V or ADJ
- Power selection switch
- Power indicator
- AMS1117-ADJ : onboard linear regulator with adjustable output
- Adjustable potentiometer : for adjusting the output voltage of ADJ (adjustable motor power)
- L293D : dual H-bridge driver
- LM2596-5.0 : onboard linear switching regulator with 5V output
Note : when in operation, it's normal that the onboard motor drivers and regulators generate lots of heat.
Development resources: demo codes, schematic, datasheets, etc.
www.waveshare.com/Motor_Control_Shield
Motor Control Shield is capable of driving 4 DC motors or 2 stepping motors at one time.
NANO IO Shield Expansion Board And Nano V3 Board - No Cable (Nano shield board kit)
Description:
NANO IO Shield Expansion Board
Description:
NANO IO Shield Expansion Board
This is a small simple arduino Nano extension board making it more convenient for connections and easier to use in your projects
ATmega328P Nano V3 Improved Version
Microcontroller Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB is used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz
Note:
This version does not include the USB cable.
Package includes:
1 x Nano V3.0 module
1 x NANO IO Shield Expansion Board
ATmega328P Nano V3 Improved Version
Microcontroller Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB is used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz
Note:
This version does not include the USB cable.
Package includes:
1 x Nano V3.0 module
1 x NANO IO Shield Expansion Board
Double sided DIY PCB Prototype Screw Terminal Block Shield Board Kit For Mega2560 R3 (2A6 Mega breakout board)
Description:
Prototype Screw/Terminal Block Shield Board Kit For Arduino MEGA-2560 R3
The Kit includes Prototype PCB, Terminal Blocks, Female Header Sockets
Unassembled, soldering required.
PCB:
FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm
Pads grid / pitch 2.54mm / 0.1", hole diameter 0.8mm
Terminal block pitch 3.5mm / 0.138", hole diameter 1.2mm
Terminal Blocks:
Pitch 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs )
Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass
Female Header Sockets:
Pitch 0.1"/2.54mm, pin length 15mm / 0.59"
Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs
Package includes:
1 x Double-side PCB Prototype Screw Terminal Block Shield Board Kit
Prototype Screw/Terminal Block Shield Board Kit For Arduino MEGA-2560 R3
The Kit includes Prototype PCB, Terminal Blocks, Female Header Sockets
Unassembled, soldering required.
PCB:
FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm
Pads grid / pitch 2.54mm / 0.1", hole diameter 0.8mm
Terminal block pitch 3.5mm / 0.138", hole diameter 1.2mm
Terminal Blocks:
Pitch 3.5mm / 0.138" mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs )
Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass
Female Header Sockets:
Pitch 0.1"/2.54mm, pin length 15mm / 0.59"
Single row 10pin x1pcs, single row 8pin x 5pcs, dual row 18pin x1pcs
Package includes:
1 x Double-side PCB Prototype Screw Terminal Block Shield Board Kit
Nano V3.0 Data Record Logging Shield Module For Arduino Nano (2A6 Nano data logger)
Description:
Data logging shield for Arduino NANO
a new for Arduino NANO shield,You can get going quickly - saving data to files on any FAT16 or FAT32 formatted SD card, to be read by any plotting, spreadsheet or analysis program.
The included Real Time Clock timestamps all your data with the current time, so that you know precisely what happened when!
Please note that this item does not come with an Arduino NANO (you'll need one to use with the shield), or an SD card.
SD card interface works with FAT16 or FAT32 formatted cards. 3.3v level shifter circuitry prevents damage to your SD card
Real time clock (RTC) keeps the time going even when the for Arduino is unplugged. The battery backup lasts for years
Included libraries and example code for both SD and RTC mean you can get going quickly
Prototyping area for soldering connectors, circuitry or sensors.
Onboard 3.3v regulator is both a reliable reference voltage and also reliably runs SD cards that require a lot of power to run
Works with for Arduino NANO or MICRO
How it works
Package Includes:
1 x Nano Data Logging Shield For Arduino(Battery not included)
Data logging shield for Arduino NANO
a new for Arduino NANO shield,You can get going quickly - saving data to files on any FAT16 or FAT32 formatted SD card, to be read by any plotting, spreadsheet or analysis program.
The included Real Time Clock timestamps all your data with the current time, so that you know precisely what happened when!
Please note that this item does not come with an Arduino NANO (you'll need one to use with the shield), or an SD card.
SD card interface works with FAT16 or FAT32 formatted cards. 3.3v level shifter circuitry prevents damage to your SD card
Real time clock (RTC) keeps the time going even when the for Arduino is unplugged. The battery backup lasts for years
Included libraries and example code for both SD and RTC mean you can get going quickly
Prototyping area for soldering connectors, circuitry or sensors.
Onboard 3.3v regulator is both a reliable reference voltage and also reliably runs SD cards that require a lot of power to run
Works with for Arduino NANO or MICRO
How it works
Package Includes:
1 x Nano Data Logging Shield For Arduino(Battery not included)
cnc shield v3 engraving machine 3D Printer board + 4pcs A4988 driver expansion board for Arduino UNO R3 with USB cable (3D4 uno cnc control kit)
Perfect for engravers, laser cutters, CNC machines and 3D printers. This shield simply sticks on top of your Arduino board and can control up to 4 stepper motors.
Features:
CNC Shield Board:
Latest CNC Shield Version 3.0 for Arduino.
GRBL 0.9 compatible. (Open source firmware that runs on an UNO for Arduino that turns G-code commands into stepper signals)
PWM Spindle and direction pins
4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis (6 in total)
Coolant enable
Uses removable A4988 or DRV8825 compatible stepper drivers
Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
Compact design.
Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
Runs on 12-36V DC. (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
Please note that this is an unassembled kit and Basic soldering skills are needed.
A4988 Stepper Motor Driver:
A4988 Stepper Motor Driver Board is a breakout board for Allegro’s A4988 DMOS Micro stepping Driver with Translator and Overcurrent Protection; please read the A4988 datasheet carefully before using this product.
Low RDS (On) Output
Automatic current decay mode detection / selection
Mix with slow current decay modes
Synchronous rectification for low power dissipation
Internal UVLO
Crossover-current protection
3.3 and 5 V compatible logic supply
Thermal shutdown circuitry
Ground fault protection
Load short-circuit protection
Five selectable step modes: full, 1/2, 1/4, 1/8 and 1/16
Warning: Connecting or disconnecting a stepper motor while the driver is powered can destroy the driver. (More generally, rewiring anything while it is powered is asking for trouble).
Step 1: Download the GRBL HEX file https://github.com/gnea/grbl/releases/tag/v1.1f.20170801
Step 2: Download XLoader https://github.com/xinabox/xLoader
Step 3: Open XLoader and Load the HEX File downloaded in Step 1.
Step 4: Select the current Board - Uno(ATmega328) and COM port.
Step 5: Press Upload.
DONE!
Package Includes:
1 X cnc shield v3
4 X A4988
4 X Heatsink
1 X UNO R3
1 X USB cable
Features:
CNC Shield Board:
Latest CNC Shield Version 3.0 for Arduino.
GRBL 0.9 compatible. (Open source firmware that runs on an UNO for Arduino that turns G-code commands into stepper signals)
PWM Spindle and direction pins
4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis (6 in total)
Coolant enable
Uses removable A4988 or DRV8825 compatible stepper drivers
Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
Compact design.
Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
Runs on 12-36V DC. (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
Please note that this is an unassembled kit and Basic soldering skills are needed.
A4988 Stepper Motor Driver:
A4988 Stepper Motor Driver Board is a breakout board for Allegro’s A4988 DMOS Micro stepping Driver with Translator and Overcurrent Protection; please read the A4988 datasheet carefully before using this product.
Low RDS (On) Output
Automatic current decay mode detection / selection
Mix with slow current decay modes
Synchronous rectification for low power dissipation
Internal UVLO
Crossover-current protection
3.3 and 5 V compatible logic supply
Thermal shutdown circuitry
Ground fault protection
Load short-circuit protection
Five selectable step modes: full, 1/2, 1/4, 1/8 and 1/16
Warning: Connecting or disconnecting a stepper motor while the driver is powered can destroy the driver. (More generally, rewiring anything while it is powered is asking for trouble).
Step 1: Download the GRBL HEX file https://github.com/gnea/grbl/releases/tag/v1.1f.20170801
Step 2: Download XLoader https://github.com/xinabox/xLoader
Step 3: Open XLoader and Load the HEX File downloaded in Step 1.
Step 4: Select the current Board - Uno(ATmega328) and COM port.
Step 5: Press Upload.
DONE!
Package Includes:
1 X cnc shield v3
4 X A4988
4 X Heatsink
1 X UNO R3
1 X USB cable
LCD module 3.5 inch TFT LCD display for Arduino UNO R3 Board and supports mega 2560 R3 (1B3 Arduino LCD display 3.5inch)
Package Includes:
PLEASE NOTE: Arduino board and USB cable are not included
LCD module 3.5 inch TFT LCD screen 3.5 " for Arduino UNO R3 Board and support mega 2560 R3
Watch a video on this item at https://www.youtube.com/watch?v=PAPW97X6IRM
LCD module 3.5 inch TFT LCD screen 3.5 " for Arduino UNO R3 Board and support mega 2560 R3
Watch a video on this item at https://www.youtube.com/watch?v=PAPW97X6IRM
Package Includes:
camera module OV7670 Supports VGA CIF auto exposure control display active size 640X480 for Arduino (C3 Arduino camera)
High sensitivity for low-light applications
Low voltage suitable for embedded applications
Standard SCCB interface compatible with I2C interface
RawRGB to RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2)output format
support VGA, CIF, and from CIF to 40x30 the size
VarioPixel subsampling way
eliminate light stripes, automatic black level calibration image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
ISP has eliminate noise and dead pixel compensation function
support image scaling
The lens is the loss of light compensation
50/60Hz detection
the saturation automatically adjust ( UV adjustment)
edge enhancement automatically adjust
Noise Reduction automatically adjust
key parameters
photosensitive array 640X480
IO voltage 2.5V to 3.0V ( internal LDO to core supplies ) the
power operation 60mW/15fpsVGAYUV
Sleep < 20 μ A
temperature operation from 0 ° C to 50 ° C
( 8 -bit) output format ? YUV/YCbCr4 RGB565/555/444 GRB4: 2:2: 2:2 Raw RGB Data
Optical size of 1/6 "
field of view angle of 25 °
maximum Zhen rate 30fps VGA
Sensitivity 1.3V / (Lux-sec)
signal to noise ratio of 46 dB
dynamic range of 52 dB
browsing mode progressive
electronic exposure
area of 3.6 μ mx 3.6 μ m
dark current 12 mV / s at 60 ° C
Package Includes:
1 x camera board
How to Use OV7670 Camera Module with Arduino
Description
OV7670 image sensor, small size, low operating voltage, and provides all the features of the single-chip VGA camera and image processor. Through theSCCB bus control, you can output the entire frame, sub-sampled, take the window way affect the data resolution of 8 bits. VGA image of the product is up to 30 frames / sec. Users can fully control the image quality, data format and transmission mode. The process of image processing functions including gamma curves, white balance, saturation, chroma, and so can beprogrammed through the SCCB interface. OmmiVision image sensor applications unique sensor technology to improve image quality by reducing or eliminating the optical or electronic defect, such as fixed pattern noise, tail-blooming, clear and stable color image.
High sensitivity for low-light applications
Low voltage suitable for embedded applications
Standard SCCB interface compatible with I2C interface
RawRGB to RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2)output format
support VGA, CIF, and from CIF to 40x30 the size
VarioPixel subsampling way
eliminate light stripes, automatic black level calibration image quality control including color saturation, hue, gamma, sharpness ANTI_BLOOM
ISP has eliminate noise and dead pixel compensation function
support image scaling
The lens is the loss of light compensation
50/60Hz detection
the saturation automatically adjust ( UV adjustment)
edge enhancement automatically adjust
Noise Reduction automatically adjust
key parameters
photosensitive array 640X480
IO voltage 2.5V to 3.0V ( internal LDO to core supplies ) the
power operation 60mW/15fpsVGAYUV
Sleep < 20 μ A
temperature operation from 0 ° C to 50 ° C
( 8 -bit) output format ? YUV/YCbCr4 RGB565/555/444 GRB4: 2:2: 2:2 Raw RGB Data
Optical size of 1/6 "
field of view angle of 25 °
maximum Zhen rate 30fps VGA
Sensitivity 1.3V / (Lux-sec)
signal to noise ratio of 46 dB
dynamic range of 52 dB
browsing mode progressive
electronic exposure
area of 3.6 μ mx 3.6 μ m
dark current 12 mV / s at 60 ° C
Package Includes:
1 x camera board
How to Use OV7670 Camera Module with Arduino
Adapter Board for Arduino & Raspberry Pi (C4 WS ARPI600 adapter board)
What's on the ARPI600
Overview
Arduino is a massive ecosystem, if there's a way for the Raspberry Pi GPIO interface to adapt to Arduino pinouts, it is possible to use the Pi together with vast Arduino shields and hardware/software resources. The ARPI600 is just intended for this.
What's more, the ARPI600 also support XBee modules, make it easy to add wireless feature to your great project.
ARPI600 Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Compatible with Arduino UNO, Leonardo, easy to connect with various Arduino shields
- XBee connector for connecting various XBee modules
- Sensor interface for connecting various sensors
- Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
- Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
- Onboard RTC
What's on the ARPI600
- Arduino connector : for connecting Arduino shields
- ICSP interface : Arduino ICSP
- XBee connector : for connecting XBee communication modules
- Sensor interface : for connecting sensors
- Raspberry Pi connector : for connecting Raspberry Pi
- USB TO UART
- TLC1543 : AD converter
- PCF8563 : RTC
- CP2102
- 32.768KHz crystal : for RTC
- Power indicator
- XBee state LED
- XBee and Arduino interface RESET button
- XBee EASYLINK button
- RTC battery holder : for CR1220 button battery
- TLC1543 reference voltage configuration jumper
- RTC jumper
- UART jumper
- when connecting P_RX and CP_TX, P_TX and CP_RX respectively, USB TO UART is connected to Raspberry Pi serial port
- when connecting XB_RX and CP_TX, XB_TX and CP_RX respectively, USB TO UART is connected to XBee serial port
- when connecting XB_RX and P_TX, XB_TX and P_RX respectively, Raspberry Pi serial port is connected to XBee serial port
- Arduino AD selection jumper
- short 2 and 3 : Arduino A0-A5 as AD input
- short 1 and 2 : Arduino A0-A5 as digital control
- Arduino I2C selection jumper
- short the jumper : Arduino A4-A5 as I2C control (the A4-A5 of Arduino AD selection jumper should be opened)
- Arduino SPI selection jumper
- short 1 and 2 : Arduino D11-D13 as SPI control (default)
- short 2 and 3 : Arduino D11-D13 as digital control
Development Resources
Mega2560 + WiFi R3 ATmega2560+ESP8266 32Mb memory USB-TTL CH340G. Compatible for Arduino Mega NodeMCU For WeMos ESP8266 (1C2 Mega2560 + wifi)
Features:
Full integration on one board: Mega R3 ATmega2560 and WiFi ESP8266 with memory 32Mb (megabyte)
All of the modules can work together or each separately. And everyone has their own pinout headers
The convenient solution for the development of new projects requiring Uno and WiFi
Via USB you can update sketches and firmvare for ATmega2560 and for ESP8266. For this on board have the USB-serial converter CH340G
Use this board is very simple
The board has DIP-switch, to connect the modules
For example, to: USB and ATmeg2560, USB and ESP8266, ATmega2560 and ESP8266
Table DIP- Switch:
Connection DIP
ATmega2560<->ESP8266
ATmega2560<->ESP8266
1 2 3 4 5 6 7
ON ON OFF OFF OFF OFF OFF
USB <->ATmega2560
OFF OFF ON ON OFF OFF OFF
OFF OFF ON ON OFF OFF OFF
USB<->ESP8266 (Update firmware or sketch)
OFF OFF OFF OFF ON ON ON
OFF OFF OFF OFF ON ON ON
USB<->ESP8266 (communication)
OFF OFF OFF OFF ON ON OFF
OFF OFF OFF OFF ON ON OFF
All independent
OFF OFF OFF OFF OFF OFF OFF
OFF OFF OFF OFF OFF OFF OFF
Special solution:
USB <->ATmega328<-> ESP8266
DIP SWITH 2
Connection 1 2 3 4 5 6 7
USB <-> ATmega2560<-> ESP8266 ON ON ON ON OFF OFF OFF To RXD3/TXD3
USB converter CH340G connect to RX0/TX0 of ATmega2560
ESP8266 connect to RX3/TX3 of ATmega2560
Documents
Dimensional drawing |  |  | ||
Pinout |  | | ||
Schematic | | |||
Drivers |  |  |  |  |
Package Contents:
1 x Mega + WiFi Board
UNO R3 SMD (CH340G) MEGA328P for Arduino UNO R3 + USB CABLE ATMEGA328P-AU Development board (UNO SMD fixed IC)
It has:
- 14 digital input/output pins (of which 6 can be used as PWM outputs)
- 6 analog inputs
- a 16 MHz quartz crystal
- a USB connection
- a power jack
- an ICSP header
- a reset button.
It contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Package Includes:
1 x Arduino Uno SMD
1 x Headers
1 x USB cable
Getting started with Arduino products
Product introduction
UNO R3 is a microcontroller board based on the ATmega328P. It has:
- 14 digital input/output pins (of which 6 can be used as PWM outputs)
- 6 analog inputs
- a 16 MHz quartz crystal
- a USB connection
- a power jack
- an ICSP header
- a reset button.
It contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
Package Includes:
1 x Arduino Uno SMD
1 x Headers
1 x USB cable
Getting started with Arduino products
