LM393 comparing two photosensitive resistance, when the imbalance (eg side pressure runway black) immediately control side of the motor stops rotating, the other side of the motor rotation acceleration, so that the car modification direction, return to the right direction, the whole process is a closed loop therefore rapid and sensitive control.
With the aim of simplifying the complex principle, we first have a by digital circuit to the intelligent tracking car, in the assembly process, we could not only familiar with the mechanical principle gradually can learn to: photocell, a voltage comparator, a motor drive circuit, and other related electronic knowledge.
Photosensitive resistance device:
This is light-sensitive resistance, it can detect the external light intensity, the stronger the outside light photosensitive resistance resistance is small, the outside light weaker resistance is greater when the red LED light projected on a white and black runway because reflection rate is different, the resistance value of the light-sensitive resistance will occur obvious difference for subsequent circuit control.
LM393 comparator integrated circuit:
LM393 is a dual voltage comparator integrated circuit, which consists of two independent precision voltage comparator. its role compare the two input voltage, based on the level of two input voltage change the level of output voltage. The output has two states: close to open or close to the low level, LM393 using open collector output, so it is necessary to add the pull resistance to output high level.
DC motor with gear reduction:
DC motor drive the car needs to slow down, otherwise to speed up the car, then ran too fast not control, and the deceleration torque is too small and could not run up. We specialize in custom of this type of motor is integrated with the reduction gear and greatly reducing the manufacture difficulty is very suitable for our use.
LM393 comparing two photosensitive resistance, when the imbalance (eg side pressure runway black) immediately control side of the motor stops rotating, the other side of the motor rotation acceleration, so that the car modification direction, return to the right direction, the whole process is a closed loop therefore rapid and sensitive control.
Assembly steps:
The first step: circuit part of the basic welding
The welding circuit part is relatively simple, the welding sequence according to the element height from low to high, the first 8 resistance welding, welding must use a multimeter to confirm whether the proper welding resistance, polar components such as transistors, green lights, definitely clear electrolytic capacitor polarity as reference element we are photo welding, welding capacitor short is the negative side of the insertion pin PCB screen printing shadow, green welding LED note long pin is positive, and the welding is not too long or easy bad welding, D4 D5 R13 R14 can temporarily do not weld, the integrated circuit chip can be inserted, preliminary after completion of welding check carefully prevent, be negligent.
Second step: mechanical assembly
The universal wheel screw is inserted into the PCB hole, and screwed into the universal wheel nut and a universal wheel. the battery box is stuck on the PCB by the double adhesive tape, the lead wire passes the PCB reserved Kong Han received PCB, the red line is connected with the 3 V positive power supply, and the yellow line is connected to the ground.
Mechanical part and assembly can be mounted first wheels, wheel consists of three pieces of black acrylic round tablets, assembly prior to exposing protective film, the inside of the wheel center hole grows circular hole, middle of the round plate diameter is relatively small, lateral wheel piece center hole Shiyuan, with two screw nuts fixed set good three round tablets, and black self-tapping screws fixed on the rotating shaft of the engine. Finally the silicone rubber tire sleeve on the wheel. Lead connection lead wire of the motor and the wheel assembly is the use of the glue on the PCB making position, attention wheels and the PCB edge retaining sufficient clearance, the motor leads are soldered to the PCB. Note that adequately longer lead, to avoid the motor rotation direction error is convenient for changing the lead wire of the order.
The third step: the installation of opto-electronic circuits
Photosensitive resistance and light-emitting diode (attention polarity) is the reverse installed on the PCB, and the ground distance of about 5mm, the distance between the light-sensitive resistance and light-emitting diode is also about 5mm. Finally can pass electrical test.
The fourth step: Vehicle debugging
In the battery box in 2 AA batteries, switches to dial in the "on", the car driving right reverse is traveling along the direction of the universal wheel, if hold the left side of the photosensitive resistance, the car to the right of the wheel rotation, Keep to the right of photosensitive resistance, the left side of the car wheel must turn, if car travel back can exchange connection of two motors at the same time. as one of the normal back on the other side as long as the exchange of the rear of the motor can be wiring.
Note: We don't supply any manuals, please note this before you buy this DIY kit.
What's in the box?
1 x Electronic DIY Kit (batteries are not included)
LEARN ABOUT ELECTRICITY – Provide a fun learning experience for inquisitive minds
This easy build bike light kit has just ten parts, making it a good introduction to electronics. The kit uses two ultra bright red LEDs, which flash rapidly, providing a highly visible light. Making it ideal for use as a rear bike light.
Alternatively it can be used as a night safety product or flashing eyes.
Features:
- Easy build kit making a great introduction to electronics.
- Great visibility for night time safety.
Contents:
- 1 x 2xAA Battery Cage with Leads.
- 2 x 470K Resistor.
- 1 x 33R Resistor.
- 2 x Capacitor, Electrolytic, 16V, 10uF.
- 2 x BC547 NPN Transistor.
- 2 x Red 5mm Water Clear LED - 30deg - 1000mCd.
Dimensions:
- Length: 48.5mm.
- Width: 25.5mm.
Requires:
- 2 x AA Batteries.
- Soldering Iron.
- Solder.
- Wire Cutters.
Resources:
- Click here to download the essential information
- Click here to download the full teaching resources
- Autodesk Files.
- 3D CAD Files.

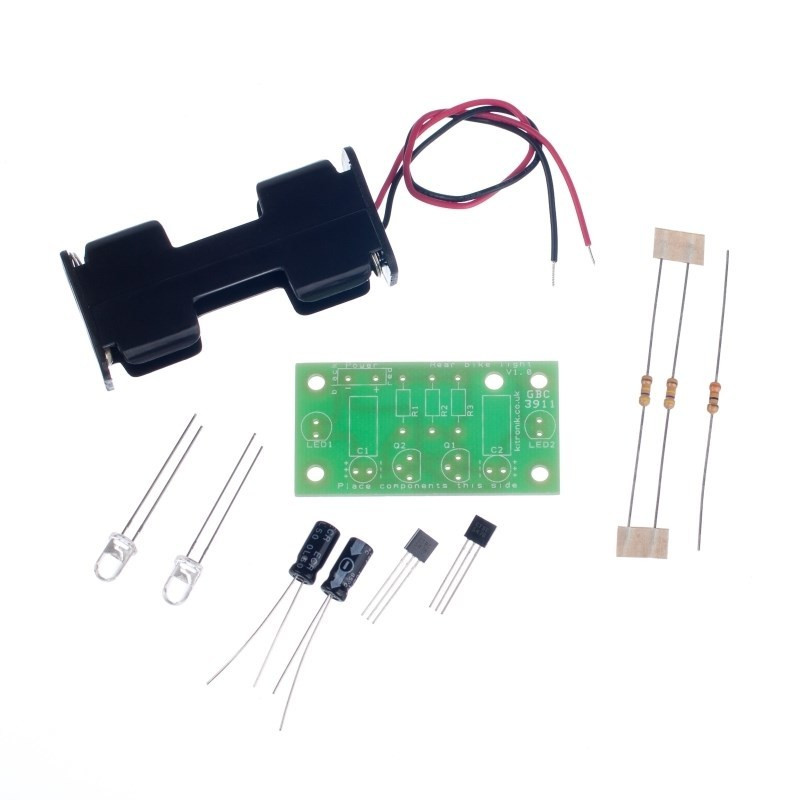

This easy build bike light kit has just ten parts, making it a good introduction to electronics. The kit uses two ultra bright red LEDs, which flash rapidly, providing a highly visible light. Making it ideal for use as a rear bike light.
Alternatively it can be used as a night safety product or flashing eyes.
Caution:
- This is an educational kit and should be used in conjunction with a commercially available bike light.

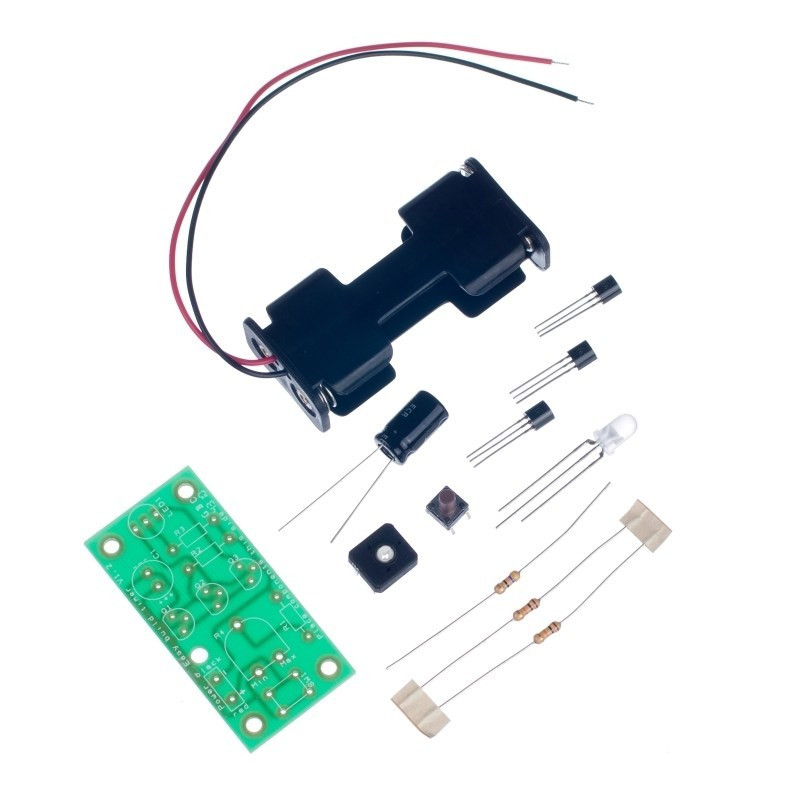

With its low part count this easy build timer project makes a good introduction to electronics. The timer uses a resistor capacitor network to provide a time delay of between 1 second and 4 minutes, which is set by the PCB mount variable resistor. When the button is pressed the LED changes from red to green, then at the end of the time interval it turns red.
Features:
- Easy build timer kit.
- When the time set has been reached the LED changes colour.
- The time delay can be adjusted via the variable resistor.
Contents:
- 1 x 2AA Battery Cage.
- 1 x 47Ω Resistor.
- 2 x 10KΩ Resistors.
- 1 x 1MΩ Potentiometer.
- 1 x Capacitor, Electrolytic, 10V, 1 mF.
- 1 x BC558 PNP Transistor.
- 1 x Tri colour 5mm diffused LED - 650mCd.
- 1 x 6mm PCB Mount Tactile Switch 9.5mm Height.
- 1 x Easy Build Timer PCB
Dimensions:
- PCB Length: 54mm.
- PCB Width: 26mm.
Requires:
- 2 x AA batteries, available separately. Alternatively it can be powered by our easy build coin cell power board.
- Soldering Iron.
- Solder.
- Wire Cutters.
Resources:
Note:
- This kit requires soldering.

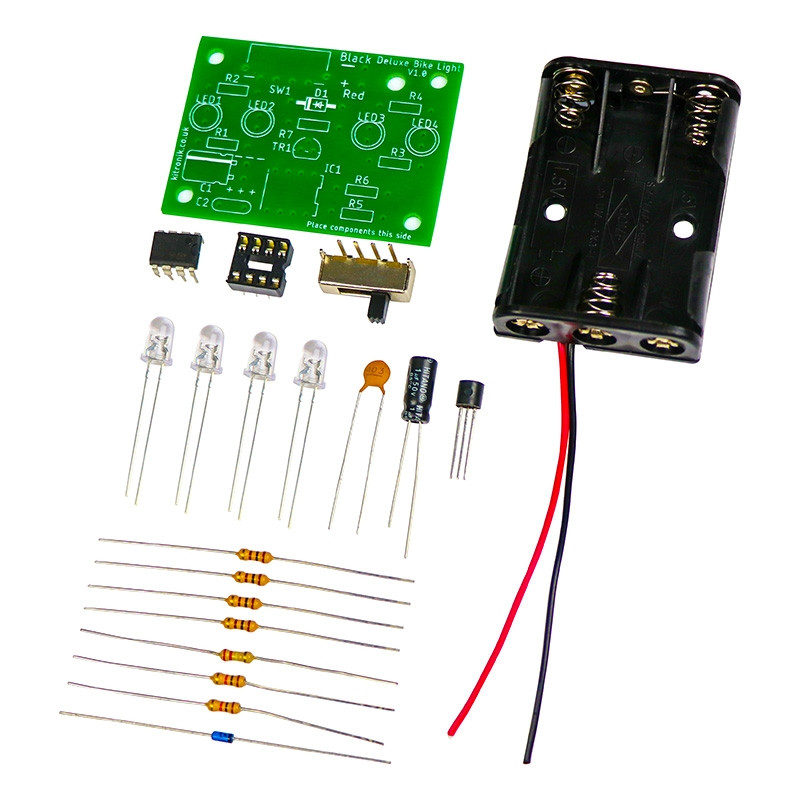

The Kitronik Deluxe Rear Bike Light Kit is easy to build kit and is an excellent way to learn about the very popular 555 timer IC. The kit uses four ultra bright LEDs that can be operated in two modes; constant and flashing.
A key design aim of the kit was that it should conform to all relevant British Standard measures. Both the flash rate and brightness conform to British Standards for vehicle road lighting (2005), making it ideal for use as a rear bike light. Alternatively, it can be used as a night safety product or flashing eyes.
During testing we connected the kit to 3 x AAA batteries and ran it continuously. At 80 hours of continuous use the LEDs were still lit at full brightness. After 107 hours, although still lit, the brightness had dropped below the level at which you would want to use them. So, we estimate that with brand new batteries you could comfortably run the light for 2 hours of daily commuting for at least an entire month with the LEDs still at full brightness.
Features:
- An easy to build rear bike light project that conforms to British Standards for vehicle road lighting (2005) for both brightness and flash rate.
- Learn about the very popular 555 timer IC.
- The kit features 4 x bright LEDs.
- It has two operating modes; continuous and flashing.
- Its compact design makes it the ideal choice for designing custom enclosures.
Contains:
- 4 x Red 5mm Water Clear LED - 30deg - 9500mCd.
- 1 x On-Off-On Slide Switch.
- 1 x Capacitor, Electrolytic, 50V, 1uF.
- 1 x Capacitor, Ceramic, 50V, 10nF.
- 1 x 220K Resistor.
- 2 x 1K Resistor.
- 4 x 100R Resistor.
- 1 x BAT41 Signal Diode.
- 1 x 2N7000 N Channel FET.
- 1 x IC Socket 8 Pin.
- 1 x NE555 Timer IC.
- 1 x (3 x AAA) Battery Holder with pre-tinned flying leads.
- 1 x Deluxe Rear Bike Light PCB.
Dimensions:
- PCB Length: 52.6mm.
- PCB Width: 37.6mm.
- PCB Thickness: 1.6mm.
Video: https://youtu.be/KPPh7Nwa1ts
Requires:
- Soldering Iron.
- Solder.
- Wire Cutters.
- 3 x AAA Batteries.
Resources:
Specifications
What's in the box?
1 x CamJam Edukit
Resources
All the worksheets are freely available to download from http://camjam.me/edukit
CamJam Edukit 1 for Raspberry Pi Pico
The CamJam EduKit #2 is the latest edition to the EduKit family!
The kit is accompanied by a set of (currently 6) downloadable worksheets (or lesson plans for you educators!) that will take you through a series of exercises and projects, teaching you how to make the most of your kit. Whats best is that there is no soldering required, each high quality component is breadboard friendly!
All the worksheets are freely available to download from http://camjam.me/edukit
Kit Contents:
- 1 x Breadboard
- 1 x Immersible temperature Sensor
- 1 x PIR Sensor
- 1 x LDR
- 1 x Active Buzzer
- 1 x Red 10mm LED
- 1 x Blue 10mm LED
- 1 x 4.7K Resistor
- 2 x 330 Resistor
- 10 x M/F Jumper Wires
- 4 x M/M Jumper Wires
- 1 x Presentation Tin
Here are just 4 cool projects you could use the kit for:
- Make a burglar alarm for your bedroom.
- Switch on an LED when it gets dark.
- Have an alarm go off when it’s freezing outside.
- Test whether the light really does go off in the fridge when you shut the door.
Still not convinced? Check out these awesome articles on the kit!
- "CamJam Edukit 2 Launches at PiWars" - Raspi.tv
- "The CamJam EduKit 2 - Learn How To Use Sensors With The Raspberry Pi" - Average Man vs Raspberry Pi
The CamJam EduKit is a joint venture between The Pi Hut and the Cambridge Raspberry Jam (CamJam). Profits from the sale of the kit will go to CamJam so that they can continue their educational and community work.
All you need to do is to add your own chassis, Raspberry Pi (any model) & batteries! Then, follow the worksheets to make your own motorized buggy. Add the included sensors and you will soon be detecting objects in front of your robot and following line courses.
What's in the box?
A custom-designed, pre-soldered motor controller board (with screw terminals)
2 x DC motors (with wires pre-soldered)
2 x custom red wheels (which go extra fast… because they’re red!)
1 x ball castor (used as the ‘third wheel’ to your robot)
1 x small breadboard (to create your circuits)
2 x pieces of strong 3M padded double-sided tape
1 x battery box for 4 AA batteries (batteries not included)
1 x ultrasonic distance sensor (for detecting objects in front of your robot)
1 x line follower sensor (for detecting and following black lines)
Resistors and jumper cables with which to complete your circuits
A strong cardboard box to keep it all in… or to cut into to make your chassis!
Resources
All the worksheets are freely available to download from http://camjam.me/edukit
Got a 3D printer? Daniel Bull has very kindly designed an awesome chassis, available from Thingiverse ..
Alex Eames over at Raspi.TV got his hands on a prototype, here's what he did!
https://youtu.be/LJDEV7rGwaM
And here's a fantastic unboxing video from Average Man vs Raspberry Pi!
https://youtu.be/KPYWNXiItwo
And another review! This time from TheRaspberryPiGuy! Thanks Matt!
https://youtu.be/TMjd0UrH2PY
Mini motor model toy, a device for converting electrical energy into mechanical energy.
A series of physical science broaden kids and children's horizon, stimulating their curiosity.
Specifications
Type: Motor Toy
Material: ABS, Electronic Components
Features: Durable, Energy Conversion Learning, Easy to Assemble, Miniature Size
Size: 60mm x 52mm x 37mm (Approx.)
What's in the box?
1 x Motor toy model
1 x Plastic propeller
Note: This set does not contain the two AA batteries. You need to purchase 2 AA batteries to drive the circuit.
What's in the box?
2 x AA Batteries Holders
2 x Bulb Holders
5 x Bulbs
2 x Switches(SPDT)
1 x Switches(SPST)
1 x Hand crank generation model
1 x Compass
1 x Wind Power Car
1 x Screwdriver
10 x Cable
1 x Electromagnet
1 x Double LED board
1 x Transparent storage box
1 x Small wrench
Description
This package offers a year-long robotics course. The course commences with the fundamentals of robotics and coding as well as the importance of simulation.
Once the fundamentals are covered, students take part in a practical project where they’re required to build an automated hand sanitiser. An infra-red sensor will detect a hand and the system will discharge a small amount of soap or sanitiser. The second project in the course is a practical project called the Home Automation System. In this project, students will demonstrate the practical application of servo motors, temperature sensors, infrared sensors, fans, buzzers, lighting and a security system feature in a home automation system.
After completing these two practical projects, the course will introduce students to the world's most popular coding language: Python. Throughout the course, students will learn how to develop several applications such as Tic Tac Toe, Hangman and Pong. They’ll also be introduced to libraries such as Turtle to help grow their understanding of how programming works and how code is read by the computer.
OVERVIEW:
The Resolute Beginner’s Kit is a great way to get started in the world of robotics and coding. It includes all the components required to build projects like the Automated Hand Sanitiser, the Home Automation System and much more. There are also fun challenges to test the students’ understanding of what they’ve learned. This kit gives you access to an online platform where step-by-step video instructions are provided to help you learn and build with ease.
Additional Requirements:
- Internet Connection
- Laptop, PC or Mac
- 1.4 GHz CPU or higher
- Minimum of 10GB free storage on your device
- Recycled Material (such as cardboard)
- An Interest to Learn.
FEATURES:
- Video-based learning for each project, task and concept taught in the course.
- Plug and play: No soldering required, build your circuit in minutes.
Components:
- Arduino Uno
- Digital Multimeter (9V Battery Banana to crocodile cable included)
- Mini Screwdriver Set
- DC Motor Water Pump
- DC / DC Buck (LM2596)
- Analog Temperature Sensor Module
- Brushless Fan DC 5V
- AC Power Supply
- Reed sensor module (with Mini Magnets)
- Tubing
- Breadboard x 2
- 20cm Male-to-Female Jumper Cable x 2
- 65pcs Male-to-Male Jumper Wires x 2
- MG90S Metal Gear Micro Servo x 2
- Relay (5V 1 Channel Module) x 2
- 9V Battery Button Power Cable x 2
- USB Extension Cable
- Active Buzzer x 2
- Infrared Sensor x 4
- Push-button Pack
- Resistor Pack
- Variable Resistor Pack
- LED Pack
- RGB LED x 2
- Phototransistor
- Extra wires (8 core solid wire) for Breadboard use
ADDITIONAL INFORMATION:
This low-cost simple to use electronics kit will teach you electronics and coding with your Raspberry Pi Pico. (or Pico with presoldered headers)
Build ten great projects including: A touch switch, a thermometer, a light meter and lie detector and much MORE !
Specifications:
- Dimensions and Weight (closed box)
- Units Length 120 mm
- Width 105 mm
- Height 35 mm Weight 95 g
What's in the box ?
1 x Solderless Breadboard 400 point
10 x Male to male jumper wires
1 x Micro-servomotor and accessory bag
2 x Strip of 0.1inch 20way header pins
5 x 470Ω resistor
2 x 1kΩ resistor
1 x 4.7MΩ resistor
2 x Red LED
1 x RGB LED (10mm)
2 x Tactile push switch (2 pin)
1 x Phototransistor
1 x Piezo buzzer
Resources:
Instructions (PDF)
Datasheet (PDF)
Specifications
This kit is an improved and updated version of the now retired Electronics Starter Kit for Raspberry Pi
A 40 page booklet by Simon Monk (author of the Raspberry Pi Cookbook and Programming Raspberry Pi) is free to download and explains how to use the kit and build the projects.
What's in the box ?
1 x Solderless breadboard
1 x Male to male jumper wires
1 x Female to Male Jumper Wires
1 x Raspberry Leaf
5 x 470Ω resistor (yellow, purple, brown stripes)
2 x 1kΩ resistor (brown, black, red)
1 x 4.7MΩ resistor (yellow, purple and green stripes)
1 x 330nF capacitor
2 x Red LED – the longer lead is the (positive) lead
1x RGB LED – the longest lead is the – (negative) lead
2 x Tactile push switch
1 x Phototransistor
1 x Thermistor
1 x Buzzer
You may also need....
Raspberry Pi is NOT INCLUDED
Resources
Instructions (PDF)
The Kitronik LAB:bit for the BBC micro:bit offers a super fun way for children to learn about coding in an engaging and hands-on way. It has been specifically designed for the classroom for KS2 computing and is backed by online MakeCode tutorials, simplified custom blocks, and a detailed getting started guide. Supplied in the box are; a battery holder (3 x AA), a wheel and tyre for the motor, and the detailed easy to follow guide.
The board is absolutely packed with an impressive array of features and devices for easy delivery of fun and informative lessons. These include; a motor, ultrasonic distance sensor, 2 x large user-assignable tactile buttons (with indicator LEDs), a microphone, speaker (with volume control), 7 programmable ZIP LEDs(in an arc), A user-assignable potentiometer control, 2 x sets of traffic light LEDs, and LEDs arranged in a dice formation (that can also be used for displaying digits).
The board also features; an edge connector for the micro:bit to slot into, a pre-fitted protective acrylic cover, clip-able pads for attaching an additional motor, 2 x clip-able pads for attaching further buttons/switches, Colour changing power indication LEDS, a cutaway for easy reset button access, and pre-fitted anti-slip rubber feet.
This all in one laboratory environment ships with a detailed getting started guide, filled with step by step information that can easily be followed by either teacher or pupil. The guide starts with an introduction to using a micro:bit and the MakeCode editor, with each explained in detail. This is then followed by instructions for fitting the wheel to the motor. Each area of the board is explained in detail, complete with code examples for each. As with the previous sections, this part of the booklet has been designed so that it can be used by teachers and pupils.
Coding is done via the MakeCode blocks editor. Kitronik has produced custom blocks for the editor to ensure that they are suitable for use with pupils aged 7-10. Each area of the board has its own blocks that all slot together in intuitive ways and they have been organised into subdirectories by type. For example, all of the blocks for the motor are in one submenu and blocks for the traffic lights are in another submenu. There is also an 'other' submenu that contains blocks for the more advanced/older students who require an extra level of challenge. Detailed information on how to add these blocks to MakeCode can be found in the Getting start guide that ships with LAB:bit.
Power is provided via the provided 3 x AA battery holder into the DC barrel jack input. The board has been rated for a maximum of 6V and a minimum of 3V, 3V - 4.5V recommended. The onboard power regulation circuit provides power to the board and to the micro:bit, removing the need to power the micro:bit separately. LAB:bit has an inbuilt polarity protection circuit for the DC input. There is a Colour changing power LED to indicate when the battery voltage is getting low.
- No soldering.
- Minimal mechanical assembly required. The wheel needs to have the tyre fitted and then to be fitted to the onboard motor.
- This kit is not supplied with a micro:bit. The micro:bit is available separately here.
Features:
- LAB:bit is an all in one educational platform designed for the delivery of KS2 computing in the classroom (7 - 10-year-olds).
- It's packed full of devices, LEDs, switches, sensors, and other programmable features.
- It features an edge connector for the micro:bit to slot into, no tools required.
- LAB:bit is supplied with a pre-fitted protective acrylic cover.
- Additionally, there are clip-able pads for attaching an additional motor, 2 x clip-able pads for attaching further buttons/switches, colour changing power indication LEDs, and a cutaway for easy reset button access.
- There are also pre-fitted anti-slip rubber feet to ensure that LAB:bit stays securely on the desk.
- Code it with blocks in the MakeCode editor.
- Kitronik custom blocks to make coding more intuitive and straightforward.
- Custom blocks are grouped by type to make it easy to go straight to the blocks you need.
- No soldering!
- Minimal mechanical assembly required.
- Supplied in the box are; a battery holder (3 x AA) and a wheel and tyre for the motor.
- Power LAB:bit via the provided 3 x AA battery holder.
- The board is rated for 3V - 6V.
- It has an inbuilt polarity protection circuit for the DC input.
- The onboard power regulation circuit provides power to the board and to the micro:bit, removing the need to power the micro:bit separately.
- LAB:bit is supplied with a fully comprehensive getting started guide. It takes you through everything you need to know and can be followed by both teacher and pupils.
What's in the box ?
1 x Kitronik LAB:bit for the BBC micro:bit
1 x Yellow 5 spoke injection moulded wheel and rubber tyre.
1 x 3AA battery holder.
(* Micro:bit NOT Included *)
Requires the following :
- micro:bit
- USB cable for connecting the micro:bit to a computer.
- 3 x AA Batteries.
- Optional - 5V USB Power Supply (1A or more).
- 7 online MakeCode experiments that teach you how to create code for each area of the board, they are.
- A Pirate ship for LAB:bit.
- Tech Talks - live stream playback.
- Insight Resources Mr Bit:
- LAB:bit downloads.
- Tutorial 1: https://youtu.be/3OMRCZJM5pc
- Tutorial 2: https://youtu.be/xndCctCDCdQ
- Tutorial 3: https://youtu.be/WyJ5bMPAGfg
- Tutorial 4: https://youtu.be/E7jYcPik43Y
- Tutorial 5: https://youtu.be/5pPr_XRS1cE
- Tutorial 6: https://youtu.be/5BDvlVw3M44
- Tutorial 7: https://youtu.be/6v39f_EWGcs
- Projects: https://youtu.be/fQBEHESlxQc
- Download Mr Bit,
(* Micro:bit NOT Included *)
Description:
Note: This kit comes with the Seeeduino -Lotus, Arduino UNO compatible board.
Note: The All In One Beginner Kit is now compatible with Scratch 3.0 graphical programming and there are 16 FREE lessons :) Check it out.
Here is a Video on getting Started :
YouTube : Easy way to start with Arduino
Learning new things is always difficult, and it's the same for Arduino beginners. You need to learn hardware knowledge, programming code, need to know connection methods of various complex interfaces, and even need to master welding skills. Tons of things are needed before you actually start learning Arduino programming. Well, we feel your pain, so we carry the Grove Beginner Kit for Arduino® from SeeedStudio, it is one of the simplest ways to get started with Arduino.
Unlike most kits, the Grove Beginner Kit for Arduino is an all-in-one kit, no breadboard, no soldering, even no wiring is needed. The kit cuts all those muss and fuss, aiming to give you the best experience, you only need to focus on coding and Arduino Learning. The kit is powered by one Arduino compatible Board (Seeeduino Lotus) together with 10 additional Grove Arduino sensors all in one piece of the board.
All the modules have been connected to the Seeeduino(Microcontroller) through the PCB stamp holes so no Grove cables are needed to connect. This is perfect for educational fields where frustrating wiring and soldering is no longer needed.
Of course, you can also take the modules out and use Grove cables to connect the modules. You can build any Arduino project you like with this Grove Beginner Kit For Arduino®.
What is Grove?
Grove makes it easier to connect, experiment, and simplify the prototyping process. No jumpers or soldering required. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs. Not only are these open hardware, but also have open-source software.
Note: SeeedStudio also prepared example code and software libraries to help you running 12 different demos in just a few lines of code. Check this Wiki to get started now!
Features:
- Arduino UNO compatible board(ATmega320p based Seeeduino Lotus) 10 most commonly used Arduino modules
- All modules are pre-wired, no breadboard and jumper cables required
- 74 pages PDF wiki 12 step by step project tutorials
- Super friendly to beginner and STEAM education
- Compatible with over 300 Grove modules
Hardware Overview :
What's in the box?
- Included in Kit:
- Grove Beginner Kit For Arduino Board x 1
- Micro USB Cable x 1
- Grove Cables x 6
- Included on the board:
- Grove - LED x 1
- Grove - Buzzer x 1
- Grove - OLED Display 0.96" x 1
- Grove - Button x 1
- Grove - Rotary Potentiometer x 1
- Grove - Light x 1
- Grove - Sound x 1
- Grove - Temperature & Humidity Sensor x 1
- Grove - Air Pressure Sensor x 1
- Grove - 3-Axis Accelerator x 1
- Seeeduino Lotus x 1
Resources:
- Please visit the wiki for more information about the Grove Beginner Kit For Arduino®
- Grove Beginner Kit for Arduino Wiki (pdf)
- Grove Beginner Kit for Arduino Schematic Design Files
- Scratch 3.0 Graphical Programming, 16 FREE Lessons
- Sensor Datasheet
- Initial Arduino Firmware Demo
- Grove Beginner Kit for Arduino Resources in one (20200401) [7z]
Note: Not suitable for children under 4 years old!
DIY Wooden Music Box STEM Kit is a music box that works by rotating a metal cylinder that has protruding pins that pluck every prong of a steel comb. The sounds that we hear are actually generated from the vibration of the prongs when the protruding pins make contact.
Let your kids experience the wonder of music creation through this DIY 13th century musical instrument! This DIY kit is simple enough to be built by 6 years old children.
Features
- Do It Yourself Wooden Music Box
- Suitable for age 6 years old and above
- Come with everything needed to assemble the music box
- No power or battery needed
- Learn the mechanism of a wind-up music box
- Music: Carrying You (From "Castle in the Sky" by Studio Ghibli)
What's in the box?
Wooden parts for the music boxWood glue
Some screws
Some double-sided tape
1 x Screwdriver
1 x Music instrument
1 x Mirror
1 x File for sanding
Resources
Aid young children and elementary school students to increase their physical knowledge in a hands-on form with a simple series circuits
Specifications:
- Colour: Black
- Material: Plastic
- Battery: 2 x AA Battery (Not included)
What's in the box?
1 x Bulb Holder
1 x Battery Holder
1 x Bulb
1 x Conductive Line
2 x Crocodile clips
(batteries not included)
What's in the box?
1 x Connection board with solar panel
1 x Connection board with Motor
1 x Jumper cables for connection boards
1 x Propeller (Colour of propeller is random)
Description:
Awesome and fun, for adults and kids, this is a seasonal must if you're into your electronics and gadgets. This circuit is composed of 16 pcs LED (light emitting diode). The 16pcs LED divided into four groups, and each group has different flashing frequencies, when four groups flash together, this item looks like a small Christmas tree. The circuit is powered by a 9V battery.
Specifications:
This circuit is simple and practical, low power consumption. It uses integrated circuits for driving: fewer parts, and the line is simple and easy to understand.
External Wiring Kit:
With USB plug for easy replacement of parts at any time and conducive circuit debugging. Also allows us to deepen our understanding of the principles of the circuit in the debugging process.
This project is in the form of an oscillation circuit by the cycle generated by the following principles:
- After the first charge, the capacitor C1 & C4 charging is complete.
- Capacitors C2 & C3 will continue to charge.
- When the transistor Q1 & Q4 is turned on at the same time, it discharges the capacitor C1 & C4.
- Capacitors C2 & C3 is fully charged, the transistor Q1 & Q4 will be closed, while also charging the capacitor C1 & C4 again.
- Transistors Q2 & Q3 is turned on while the capacitor C2 & C3 will be discharged.
- By analogy, the flash of speed is the oscillation frequency, and the frequency is determined by the resistor R & capacitance C values.
What's in the box ?
Note: Not suitable for children under 10 years old!
Warning: Laser is used in this project, take proper precautions and avoid direct eye exposure!
Note: Download the softcopy instruction manual (English) here.
The DIY (Do It Yourself) Kit for Children Age 10 and above
A laser-based Security System is a type of security and alarm system that uses laser light and a light sensor. In this kit, you will learn how to connect an alarm circuit and allows it to trigger when the laser beam is blocked.
.JPG)
This DIY kit is simple enough to be built by 10 years old children. Let them explore the capability of a laser and a light-dependent resistor (LDR) sensor.
.JPG) | .JPG) |
Features:
- Do It Yourself Laser Alarm System
- Simple and yet educational
- Suitable for age 10 years old and above
- Come with everything needed to assemble a laser alarm system
- No soldering is needed
- Learn about laser, LDR sensor, and connecting an electronic circuit!
Packing List:
- 2 x AA battery holders
- 1 x Screw block terminal
- 1 x Connector with wires
- 1 x Laser diode
- 1 x Push block connector
- 1 x LDR sensor
- 1 x Variable resistor
- 1 x Transistor
- 1 x LED
- 1 x Buzzer
- Wooden parts for the laser alarm system
- Some double-sided tape
- Some cable tie
Note: Kit does not include a screwdriver
.JPG)
