Camera Cases
This is an integrated bracket case independently designed by Yahboom, which supports Raspberry Pi 4B/3B /3B. It is composed of two upper and lower acrylic plates. The upper acrylic cover comes with mounting holes for fixing the official Raspberry Pi HQ camera. The lower acrylic cover has reserved holes for a cooling fan, display, and 40Pin pin headers, allowing any external devices to be connected to the Raspberry Pi board. We will also provide a detailed installation video, and users can install it easily through the screw copper pillar.

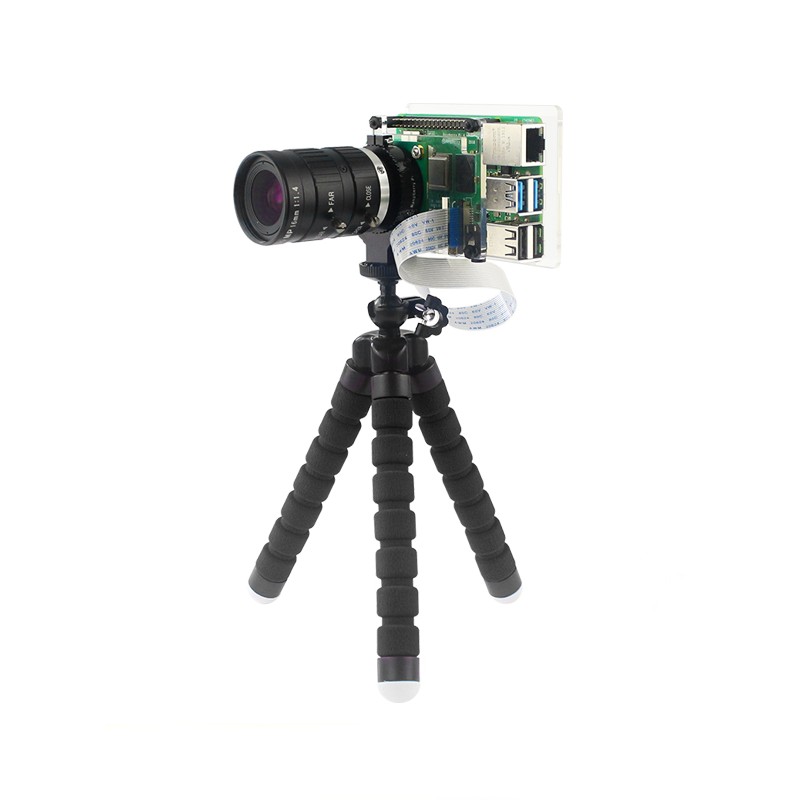

If you're using this tripod stand with a camera, its versatility also allows you to get shots from various angles. The stand comes with adjustable socket joints and flexible feet. You can bend the feet at your will for perfect photos!
This octopus tripod stand is compatible with the Raspberry Pi HQ camera module.(Cam included)
Features
- A unique all-in-one bracket shell.
- Supports the Raspberry Pi official HQ cameras.(INCLUDED)
- Compatible with Raspberry boards:(BOARD NOT INCLUDED)
- Raspberry Pi 4 Model B 2GB
- Raspberry Pi 4 Model B 4GB
- Raspberry Pi 4 Model B 8GB
- Raspberry Pi 3 Model B
- Raspberry Pi 3 Model B
- Suitable holes for cooling fans, cameras, display screens, and 40Pin pin headers.

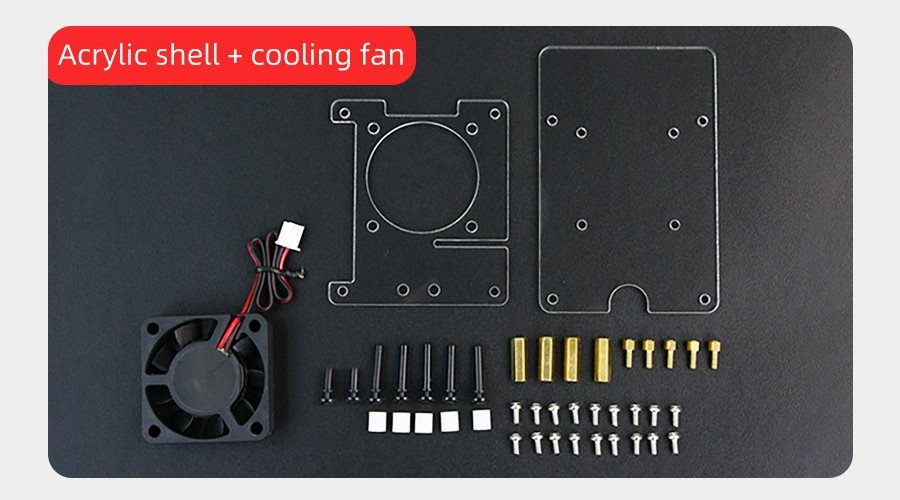

What's in the box?
1 x Acrylic top and bottom plate
1 x 5V fan
1 x Plastic rivet set to mount fan
1 x Spacer and screw set
1 x flexible portable camera tripod black
1 x Raspberry Pi HQ cam with ribbon
You will also need...
Raspberry Pi 4 (preferred) with power supply and cables or a Raspberry Pi kit
uSD card for you OS and space to save those pics
Lens of your choice(Find lenses here)
This is a 2-DOF pan-tilt kit designed for Raspberry Pi. With onboard PCA9685 PWM chip and TSL2581 ambient light sensor, it allows the Pi to control camera movement and sense light intensity through I2C interface.
Features- Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B
- I2C interface, only 2 pins are required for moving and light intensity sensing
- Onboard PCA9685 chip, provides 12-bit resolution PWM signal for moving control
- Onboard TSL2581FN light-to-digital converter, with embedded ADC, provides a value that approximates the human eye response to assist the module
- Onboard voltage level translator, compatible with 3.3V/5V operating voltage
- Specific acrylic board to fix the Raspberry Pi camera, make it easy to install
- Comes with development resources and manual (demo code, assembly guide)
Specifications
- PWM driver: PCA9685
- PWM resolution: 12-bit
- Ambient light sensor: TSL2581FN
- Ambient light resolution: 16-bit
- Communication interface: I2C
- Operating voltage: 3.3V/5V
- Dimension: 56.6mm x 65mm
How to Assemble
A little assembly work is required to use the Pan-Tilt HAT, yet it's pretty easy to do, here's the assembly guide: https://www.waveshare.com/img/devkit/accBoard/Pan-Tilt-HAT/Pan-Tilt-HAT-assemble.jpg
Dimensions
What's in the box?
Development Resources
The PIR Camera Case makes it easy to create a motion-sensing camera project with your Raspberry Pi 4.
It's the perfect case for anyone wishing to make an indoor security camera, pet monitor, baby monitor, office cam or any other project where you'd like to use a camera module to record whoever (or whatever!) moves in front of your camera. The case comes with the PIR module and wires.Please note:
Only compatible with the official Raspberry Pi Camera Module Raspberry Pi and camera module not included!
Mounted PIR and Camera Module
The case comes with the PIR module and wires included. The PIR module is neatly mounted to the front of the case and the three PIR wires connect directly to the Raspberry Pi GPIO pins (5V, GND and GPIO 17). The camera module (not included) is also mounted to the front of the case, and connected in the usual way (CSI connector), with the ribbon cable neatly tucked into the case. A clear lens ring protects your camera from any unexpected knocks or bumps.
Easy to Code
Coding the project is super-simple, and to help you get started we've created a GitHub repository dedicated to this case. The GitHub repository takes you through setup, basic commands and full Python project examples showing the PIR module and camera working together.
You can expand on these however you like, adding other functions such as cloud storage upload, video effects, alerts and more!
Please remember PIR sensors can be temperamental (and can also be impacted by WiFi, heat and other interference) so will need some tweaking to reduce excessive false triggers.
Compatibility
We include two sets of side panels to make this case compatible with both the Raspberry Pi 4.
In the box
- Case panels
- Lens protector ring
- Fixings pack
- PIR sensor
- PIR cable
Example Scripts and Resources
- GitHub Repository
- Assembly guide
- Preparing your Raspberry Pi
- Example code
- Downloading the example scripts to your Raspberry Pi
Case Assembly Guide
Features
- Compatible with the Raspberry Pi 4
- Laser-cut high quality "stealth" matt black perspex
- PIR module and wires included
- Camera protection ring
- Example code available
- Easy assembly
- Enables access to all Raspberry Pi ports
- Includes all required fixings
- Manufactured in the UK
Please note: Raspberry Pi and Camera Module not included. Wall mounting bracket not included.

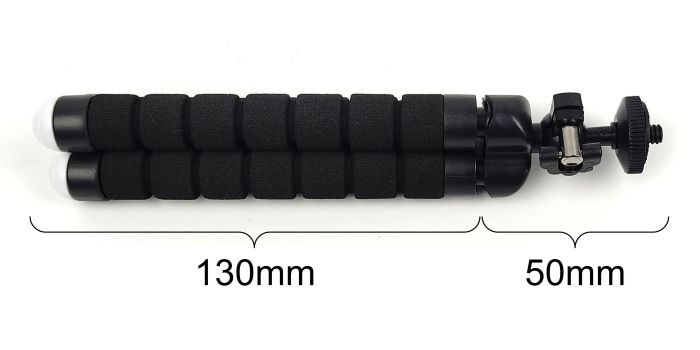

If you're using this tripod stand with a camera, its versatility also allows you to get shots from various angles. The stand comes with adjustable socket joints and flexible feet. You can bend the feet at your will for perfect photos!
This octopus tripod stand is also compatible with the Raspberry Pi HQ camera module.(NOT INCLUDED)

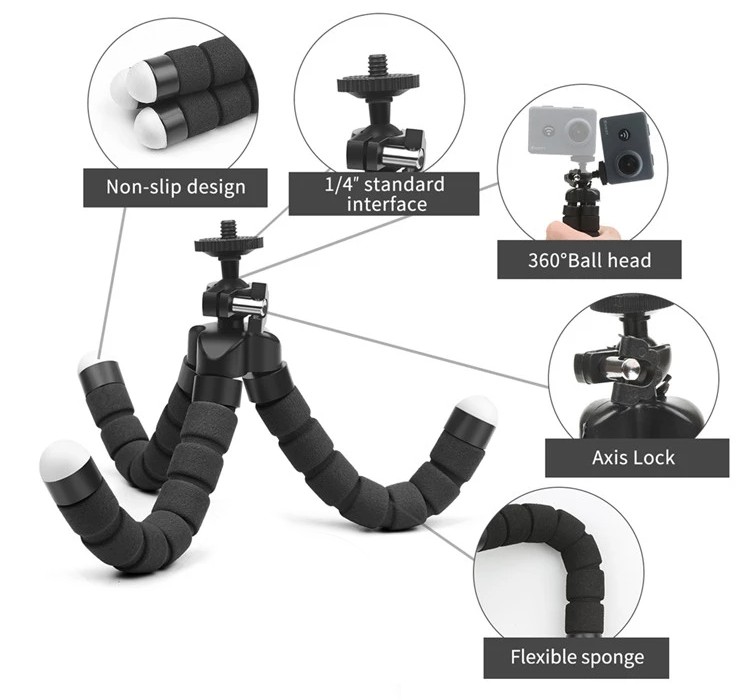

Features
- Complete flexibility, made of hard plastic
- Snap photo and record video at any angle with 360° rotatable socket joint
- Portable and durable, easy to carry, and lightweight
- 1/4” screw link attachments screw that fits most digital cameras, DSLR and also Raspberry Pi HQ camera module
- Allows users to level out a camera on the most uneven surfaces
- Weight: 43g
- The stand can support max 350g
- Colour: Black
- Material: Environmental protection ABS, sponge
What's in the box?
1 x Black Flexible Portable Camera Stand
You might also need...
Have a look at our camera mounting plate to mount your RPi 4 to your HQ cam and this tripod
Compatible with Mobile Phones/Camera/Projector/Ring Light and the Raspberry Pi HQ cameras
Durable design
With durable aluminium alloy material and strong load capacity, this tripod is stable and safe for using with your mobile phone. It can withstand any weather and lasts a long time.
Flexible height
This tripod gives you the freedom to let your creativity run wild. You can adjust the height in four levels, making it perfect for selfies, group photos, vlogs and live streams.
Protect Your Phone
The non-slip phone clip design of the tripod ensures that your phone is firmly and securely attached. No more worrying about your phone wobbling or falling off.
Easy to carry
Thanks to its foldable design and light weight, this mobile phone tripod is easy to store and carry. You can take it anywhere, whether you want to take stunning landscapes or selfies. It fits in a backpack or tote bag making it perfect for travel and outdoor photography.
VERSATILE DESIGN
Whether you want to record a video, take a selfie, or stream live on your phone or other devices, this tripod will meet your needs. It even features a flashlight for night fishing or camping.
Features
- Extended up to 1000mm
- Folded to 500mm
- Quick release plate with 1/4" screw
- Geared elevator
- 3-section aluminum legs with braces
- Carrying case included
What's in the box?
1 x Extendable Lightweight Travel Camera Tripod Kit NA-3120
1 x carry bag
Please note: Raspberry Pi, camera board, camera cable and tripod are NOT included.
An affordable, simple solution to mounting your Raspberry Pi to your Raspberry Pi High Quality Camera, Global Shutter Camera or HQ M12 Mount Camera.
This sleek and transparent plate provides a secure and stable platform for attaching your camera to your Raspberry Pi. With its easy assembly process and included hardware, you can quickly and effortlessly set up your camera system.
The clear acrylic construction adds a touch of modernity while allowing for easy visibility of the camera. Enhance your photography and video projects with this durable and aesthetically pleasing mounting plate.
Combine with our affordable flexible tripod for a great project foundation!
What's in the box?
1 x Mount plate
8 x 5mm male to female brass spacers
8 x M2.5 SS nuts
8 x M2.5x4mm SS screws
Assembly guide
1. Install the standoffs first using their male threaded sides. Four on one side of the plate to mount the RPi3/4 and four on the other side of the plate to mount the camera. Secure them in place by tightening their nuts.
3. Connect your RPi and HQ cam with the ribbon cable.
Note: The Raspberry Pi, High Quality Camera and flexible tripod not included)
An affordable, simple solution to mounting your Raspberry Pi to your Raspberry Pi High Quality Camera.
This camera stand is locally cut from clear acrylic for use with the official Raspberry Pi V2 and Module 3 cameras.
This acrylic stand is compatible with the below cams.
Raspberry Pi Camera V2
Raspberry Pi Camera Module 3
What's in the box?
2 x acrylic plates
1 x M2.5x12 bolt
1 x M2.5 nut
4 x M2x6 bolts
4 x M2 nuts
4 x silicone feet
This camera stand is locally cut from clear acrylic for use with the official Raspberry Pi V2 and Module 3 cameras.
This acrylic stand was designed with the Raspberry Pi 4 in mind and compatible with the below cams.
Raspberry Pi Camera V2
Raspberry Pi Camera Module 3
This stand can even be mounted on a tripod with a 1/4inch screw. We included the mounting nut for you in this kit.
This stand will very comfortably just stand on it's own silicone feet as well.
What's in the box?
1 x Raspberry pi mount acrylic plate
1 x Camera mount acrylic plate
1 x M2.5x12 bolt (link the two plates)
1 x M2.5 nut
4 x M2x6 bolts (mount the camera)
4 x M2 nuts
4 x silicone feet
1 x 1/2inch nut (mount on a 1/4 inch tripod)
This camera stand is locally cut from clear acrylic for use with the official Raspberry Pi V2 and Module 3 cameras.
This acrylic stand was designed with the Raspberry Pi Zero in mind and compatible with the below cams.
Raspberry Pi Camera V2
Raspberry Pi Camera Module 3
This stand can even be mounted on a tripod with a 1/4inch screw. We included the mounting nut for you in this kit.
This stand will very comfortably just stand on it's own silicone feet as well.
What's in the box?
1 x Raspberry pi mount acrylic plate
1 x Camera mount acrylic plate
1 x M2.5x12 bolt (link the two plates)
1 x M2.5 nut
4 x M2x6 bolts (mount the camera)
4 x M2 nuts
4 x silicone feet
1 x 1/2inch nut (mount on a 1/4 inch tripod)
