Test/Measure/Experiment
Working voltage: 4.5-30V
RASPBERRY PI NOT INCLUDED(Neither the key-ring and keys for those who wondered)
This cute little GPIO reference board from allows you to quickly and easily distinguish between the different pins of the Raspberry Pi Model B+, Raspberry Pi 2B, Pi 3B and Pi 3B+. It's even got a key chain hole, so you can carry it around and keep it handy - you'll never know when you need to hack a Pi!
The GPIO reference board features BCM numbering on one side and the pin names on the other. It can be soldered for permanent referencing, or slipped on and off when required.
On the RPi3 and later you'll have to snip off a little bit of the corner closest to pin 39 thanks to the new POE pins on the board
Description:
This is an Experimental Platform For Raspberry Pi 2/3 Model B and B+ and Arduino UNO R3
With Breadboard, Male to Female jumper cables, T type 40Pin GPIO, Ribbon Cable.
Package includes:
1 x Acrylic Platform (with Installation screws pack)
1 x Breadboard 800
10 x Male to Female jumper cables (Length: 25cm±2cm)
1 x T type 40Pin GPIO
1 x 40 pin ribbon Cable (20cm±2cm Length)
Use the USB Charger Doctor to measure the working voltage and current output for any USB port and project. This plastic dongle plugs between a USB device, and passes the data lines through. There's a 0.05 ohm resistor in line with the power pin that is used to measure current draw. The Doctor's digital display instantly reads the numbers out for testing devices such as chargers, cables, and cell phones.
You can use this device from 3.5-7VDC input voltage (although most USB devices tend to hover around 4.75 to 5.25) and up to 3A of current. It displays both voltage and current readouts. It's a very handy tool for testing USB devices, checking load levels and debugging battery chargers and boost converters.
Item Name: Servo Tester
Size: 46x32x17mm
Weight: 8g
Color: Blue
Input: DC 4.2 to 6.0V
Output: ≤15mA (5.0)
Output signal: 1.5ms±0.5ms
Adjustment Methods: Manual, Neutral, Automatic.
Features:
Small size,low power consumption,high reliability and easy operation.
It can easily detect and configure server virtual bit, jitter and middle position.
Can connect two servos or ESC;
MCU control,good stability,high accuracy.
Note:
This product can't test a servo with a weight more than 55g.
If you want to test the motor,please first connect the ESC.
Package Includes:
1x servo tester
50 x boots
The hole gap is 2.54mm, and it's compatible with IC with DIP package.
The IO port can be quickly and easily implement your ideas.
Note:
- Extra header spacer included
- 170 tie points breadboard arranged in 34 rows of 5 pins included
Package includes:
1 x Prototyping Shield kit
Function | Range | Resolution | Accuracy | MAX.Value | Other |
DC Voltage | 6.000V | 0.001V | ±(0.5%+3) | 1000V | Input Resistance:10MΩ |
60.00V | 0.01V | ||||
600.0V | 0.1V | ||||
1000V | 1V | ||||
60.00mV | 0.01mV | 600mV | |||
600.0mV | 0.1mV | ||||
AC Voltage | 6.000V | 0.001V | ±(1.0%+3) | 750V | Input Resistance:10MΩ(600mV range, >60MΩ) Frequency Response: 40Hz-1kHz |
60.00V | 0.01V | ||||
600.0V | 0.1V | ||||
750V | 1V | ||||
60.00mV | 0.01mV | 600mV | |||
600.0mV | 0.1mV | ||||
DC Current | 6.000A | 0.001A | ±(1.2%+3) | 10A | MAX.Current: 10A(no more than 15 seconds) No Voltage input at this mode Frequency Response(AC): 40Hz-1kHz |
10.00A | 0.01A | ||||
60.00mA | 0.01mA | 600mA | |||
600.0mA | 0.1mA | ||||
AC Current | 6.000A | 0.001A | ±(1.5%+3) | 10A | |
10.00A | 0.01A | ||||
60.00mA | 0.01mA | 600mA | |||
600.0mA | 0.1mA |
Resistance | 600.0Ω | 0.1Ω | ±(0.5%+3) | 60MΩ | No Voltage input at this mode | |||||
6.000kΩ | 0.001kΩ | |||||||||
60.00kΩ | 0.01kΩ | |||||||||
600.0kΩ | 0.1kΩ | |||||||||
6.000MΩ | 0.001MΩ | |||||||||
60.00MΩ | 0.01MΩ | ±(1.5%+3) | ||||||||
Capacitance | 9.999nF | 0.001nF | ±(5.0%+20) | 9.999mF | No Voltage input at this mode | |||||
99.99nF | 0.01nF | ±(2.0%+5) | ||||||||
999.9nF | 0.1nF | |||||||||
9.999μF | 0.001μF | |||||||||
99.99μF | 0.01μF | |||||||||
999.9μF | 0.1μF | |||||||||
9.999mF | 0.001mF | ±(5.0%+5) | ||||||||
Frequency | 99.99Hz | 0.01Hz | ±(0.1%+2) | 9.999MHz | ||||||
999.9Hz | 0.1Hz | |||||||||
9.999kHz | 0.001kHz | |||||||||
99.99kHz | 0.01kHz | |||||||||
999.9kHz | 0.1kHz | |||||||||
9.999MHz | 0.001MHz | |||||||||
Duty Cycle | 1%~99% | 0.1% | ±(0.1%+2) | |||||||
Diode | √(DC forward current is 5mA, voltage is 3V) | No Voltage input at this mode | ||||||||
Continuity | √(no more than 50Ω) | |||||||||
Temperature | -20~1000℃ | 1℃ | ±(2.5%+5) | 1000℃ | ||||||
-4~1832℉ | 1℉ | 1832℉ |
Misusing or mishandling a lithium-ion battery may cause a FIRE or EXPLOSION which can result in INJURY or DEATH.
Specifications:
Product name: Liitokala Lii-402 Micro USB 4Slots Battery Charger
Input : Micro USB DC 5V/2A
Output: 1.42V
4.2V±0.05V
3.65±0.05V
4.35±0.05V
Current: 2000mA*1 1000mA*2 700mA*3 500mA*4
Constant voltage, cut-off current: less than 100mAh
Standby current: less than 15mAh
Compatible with:
Ni-MH/Cd
AA/AAA/A/SC Sizes
3.7V Li-ion battery including
26650,22650,26500,18650,18490,17670,17500,16340,14500,10440
Size: 112mm x 90mm x 30mm (L x W x H)
Weight: 150 grams (incl. micro cable)
USB Output function
1. 0pen-circuit voltage of USB output : 4.9-5.3V; and the 4th slot is fixed for the USB discharge power source
2. Output current: 1000mAh
3. Open circuit current: <1mAh
4. The corresponding voltage is 4.75-5.25V under 1000mAh current
5. Cut-off voltage for discharge protection: 3.0±0.1V
You will need a USB micro B cable power supply for this charger.
1 x Liitokala Lii-402 Micro USB 4Slots Battery Charger
1 x USB Cable
Color: White
Handy device for testing LED's. Simply plug your LED into the correct holes (all of which are marked) and push the button to see its brightness, illuminant color, etc.
Handy device for testing LED's (2-150mA)
The top row is for 2 pin LED's with currents ranging from 2mA - 30mA
The bottom row is for 4 pin LED's (piranha LED's) with currents ranging from 20mA - 150mA
Lightweight & compact
Powered by a 9V battery (not included)
Item size(L*W*H) : Approx. 80mm x 55mm x 22mm
Quantity: 1PC
2. Double circuit electronic, anti-friction.
3. Loop length can be adjusted.
4. Easy to use and flexible, long life and does not produce dust.
5. Mainly for the production line staff and static index is high individuals within the scope of activities of production and easy to produce static electricity generated in their daily working lives high electrostatic potential
6. Use of "point discharge" principle, to achieve electrostatic collection and release.
2. Wrist ring: Anti-static Elastic Fabric
3. Color: Black
4. Surface resistance: ≤103Ω
5. Electrostatic discharge time: <0. 1s
6. Cable length: 1. 8m/6FT
Material: Plastic
Indoor temperature °C display.
It comes with a mounting clips which allows it to be panel mounted
Temperature range: -50 ~ + 70 Degrees.
Usage temperature: -10 ~ +50 Degrees.
Usage humidity:5% ~ 80%
Accuracy:+/-01 Degrees.
Distinguishing temperature: 0.1 Degrees.
Power: 2 x DC1.5V AG13 button batteries (Not included)
Cable length:0.8M.
Size:48 x 28 x 15(mm)
Color:Black
Package Includes:
1 x LCD Digital Thermometer Temperature Sensor
Charge Level Red Indicator Voltmeter Precise for 12V Lead-acid Battery
1. Working current:5-15mA
2. Eight electricity Level Resolution:10% 25% 40% 50% 60% 75% 90% 100%
3. Voltmeter accuracy:1%
4. Working temperature: -10 ~ +65 Celsius
5. Operating Humidity: 10 ~ 80%
6. Dimensions: 48mm x 29mm x 22mm
Indicator:
Battery voltage is greater than 11.1V, 1 led indicator is lit.
Battery voltage is greater than 11.3V, 2 led indicator is lit.
Battery voltage is greater than 11.6V, 3 led indicator is lit.
Battery voltage is greater than 11.9V, 4 led indicator is lit.
Battery voltage is greater than 12.2V, 5 led indicator is lit.
Battery voltage is greater than 12.5V, 6 led indicator is lit.
Battery voltage is greater than 12.9V, 7 led indicator is lit.
Battery voltage is greater than 13.3V, 8 led indicator is lit.
Package Includes:
1 x lead acid LED indicator battery capacity tester voltmeter 12V
Color: Black

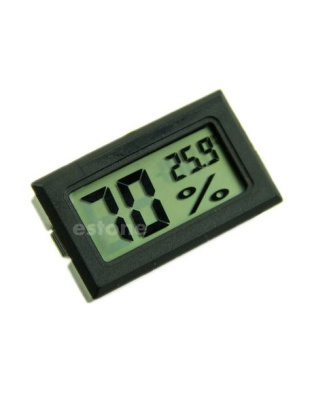

Measuring humidity: 10%RH-99%RH
Humidity accuracy: 5%
Humidity display resolution: 1% RH
Measuring temperature range: -50 centigrade~+70 centigrade
Temperature accuracy: 1 centigrade
Temperature display resolution: 0.1centigrade .
Operating voltage: 2 x 1.5V button LR44 batteries (Not included)
Dimension: 4.7x2.8x1.5cm(approx.)
LCD dimension: 3.6x1.7cm(approx.)
High Quality Hygrometer, wonderful tools for Indoor, Outdoor, Home, Laboratory, Library..etc.
Package includes:
1 x Humidity Hygrometer Meter
Overview
This is a 4-ch current and power monitor HAT designed for Raspberry Pi. Via the I2C or SMBus interface, it is easy to monitor each channel's current, voltage, and power consumption, as well as the voltage between both sides of the sampling resistor.
Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- 4-ch monitoring, via I2C/SMBus interface
- Onboard 0.1Ω 1% sampling resistor, allows measuring bi-directional current up to 3.2A
- Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range
- Directly calculate and output measured power value through additional multiply register
- I2C control pins for connecting with other host boards
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Operating voltage: 3.3V/5V
- Control interface: I2C/SMBus
- Sampling resistor: 0.1Ω 1%
- Voltage range: 0~26V
- Current range: ±3.2A
- Resolution: 0.8mA (±3.2A range) OR 0.1mA (±400mA range)
- Dimensions: 65mm × 30mm
- Mounting hole size: 3.0mm
Dimensions

Development Resources
Description:
You can use this device from 3.5-7VDC input voltage (although most USB devices tend to hover around 4.75 to 5.25) and up to 3A of current. It flips between voltage and current readouts every 3 seconds or so. It's a very handy tool for testing USB devices, checking load levels and debugging battery chargers and boost converters.
Specifications:
- USB 1.x and 2.x - all data speeds. Does not have USB v3 pins so USB v3 connections will automatically downgrade to v2
- Working Range: 0~3A, 3.5~7VDC
- Resolution: 10mV / 10mA
- Operating Temperature: 0-60ºC
- Contents:
- Camera Board 360 Gooseneck Mount V2
Dimensions:
- 21mm x 53mm x 15mm / 0.8" x 2.1" x 0.6"
- USB Plug: 13mm / 0.5"
- Weight: 16.2g
- Powered by a single 9V cell battery(not included)
How Much Power Does my Fridge Use - with the Battery connected to the SOURCE side and Car Fridge (or other accessory) connected to the LOAD side. The Watt Meter shows the current into the Fridge, voltage and power at the battery and accumulates the Ah and Wh while the fridge is running.
How much charge is going into my battery - With a battery charger (or alternator) connected to the SOURCE side and the aux battery connected to the LOAD side, the Watt Meter shows the charging current into the battery, the voltage and charging power at the battery and accumulates the charge (Ah) and energy (Wh) into the battery.
What is the output of my solar panel - With a solar panel connected to the SOURCE side and solar regulator connected to the LOAD side, the Watt Meter shows the charging current into the regulator, the voltage and charging power at the solar panel and accumulates the charge (Ah) and energy (Wh) into the regulator.
How much charge is my solar panel putting into my battery - Now with a solar regulator connected to the SOURCE side and battery connected to the LOAD side, the Watt Meter shows the charging current into the battery, the voltage and charging power at the regulator and accumulates the charge (Ah) and energy (Wh) into the battery.
Specification:
Item Name | Watt Meter and Power Analyzer |
Item NO. | FT08 |
Operation Voltage | 4.8V-60V |
Measures Range | 0-130A, resolution 0.01A; 0-60V, resolution 0.01v; 0-6554W, resolution 0.1w; 0-65Ah,resolution 0.001An; 0-6441Wh,resolution 0.1Wh; |
LCD | 16 x 2, backlit LCD display |
Size | 85 mm x 43 mm x 25 mm (3.35 in x 1.69 in x 0.98 in) |
Weight | 82g |
Color | Black |
English Manual please click here
Package Includes:
1x 130A High Precision Battery Watt Meter And Power Analyzer
4. This is an entry level measuring solution. Do not expect 100% accuracy.
Dimensions of LED display screen: 51 x 30mm
1 x CT
FAQ
Why is the test data wrong? Voltage * Current = Power, But power is less than the actual test voltage * Current, Why is that?
Answer: There are three types of power:
Active Power (P represents / unit W)
Reactive power (Q represents / unit Var)
Apparent power (S represents / unit VA)
Here we only talk about Active Power, for others, please google it:
P = U * I * cosφ, cosφ it represents the power factor, purely resistive load (Such as incandescent, heater, etc.) the power factor is generally close to 1,Between the inductive and capacitive load load power factor 0-1. So purely resistive load test time, P is substantially equal to or close to U * I. When Inductive or capacitive load test (Such as refrigerators, washing machines, televisions, computers, etc.) P<U*I, As for how much to keep the power factor related to the specific, Different for each appliance power factor.
