Other Cameras for RPi
Features
- Raspberry Pi Camera, supports all revisions of the Pi
- Embedded removable IR-CUT filter, eliminating color distortion in the daylight
- Comes with infrared LED, supports night vision
- 5 megapixel OV5647 sensor
- Adjustable focus distance
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 1.8
- Focal Length : 3.6mm
- Angle of View (diagonal) : 75.7 degree
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
- Dimension: 31mm × 32mm
Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
The new Raspberry Pi OS release includes the new Picamera2 Python camera interface.
What's in the box?
1 x Camera
Resources
Features
- Raspberry Pi Night Vision Camera, supports all revisions of the Pi
- 5 megapixel OV5647 sensor
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.9
- Focal Length : 3.29MM
- Diagonal : 72.4 degree
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
- Dimension : 25mm x 24mm x 6mm
Note: to use the camera with Raspberry Zero, you need to buy a specific cable: Raspberry Pi Zero Camera Cable
Raspberry Pi 2/3 ribbon cable included
Getting started with PiCamera
Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(E)
This minimal Camera for the Pi Zero is perfect for small camera projects where space is at a premium.
The sensor is 5MP, and the whole shebang is mounted on a flexible circuit board. As such, a little care is needed when handling, just like the connector on the Pi Zero. Easy there Lennie.
Otherwise it's an economical and svelte solution for birdcams, bodycams, home security and simple computer vision projects.
Update: Without an IR filter, which is useful for night vision, especially when using IR lights to illuminate the subject
Only for Raspberry Pi Zero with CSI camera port.
Approx dimensions of camera: 10mm x 11.4mm x 5.1mm
The new Raspberry Pi OS release includes the new Picamera2 Python camera interface.
What's in the box?
1 x camera
Features
- Raspberry Pi Camera, supports all revisions of the Pi
- Embedded removable IR-CUT filter, eliminating color distortion in the daylight
- Comes with infrared LED, supports night vision
- 5 megapixel OV5647 sensor
- Adjustable focus distance
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 1.2
- Focal Length : 8mm
- Angle of View (diagonal) : 40 degree
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
- Dimension: 31mm x32mm
What's in the box?
1 x camera
Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Note: the actual image pixels is 5MP, which depends on the sensor, so it doesn't matter that there is a 3MP silk mark on the camera.Resources
The new Raspberry Pi OS release includes the new Picamera2 Python camera interface.
Wiki : www.waveshare.com/wiki/RPi_IR-CUT_Camera_(B)

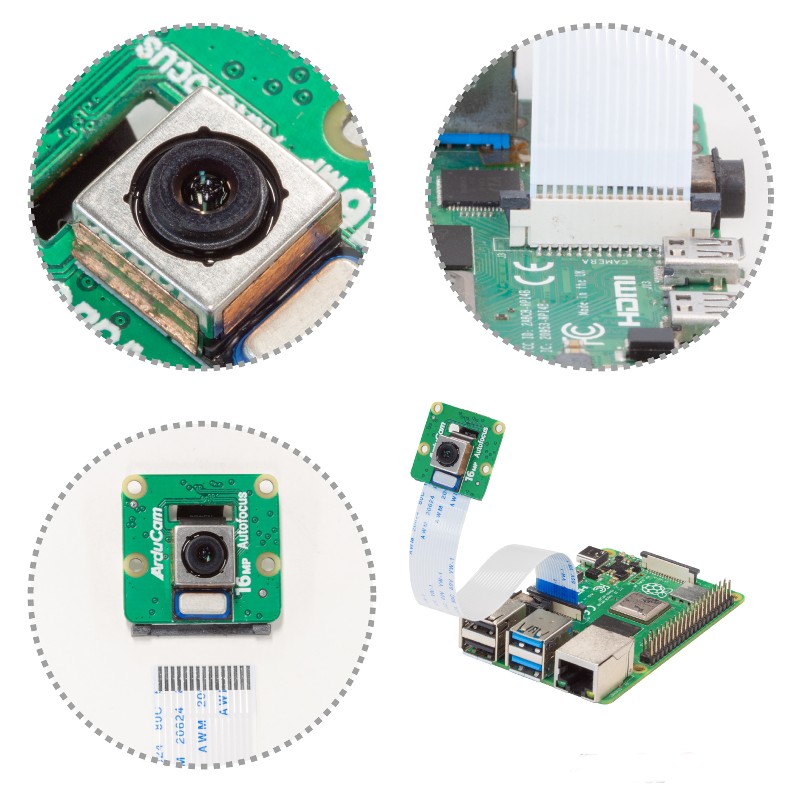

It takes zero compromises in specs. With a resolution of 16 megapixels (compared to 8MP and 12MP), an autofocus lens, a V2-like form factor, and boatloads of improvements, the camera provides a better choice for a whole world of industrial/consumer/etc. applications, it’s compatible with any existing Pi models, works with the latest software from the foundation, and leverages the same tuning algorithms used in the official camera modules.
Check out this review by Jeff Geerling and his video https://youtu.be/j2S8sZoH36Y
16MP Camera Module for All Pis.
2 times higher resolution than the v2 camera, 40% higher than the HQ camera. Based on the 16MP Sony IMX519 sensor, this new camera module gives all Raspberry Pi hackers every bit of power they need to build future-proof projects.
V1/V2 Size, with Autofocus.
The community has been craving autofocus in Pi cameras, so Arducam took the advice. This camera has the classic V1/V2 form-factor so you can add hassle-free upgrades to your existing projects, or build new applications with the best flexibility on cameras.
Crisper Images/Videos Than The HQ Camera.
It’s not just the resolution bump, the “quality” is way higher than the HQ Camera too. With the same camera tuning algorithms from the foundation, this module beats the Raspberry Pi HQ camera in every aspect. (sharpness/saturation/exposure/etc.)
Safety instructions
- Before connecting, you should always power the Raspberry Pi off and remove the power supply first.
- Make sure the cable on the camera board is locked in place.
- Make sure the cable is correctly inserted in the Raspberry Pi board’s MIPI CSI-2 connector.
- Avoid high temperatures.
- Avoid water, moisture, or conductive surfaces while in operation.
- Avoid folding, or straining the flex cable.
- Avoid cross-threading with tripods.
- Gently push/pull the connector to avoid damaging the printed circuit board.
- Avoid moving or handling the printed circuit board excessively while it’s in operation.
- Handle by the edges to avoid damages from electrostatic discharge.
- Where the camera board is stored should be cool and as dry as possible.
- Sudden temperature/humidity changes can cause dampness in the lens and affect the image/video quality.
Specifications
- Sensor: Sony IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 µm × 1.22 µm pixel size7.103 mm diagonal (Type 1/2.534)
- Output: RAW10/8, COMP8
- Lens: Autofocus; f/1.75; EFL: 4.28; FoV: 80°; Focus Range: 10 cm ~ infinite
- IR cut Filter: Integrated
- Tripod mount: 1/4”-20
- Enclosure: ABS, also compatible w/ camera module v1 & v2.
- Ribbon Cable Length: 150mm
The new Raspberry Pi OS release includes the new Picamera2 Python camera interface.
What's in the box?
1 x ArduCam 16MP IMX519 Autofocus Camera Module for RPi with case1 x 15cm ribbon cable
Resources
Specifications
- CSI camera port works with Raspberry Pi Zero
- Raspberry Pi Camera, supports all revisions of the Pi
- OV5647 sensor 5MP 2592x1944 pixels
- CCD size : 1/4inch
- Focal Length : 2.1mm, f2.0 Lens
- Field of View : 160 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p
- Support 1080p/30fps, 720p/60fps and 480p/90fps video record
- Dimensions: 60mm × 11.5mm × 10.5mm
The new Raspberry Pi OS release includes the new Picamera2 Python camera interface.
What's in the box?
1 x Camera module
Support
Please download the camera user guide here.
The camera comes with a 289mm (11.4") long cable so you can extend and mount your Pi away from the camera. Like the Raspberry Pi Camera Board, it attaches to your Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.
The camera is connected to the BCM2835 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.
The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video.
CSI camera port works with Raspberry Pi 3/4 B
Sensor: OV5647, 5MP 2592x1944 pixels
Pin: 22
Peach: 0.5mm
AVDD: 2.7-3.3V (Typical2.8V)
DVDD: 1.45-1.8V
DOVDD: 1.7-3.3V
Lens Structure: 4P (650nm)
EFL: 3.52
FNO: 2.8
FOV: 70 degree
Output Format: YUV or RAW RGB
1080p video at 30 FPS (or 60 FPS at 720p, 90 FPS at 480p)
F2.9 lens, 3.4 mm focal length
53.50 degrees horizontal, 41.41 degrees vertical field of view
Approx. dimensions of circuit and camera: 60 x 11.5 x 4.5mm
The new Raspberry Pi OS release includes the new Picamera2 Python camera interface.
What's in the box?
1 x camera module
Support
Please download the camera user guide here.
Specifications
Compatible with Model B Raspberry Pi boards (Pi 4, 3B+, 3, 2, B+)
OV5647 Sensor
Compatible with libcamera and raspicam commands
Compact size - just 35mm long!
Includes foam gaskets for creative mounting
Images up to 2592x1944
Video up to 1920x1080
Sensor: OV5647
Pixels: 5MP
Focal length: ~3.9mm
CMOS size: 1/4"
Field of View: ~73°
Aperture: F2.4
Depth of Field: ~20cm
Distortion: < 1.5%
Still Image: up to 2592x1944
Video:
1920 x 1080p @30
1280 x 720p @60
640 x 480p @60
640 x 480p @90
The new Raspberry Pi OS release includes the new Picamera2 Python camera interface.
What's in the box?
1x Mini Camera Module
Resources
- How to Install & Use the Raspberry Pi Camera Module (different camera but the process and commands are the same)
- Libcamera and the legacy Raspicam stack
- Libcamera introduction and usage
- Raspicam (legacy) introduction and usage
- OctoPrint for 3D print monitoring
- MotionEyeOS Raspberry Pi CCTV
Please Note: Pic is for illustration purposes only
Raspberry Pi 5 provides two four-lane MIPI connectors, each of which can support either a camera or a display. These connectors use the same 22-way, 0.5mm-pitch “mini” FPC format and require adapter cables to connect to the 15-way, 1mm-pitch “standard” format connectors on current Raspberry Pi camera and display products.
Raspberry Pi offer mini-to-standard adapter cables for cameras and displays in 200mm, 300mm and 500mm lengths.
Note that a camera cable should not be used with a display, and vice versa.
What's in the box?
1 x Raspberry Pi 5 Camera Adapter Cable
Please Note: Pic is for illustration purposes only
Raspberry Pi 5 provides two four-lane MIPI connectors, each of which can support either a camera or a display. These connectors use the same 22-way, 0.5mm-pitch “mini” FPC format and require adapter cables to connect to the 15-way, 1mm-pitch “standard” format connectors on current Raspberry Pi camera and display products.
Raspberry Pi offer mini-to-standard adapter cables for cameras and displays in 200mm, 300mm and 500mm lengths.
Note that a camera cable should not be used with a display, and vice versa.
What's in the box?
1 x Raspberry Pi 5 Camera Adapter Cable
Please Note: Pic is for illustration purposes only
Raspberry Pi 5 provides two four-lane MIPI connectors, each of which can support either a camera or a display. These connectors use the same 22-way, 0.5mm-pitch “mini” FPC format and require adapter cables to connect to the 15-way, 1mm-pitch “standard” format connectors on current Raspberry Pi camera and display products.
Raspberry Pi offer mini-to-standard adapter cables for cameras and displays in 200mm, 300mm and 500mm lengths.
Note that a camera cable should not be used with a display, and vice versa.
What's in the box?
1 x Raspberry Pi 5 Camera Adapter Cable
