The PiOT relay board allows you to bond a GPIO pin to a relay with the touch of a button.
R516.87  Inc VAT
The MonkMakes Relay for micro:bit is a solid-state (no moving parts) relay that allows an output of a micro:bit to turn things on and off.
R150.31  Inc VAT
Eight channel 5V DC Relay Module (2A3 8 channel relay)

Product information
This is an eight channel 5V DC relay module with active low. It can be controlled by variety of microcontrollers such as Arduino, Raspberry Pi, PIC, DSP, AVR or ARM etc.

Has the ability to control eight separate appliances or pieces of equipment
Eight on-board optoisolators enable direct interfacing to microcontrollers
Eight red LED status lights on-board show relay activity
Widely used in PLC control or smart home control
4 x M3 mounting holes for easy fixing via standoffs

Specifications
15-20mA drive current needed per channel
Relay coil maximum operating voltage: 5V
Relay coil maximum current: 89.3mA
Relay contact maximum: AC250V at 10A or DC30V at 10A
No. of relays/channels: 8
Item size: 134 x 55 x 20mm
Item weight: 116g

Package Includes
1 x 8 Channel Relay Module

Warning
Exercise proper caution when connecting mains driven equipment or appliances to relay module as lethal current will be present.

R122.90  Inc VAT
Two Channel 5V DC Relay Module (2A3 2Two channel relay)

Product information
This is a two channel 5V DC relay module with active low. It can be controlled by variety of microcontrollers such as Arduino, Raspberry Pi, PIC, DSP, AVR or ARM etc.

Has the ability to control two separate appliances or pieces of equipment
Two on-board optoisolators enable direct interfacing to microcontrollers.
Two red LED status lights on-board show relay activity.
Widely used in PLC control or smart home control
4 x M3 mounting holes for easy fixing via standoffs

Specifications
15-20mA drive current needed per channel
Relay coil maximum operating voltage: 5V
Relay coil maximum current: 89.3mA
Relay contact maximum:  AC250V at 10A or DC30V at 10A
No. of relays/channels: 2
Item size: 57 x 55 x 20mm
Item weight: 57g

Package includes
1 x 2 Channel Relay Module

Warning
Exercise proper caution when connecting mains driven equipment or appliances to relay module as lethal current will be present.

R40.25  Inc VAT
ModMyPi PiOT Relay Board (2A3 MMP PiOT relay board)

Raspberry Pi board not included

The ModMyPi PiOT (Pi of Things) relay board is smart! Not quite Skynet smart, so you can tell John Connor to stay at home and play with his Raspberry Pi. But it's much smarter than your average relay board! We've created a Raspberry Pi Relay Board that does away with the complicated wiring and fiddly jumper configuration of your standard relay board, and bundles that control into an on-board PIC, making configuration faster, easier and safer. The PiOT relay board can be connected directly on top of the Pi, or via a GPIO ribbon cable (not included), and also features mounting points for the Raspberry Pi Zero. Each is board is fully assembled, and ready to plug and play! We also stock cases for the Raspberry Pi B+/2/3 & Raspberry Pi Zero.

The PiOT relay board allows you to bond a GPIO pin to a relay with the touch of a button. No need to tie pins using resistors, and no need to re-wire the circuit when you want to change which GPIO pin fires which relay. Simply select your GPIO pin using the on-board tactile buttons and two-digit 7-segment display, and switch that pin high or low to fire your designated relay!

The on-board display can be configured to show the Pi's BCM or Pin number system for GPIO/relay bonding, and also demonstrates visual feedback of the relay on/off status for easy monitoring. The display can also be used to test relays before configuring them with your Pi, in addition to providing menu access for setting configuration.

The PiOT relay board also features multiple innovative start-up modes designed to combat "chatter" on the GPIO which can lead to unexpected behavior. Variable delayed start-up allows users to pause activation of the relays for a short period during boot, ensuring that GPIO pins are correctly set prior to use, or the alternative handshake mode utilises a specific pulse train to enable activation and de-activation of the relay board at the user's will. No more accidental switching of relays at boot!

The PiOT relay board uses low current (~100mA) PWM (pulse width modulation) to significantly reduce the current required to hold the relays on when compared to other relay boards. This means that relay boards can be stacked up to 5 high without requiring additional external power.

Warning! Relays can be used to switch large voltages and currents. Please, please, please be careful when undertaking any work with this type of power - it can kill!

The ModMyPi PiOT Relay Board Features:

  • 4 x OMRON G5LA-1 Relays for Switching up to 10A @ 250VAC, or 10A @ 24VDC
  • 4 x Tactile Buttons for GPIO/Relay Bonding
  • Two-Digit 7 Segment Display for Visual Feedback & Setting Control
  • Micro-controlled GPIO/Relay Setting & Switching (No Jumpers Required!)
  • 40 Point Raspberry Pi GPIO Modelled Input
  • 5V & 3.3V Input Compatible
  • Low Holding Current via PWM ~ 100mA per Relay Board
  • Stackable Relay Board (Up to 5 Without External Power)
  • Multiple Start-Up Modes to Negate Boot GPIO Chatter (Delayed/Handshake)
  • Pi Zero Mounting Points

Tutorials

ModMyPi PiOT Relay Board Wiki

Example Code

Downloads

OMRON G5LA-1 Datasheet

45K22 PIC Datasheet

Video

Review and Introduction by Garage Tech Tips:

The PiOT relay board allows you to bond a GPIO pin to a relay with the touch of a button.
R516.87  Inc VAT
WS Waveshare RPi 3xRelay Board (2A3 WS 3 relay board)

Please note: Raspberry Pi not included

Overview

The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.

RPi Relay Board Features

  • Supports Raspberry Pi A+/B+/2B/3B
  • High quality relays, loads up to 250VAC/5A, 30VDC/5A
  • Photo coupling isolation, prevent interference from high voltage circuit
  • Onboard LEDs for indicating relays status
  • Relay control jumper, allows to control the relays by custom pins other than the default pins
  • Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835

What's on the RPi Relay Board


  1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
  2. Relay screw terminal: for connecting target devices
  3. Relays
  4. Photocoupler: PC817
  5. Relay indicator
    • LED on: relay NC is opened, NO is closed
    • LED off: relay NC is closed, NO is opened
  6. Power indicator
  7. Relay control jumper
    • short the jumper: control the relays by default I/Os used in the example code
    • open the jumper: control the relays by custom I/Os through jumper wires

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board

Package Includes:

  1. RPi Relay Board x 1
  2. RPi screws pack (2pcs) x 1
R219.90  Inc VAT
Relay for micro:bit (3A5 micro:bit Relay board)

The MonkMakes Relay for micro:bit is a solid-state (no moving parts) relay that allows an output of a micro:bit to turn things on and off.

A micro:bit can turn an LED on and off directly, but anything more powerful requires something like a relay or a transistor. Using a transistor to switch something on and off requires a shared ground connection with the micro:bit and a knowledge electronics that you or your students may not be ready for. The MonkMakes Relay for micro:bit is much easier to use, acting like a simple micro:bit controlled switch.

This relay can be used to switch low voltage devices such as light bulbs, a motor, a small heating element or even a string of 12V LED lighting. The voltage needs to be kept under 16V, but the relay will automatically protect itself against too much current.

FEATURES

  • Solid-sate relay (up to 2 Amps)
  • Active LED indicator
  • Resettable ‘polyfuse’ to protect against over-current

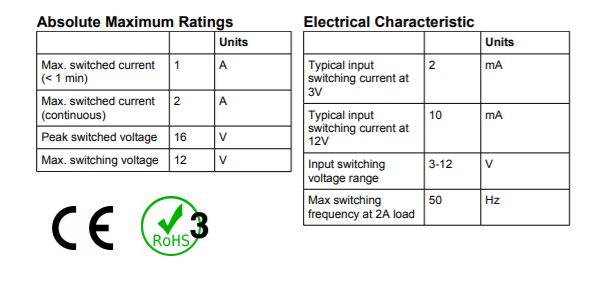

Getting Started

Connecting your micro:bit

The Relay requires just two connections to the micro:bit. One to GND (ground) and one to whatever pin is to be used to control the relay’s switching action.

When attaching the alligator clips to the micro:bit, make sure that the clips are perpendicular to the board so that they are not touching any of the neighbouring connectors on the micro:Bit edge connector.

Here’s an example of how you could wire up a MonkMakes Relay for micro:bit to turn an old fashioned light bulb on and off.

HEX File

The quickest way to try out your relay is to DOWNLOAD THIS HEX FILE >and then copy it onto your micro:bit. The program will turn the relay on and off once a second.

JavaScript Blocks Editor

Set the controlling pin to 1 and the relay contacts will close, set it to 0 and the contacts will open again. Its as simple as that. So, to make your relay turn on and off once a second, open the Blocks Editor, add a forever block and then the digital write blocks from the pins category and the pauses from the basic category.

MicroPython

Paste the following code into the Python window and then Download the file and copy it onto your your micro:bit.

from microbit import *

while True:
    pin0.write_digital(True)
    sleep(500)
    pin0.write_digital(False)
    sleep(500)



Analog Outputs

The latest MonkMakes Relay for micro:bit can do more than just switch things on and off. It can also be used with micro:bit analog outputs. Look closely at your Relay for micro:bit and is it has the version number v1ev (under the word ‘Board’) then it can be used with the ‘analog write’ block in the blocks editor or the ‘write_analog’ function in MicroPython. If your board has the version number v1e then it is not suitable for use with analog outputs – sorry you were unlucky to get one of the small batch of first boards to be sold.

The output of the Relay for micro:bit is not linear at low PWM and high PWM values as the following chart illustrates.

The y-axis shows the current in mA for a test load resistor supplied from a constant voltage source. The x-axis is the analog write value (0 to 1023). As you can see, there is a dead zone up to a analog output value of about 100, followed by a relatively good linear region right up to about 1000, after which the output effectively becomes ‘on’.

The tests were carried out at the default PWM frequency of 50Hz for the micro:bit. Lower frequency PWM is expected to produce more linear results.

The MonkMakes Relay for micro:bit is a solid-state (no moving parts) relay that allows an output of a micro:bit to turn things on and off.
R150.31  Inc VAT
Geekcreit® DC 12V 10A Relay 1Channel Wireless RF Remote Control Relay (2A2 1 channel relay remote)
Features:

Easy to use.
Operating Voltage: DC12V
Maximum Load: 10A
Operating Frequency: 433MHZ
Receiver Sensitivity: -100dBm
Encoding Type: learning code
Board Size: Approx. 5.3x3.1cm/ 2.09x1.22"

Relay rating:

  • 10A 250VAC
  • 10A 125VAC
  • 10A 30VDC
  • 10A 28VDC

To check compatibility of a new remote with the receiver. Simply press the button on the remote, if the receiver flashes, but does not Triger the relay. The remote will be compatible, and you can start the programing process

To add a remote, press the button on receiver momentarily. The red light will come on. Then press the button on the remote that you want to program in. The red light will start flashing. After 4 flashes in will stop, and the button will be programmed in.

For the setting to take effect, the board needs to be disconnected from it’s power supply. The bellow settings will be done to the 3 headers and bridge pin on the receiver board, above the push button.

  • With the header removed, the On button will switch the relay on, and the off button will in turn switch the relay off.
  • With the header on Pin 1-2. Both Buttons will become momentary. And only hold the relay in place as long as they are pressed in.
  • With the header on Pin 2-3. Each button will be able to switch the relay on and off individually. You will however not be able to switch the button off with the “off” button, if you switched it on with the “on” button. And vise versa.


Package Includes:

1 x Learning Code Receiver Relay
1 x Remote Control
R119.90  Inc VAT
5V 1 Channel Level Trigger Optocoupler Relay Module (2A6 single relay red board)
Description:

The module uses a quality relay with a normally open interface
Using SMD optocoupler isolation, driving ability, stable performance
The module can be set high or low with a jumper setting trigger
Fault-tolerant design, even if the control line is broken, the relay will not operate
A power indicator (green) and a relay status indicator (red)

Specification:

Maximum load: AC 250V/10A, DC 30V/10A
Trigger current: 5mA
Working voltage: 5V
Module size: 50mm x 26mm x 18.5mm (L x W x H)
Four mounting bolt holes, diameter 3.1mm

Module interface:

DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level to control the relay

Relay outputs:

NO: normally open
COM: Common Interface
NC: normally closed

High and low level trigger options:

It is low level trigger when jumper connects to LOW pin
It is high level trigger when jumper connects to HIGH pin

Package includes:

1 x 1 Channel H/L level trigger optocoupler relay module
R29.90  Inc VAT
Mini 5V DC Power Relay SRD-5VDC-SL-C 5 Pin PCB Type (2A3 pcb relay blue single)
Features:

Simple relay magnetic circuit to meet low cost of mass production

Specifications:

Model: SRD-5VDC-SL-C
Coil voltage: DC 5V
Coil resistance: 70Ω ~ 80Ω
Contact resistance: 100Ω Max
Operation time: 10msec Max
Release time: 5msec Max
Ambient temperature: -25°C to 70°C
Operating humidity: 45 to 85%RH
Operating current: 43mA ~ 46mA
Release current: 15mA ~ 18mA
Pin: 5Pin
Insulation resistance: ≥100M (Ohm)
Dielectric strength:
Between coil & contacts: AC 1500V 50HZ ~ 60HZ/min
Between contacts: AC 1000V 50HZ ~ 60HZ/min
Rated load:: 10A 250V AC / 10A 125V AC / 10A 30V DC / 10A 28V DC
Size: 1.8 x 1.5 x 1.6cm (L x W x H)


Package includes:

1 x SRD-5VDC-SL-C 5V Power Relay
R13.58  Inc VAT
Ethernet Control Module With 8 CHs Relay Board For LAN WAN WEB Server RJ45 Android iOS (2B6 Ethernet relay bord)
Overview:

This is an Ethernet Controller board based on Imatic system which is compatible with the 8 Channel relay board(included).

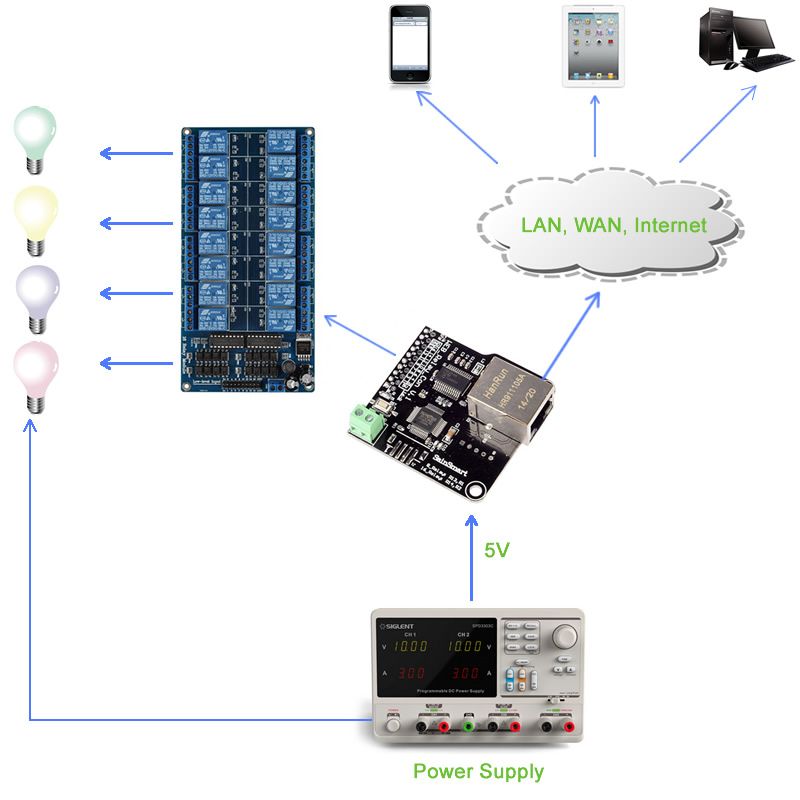

Using the Controller module and the 8 Channel relay board, you can control up to 8 devices remotely on LAN or WAN.
The Ethernet Controller board has an integrated web server. When you are in your office, you just need to open the page on your computer, pad or smartphone and control your devices eg. lights, air-conditioning or refrigerator in your home.

Features:

  • Control switches remotely together with 8 Channel relay.
  • RJ45 interface, via RJ45 telecommunications connection for network control.
  • Support for 8 Channels relay which means you can control 8 different devices at the same time.
  • Unique dual TCP connect control, corresponding with above trait, local as TCP server
  • Accepts client control, when connect to remote server as TCP client
  • Supply core module detailed information. Default IP: 192.168.1.4 port:30000       http://192.168.1.4/30000    (You can change the default IP address)

HTTP comments:

http://192.168.1.4/30000/00 : Relay-01 OFF
http://192.168.1.4/30000/01 : Relay-01 ON
http://192.168.1.4/30000/02 : Relay-02 OFF
http://192.168.1.4/30000/03 : Relay-02 ON
http://192.168.1.4/30000/04 : Relay-03 OFF
http://192.168.1.4/30000/05 : Relay-03 ON


http://192.168.1.4/30000/14 : Relay-8 OFF
http://192.168.1.4/30000/15 : Relay-8 ON
http://192.168.1.4/30000/41 : Enter
http://192.168.1.4/30000/40 : Exit
http://192.168.1.4/30000/42 : Next Page
http://192.168.1.4/30000/43 : Next Page



Package includes:

1 x Ethernet Control Module
1 x 8 CH Relay
R699.90  Inc VAT
Raspberry Pi 8-channel Relay Expansion Board with DIN rail mounting brackets (2A6 DIN rail relay board)

Please note: Raspberry Pi is not included

Overview

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.

Features

  • Supports Raspberry Pi A+/B+/2B/3B/3B+
  • High quality relays, loads up to 5A 250V AC or 5A 30V DC
  • Photo coupling isolation, prevent interference from high voltage circuit
  • Standard rail mount bottom case
  • Onboard LEDs for indicating relays status
  • Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins
  • Reserved control Interface, allows to work with controllers like PLC
  • Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)

Specifications

  • Power supply voltage: 5V
  • Trigger signal: 3.3V/5V
  • Relay channels: 8-ch
  • Contact form: SPDT-NO,NC
  • Closed current: 6mA (per channel)
  • Connector: screw terminal block
  • Dimension: 232 × 72 (mm)
  • Mounting hole size: 3.0mm

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board_(B)

R349.90  Inc VAT
Four channel 5V DC Relay Module (2A3 4 channel relay)
Use this relay board with your Arduino, Raspberry Pi or your custom micro-controller projects!
  • Each Relay has LED indication when ON
  • SPDT Relays with terminal block outputs.
  • Relay Coil voltage: 5 VDC
  • Power Requirement: 5 VDC
R79.69  Inc VAT
One way Solid State Relay Module (2A3 Solid state relay single)
Description:

5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A.
Dimensions: 25x34x25 (length x width x height)
Input Power: 5VDC
Control signal input voltage: (0-2.5V low state relay ON) (3-5V state high relay OFF)

Feature:

Voltage:5V
Quiescent current: 0 mA
Operating current: 12.5mA
Trigger Voltage: 3.3-5V
Trigger current: 2mA
DC +: positive power supply (according to the relay voltage supply)
DC-: negative power supply
CH1: relay module signal triggering end (low to trigger active)

Package included:

1 x One way Solid State Relay Module
R50.34  Inc VAT
5V 4 Channel SSR G3MB-202P Solid State Relay High level Trigger Module (2A3 solid relay 4 blackblue)
Specifications:

5V solid state relays 240V 2A, output with restive fuse 240V 2A.
2.54cm pin and blue KF301 terminals to control line is more convenient.
Input power supply: 5V DC (160MA)
Input control signal voltage: 0-2.5V low state relay OFF; 3.3-5V high state relay ON
Size: 57 x 55 x 20 mm(L x W x H)

Unlike the mechanical relays - these channels need to connect to ground to trigger

Module interface:

DC +: positive power supply (power supply voltage for relay)
DC -: negative
CH1: relay module 1 signal trigger
CH2: relay module 2 signal trigger
CH3: relay module 3 signal trigger
CH4: relay module 4 signal trigger

Package includes:

1 x 5V 4 Channel Solid State Relay Module










R190.66  Inc VAT
Per Page      1 - 13 of 13
  • 1
