This unit provides a simple way of adding flashing white LEDs to a textiles project using conductive thread. The unit is programmed with a number of flashing patterns, which are selected by a push button on the main board. Pressing this button cycles through the following patterns: all LEDs constantly on, slow flash all on all off, fast flash each in turn and turned off. The device features auto-off, which turns the unit off after 30 minutes to preserve battery life.
This kit is supplied pre-built so requires no soldering. Each kit comprises three small PCBs. The largest of the three PCBs holds an LED plus the control electronics, battery and a push button. On both of the remaining PCBs there is an LED, these are connected to the main board with conductive thread (supplied).
Depending upon flash pattern the battery lasts for approximately two days of constant use.
Features:
- Everything you need to complete one project.
- Flasher control unit with 3 separate modes.
- Additional LEDs.
- Full instructions for assembly.
- Auto-Off to preserve battery life.
Contents:
- 1 x Flasher Control Board.
- 2 x Sewable White LEDs.
- 1 x CR2032 Coin Cell Batteries.
- 1 x 2m Conductive Thread.
Dimensions:
- Flasher Control Unit Length: 34mm.
- Flasher Control Unit Width: 20mm.
- Flasher Control Unit Height: 9mm.
- Ultra-slim LED Length: 15mm.
- Ultra-slim LED Width: 6.5mm.
- Ultra-slim LED Height: 2.7mm.
- CR2032 Battery Height: 3.2mm.
- CR2032 Battery Diameter: 10mm.
Requires:
- Scissors.
- Needles.
Resources:
Caution:
- The coin cell holder in this pack contain Nickel and should not be used in designs where it will be in prolonged contact with the skin.
Product description:
This pack is a great way to add a different kind of switch to your E-Textiles project.

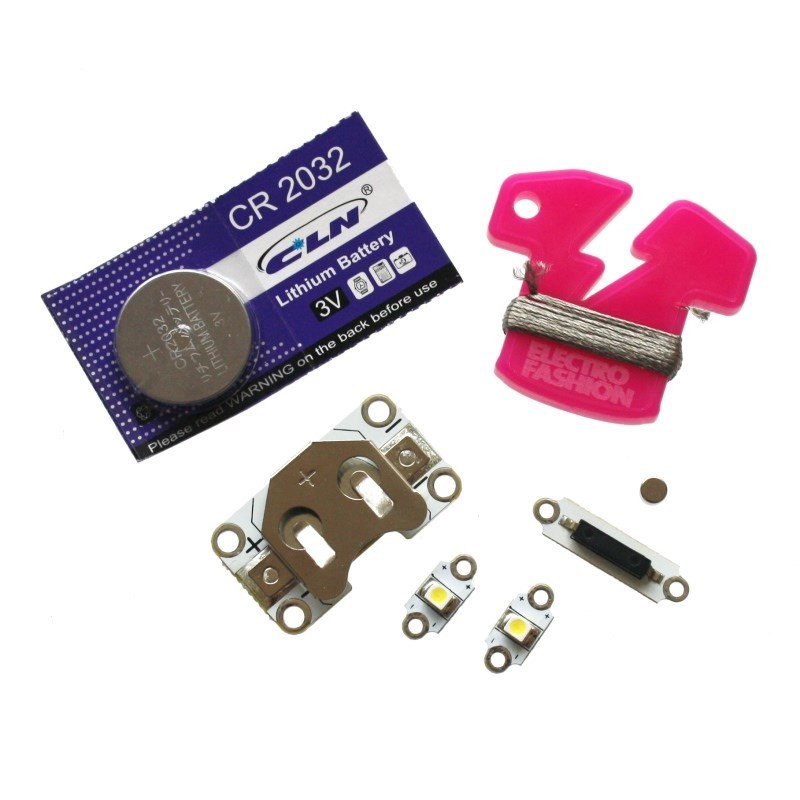

Add light to your textiles design with this magnetic switch pack. When the small magnet is placed next to the magnetic switch, the LEDs will light.
Features:
- Everything you need to complete one project.
- Great project ideas and tutorials.
- Magnetic switch to control the LEDs.
- Full instructions for assembly.

Contents:
- 1 x Coin Cell Holder.
- 2 x Sewable LEDs Blue
- 1 x Magnetic Switch.
- 1 x CR2032 Coin Cell Battery.
- 1 x 6m Conductive Thread.
Dimensions:
- Sewable Coin Cell Holder Length: 34mm.
- Sewable Coin Cell Holder Width: 20mm.
- Sewable Coin Cell Holder Height: 4.5mm.
- Ultra Slim Sewable LED Length: 15mm.
- Ultra Slim Sewable LED Width: 6.5mm.
- Ultra Slim Sewable LED Height: 2.7mm.
- Magnetic Switch Length: 25mm.
- Magnetic Switch Width: 6mm.
- Magnetic Button Switch Height: 6mm.
- CR2032 Battery Height: 3.2mm.
- CR2032 Battery Diameter: 20mm.
Requires:
- Scissors.
- Needles.
Resources:
Caution:
- The coin cell holder in this pack contain Nickel and should not be used in designs where it will be in prolonged contact with the skin.
- 25x 0 Ohm ±1%
- 25x 10 Ohm ±1%
- 25x 20 Ohm ±1%
- 25x 47 Ohm ±1%
- 25x 470 Ohm ±1%
- 25x 2.2k Ohm ±1%
- 25x 4.7k Ohm ±1%
- 25x 22k Ohm ±1%
- 25x 47k Ohm ±1%
- 25x 100k Ohm ±1%
- 25x 220k Ohm ±1%
- 25x 470k Ohm ±1%
- 25x 1M Ohm ±1%
- 50x 100 Ohm ±1%
- 50x 220 Ohm ±1%
- 50x 330 Ohm ±1%
- 50x 1k Ohm ±1%
- 50x 10k Ohm ±1%
- 20x 3mm Green LED
- 20x 3mm White LED
- 20x 3mm Yellow LED
- 20x 3mm Red LED
- 20x 3mm Blue LED
- 20x 3mm Pink LED
- 20x 3mm Orange LED
- 20x 3mm Purple LED
- 20x 3mm Green LED
- 20x 3mm White LED
- 20x 3mm Yellow LED
- 20x 3mm Red LED
- 20x 3mm Blue LED
- 20x 3mm RGB LED (slow flash)
- 20x 3mm RGB LED (fast flash)
The kit is accompanied by a set of (currently 6) downloadable worksheets (or lesson plans for you educators!) that will take you through a series of exercises and projects, teaching you how to make the most of your kit. Whats best is that there is no soldering required, each high quality component is breadboard friendly!
All the worksheets are freely available to download from http://camjam.me/edukit
Kit Contents:
- 1 x Breadboard
- 1 x Immersible temperature Sensor
- 1 x PIR Sensor
- 1 x LDR
- 1 x Active Buzzer
- 1 x Red 10mm LED
- 1 x Blue 10mm LED
- 1 x 4.7K Resistor
- 2 x 330 Resistor
- 10 x M/F Jumper Wires
- 4 x M/M Jumper Wires
- 1 x Presentation Tin
Here are just 4 cool projects you could use the kit for:
- Make a burglar alarm for your bedroom.
- Switch on an LED when it gets dark.
- Have an alarm go off when it’s freezing outside.
- Test whether the light really does go off in the fridge when you shut the door.
Still not convinced? Check out these awesome articles on the kit!
- "CamJam Edukit 2 Launches at PiWars" - Raspi.tv
- "The CamJam EduKit 2 - Learn How To Use Sensors With The Raspberry Pi" - Average Man vs Raspberry Pi
The CamJam EduKit is a joint venture between The Pi Hut and the Cambridge Raspberry Jam (CamJam). Profits from the sale of the kit will go to CamJam so that they can continue their educational and community work.
