Generic1
Short antenna for Transmitter
Long antenna for Receiver
About the transmitter module (square shape)
- Model: WL102-341
- Material: Plastic Metal
- Colour: shown as pictures
- Size: 16×12×1mm
- Operating frequency: 433.92 MHz
- Mains input voltage range: 2.0V-3.6V
- Shutdown mode current is less than 1uA
- Transfer rate: up to 20KHz
- Launch distance: 20-100 meters
- External antenna: 25cm ordinary multi-core or single-core line
- Temperature range: -45℃～85℃
About receiver module (rectangular shape)
- Model: RX470-4 (RX470-4 is WL101-341 upgraded version, more stable performance, faster data transfer)
- Material: Plastic Metal
- Colour: shown as pictures
- Size: 30×9×1mm
- Operating frequency: 433.92 MHz
- Mains input voltage range: 2.2V-5V
- Working current: Type: 2.1mA (Requirement:VDD=5V) ; Type: 2.1mA (Requirement:VDD=3V)
- Quiescent Current: 1uA
- Temperature range: -40℃～85℃
- External antenna: 32cm single core wire, wound into a spiral
What's in the box?
1 x 433MHz RF transmitter module
1 x 433MHz RF receiver module
2 x 433MHz spring antennas (Short antenna for Transmitter; long antenna for Receiver.)
Resources
Configure and read a 433Mhz RF Transmitter With Receiver on the Raspberry Pi
GRBL 0.9 compatible
4-Axis support (X, Y, Z, A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis
Coolant enable
Compatible with A4988 or DRV8825 stepper driver
Working Voltage: 12-36V DC
Max. Working Current: 2.5A
RAMPS 1.4
Mechanical Switch Endstop
Red: VCC (ramps )
Black: GND (ramps -)
Green: SIGNAL (ramps s)
DRV8825 Stepper Motor Driver
Size: 1.5mm x 2mm
Upgraded from A4988
Maximum Current: 2.5A
32 Subdivision: 1, 1/2, 1/4, 1/8, 1/16, 1/32
4-layer PCB board for better heat dissipation
Suitable for driving stepper motors up to 8.2V~45V, 2.5A
Nema 17 Stepper Motor
Model: 17HD48002H-22B
Rated Current/phase: 1.7A
Step Angle: 1.8 deg.
Holding Torque: 59Ncm(84 oz.in)
Frame Size: 41 x 41mm
Body Length: 47mm
Shaft Diameter: 5mm
Shaft Length: 22mm
Latest CH340G CNC Shield expansion board Version 3.0 for Arduino, and compatible for GRBL 0.9.
UNO R3 Board
MCU: ATmega328
USB interface: ATmega16U2 cable with USB .
This is a professional sensor kit for UNO R3. New and upgraded, we provides various components or sensor module, with which you will find it easy for you to complete every experiments or learning. All these are packaged in a portable case, easy to carry and storage.
What's in the box?
1 x CNC Shield V3
1 x UNO R3 MEGA328P CH340G with USB Cable
5 x DRV8825 Stepper Motor Driver with Heat Sink
5 x RAMPS 1.4 Mechanical Switch Endstop
5 x 3pin Cable (70cm)
3 x Nema 17 Stepper Motor
3 x Nema 17 Mounting Bracket
Features
- Material: Copper
- Size: 13mm x 6mm
- Weight: 2g
- Nozzle thread: M6
- Nozzle accuracy: 0.4mm
What's in the box?
5 x 0.4mm Nozzles

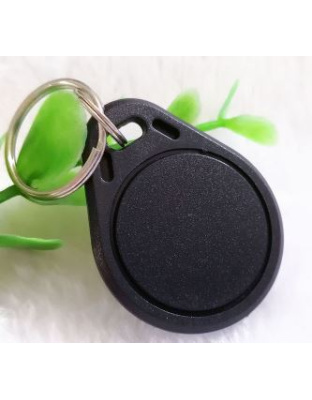

Although the reader does not read the information on the NFC card, it is triggered by a 13.56 Mhz NFC card
Working frequency: high/low frequency card
Working voltage: 50/60Hz 160-260VAC
Maximum load current: 40A
Maximum load power: 8800W
Static working power: 1W
Delayed power-off time: 10-20 seconds
Not working state: the indicator light is red or blue
Service life: When the relay contacts are at 220V full load, the service life is more than 100,000 times
Working temperature:-20℃-- 60℃
Working humidity: 50 ℃ 10-95%RH
Dimensions: 86mm x 86mm x 40mm
Shell material: flame retardant PC plastic
Shell color: White
Add a physical switch to your device or project.
This inline manual switch goes between the power source and the device to add a convenient and reliable point of power control
Specifications:
5.5mm x 2.1mm barrel
26cm cable
White cable
What's in the box?
1 x switch barrel connection
Features
- Total length: about 250M
- Wire type: 30AWG
- Single core wire outer diameter: 0.55mm
- Copper core diameter: 0.25mm.
- Temperature: 80 degrees, single-strand copper core crossing tin, with antioxidant effects.
- Colour: Black
What's in the box?
1 x Black wire wrap
These plastic holders are for easily attaching LEDs to boards, they are used with inner diameter 5mm LED. The product is made with good workmanship, to ensure a long lifespan. They are sturdy and durable.
Specifications
- Colour: black
- Size: 5mm
- Material: Plastic
- 5mm socket loaded 5mm of LED light-emitting diode
What's in the box?
10 x Plastic holders for 5mm LED
- Omron 5V solid state relay 240V 2A, the output with a resistive fuse 240V 2A.
- Input power: 5V DC (160MA)
- input control signal voltage:
- Low level module: (0-2.5V state low level relay OFF)
- (3.3-5V state high level relay ON)
What's in the box?
1 x solid state relay
size: (L * W * H mm)
1 channel: 25 * 34 * 25
2 channel: 55 * 33 * 25
4 channel: 57 * 55 * 25
8 channel: 106 * 56 * 25
Input section:
DC +: Connect the power supply positive (according to the relay voltage)
DC-: Connect the power supply negative
CH1: 1 relay module signal trigger terminal (low level trigger active)
CH2: 2 relay module signal trigger terminal (low level trigger active)
CH3: 2 relay module signal trigger terminal (low level trigger active)
CH4: 2 relay module signal trigger terminal (low level trigger active)
High and low meaning:
High-level trigger refers to the signal trigger side (IN) and the negative power supply has a positive voltage between the positive and the power supply is usually connected to the trigger side of a trigger, when the trigger side voltage or trigger to reach the trigger Voltage, the relay is pull.
Low-level trigger refers to the voltage between the signal trigger terminal and the negative terminal of the power supply is OV, or the voltage of the trigger terminal is lower than the voltage of the positive terminal of the power supply. When the voltage is low enough to trigger, the relay is pulled in, The negative side of the power supply is connected to the trigger side of a trigger, so that the relay is pull.
Electrical parameters:
Voltage Version Quiescent Current Operating Current Trigger Voltage Trigger Current
1 channel 5V 0mA 12.5mA 0-2.5V 2mA
2 channel 5V 0mA 22.5mA 0-2.5V 2mA
4 channel 5V 0mA 48mA 0-2.5V 2mA
8 channel 5V 0mA 102mA 0-2.5V 2mA
Instructions
1. Module power supply: the power must be DC, the voltage and the relay voltage to match
2. Wiring method:
When the trigger side of the signal trigger level, the relay will be connected, the device has electricity and work
Notes
1. Module power supply: power must be DC, 5V power supply
2. Module control terminal voltage: This module can only be used to control AC current, can not control DC current.
Omron 5V solid state relay 240V 2A, the output with a resistive fuse 240V 2A.
Input power: 5V DC (160MA)
input control signal voltage:
Low level module: (0-2.5V state low level relay OFF)
(3.3-5V state high level relay ON)
size: (L * W * H mm)
1 channel: 25 * 34 * 25
2 channel: 55 * 33 * 25
4 channel: 57 * 55 * 25
8 channel: 106 * 56 * 25
Input section
DC +: Connect the power supply positive (according to the relay voltage)
DC-: Connect the power supply negative
CH1: 1 relay module signal trigger terminal (low level trigger active)
CH2: 2 relay module signal trigger terminal (low level trigger active)
CH3: 2 relay module signal trigger terminal (low level trigger active)
CH4: 2 relay module signal trigger terminal (low level trigger active)
High and low meaning
High-level trigger refers to the signal trigger side (IN) and the negative power supply has a positive voltage between the positive and the power supply is usually connected to the trigger side of a trigger, when the trigger side voltage or trigger to reach the trigger Voltage, the relay is pull.
Low-level trigger refers to the voltage between the signal trigger terminal and the negative terminal of the power supply is OV, or the voltage of the trigger terminal is lower than the voltage of the positive terminal of the power supply. When the voltage is low enough to trigger, the relay is pulled in, The negative side of the power supply is connected to the trigger side of a trigger, so that the relay is pull.
Electrical parameters
Voltage Version Quiescent Current Operating Current Trigger Voltage Trigger Current
1 channel 5V 0mA 12.5mA 0-2.5V 2mA
2 channel 5V 0mA 22.5mA 0-2.5V 2mA
4 channel 5V 0mA 48mA 0-2.5V 2mA
8 channel 5V 0mA 102mA 0-2.5V 2mA
What's in the box?
1 x solid state relay
Resources
Instructions
1. Module power supply: the power must be DC, the voltage and the relay voltage to match
2. Wiring method:
When the trigger side of the signal trigger level, the relay will be connected, the device has electricity and work
Notes
1. Module power supply: power must be DC, 5V power supply
2. Module control terminal voltage: This module can only be used to control AC current, can not control DC current.
Features
3A 40V
What's in the box?
5 x Schottky Diode
Resources
Intoduction
Basics, Types, Characteristics, Applications & Packages
Aid young children and elementary school students to increase their physical knowledge in a hands-on form with a simple series circuits
Specifications:
- Colour: Black
- Material: Plastic
- Battery: 2 x AA Battery (Not included)
What's in the box?
1 x Bulb Holder
1 x Battery Holder
1 x Bulb
1 x Conductive Line
2 x Crocodile clips
(batteries not included)
Features
- Input Voltage: AC85 - 264V
- DC 5V 2A 10W isolated output
- Input Current: 0.0273A/115VAC 0.014A/230VAC
- Input surge current: 20A (230VAC)
- Frequency range: 50/60 Hz
- Operating Temperature: -30 - 70 ℃
- Relative humidity: 20%- 90%
- Rated power: 10W
- Output efficiency: 80%
- Module size: 66mm x 32mm
What's in the box?
1 x AC-DC Voltage Converter
Specifications
A single module can drive a 8x8 dot matrix common cathode
Working voltage: 5V
Module size: 12.8 x 3.2 x 1.3 cm (L*W*H)
With 64 fixing screw holes, hole diameter: 3mm
Module with input and output interfaces, support for cascading multiple modules
What's in the box?
1 x MAX7219 Dot Matrix Module
1 x 5pin jumper Cable
Resources
Wiring
1. The left side of the module is the input port, and the right is the output port.
2. Control of a single module, the input port only need to receive CPU.
3. The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on.
For example: 51 SCM
VCC→5V
GND→GND
DIN→P2.2
CS →P2.1
CLK→P2.0
https://max7219.readthedocs.io/en/0.2.3/
Clock example
Python Library
The 1N5817 series is a family of popular one-ampere general-purpose silicon rectifier diodes commonly used in AC adapters for common household appliances. Its blocking voltage is 20 volts.
What's in the box?
10 x diodes
Resources:
Intoduction
Basics, Types, Characteristics, Applications & Packages
Please Note: This product does NOT include the Raspberry Pi Pico board.
Overview
This breakout board can help you wire and view the status of the GPIO pins.
Just plug your Raspberry Pi Pico into this board to complete the installation.
Compatible Models
Raspberry Pi Pico / Pico H / Pico W / Pico WH
Main Features
GPIO status LED
LED on if GPIO outputs/inputs high level, LED off if GPIO outputs/inputs low level.
Independent LED
The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected.
Terminal block and header
Connect to all GPIO headers of Raspberry Pi Pico, 2.54mm / 0.1in pitch.
GPIO name
The name of each GPIO is printed next to the port.
What's in the box?
1 x Breakout Board for Raspberry Pi Pico
1 x Pinout Card
1 x Slotted Screwdriver
This SD card to SD card extension cable is perfect for protecting your SD card port! The flat flex cable is 45cm long, so it's perfect for mounting your SD card separately for easy access.
SD to SD Extension Cable Features:
- SD Card Male to SD Card Female
- Flex Cable ~ 45cm
- Supports SD Card Sizes: 16GB, 32GB 64GB 128GB
- Supports SD/SDHC/SDXC Cards
What's in the box?:
1 x SD Extension Cable
20 pin single row header male to female
Ideal for
- Pico
- Electronic projects
- Printed circuit boards
- Gender: Female
- No. of Contacts: 20
- No. of Pins: 20
- Termination: Straight Pins Solder Tail
- Size: 2.54mm
- Row Positions: Single Row
What's in the box?
1 x Single Row Female Header
Once paired, as in the photo above, you only need a USB-micro-to-USB-A cable to connect to your PC or Mac and upload the code. That’s it. Easy, right?
To connect to your computer, you’ll need a micro USB cable.
What's in the box?
1 x Esp32-Cam MB Micro-USB Programmer board
- Supports Micro SD cards, Micro SDHC card (high speed card)
- Level conversion circuit board that interfaces level for 5V or 3.3V
- Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
- Standard communication interface SPI interface
- 4 x M2 screw positioning holes for easy installation
A total of six pins (GND, VCC, MISO, MOSI, SCK, CS)
- GND to ground,
- VCC is the power supply
- MISO, MOSI, SCK is SPI bus
- CS is the chip select signal pin
LDO regulator output is 3.3V level converter chip, Micro SD card supply;
Micro SD card into the direction of the signal is converted to 3.3V, MicroSD card interfaces to control the direction of the MISO signal is also converted into 3.3V, general AVR microcontroller system can read the signal;
a self-bomb deck, easy card insertion.
4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination
What's in the box?
1 x SD Card SPI interface module
Resources
electronicsforu.com has an article on using this module with Pico
As a connector, the terminal block is an important module in the electric industry. It makes it easy to connect wires to your pcb.
Electrical Properties
- Rated Voltage: 150V
- Rated Current: 6A
- Wire Range: 26-18 AWG
- Colour: Green
- Pitch: 2.54mm
What's in the box?
1 x 5 pin 2.54mm pitch Terminal Block
