Generic1
433 Mhz Superheterodyne RF Receiver and Transmitter Modules (tx rx modules 433mhz)
The kit includes one pair of transmitter and receiver modules and one pair of spring antennas for increasing the communication distance. The frequency is 433MHz. It is very popular for remote control systems, such as Remote control rolling gates, robotics, smart home, etc.
Short antenna for Transmitter
Long antenna for Receiver
About the transmitter module (square shape)
About receiver module (rectangular shape)
What's in the box?
1 x 433MHz RF transmitter module
1 x 433MHz RF receiver module
2 x 433MHz spring antennas (Short antenna for Transmitter; long antenna for Receiver.)
Resources
Configure and read a 433Mhz RF Transmitter With Receiver on the Raspberry Pi
Short antenna for Transmitter
Long antenna for Receiver
About the transmitter module (square shape)
- Model: WL102-341
- Material: Plastic Metal
- Colour: shown as pictures
- Size: 16×12×1mm
- Operating frequency: 433.92 MHz
- Mains input voltage range: 2.0V-3.6V
- Shutdown mode current is less than 1uA
- Transfer rate: up to 20KHz
- Launch distance: 20-100 meters
- External antenna: 25cm ordinary multi-core or single-core line
- Temperature range: -45℃～85℃
About receiver module (rectangular shape)
- Model: RX470-4 (RX470-4 is WL101-341 upgraded version, more stable performance, faster data transfer)
- Material: Plastic Metal
- Colour: shown as pictures
- Size: 30×9×1mm
- Operating frequency: 433.92 MHz
- Mains input voltage range: 2.2V-5V
- Working current: Type: 2.1mA (Requirement:VDD=5V) ; Type: 2.1mA (Requirement:VDD=3V)
- Quiescent Current: 1uA
- Temperature range: -40℃～85℃
- External antenna: 32cm single core wire, wound into a spiral
What's in the box?
1 x 433MHz RF transmitter module
1 x 433MHz RF receiver module
2 x 433MHz spring antennas (Short antenna for Transmitter; long antenna for Receiver.)
Resources
Configure and read a 433Mhz RF Transmitter With Receiver on the Raspberry Pi
3d Printer CNC Kit, UNO R3, RAMPS 1.4, Mechanical Switch Endstop, DRV8825 Motor Driver, Nema 17 motor (Uno full 3 motor cnc kit)
CNC Shield Version 3.0 for Arduino
GRBL 0.9 compatible
4-Axis support (X, Y, Z, A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis
Coolant enable
Compatible with A4988 or DRV8825 stepper driver
Working Voltage: 12-36V DC
Max. Working Current: 2.5A
RAMPS 1.4
Mechanical Switch Endstop
Red: VCC (ramps )
Black: GND (ramps -)
Green: SIGNAL (ramps s)
DRV8825 Stepper Motor Driver
Size: 1.5mm x 2mm
Upgraded from A4988
Maximum Current: 2.5A
32 Subdivision: 1, 1/2, 1/4, 1/8, 1/16, 1/32
4-layer PCB board for better heat dissipation
Suitable for driving stepper motors up to 8.2V~45V, 2.5A
Nema 17 Stepper Motor
Model: 17HD48002H-22B
Rated Current/phase: 1.7A
Step Angle: 1.8 deg.
Holding Torque: 59Ncm(84 oz.in)
Frame Size: 41 x 41mm
Body Length: 47mm
Shaft Diameter: 5mm
Shaft Length: 22mm
Latest CH340G CNC Shield expansion board Version 3.0 for Arduino, and compatible for GRBL 0.9.
UNO R3 Board
MCU: ATmega328
USB interface: ATmega16U2 cable with USB .
This is a professional sensor kit for UNO R3. New and upgraded, we provides various components or sensor module, with which you will find it easy for you to complete every experiments or learning. All these are packaged in a portable case, easy to carry and storage.
What's in the box?
1 x CNC Shield V3
1 x UNO R3 MEGA328P CH340G with USB Cable
5 x DRV8825 Stepper Motor Driver with Heat Sink
5 x RAMPS 1.4 Mechanical Switch Endstop
5 x 3pin Cable (70cm)
3 x Nema 17 Stepper Motor
3 x Nema 17 Mounting Bracket
GRBL 0.9 compatible
4-Axis support (X, Y, Z, A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis
Coolant enable
Compatible with A4988 or DRV8825 stepper driver
Working Voltage: 12-36V DC
Max. Working Current: 2.5A
RAMPS 1.4
Mechanical Switch Endstop
Red: VCC (ramps )
Black: GND (ramps -)
Green: SIGNAL (ramps s)
DRV8825 Stepper Motor Driver
Size: 1.5mm x 2mm
Upgraded from A4988
Maximum Current: 2.5A
32 Subdivision: 1, 1/2, 1/4, 1/8, 1/16, 1/32
4-layer PCB board for better heat dissipation
Suitable for driving stepper motors up to 8.2V~45V, 2.5A
Nema 17 Stepper Motor
Model: 17HD48002H-22B
Rated Current/phase: 1.7A
Step Angle: 1.8 deg.
Holding Torque: 59Ncm(84 oz.in)
Frame Size: 41 x 41mm
Body Length: 47mm
Shaft Diameter: 5mm
Shaft Length: 22mm
Latest CH340G CNC Shield expansion board Version 3.0 for Arduino, and compatible for GRBL 0.9.
UNO R3 Board
MCU: ATmega328
USB interface: ATmega16U2 cable with USB .
This is a professional sensor kit for UNO R3. New and upgraded, we provides various components or sensor module, with which you will find it easy for you to complete every experiments or learning. All these are packaged in a portable case, easy to carry and storage.
What's in the box?
1 x CNC Shield V3
1 x UNO R3 MEGA328P CH340G with USB Cable
5 x DRV8825 Stepper Motor Driver with Heat Sink
5 x RAMPS 1.4 Mechanical Switch Endstop
5 x 3pin Cable (70cm)
3 x Nema 17 Stepper Motor
3 x Nema 17 Mounting Bracket

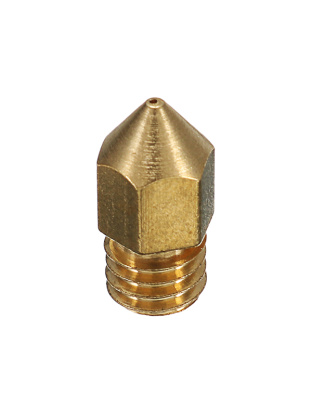

MK8 0.4mm Copper M6 Thread Extruder Nozzle For 3D Printer 5 pack ((5x) MK8 print nozzle 0.4mm)
Features
- Material: Copper
- Size: 13mm x 6mm
- Weight: 2g
- Nozzle thread: M6
- Nozzle accuracy: 0.4mm
What's in the box?
5 x 0.4mm Nozzles

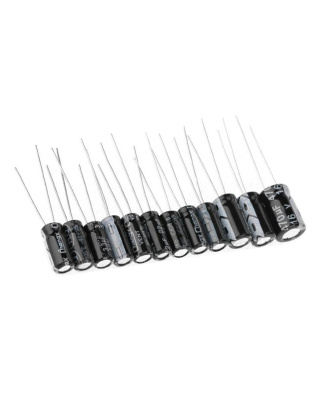

120Pcs/lot 12Value 16V/50V 0.22uF-470uF Electrolytic Capacitor Kit (120/12 capacitor kit)
This useful kit is very handy for your electronic projects or repairs.
Features
- Structure: Fixed capacitors
- Type: Aluminum Electrolytic Capacitors
- Rating: 0.22uF~ 470uF
- Voltage: 16-50V
- Colour: Black
- Quantity: 120PCS
What's in the box?
10 x 50V 0.22μF ±20% 105°C Φ 4 x 7 mm
10 x 50V 0.47μF ±20% 105°C Φ 4 x 7 mm
10 x 50V 1 μF ±20% 105°C Φ 4 x 7 mm
10 x 50V 2.2μF ±20% 105°C Φ 4 x 7 mm
10 x 50V 4.7μF ±20% 105°C Φ 4 x 7 mm
10 x 50V 10μF ±20% 105°C Φ 4 x 7 mm
10 x 50V 22μF ±20% 105°C Φ 4 x 7 mm
10 x 16V 33μF ±20% 105°C Φ 4 x 7 mm
10 x 16V 47μF ±20% 105°C Φ 4 x 7 mm
10 x 16V 100μF ±20% 105°C Φ 5 x 7 mm
10 x 16V 220μF ±20% 105°C Φ 5 x 7 mm
10 x 16V 470μF ±20% 105°C Φ 6 x 7 mm
Resources
Theory
Introduction
Types
This useful kit can be used for your electronic projects or repairs.
Hotel Energy Saving Key Card Switch 13.56Mhz (card switch 13.56)
Description
Although the reader does not read the information on the NFC card, it is triggered by a 13.56 Mhz NFC card
Although the reader does not read the information on the NFC card, it is triggered by a 13.56 Mhz NFC card
Chip: 13.56MHZ M1
Working frequency: high/low frequency card
Working voltage: 50/60Hz 160-260VAC
Maximum load current: 40A
Maximum load power: 8800W
Static working power: 1W
Delayed power-off time: 10-20 seconds
Not working state: the indicator light is red or blue
Service life: When the relay contacts are at 220V full load, the service life is more than 100,000 times
Working temperature:-20℃-- 60℃
Working humidity: 50 ℃ 10-95%RH
Dimensions: 86mm x 86mm x 40mm
Shell material: flame retardant PC plastic
Shell color: White
Working frequency: high/low frequency card
Working voltage: 50/60Hz 160-260VAC
Maximum load current: 40A
Maximum load power: 8800W
Static working power: 1W
Delayed power-off time: 10-20 seconds
Not working state: the indicator light is red or blue
Service life: When the relay contacts are at 220V full load, the service life is more than 100,000 times
Working temperature:-20℃-- 60℃
Working humidity: 50 ℃ 10-95%RH
Dimensions: 86mm x 86mm x 40mm
Shell material: flame retardant PC plastic
Shell color: White
Features
● Smart Induction Hotel Power Switch
Convenient and energy saving, low consumption, easy to install and use
● Power function
This power switch can power the room.
● LED Display Design
The LED display is designed to meet the modern hotel trends and is convenient for night operation.
● Delayed Power Outage Design
Remove the door card when leaving, the total power of the room can be automatically disconnected with a delay, which gives enough lighting time for the guests to leave the room.
● Suitable for various places such as Villa, Hotel, Business club etc.
What's in the box?
1 x Power Switch ( Card Not Included)
5V/12V Male to Female Barrel Power Extension Cable with Switch 5.5x2.1mm 26cm White (barrel switch extension white)
Description:
Add a physical switch to your device or project.
This inline manual switch goes between the power source and the device to add a convenient and reliable point of power control
Specifications:
5.5mm x 2.1mm barrel
26cm cable
White cable
What's in the box?
1 x switch barrel connection
Add a physical switch to your device or project.
This inline manual switch goes between the power source and the device to add a convenient and reliable point of power control
Specifications:
5.5mm x 2.1mm barrel
26cm cable
White cable
What's in the box?
1 x switch barrel connection
Add a physical switch to your device or project.
Plastic panel holder for 5mm LED Black (10) (LED panel mount 5mm(10))
These plastic holders are for easily attaching LEDs to boards, they are used with inner diameter 5mm LED. The product is made with good workmanship, to ensure a long lifespan. They are sturdy and durable.
Specifications
- Colour: black
- Size: 5mm
- Material: Plastic
- 5mm socket loaded 5mm of LED light-emitting diode
What's in the box?
10 x Plastic holders for 5mm LED

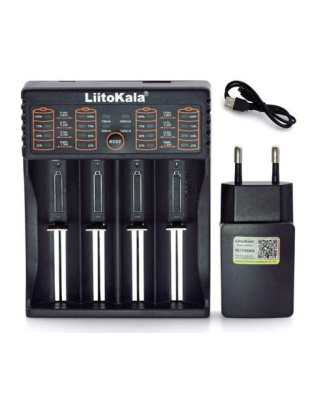

Liitokala Lii-402 Micro USB DC 5V 4Slots 18650/26650/16340/14500 Battery Charger with power supply (4 bay charger w power)
PLEASE NOTE:
Misusing or mishandling a lithium-ion battery may cause a FIRE or EXPLOSION which can result in INJURY or DEATH.
Description:
The LiitoKala Lii-402 Smart Charger for Lithium Ion and NiMH batteries is the perfect bench mate to keep your radios, robotics and flashlights running at peak efficiency. In a sea of endless chargers for sale, we have found one that will meet and exceed the needs of many consumers.
Specifications:
Product name: Liitokala Lii-402 Micro USB 4Slots Battery Charger
Input : Micro USB DC 5V/2A
Output: 1.42V
4.2V±0.05V
3.65±0.05V
4.35±0.05V
Current: 2000mA*1 1000mA*2 700mA*3 500mA*4
Constant voltage, cut-off current: less than 100mAh
Standby current: less than 15mAh
Compatible with:
Ni-MH/Cd
AA/AAA/A/SC Sizes
3.7V Li-ion battery including
26650,22650,26500,18650,18490,17670,17500,16340,14500,10440
Size: 112mm x 90mm x 30mm (L x W x H)
Weight: 150 grams (incl. micro cable)
1 x Liitokala Lii-402 Micro USB 4Slots Battery Charger
1 x USB Cable
1 x Power supply
Misusing or mishandling a lithium-ion battery may cause a FIRE or EXPLOSION which can result in INJURY or DEATH.
Description:
The LiitoKala Lii-402 Smart Charger for Lithium Ion and NiMH batteries is the perfect bench mate to keep your radios, robotics and flashlights running at peak efficiency. In a sea of endless chargers for sale, we have found one that will meet and exceed the needs of many consumers.
Specifications:
Product name: Liitokala Lii-402 Micro USB 4Slots Battery Charger
Input : Micro USB DC 5V/2A
Output: 1.42V
4.2V±0.05V
3.65±0.05V
4.35±0.05V
Current: 2000mA*1 1000mA*2 700mA*3 500mA*4
Constant voltage, cut-off current: less than 100mAh
Standby current: less than 15mAh
Compatible with:
Ni-MH/Cd
AA/AAA/A/SC Sizes
3.7V Li-ion battery including
26650,22650,26500,18650,18490,17670,17500,16340,14500,10440
Size: 112mm x 90mm x 30mm (L x W x H)
Weight: 150 grams (incl. micro cable)
USB Output function
1. 0pen-circuit voltage of USB output : 4.9-5.3V; and the 4th slot is fixed for the USB discharge power source
2. Output current: 1000mAh
3. Open circuit current: <1mAh
4. The corresponding voltage is 4.75-5.25V under 1000mAh current
5. Cut-off voltage for discharge protection: 3.0±0.1V
1 x Liitokala Lii-402 Micro USB 4Slots Battery Charger
1 x USB Cable
1 x Power supply
1N5822 DO-27 IN5822 Schottky Diode 3A 40V DIP(5 pack) (schottky diode 3A 40V(5))
Schottky diodes are used in systems to prevent a reverse current flowing.
Features
3A 40V
What's in the box?
5 x Schottky Diode
Resources
Intoduction
Basics, Types, Characteristics, Applications & Packages
Features
3A 40V
What's in the box?
5 x Schottky Diode
Resources
Intoduction
Basics, Types, Characteristics, Applications & Packages
Kids Electronic Light Bulb circuit kit (bulb circuit kit)
Take this step to enrich children's leisure lives, cultivate hands-on ability, and consolidate knowledge. Assisting teachers and parents in better physics teaching.
Aid young children and elementary school students to increase their physical knowledge in a hands-on form with a simple series circuits
Specifications:
What's in the box?
1 x Bulb Holder
1 x Battery Holder
1 x Bulb
1 x Conductive Line
2 x Crocodile clips
(batteries not included)
Aid young children and elementary school students to increase their physical knowledge in a hands-on form with a simple series circuits
Specifications:
- Colour: Black
- Material: Plastic
- Battery: 2 x AA Battery (Not included)
What's in the box?
1 x Bulb Holder
1 x Battery Holder
1 x Bulb
1 x Conductive Line
2 x Crocodile clips
(batteries not included)
MAX7219 Dot Matrix MCU LED Display Control Module Kit ( Green) (MAX7219 matrix display green)
Looking for easy to control LED matrix? This 4 in 1 Dot Matrix Display module should be suitable for you. The whole module comes in four 8x8 RED common cathode dot matrix that equiped with MAX7219 IC each. Great to display running text and picture. It can be cascaded to bigger dot Matrix display, but do make sure the current of 5V is sufficient to support it.
Specifications
A single module can drive a 8x8 dot matrix common cathode
Working voltage: 5V
Module size: 12.8 x 3.2 x 1.3 cm (L*W*H)
With 64 fixing screw holes, hole diameter: 3mm
Module with input and output interfaces, support for cascading multiple modules
What's in the box?
1 x MAX7219 Dot Matrix Module
1 x 5pin jumper Cable
Resources
Wiring
1. The left side of the module is the input port, and the right is the output port.
2. Control of a single module, the input port only need to receive CPU.
3. The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on.
For example: 51 SCM
VCC→5V
GND→GND
DIN→P2.2
CS →P2.1
CLK→P2.0
https://max7219.readthedocs.io/en/0.2.3/
Clock example
Python Library
Specifications
A single module can drive a 8x8 dot matrix common cathode
Working voltage: 5V
Module size: 12.8 x 3.2 x 1.3 cm (L*W*H)
With 64 fixing screw holes, hole diameter: 3mm
Module with input and output interfaces, support for cascading multiple modules
What's in the box?
1 x MAX7219 Dot Matrix Module
1 x 5pin jumper Cable
Resources
Wiring
1. The left side of the module is the input port, and the right is the output port.
2. Control of a single module, the input port only need to receive CPU.
3. The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on.
For example: 51 SCM
VCC→5V
GND→GND
DIN→P2.2
CS →P2.1
CLK→P2.0
https://max7219.readthedocs.io/en/0.2.3/
Clock example
Python Library
IN5817 DO-41 1A 20V SCHOTTKY DIODE (10 pack) (1N5817 Diode 1A(10))
Please note: Pic is for illustration purposes only
The 1N5817 series is a family of popular one-ampere general-purpose silicon rectifier diodes commonly used in AC adapters for common household appliances. Its blocking voltage is 20 volts.
What's in the box?
10 x diodes
Resources:
Intoduction
Basics, Types, Characteristics, Applications & Packages
The 1N5817 series is a family of popular one-ampere general-purpose silicon rectifier diodes commonly used in AC adapters for common household appliances. Its blocking voltage is 20 volts.
What's in the box?
10 x diodes
Resources:
Intoduction
Basics, Types, Characteristics, Applications & Packages
SD to SD Extension Cable 45cm (SD to SD ext)
Description:
What's in the box?:
1 x SD Extension Cable
This SD card to SD card extension cable is perfect for protecting your SD card port! The flat flex cable is 45cm long, so it's perfect for mounting your SD card separately for easy access.
SD to SD Extension Cable Features:
- SD Card Male to SD Card Female
- Flex Cable ~ 45cm
- Supports SD Card Sizes: 16GB, 32GB 64GB 128GB
- Supports SD/SDHC/SDXC Cards
What's in the box?:
1 x SD Extension Cable
2.54mm Pitch Single Row Female Pin Header 20-PIN - Black (20 pin single female header)
20 pin single row header male to female
Ideal for
- Pico
- Electronic projects
- Printed circuit boards
Specifications
- Gender: Female
- No. of Contacts: 20
- No. of Pins: 20
- Termination: Straight Pins Solder Tail
- Size: 2.54mm
- Row Positions: Single Row
What's in the box?
1 x Single Row Female Header
Esp32-Cam MB Micro-USB Programmer (esp32-cam programmer )
Esp32-Cam MB Micro-USB programmer is a shield for a standard Esp32-Cam board that adds a Micro-USB port. You just need to plug your board into the shield.
Once paired, as in the photo above, you only need a USB-micro-to-USB-A cable to connect to your PC or Mac and upload the code. That’s it. Easy, right?
To connect to your computer, you’ll need a micro USB cable.
What's in the box?
1 x Esp32-Cam MB Micro-USB Programmer board
Once paired, as in the photo above, you only need a USB-micro-to-USB-A cable to connect to your PC or Mac and upload the code. That’s it. Easy, right?
To connect to your computer, you’ll need a micro USB cable.
What's in the box?
1 x Esp32-Cam MB Micro-USB Programmer board
Easily program your ESP32-CAM WiFi Development Board
2.54mm Pitch PCB Screw Terminal Block Connector 5P Terminals 150V 6A for 26-18AWG Cable (Green 2.54 5 pin screw term)
As a connector, the terminal block is an important module in the electric industry. It makes it easy to connect wires to your pcb.
Electrical Properties
- Rated Voltage: 150V
- Rated Current: 6A
- Wire Range: 26-18 AWG
- Colour: Green
- Pitch: 2.54mm
What's in the box?
1 x 5 pin 2.54mm pitch Terminal Block
2.54mm Pitch PCB Screw Terminal Block Connector 10P Terminals 150V 6A for 26-18AWG Cable (Green 2.54 10 pin screw term)
As a connector, the terminal block is an important module in the electric industry. It makes it easy to connect wires to your pcb.
Electrical Properties
- Rated Voltage: 150V
- Rated Current: 6A
- Wire Range: 26-18 AWG
- Colour: Green
- Pitch: 2.54mm
What's in the box?
1 x 10 pin 2.54mm pitch Terminal Block
AC 220V 1 Channel Optocoupler voltage detection sensor (AC detection 1 sensor)
SAFETY WARNING:
When AC power is turned on, the white framed area should not be touched due to high voltage being present. Electricity is dangerous and a shock can be fatal. Always take note of safety when working with electricity. It is strongly advised that you make use of your local qualified electrician when working on AC projects.
This module can be used to detect if your 220V AC connection is on. A small microcontroller like Raspberry Pi Pico or Arduino can be used for instance to monitor and report loadshedding or tripped circuit breakers. Your microcontroller would have to have it's own backup power though.
Specifications
Board Size: 73mm x 15mm
Function: Detecting whether AC 220V is on
Ouput TTL Level: Can use SCM to test using voltage of 3-5V. Adaptive to PLC 24V level
What's in the box?
1 x AC voltage detection sensor
Resources
Wiring diagram
The 2Pin terminal is for connection to AC 220V
The 3Pin terminal gets connected to your microcontroller.
When 220V voltage is normal the output level is low.
When 220V is powered off the output level is high.
When AC power is turned on, the white framed area should not be touched due to high voltage being present. Electricity is dangerous and a shock can be fatal. Always take note of safety when working with electricity. It is strongly advised that you make use of your local qualified electrician when working on AC projects.
This module can be used to detect if your 220V AC connection is on. A small microcontroller like Raspberry Pi Pico or Arduino can be used for instance to monitor and report loadshedding or tripped circuit breakers. Your microcontroller would have to have it's own backup power though.
Specifications
Board Size: 73mm x 15mm
Function: Detecting whether AC 220V is on
Ouput TTL Level: Can use SCM to test using voltage of 3-5V. Adaptive to PLC 24V level
What's in the box?
1 x AC voltage detection sensor
Resources
Wiring diagram
The 2Pin terminal is for connection to AC 220V
The 3Pin terminal gets connected to your microcontroller.
When 220V voltage is normal the output level is low.
When 220V is powered off the output level is high.
Raspberry Pi Pico GPIO Expansion Board female headers and screw terminals (Pico expansion board screw)
Need to make that Pico project a bit more permanent? This expansion board is extremely handy for more permanent projects or even just development testing.
Specifications
- 2 x 20 female headers to mount the Pico
- 2 x 20 female headers for jumper connections to sensors etc.
- 2 x 20 screw terminals for more permanent wire connections
- Small form factor (73mm x 55mm)
- Pre-soldered headers
- GPIO pin labels printed on the board for ease of use
What's in the box?
1 x Pico expansion board
Bulk Mixed 5mm diffused LED (100 pcs) (BULK mixed LED 100x5mm)
Diffused LEDs shine through a semi-transparent cover, absorbing the light and bouncing it through in different directions. Instead of seeing the individual LED light up, the whole bulb shines instead, giving a more uniform light spread over a greater area.
Specifications
What's in the box?
100 x coloured 5mm LEDs
Resources
Python library
Introduction
Specifications
| Colour | Size | Wavelength(nm) | Voltage(V) | MCD | Lens color |
| Red | 5mm | 620-630 | 1.8-2.3 | 800-1000 | Red diffused |
| Yellow | 5mm | 580-590 | 1.8-2.3 | 800-1000 | Yellow diffused |
| Green | 5mm | 520-530 | 2.8-3.6 | 800-1000 | Green diffused |
| White | 5mm | 6000-6500k | 2.8-3.6 | 14000-16000 | Clear |
| Blue | 5mm | 460-470 | 2.8-3.6 | 800-1000 | Blue diffused |
What's in the box?
100 x coloured 5mm LEDs
- Red x 20 units
- Yellow x 20 units
- Green x 20 units
- White x 20 units
- Blue x 20 units
Resources
Python library
Introduction
