4inch Touch LCD Shield for Arduino

Resistive touch screen TFT LCD, 4inch, 480x3200 resolution for Arduino
R517.50  Inc VAT
Qty:
Print
Add to wish list - You'll need to login first.
PLEASE NOTE: Arduino board or Arduino compatible board and USB cable are not included

Features

  • Resistive touch screen TFT LCD, 4inch, 480x320 resolution
  • Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
  • Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
  • PWM backlight control, allows to adjust the backlight to a comfortable level
  • Micro SD slot, provides an easy way to store photos for displaying
  • Controlled via SPI, only a few Arduino pins are used
  • Comes with STM32 and Arduino examples, convenient for porting



Key Parameters

LCD TypeTFT
LCD InterfaceSPI
LCD ControllerILI9486
Touch Screen TypeResistive
Touch Screen Controller    XPT2046
ColoursRGB, 65K colors
Resolution480x320 (Pixel)
Aspect Ratio8:5
I/O Voltage3.3V/5V

Interface

SymbolArduino / NUCLEO PIN   Description
5V5V5V power input
GNDGNDGround
SCLKD13SPI clock
MISOD12SPI data input
MOSID11SPI data output
LCD_CSD10LCD chip select
LCD_BLD9LCD backlight
LCD_RSTD8LCD reset
LCD_DCD7LCD data/command selection
TP_BUSYD6Touch panel busy
SD_CSD5Micro SD card chip select
TP_CSD4Touch panel chip select
TP_IRQD3Touch panel interrupt

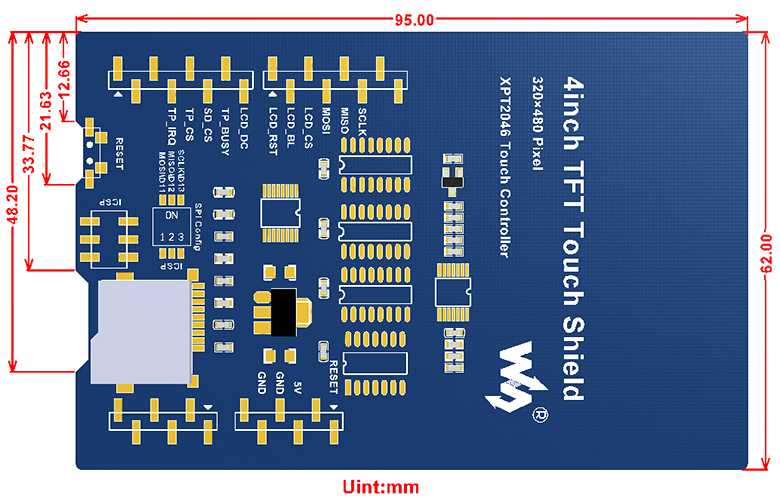

External Dimensions

What's in the box?

1 x 4inch Touch LCD Shield for Arduino

Resources



  • Availability: Out of Stock
  • Model: Arduino WS LCD 4.0
  • Brand: WaveShare
