Battery LiPo 1200mAh 3.7V

Lipo Batteries (Polymer Lithium Ion) offers extremely light weight and high energy density. This battery is rated at 3.7V 1200mAh and is terminated with a 2-pin JST-PH connector (2mm pin spacing). These batteries require special charger so please do not attempt to charge these with anything but a specialized Lithium Polymer charger.

Specifications

• Capacity: 1200mAh
• Nominal Voltage: 3.7V
• Open Circuit Voltage: 3.75 to 4.2V
• Cut Off Voltage: 2.4V
• Standard Charge Current: 240mA
• Max Continuous Charge Current: 1C (1200mA)
• Dimensions: 61mm x 37mm x 5.1mm
• Protection Circuit: Yes (DW01 IC)
• Connector: JST-PH
• Weight: 24g

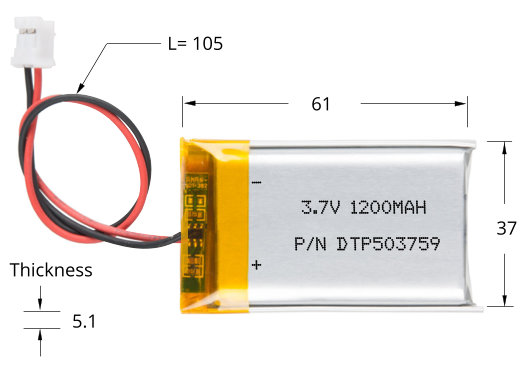

Dimensions

What's in the box?

1 x Battery LiPo 1200mAh 3.7V
2 x JST-PH Connector - PCB Mount 90 Deg Bend
2 x Cable with JST-PH Female Connector 200mm
