Elecrow Raspberry Pi Pico Advanced Kit with 32 Modules and 32 Projects Lessons, Pico Included from 05/03/2024 (Pico 32 projects kit)
This Raspberry Pi Pico advanced kit is designed for people who already have some electronics knowledge and programming skills and are interested in the Raspberry Pi. If you want to continue to strengthen your thinking, hands-on ability， and innovation ability, the Raspberry Pi pico advanced kit will take you to create different scenarios and explore more applications.
The Raspberry Pi Pico Advanced Kit uses a Pi Pico (not included) based on the official RP2040 chip, 32 sensor modules, 1 smart car kit, and 32 Raspberry Pi Pico projects. With this kit, you can complete several interesting and practical projects.
In the process, the learners' thinking ability and creativity are continuously stimulated. In short, whether you are a student, teacher or hardware enthusiast, let's follow the smart car into a new stage of programming!

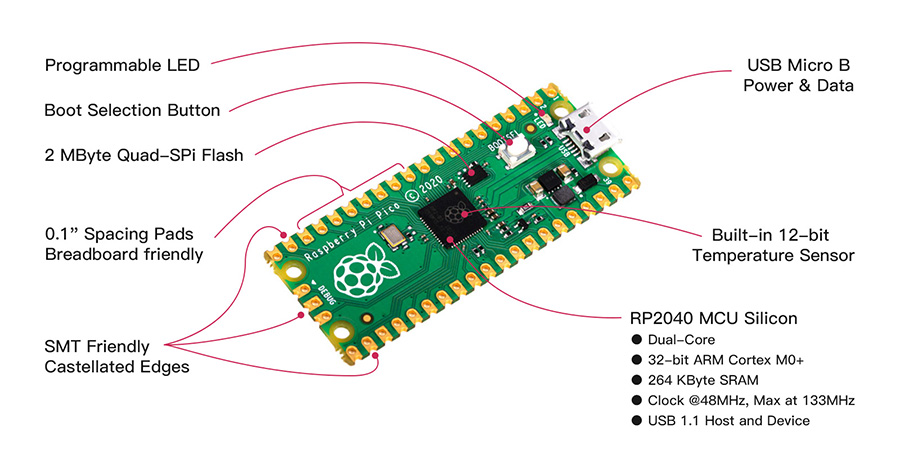

Components of a Raspberry Pi Pico

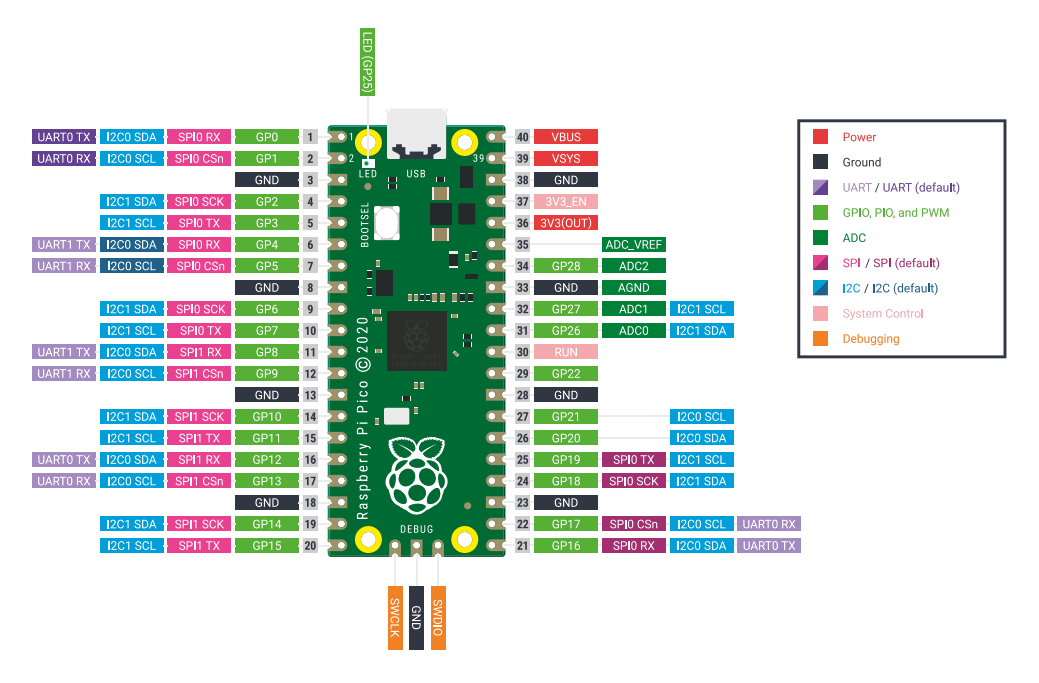

26 Multi-Function GPIO Pins
Example Projects built with this kit

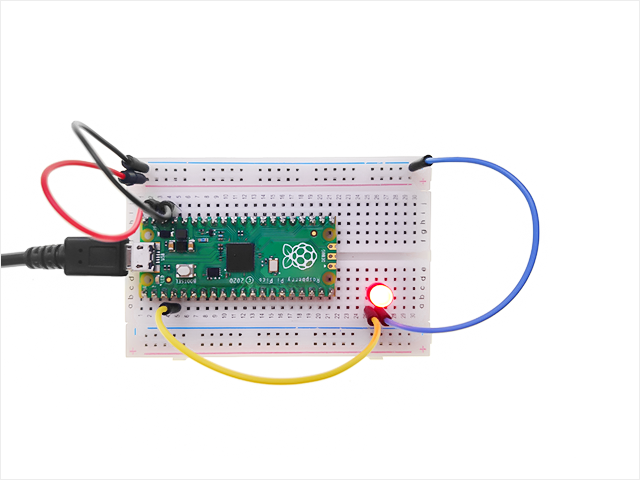

RGB Colorful Light
Through PWM pulse width modulation, the LED light is controlled to light up gradually, and then gradually turn off, so as to form a breathing light effect in a cycle.
Electronic Clock
The hour and minute data of the clock are displayed through the TM1637 4-Bits digital tube, and the clock point is controlled to flash circularly to make an electronic clock.

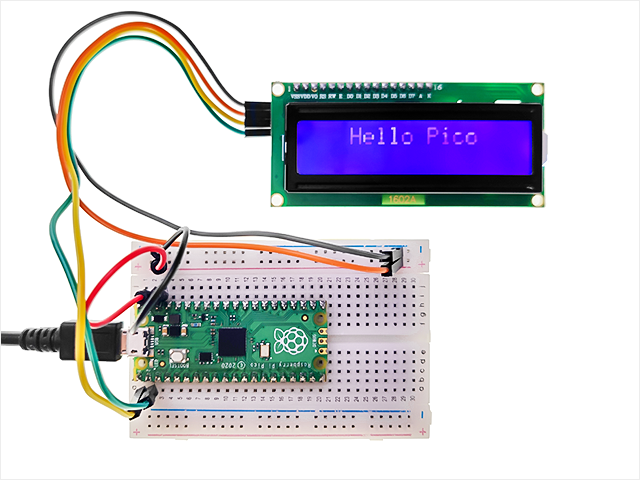

Billboard
The first line of LCD1602 scrolls from right to left to display the string of "Hello Pico", simulating the effect of billboard scrolling.

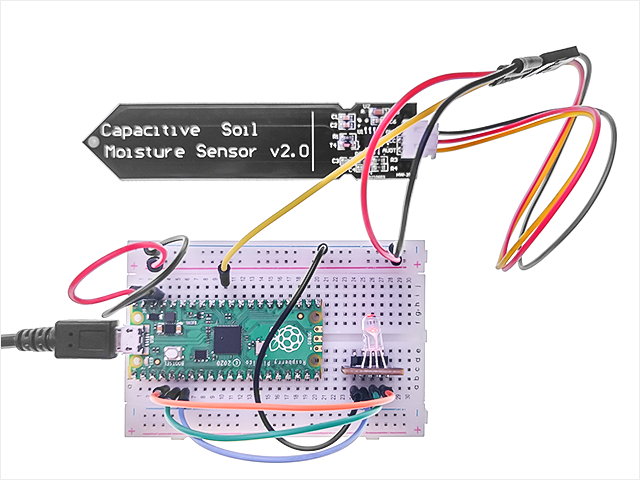

Plant Doctor
Real-time detection of soil humidity. Under normal soil humidity, the green light lights up and the buzzer does not sound; when the soil humidity is too low, the red light lights up and the buzzer sounds.

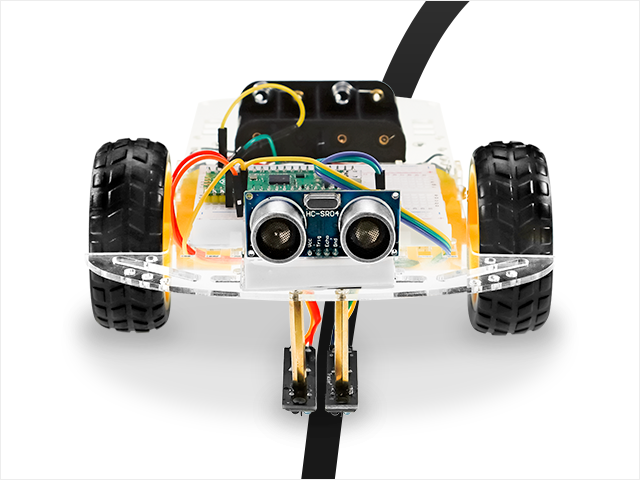

Obstacle Avoidance Car
Real-time detection of the distance measurement value of the ultrasonic ranging sensor, when the distance value is less than the preset value, the car will be controlled to turn left to avoid obstacles, so as to achieve the effect of the obstacle avoidance car.
Features
What's in the box?
2 x 400 holes Solerless Breadboard
10 x Colorful 5MM LEDS:1pcs each in green,red,blue,yellow and white
1 x RGB module
1 xButton
1 x Sound Sensor
1 x Mini PIR motion sensor
1 x Photoresistor Module
1 x Laser Transmitter
1 x Passive buzzer
1 x Vibration Sensor
1 x Mini magnetic spring module
1 x Soil moisture sensor
1 x Rotary Potentiometer
1 x DC motor with male Dupont Wire + fan blade x 1
1 x 9G servo
1 x Dual-axis XY Joystick Module
1 x RC522 RFID Module
1 x 4 Bits Digital LED Display Module
1 x Traffic Light Display Module
1 x Rotary Encoder Module
1 x 1602 LCD Display Module（Blue）
1 x Temperature & Humidity sensor
1 x Raindrops Module
1 x Flame Sensor
1 x OLED Module
1 x Membrane Switch Keyboard
1 x Smart car Kit
2 x Crash Sensor
2 x Tracking sensor
1 x Ultrasonic Sensor
1 x Infrared remote control
1 x Infrared receiver module
1 x Micro USB Cable（30cm）
1 x 170 holes Solerless Breadboard
1 x 65 Jumper Wire
1 x 20CM Male to Female Dupont Wire
1 x Clear Case
2 x M2.5*30mm Copper Pillar
10 x Phillips Pan Head Screw
10 x M2.5 Nickel Hex nuts
1 x 2 INCH dual-purpose screwdriver
1 x Magnet(Diameter:8mm Thickness:5mm)
1 x DC stepper motor driver board
What you will need...
1 x Rapberry Pi Pico with header
Resources
User Tutorial
This Raspberry Pi Pico advanced kit is designed for people who already have some electronics knowledge and programming skills and are interested in the Raspberry Pi. If you want to continue to strengthen your thinking, hands-on ability， and innovation ability, the Raspberry Pi pico advanced kit will take you to create different scenarios and explore more applications.
The Raspberry Pi Pico Advanced Kit uses a Pi Pico (not included) based on the official RP2040 chip, 32 sensor modules, 1 smart car kit, and 32 Raspberry Pi Pico projects. With this kit, you can complete several interesting and practical projects.
In the process, the learners' thinking ability and creativity are continuously stimulated. In short, whether you are a student, teacher or hardware enthusiast, let's follow the smart car into a new stage of programming!
Components of a Raspberry Pi Pico
26 Multi-Function GPIO Pins
Example Projects built with this kit
RGB Colorful Light
Through PWM pulse width modulation, the LED light is controlled to light up gradually, and then gradually turn off, so as to form a breathing light effect in a cycle.
Electronic Clock
The hour and minute data of the clock are displayed through the TM1637 4-Bits digital tube, and the clock point is controlled to flash circularly to make an electronic clock.
Billboard
The first line of LCD1602 scrolls from right to left to display the string of "Hello Pico", simulating the effect of billboard scrolling.
Plant Doctor
Real-time detection of soil humidity. Under normal soil humidity, the green light lights up and the buzzer does not sound; when the soil humidity is too low, the red light lights up and the buzzer sounds.
Obstacle Avoidance Car
Real-time detection of the distance measurement value of the ultrasonic ranging sensor, when the distance value is less than the preset value, the car will be controlled to turn left to avoid obstacles, so as to achieve the effect of the obstacle avoidance car.
Features
- Suitable for all users, from beginners to advanced programmers.
- 32 detailed lessons to lead your experiment
- 32 kinds of sensor modules and the smart cart can also be customized for interesting functions.
- Raspberry Pi Pico is a lightweight, compact, high-performance microcontroller multifunction board using a dual-core ARM Cortex-M0+ processor
- More powerful functions
Specifications of the Raspberry Pi Pico
- 21 mm × 51 mm form factor
- RP2040 microcontroller chip designed by Raspberry Pi in the UK
- Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133MHz
- 264KB on-chip SRAM
- 2MB on-board QSPI Flash
- 26 multifunction GPIO pins, including 3 analog inputs
- 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
- 1 × USB 1.1 controller and PHY, with host and device support
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
- Supported input power 1.8–5.5V DC
- Operating temperature -20°C to +85°C
- Castellated module allows soldering directly to carrier boards
- Support drag-and-drop programming using mass storage over
- USB(https://make.playpiper.com/)
- Low-power sleep and dormant modes
- Accurate on-chip clock
- Temperature sensor
- Accelerated integer and floating-point libraries on-chip
What's in the box?
2 x 400 holes Solerless Breadboard10 x Colorful 5MM LEDS:1pcs each in green,red,blue,yellow and white
1 x RGB module
1 xButton
1 x Sound Sensor
1 x Mini PIR motion sensor
1 x Photoresistor Module
1 x Laser Transmitter
1 x Passive buzzer
1 x Vibration Sensor
1 x Mini magnetic spring module
1 x Soil moisture sensor
1 x Rotary Potentiometer
1 x DC motor with male Dupont Wire + fan blade x 1
1 x 9G servo
1 x Dual-axis XY Joystick Module
1 x RC522 RFID Module
1 x 4 Bits Digital LED Display Module
1 x Traffic Light Display Module
1 x Rotary Encoder Module
1 x 1602 LCD Display Module（Blue）
1 x Temperature & Humidity sensor
1 x Raindrops Module
1 x Flame Sensor
1 x OLED Module
1 x Membrane Switch Keyboard
1 x Smart car Kit
2 x Crash Sensor
2 x Tracking sensor
1 x Ultrasonic Sensor
1 x Infrared remote control
1 x Infrared receiver module
1 x Micro USB Cable（30cm）
1 x 170 holes Solerless Breadboard
1 x 65 Jumper Wire
1 x 20CM Male to Female Dupont Wire
1 x Clear Case
2 x M2.5*30mm Copper Pillar
10 x Phillips Pan Head Screw
10 x M2.5 Nickel Hex nuts
1 x 2 INCH dual-purpose screwdriver
1 x Magnet(Diameter:8mm Thickness:5mm)
1 x DC stepper motor driver board
What you will need...
1 x Rapberry Pi Pico with header
