Engravers
Laser and CNC engravers
EleksMaker® A3 Pro including 2500mW Laser CNC Engraving Machine (WH laser engraver kit)
Specifications:
Tips:
Laser machine installation, software downloading, software setting ,operating instructions and FAQ: http://wiki.eleksmaker.com/doku.php?id=elekslaser_a3_pro
Laser module self-checking tips link: https://www.dropbox.com/s/nuuu98e3einfee4/Laser%20Tips.pdf?dl=0
Please Note:
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes or skin!
2. The red cord is DC12v(+),black cord is GND(-), yellow cord is signal(S). Please make sure you know the wire position and connect to the ManaSE board correctly!
3. Do not use the laser module for more than 30 minutes at a time
Packaging List:
1 x DIY 2500mW Laser Engraving Machine(assembly needed)
FAQ:
1. How to assemble the kit?
The whole assembly and operating manual link is here:http://wiki.eleksmaker.com/doku.php?id=elekslaser_a3_pro
You can also watch the video to do it:https://www.youtube.com/embed/_1ypts5489Y
2. What software can support this machine? And what image format? Engrave Mode?
Supported Software: EleksCam,T2-Laser, GrblController, LiteFire, Laser GRBL, etc.
EleksCam can be found at http://wiki.eleksmaker.com/doku.php?id=elekscam
Supported Image Format: jpg, bmp, svg, G-code
Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving
3. What systems can the EleksCAM support?
PC Windows XP/7/8/10
4. My laser doesn't work, what should I do?
If the machine does not work, it might be due to:
① The wire connection is wrong.Please check the connection like the picture shown.
② Your computer could not support the software.Please use Win XP 7/8/10 to check it.
③ Software problem.Please check whether wires are inserted rightly. And then check your data settings.
④ The kit misses some accessories.Please compare with the instructions
⑤ Laser module/ driver board/power supply is faulty.
⑥ Laser module self-checking tips link at http://www.dropbox.com/s/nuuu98e3einfee4/Laser%20Tips.pdf?dl=0
5: My software shows: Not data, what should I do?
There might be two reasons.
① You did not open Administrator privileges to run the software.
② Your computer architecture is incomplete:check whether VC ++ and .Net and directX are installed
6. Can I regulate the laser power or is the laser power is adjustable?
Our new Mana SE controller board can adjust the power. Please download our ElekesCAM software to do it.
7. Can I upgrade stronger power laser module by myself? Can I extent rail frame?
Yes,you can. A DC12V laser module can be installed on this machine. The red is positive.You can also extent the frame by yourself, but we do not stock the rails.
8. When I click arrows to control the motors, it works. But when I begin to make it work with EleksCAM software,
it does not move. What should I do?
The EleksCAM could move by hand but could not move when focus.The problem is the area and language inside the system control panel.
Please set the format to English and United States.Then it will be ok. Detail is shown in the wiki link above.
9. My laser module is always on and could not turn off.What should I do?
Please try to connect the Signal(S) and GND(-).
If the laser module turn off, that means the laser module is ok, the problem might be the ManaSE board or a software setting.
| General Specification | |
| Brand | EleksMaker® |
| Model | EleksLaser-A3 pro 2.5W |
| Material | Aluminum Profile and Acrylic |
| Packaging Size | 58x40x14cm / 22.83x15.75x5.51inch (L*W*H) |
| Assembled Product Size | 60x46x18cm / 23.62x18.11x7.09inch (L*W*H) |
| Package Weight | 4.60kg |
| Can Engrave | Wood, Plastic, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, etc. |
| Can not engrave | Metal, Stone, Ceramics, Glass, Reflective or Transparent Material |
| Technical Parameters | |
| Laser Power | 2.5W / 2500mW (laser included) |
| Laser Wavelength | 445nm |
| Control Board | EleksMana SE |
| Communication Port | MircoUSB |
| Laser Quick Replace | Supported |
| Stepper Motor | 42H34S-1304A |
| Power Input | AC100-240V |
| Working Voltage | DC 12V |
| Working Current | DC 4-5A |
| System Support | Win XP/7/8/10 |
| Engrave Mode | Photo, Word, Scan, outline, Pixel Laser Engraving |
| Supported Formats | jpg, bmp, svg, G-code |
| Control Software System | EleksCam, T2-Laser, GrblController, LiteFire, Laser GRBL, etc.(Can NOT use Benbox) |
| Engraving Accuracy | 0.01mm |
| Engraving Area | 30x40cm / 11.81 x 15.75inch (maximum) |
| Engraved Object Height limitatiion | No Limitation |
| Function | Ideal for amateur laser engraving, equipped with low light positioning and freedom positioning functions. |
| Features | 30X38cm ultra large engraving area,gantry shape design, no engraving height limitation. |
| Three stepper motor drive providing faster moving speed. | |
| 2500mW violet laser module with heatsink, high laser engraving power and long term use. | |
| can print any pictures easily | |
Tips:
Laser machine installation, software downloading, software setting ,operating instructions and FAQ: http://wiki.eleksmaker.com/doku.php?id=elekslaser_a3_pro
Laser module self-checking tips link: https://www.dropbox.com/s/nuuu98e3einfee4/Laser%20Tips.pdf?dl=0
Please Note:
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes or skin!
2. The red cord is DC12v(+),black cord is GND(-), yellow cord is signal(S). Please make sure you know the wire position and connect to the ManaSE board correctly!
3. Do not use the laser module for more than 30 minutes at a time
Packaging List:
1 x DIY 2500mW Laser Engraving Machine(assembly needed)
FAQ:
1. How to assemble the kit?
The whole assembly and operating manual link is here:http://wiki.eleksmaker.com/doku.php?id=elekslaser_a3_pro
You can also watch the video to do it:https://www.youtube.com/embed/_1ypts5489Y
2. What software can support this machine? And what image format? Engrave Mode?
Supported Software: EleksCam,T2-Laser, GrblController, LiteFire, Laser GRBL, etc.
EleksCam can be found at http://wiki.eleksmaker.com/doku.php?id=elekscam
Supported Image Format: jpg, bmp, svg, G-code
Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving
3. What systems can the EleksCAM support?
PC Windows XP/7/8/10
4. My laser doesn't work, what should I do?
If the machine does not work, it might be due to:
① The wire connection is wrong.Please check the connection like the picture shown.
② Your computer could not support the software.Please use Win XP 7/8/10 to check it.
③ Software problem.Please check whether wires are inserted rightly. And then check your data settings.
④ The kit misses some accessories.Please compare with the instructions
⑤ Laser module/ driver board/power supply is faulty.
⑥ Laser module self-checking tips link at http://www.dropbox.com/s/nuuu98e3einfee4/Laser%20Tips.pdf?dl=0
5: My software shows: Not data, what should I do?
There might be two reasons.
① You did not open Administrator privileges to run the software.
② Your computer architecture is incomplete:check whether VC ++ and .Net and directX are installed
6. Can I regulate the laser power or is the laser power is adjustable?
Our new Mana SE controller board can adjust the power. Please download our ElekesCAM software to do it.
7. Can I upgrade stronger power laser module by myself? Can I extent rail frame?
Yes,you can. A DC12V laser module can be installed on this machine. The red is positive.You can also extent the frame by yourself, but we do not stock the rails.
8. When I click arrows to control the motors, it works. But when I begin to make it work with EleksCAM software,
it does not move. What should I do?
The EleksCAM could move by hand but could not move when focus.The problem is the area and language inside the system control panel.
Please set the format to English and United States.Then it will be ok. Detail is shown in the wiki link above.
9. My laser module is always on and could not turn off.What should I do?
Please try to connect the Signal(S) and GND(-).
If the laser module turn off, that means the laser module is ok, the problem might be the ManaSE board or a software setting.
Blue-violet Laser Goggles Safety Glasses Protective Eyewear (2D4 Laser safety goggles)
Specifications:
Brand: Eleksmaker
Material: Plastic
Item: Laser Protective Glasses
Applicable Model: 200-540nm Wavelength
Optical Density (OD): OD4+
Blue Laser Visible Light Transmission: <50%
Red Laser Visible Light Transmission: >60%
Features:
- Durable and comfortable to wear.
- Fit for 200-540nm blue-violet lasers.
- Ideal for use in most laser applications.
Package includes:
1 x Laser Safety Glasses
Brand: Eleksmaker
Material: Plastic
Item: Laser Protective Glasses
Applicable Model: 200-540nm Wavelength
Optical Density (OD): OD4+
Blue Laser Visible Light Transmission: <50%
Red Laser Visible Light Transmission: >60%
Features:
- Durable and comfortable to wear.
- Fit for 200-540nm blue-violet lasers.
- Ideal for use in most laser applications.
Package includes:
1 x Laser Safety Glasses
3018 3 Axis Mini DIY CNC Router Standard Spindle Motor Wood Engraving Machine (WH milling machine)
Specification:
Features:
| General Specification | |
| Model | Mini CNC3018 (Without Laser Module) |
| Frame Material | Aluminum Alloy |
| Color | Silver |
| Table Area | Approx. 340x160mm |
| Working Area | Approx. 340x160x40mm |
| Product Weight | 7.5kg |
| Control Software for Spindle | GrblControl |
| Control Software for Laser | Litefire |
| System Requirements | Windows XP SP3, Win7, Win8, Win10. |
| Adapter Plug | 2-Pin US Plug |
| Adapter Input Voltage | AC 110-240V 50/60Hz |
| Adapter Output Voltage | DC 24V 4A |
| Features | 1. Aluminum Profile Stable Construction 2. 3 Axis Movable, Powerful Spindle Motor 3. Contains Quickstart Guide of GRBL Software 4. 340x160x40mm Working Area, Meet Most Amateur DIY Needs 5. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material Can Not Engrave Metal, Steel, Aluminum. |
| Technical Parameters | |
| Working Voltage | DC 24V |
| Interface | USB |
| Stepper Motor | 42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m |
| Spindle Motor | 775 Spindle Motor (12-36V) 24V: 7000r/min, 36V: 9000r/min |
| Spindle Motor Shaft Diameter | 5mm |
Features:
- Assembly requires a certain mechanical skill. All assembly components are included.
- Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
- Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.
Note:
1. Instructions & Software: Assembly instructions, control software and further information please use this link https://www.dropbox.com/sh/ybh0xihxeco9szp/AAAt8XkxL1V_5AkwQN2K-w17a?dl=0
2. This item contains the spindle motor, but no laser module. If you want to use laser for engraving, you can buy it additionally. Thanks for your understanding, and please note that the input interface (Should be XH2.54-3P or XH2.54-2P) and input voltage (Should be DC 12V) of the laser module should be compatible with the control board on 3018. Besides, the original motor holder is round, please make sure the shape of your laser module is suitable for installation.
Now we recommend the laser module (2500mW Blue Laser Module) produced by the original manufacturer.
Now we recommend the laser module (2500mW Blue Laser Module) produced by the original manufacturer.
Package Includes:
1 x Wood Engraving Machine Full Set (Unassembled Delivery)

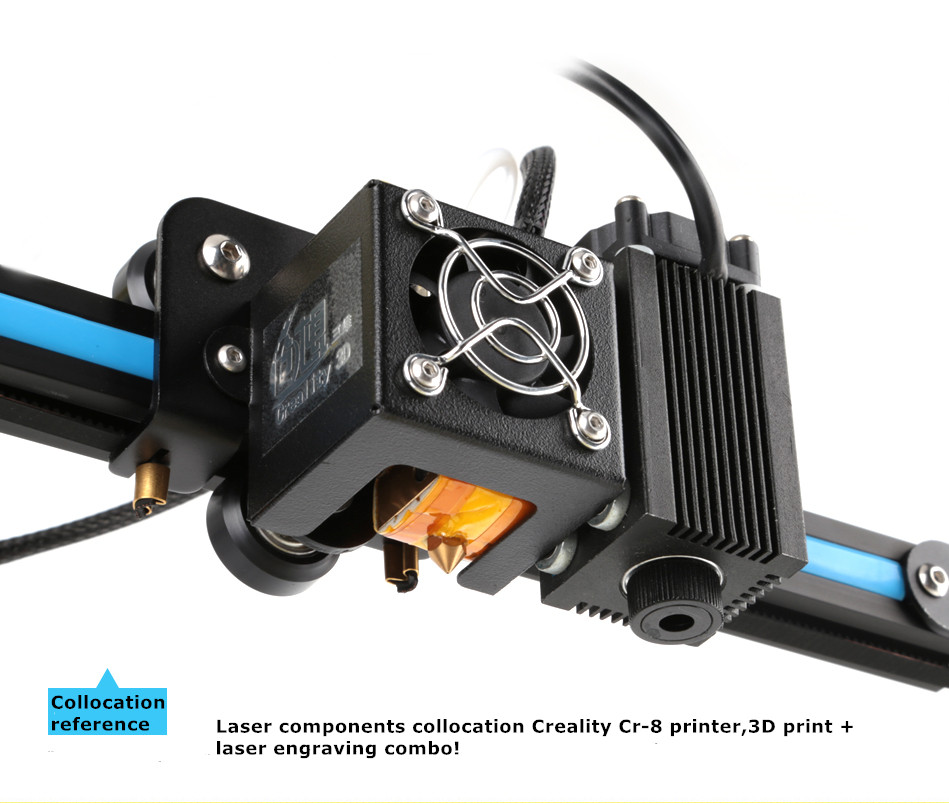

Creality3D Laser High-Power 1Pcs 12V Blue-Violet Light Laser Engraving With Focusing For 3D Printer (3D6 creality laser)
The laser can work with the 12V printer, such as CR-10 CR-10S CR-10S4 CR-10S5 Ender-2 Ender-4, Software, and Instruction download: http://bit.ly/2HqyAlK
The laser can't directly use to ender 3, while the Youtuber Garage Makezone modify and use it, below is the reference.
https://youtu.be/K7X78C0qoxc
The laser can't directly use to ender 3, while the Youtuber Garage Makezone modify and use it, below is the reference.
https://youtu.be/K7X78C0qoxc
Wavelength: 405NM (Blue)
Power: correspondence course 500mW
Operating voltage: 12V (DC)Working current: 2100mA
Idemitsu form: dot
Lens Material: dedicated optical coated glass
Cooling: Forced air
Shell material: aluminum anodized black
Input: 2.1 / 5.5 DC seat
Creality CP-01 Multifunction 3d printer (CP01 multi function printer)
● Multifunction 3-in-1 machine: With 3D printing, laser engraving, CNC cutting, three effects to give you a new operating experience. 3D printing model is fine, the layer is nearly absent, the CNC cutting model is smooth, and the surface is flat; the laser engraving positioning error is small, and the engraving model is exquisite.
● Stable operation: full belt drive, intersecting the screw guide rail, the stability is even better, to ensure the high quality of the model. Printing speed 10-80mm/s. Laser power: less than 0.5W.
● Support a variety of filaments: 3D Printing materials: PLA, ABS, TPU, PVA; CNC carving and laser engraving materials: wood, paper, PCB, plastic,leather etc.
● Large printing volume. Molding platform size: 3D printing: 200 × 200 × 200mm, CNC engraving / cutting: 200 × 200mm, laser engraving: 100 × 190mm.
● Easy assembly: The modules are interchangeable and can be assembled quickly and universally in 30 seconds.
● Trustworthy and convenient: High-quality wide-voltage power supply, mature technology, safe and secure, automatic voltage regulation, easy to use. TF card offline printing or online printing, power failure continued support.
Unboxing and assembly video available at https://youtu.be/lw52OUpaxLc
● Multifunction 3-in-1 machine: With 3D printing, laser engraving, CNC cutting, three effects to give you a new operating experience. 3D printing model is fine, the layer is nearly absent, the CNC cutting model is smooth, and the surface is flat; the laser engraving positioning error is small, and the engraving model is exquisite.
● Stable operation: full belt drive, intersecting the screw guide rail, the stability is even better, to ensure the high quality of the model. Printing speed 10-80mm/s. Laser power: less than 0.5W.
● Support a variety of filaments: 3D Printing materials: PLA, ABS, TPU, PVA; CNC carving and laser engraving materials: wood, paper, PCB, plastic,leather etc.
● Large printing volume. Molding platform size: 3D printing: 200 × 200 × 200mm, CNC engraving / cutting: 200 × 200mm, laser engraving: 100 × 190mm.
● Easy assembly: The modules are interchangeable and can be assembled quickly and universally in 30 seconds.
● Trustworthy and convenient: High-quality wide-voltage power supply, mature technology, safe and secure, automatic voltage regulation, easy to use. TF card offline printing or online printing, power failure continued support.
Unboxing and assembly video available at https://youtu.be/lw52OUpaxLc
