This addon board connects to a Raspberry Pi Zero (RPi0) or Zero W (Wireless) via pogo pins to provide a full sized, USB Type-A dongle
R209.90  Inc VAT
R1,175.22  Inc VAT
Argon ONE M.2 is UASP Supported for the Raspberry Pi 4 which means you can maximize the transfer speeds of your M.2 SATA Drive.
R899.90  Inc VAT
Prototyping Expansion Board For Raspberry Pi 2/3 Model B and B+ Kit (AW Pi prototyping kit)
Features:

The hole gap is 2.54mm, and it's compatible with IC with DIP package.
The IO port can be quickly and easily implement your ideas.

Note:

- Extra header spacer included
- 170 tie points breadboard arranged in 34 rows of 5 pins included




Package includes:

1 x Prototyping Shield kit
R166.45  Inc VAT
Geekcreit® ATmega328P Arduino Compatible Nano V3 Nano Shield Expansion Board Kit (nano expansion kit)
Description:

This Nano Mult-Function expansion board is designed specially for Arduino Nano, solving the problem of confusing wiring when a variety of sensors connected.
Lead out all digital IO port and analog IO port, each one with standard positive and negative power interface.
Lead out the I2C interface of mainboard for convenient connection.
Increasing the DC power supply interface. Nano USB interface supply current is actually only 50MA, to bring high-current devices, such as the steering, is obviously insufficient. So in the DC power connector provide external power supply to ensure the stability of equipment operation.

Specifications:

Changed the USB chip, improve the download speed and stability of WIN7/WIN8
Microcontroller Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz

Package includes:

1 x ATmega328P Arduino Compatible Nano V3 with USB cable
1 x NANO Shield Expansion Board

Getting started with Arduino products
R219.90  Inc VAT
328 ProtoShield Prototype Expansion Board Compatible Arduino with M2M jumpers (Arduino prototype shield)
Description:

The ProtoShield is a prototype expansion board with 2 LEDs and 2 buttons, which can be used directly with more convenience. All the pins and power have been lead out. It is very suitable for building prototype circuits with Arduino.

Features:

ProtoShield for Arduino Duemilanove
To build prototype circuits
Directly soldering components on board
Connecting through the mini breadboard

Package includes:

  1x Arduino compatible 328 protoshield prototype expansion board
R109.90  Inc VAT
USB-A Addon Board V1.1 Connector Expansion Board For Raspberry Pi Zero / Zero W (Zero USB A dongle board)
Please note: Raspberry pi zero not included

Overview:


This addon board connects to a Raspberry Pi Zero (RPi0) or Zero W (Wireless) via pogo pins to provide a full sized, USB Type-A connector.
You can use Raspberry pi zero or Raspberry pi zero W as a U disk via P4wnP1 P4wnP1 project, and you can use it as a BadUSB device too.

Specifications:

Size: 6g
Weight: 8.0 x 3.0 x 0.5cm  (with USB port)
             6.5 x 3.0 x 1.2mm (PCB size)

More info available at http://www.raspberrypiwiki.com/index.php/Raspberry_Pi_Zero_W_USB-A_Addon_Board

Package includes:

1x USB-A Addon Board
This addon board connects to a Raspberry Pi Zero (RPi0) or Zero W (Wireless) via pogo pins to provide a full sized, USB Type-A dongle
R209.90  Inc VAT
WS Pioneer600 Raspberry Pi Expansion Board (WS Pioneer 600 board)
Note : the Pi, cables and sensors are NOT included.

Description:

The Pioneer600 is a blue expansion board that clicks onto the GPIO pins of Raspberry Pi and adds a range of additional features.

First of these features we noticed was a five-way joystick and 0.96-inch OLED display. This is backed up by a dual-LED and buzzer. On closer inspection, we discovered the on-board LFN0038K to enable remote control. A DS3231 real-time clock is also included (you’ll need to supply your own battery).

There is a built-in BMP280 for measuring air pressure and temperature, but it’s the available ports for external sensors that are the key attraction: a PCF8591, 8-bit resolution, screw terminal interface, a 1-Wire device (a DS18B20 thermometer is included), a 4×4 pin sensor interface, and GPIO expansion.

There is also a micro USB to UART connection and cable supplied. UART is normally used to debug Raspberry Pi, but with debugging mode disabled, you can send data to and from Raspberry Pi and a connected PC.


Pioneer600 Features
  • Supports Raspberry Pi A /B /2B/3B/3B
  • <Standard I/O> dual LED, joystick, buzzer, the basic components
  • <USB TO UART> CP2102, control the Pi through serial terminal
  • <Display> 0.96inch OLED, big world in the little screen
  • <RTC> DS3231, high precision, backup battery holder is also available
  • <AD/DA> PCF8591, 8-bit resolution, screw terminal IO interface
  • <GPIO Expansion> PCF8574, more GPIO, more possibility
  • <IR Control> LFN0038K, Raspberry Pi remote control comes true
  • <Pressure Sensor> BMP280, measuring air pressure and temperature
  • <1-WIRE> for connecting 1-WIRE devices, DS18B20 is included
  • <Sensor Interface> for connecting various sensors

What's on the Pioneer600
  1. Raspberry Pi GPIO interface : for connecting Raspberry Pi
  2. USB TO UART : control the Pi through serial terminal
  3. AD/DA IO interface : screw terminal
  4. 1-WIRE interface : for connecting 1-WIRE devices like DS18B20
  5. Sensor interface : for connecting various sensors
  6. 0.96inch OLED : SSD1306 driver, 128×64 resolution, SPI interface
  7. Buzzer
  8. CP2102 : USB TO UART converter
  9. PCF8591 : 8-bit AD/DA converter, I2C interface
  10. BMP280 : pressure sensor, I2C interface
  11. PCF8574 : I/O expansion chip, I2C interface
  12. DS3231 : high precision RTC chip, I2C interface
  13. Power indicator
  14. User LED
  15. Joystick
  16. LFN0038K IR receiver

Examples

PeripheralInterfacePythonWiringPiBCM2835 C LibrarySysFs
LEDI/O
KEYI/O
IRMI/O
UARTUART
DS18B20ONE-WIRE
PCF8574I2C
PCF8591I2C
DS3231I2C
BMP280I2C
OLEDSPI


Development Resources:

Wiki : www.waveshare.com/wiki/Pioneer600

R339.90  Inc VAT
GPIO Expansion Board for Raspberry Pi 2/3 (Blue/yellow GPIO expansion board)
Description:

Make your project easier to build and less messy. This board simply clones the GPIO into 3 ports. It does not create extra GPIO pins.

Note: Raspberry Pi is not included

Package Includes:

1 X Raspberry Pi GPIO Expansion Board
4 X Screws
4 X Nuts
4 X Nylon fixed standoffs
R166.90  Inc VAT
Revolution Pi DIO - Digital I/O expansion module (RevPi Digital IO)

Using the digital I/O - module RevPi DIO your Revolution Pi system can be expanded by 14 digital inputs and 14 digital outputs. This expansion module is connected to your base module by the means of the overhead PiBridge plug.

 The required PiPridge Plug (Item No.: 100204) and a set of 14-pole PCB female connectors (Item No.: 200030) are already included in the scope of delivery of this expansion module.

Compatible base modulesRevPi Core 3 (Article No. 100257)
RevPi Core (Article No. 100102)
RevPi Connect (Article No. 100274)
No. of Inputs14
No. of Outputs14
Power supply24V
IP codeIP20


Housing dimensions (H x W x D)
96 x 22.5 x 110.5 mm
Housing type
DIN rail housing (for DIN rail version EN 50022)
Housing material
Polycarbonate
Weight
approx. 100 g / 130 g (incl. connectors)
IP Code
IP20
Power supply
12-24 V DC -15% / +20% (X2 and X4) 1
Max. power consumption
1.5 Watt (X4/power supply)
Operating temperature
-40 °C....+55 °C
Storage temperature
-40 °C....+85 °C
Humidity (at 40°C)
93% (non-condensing)
Connectors
2 x 4-pole screw-type terminal for power supply
2 x 14-pin socket connectors with spring clamp contacts (0.2 - 1.5 mm²) for IOs, pitch 3.5 mm (Wieland Item No. 27.630.4453.0)
Optical indicator
3 status LEDs (bi-color)
Number of digital input channels
14
Input type
Galvanically isolated from the system bus and from the outputs, individually configurable as direct digital input, counter rising edge, counter falling edge or together with neighboured input as encoder 2
Input current limitation
2.4 mA (at 24 V power supply)
Input thresholds
At 24 V compatible according to EN61131-2 to Type I and III sensors
Digital debounce circuit
Collectively adjustable for all inputs: off, 25 μs, 750 μs or 3 ms
Maximum frequency resolution of the counter inputs
2 kHz (corresponding to 500 Hz encoder sequence)
Alarm
For auxiliary voltages below 19 V and below 9 V,
overtemperature
Input protection
According to EN 61131-2 (IEC 61000-4-4, -5, -6, and -2) against overvoltage, negative voltages, burst, surge, ESD, RFI
Number of digital output channels
14
Output type
Galvanically isolated from the system bus and the inputs,
individually configurable as direct digital output with high-side
or push-pull drivers as well as a PWM output 3
Maximum current per output
500 mA (high-side mode), 100 mA (push-pull mode)
PWM frequency
Collectively selectable for all outputs: 40 Hz, 80 Hz, 160 Hz,
200 Hz, 400 Hz 3
Alarm
Thermal shutdown or short circuit of outputs (individually for each output)
Dual watchdog function
In the event of communication failure with the controller (after 50 ms) or internal communication with the CPU (after 9 ms, hardware-controlled), the outputs are reseted to zero
Output protection
According to EN 61131-2 (IEC 61000-4-4, -5, -6, and -2) against short circuit, overload, external voltage, negative voltages, burst, surge, ESD, RFI
Compatible modules for system expansion
All RevPi base module, expansion modules and RevPi Gate
modules (connected via overhead PiBridge connector)
Protection of the power supply inputs
Reverse polarity protected, overvoltage protection
CE conformity
Yes
RoHS conformity
Yes
Surge/Burst tests
Passed (according to EN61131-2 and IEC 61000-6-2)

Technical data also available in pdf format: https://revolution.kunbus.com/download/1436

Tutorials available at https://revolution.kunbus.com/tutorials/


R3,379.90  Inc VAT
Revolution Pi Analog I/O expansion module (RevPi Analog I/O)

Using the analog I/O - module RevPi AIO your RevPi base module can be expanded by 4 analog inputs, 2 analog outputs and 2 RTD input channels. This expansion module is connected to your base module by the means of the overhead PiBridge plug. Inputs, RTD inputs and outputs are galvanically isolated to each other. Differential inputs eliminate ground loops.

Analog input range/options: +/- 10 V, 0 – 10 V, 0 – 5 V, +/- 5 V, 0 – 20 mA, 0 – 24 mA, 4 – 20 mA, +/- 25 mA

Analog outputs range/options: 0 – 5 V, 0 – 10 V, +/- 5 V, +/- 10 V, 0 – 5,5 V, 0 – 11 V, +/- 5,5 V, +/- 11 V, 4 – 20 mA, 0 – 20 mA, 0 – 24 mA

The 2 RTD inputs enable temperatures to be measured with high precision from -165°C to +600°C in steps of 0.5°C using common RTDs sensors like Pt100/Pt1000 probes. The probes can be connected directly to the module with 2, 3 or 4 cables.

Just like the digital IO modules, RevPi AIO is protected against disturbances according to EN61131-2 and can be operated between -40 and +50°C ambient temperature and up to 80% relative humidity. It is also protected against static discharges, burst and surge impulses in accordance with EN61131-2 requirements.

The required PiPridge Plug (Item No.: 100204) and a set of 14-pole PCB female connectors (Item No.: 200030) are already included in the scope of delivery of this expansion module.

Compatible base modulesRevPi Core 3 (Article No. 100257)
RevPi Core (Article No. 100102)
RevPi Connect (Article No. 100274)
No. of Inputs4
No. of Outputs2
No. of RTD channels2
Power supply24V
IP codeIP20


Compliance
EN61131-2
Housing dimensions (H x W x D)
96 x 22.5 x 110.5 mm
Housing type
DIN rail housing (for DIN rail version EN 50022)
Housing material
Polycarbonate
Weight
approx. 115 g
IP Code
IP20
Power supply
12 - 24 V (-15%/+20%)
Current consumption
max. 200 mA at 24V (full load)
max. 400 mA at 12V (full load)
max. 500 mA during start up
Operating temperature
-30…+55 °C
Storage temperature
-40…+85 °C
Humidity (at 40 °C)
93 % (non-condensing)
Voltage measuring range
±10 V | ±5 V | 0…10 V | 0…5 V
Current measuring range
0…20 mA | 0…24 mA | 4…20 mA | ±25 mA
Temperature measuring range
-200…+850 °C
Voltage output range
±10 V | ±11 V | ±5 V | ±5.5 V | 0…10 V | 0…11 V |0…5 V | 0…5.5 V
Current output range
0…20 mA | 0…24 mA | 4…20 mA
Number of input channels
6
for voltage max 4
for current max 4
for RTD (Pt100/Pt1000) 2
Number of output channels
2
for voltage max 2
for current max 2
Galvanic isolation
Input to Input No
Input to Output Yes
Output to Output No
System bus to inputs/outputs Yes
Input type
Voltage/current - differential
RTD 2-, 3-, 4-wire
Output type
single ended, common ground, short-circuit proof
ADC type
24 bit ΔΣ
DAC type
16 bit
Input resolution in process image
Voltage 1 mV (16 bit)
Current 1 μA (16 bit)
Temperature 0.1 K (16 bit)
Output resolution in process image
Voltage 1 mV (16 bit)
Current 1 μA (16 bit)
Max. overall input error (at 25 °C ambient temperature)
Voltage (for all ranges) ±10 mV (±5 mV @ 0…5 V range)
Current (for all ranges) ±20 μA (±24 μA @ 0…24 μA range)
Temperature (for complete range) ±0.5 K
Max. overall input error (for -30…+55 °C ambient temperature)
Voltage (for all ranges) ±10 mV
Current (for all ranges) ±72 μA
Temperature (for complete range) ±1.5 K
Max. overall output error (at 25 °C ambient temperature)
Voltage (for all ranges) ±15 mV
Current (for all ranges) ±20 μA
Max. overall output error (for -30…+55 °C ambient temperature)
Voltage (for all ranges) ±15 mV
Current (for all ranges) ±72 μA
Input conversion time (data rate in process image)
8…1000 ms (adjustable)
Output data rate
1 PiBridge cycle
Output slew rate
Adjustable digital slew rate control - 1 [email protected] kHz up to 128 [email protected] kHz
Input impedance
Voltage >900 kΩ
Current <250 Ω
Output impedance
Voltage <16 Ω
Max. capacitive load 5 nF @ 1 kΩ
Max. load resistance for current output
600 Ω
Min. load resistance for voltage output
1 kΩ
Further features
All inputs and outputs are linear scalable
Overtemperature monitoring
Overcurrent monitoring
Range monitoring
Optical indicator
3 status LEDs (bi-color)

Technical data also available in pdf format: https://revolution.kunbus.de/wp-content/uploads/manuell/datenblatt/Datasheet_RevPi_AIO.pdf

Tutorials available at https://revolution.kunbus.com/tutorials/

R5,799.90  Inc VAT
Infinity Cascade GPIO Expansion Board 32 IO Extend Adapter Module For Raspberry Pi (Infinity Cascade board)
Description:

This module is designed specifically for the Raspberry Pi IO expansion Modules, which can effectively solve the issue of Raspberry send IO port. Module uses four 74HC595 chips to expand 32 IO ports, the top of the module will expand the IO of Raspberry Pi again that can be cascaded for more IO expansion modules with theoretically unlimited expansion.

Features:

--Expanded 32 GPIO
--Infinity expansion by adding more modules
--Use wiring PI API,sample code

Port:
--Raspberry Pi 2*13port
--Raspberry Pi 2*13 cascade port
--Q0-Q31 expanded IO port

Product Parameters:

--Working voltage:2.4v-5v
--IO voltage:3.3v
--Expanded 32 unidirectional IO
--Connection through SPI
--100 MHz (typical) shift out frequency
--8-bit serial input
--8-bit serial or parallel output
--Specified from -40C to 85C and from -40C to 125C

Typical Application:

--Drive a lattice screen
--Driver numeric display
--Drive matrix LED


How to Use:

Insert the module that the silk screen says 'RPI IN'. Pay attention don’t make the direction reversed! The correct direction of insert module is above the Raspberry Pi’s PCB; The 8*4header in the module are Q0-Q31 expanded GPIO, they can connect to the peripheral through the Dupont Line. The header which near silk screen write 'EXT' expand GPIO of Raspberry Pi, user can cascade the other module or the same module.

Package Includes:


1x Raspberry pi IO expansion board
R112.62  Inc VAT
R149.90
WAVGAT cnc shield v3 engraving machine / 3D Printer / A4988 driver expansion board for Arduino (cnc shield only)
Description:

The CNC Shield V3.0 allows you to build a engraving machine, 3D printer, mini CNC and other similar devices using your Arduino. It is designed as a shield and can plug on top of an Arduino requiring no external connections and wiring. There are 4 slots on the board for plugging in stepper motor drive module which can drive 1 stepper motor each. Controlling each step stepper motor requires only two IO pins on the Arduino. Just insert this Arduino CNC Shield V3.0 onto an Arduino UNO, and install the GRBL firmware, you can then quickly build a DIY CNC engraving machine.



Features:

  • The extension board can be used for Small CNC routers, Carving Machine, 3D Printers, DIY Laser Cutters, and almost any project where you need to control a stepper motors with high precision
  • This shield allows you to control upto 4 stepper motors
  • Controller each stepper motor requires 2 IO Pins only, which saves a lot of IO Pins for other purposes
  • Arduino compatible
  • Latest Arduino CNC Shield Version 3.10
  • GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
  • Supports PWM Spindle and direction pins
  • 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
  • Supports Coolant enable
  • Supports removable A4988 compatible stepper drivers. (A4988, DRV8825 and others) (Not Included)
  • Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
  • Compact design.
  • Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
  • Runs on 12-36V DC. (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
  • Uses removable A4988 or DRV8825 compatible stepping driver.


What's in the box?

1 x CNC shield

Resources:

After installing the official IDE software please copy the 3 folders in the update folder to the following path:

C:\Users\Administrator\Documents\Arduino

Restart the software
Select the development board model
[Tools] -> [Board] -> WAVGAT UNO R3

Select COM port
[Tools] -> [Serial Port] -> Select the corresponding COM port

You can now use the development board

Download information:  https://drive.google.com/open?id=10gwrG9uTDwaEO-7EudsmBkfgdcyrcABI
R68.90  Inc VAT
Robotbit - robotics expansion board for micro:bit (Robotbit)
Decription:

Robotbit is a robotic expansion board specially designed for micro:bit by the KittenBot team.

It has a powerful ability to drive DC motors, stepper motors, and servos. It also comes with an onboard buzzer, four RGB pixels and releases all valid IO from micro:bit, with support for the most common electronics module in the market.

It comes with an 18650 battery holder, integrated lithium battery boost, charging and protection chip. Support for external power input. Mechanical support for a robotic chassis and LEGO technical slots.

For more details and tutorials please click here

micro:bit, 18650 battery and Kitty case not included, but we have them all on the store!

SUPPORTED SOFTWARE
  • Kittenblock (based on Scratch3.0)
  • Makecode and python(Mu editor in microbit mode)

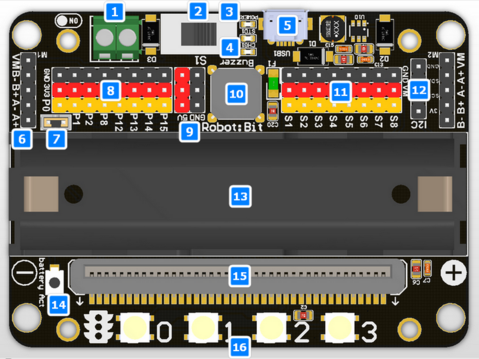

HARDWARE INTERFACE



  1. 5V external power input(with anti-reverse protection)
  2. Power switch
  3. Power Indicator
  4. Battery Indicator
  5. Micro USB charging port
  6. 4-channel DC motor / 2-channel stepper motor
  7. Jumper for buzzer selection
  8. 8 channel IO(corresponding to Micro:bit P0-P2、P8、P12-P15)
  9. 5V and GND port
  10. Buzzer
  11. 8 channel servo port
  12. I2C interface (expandable I2C module)
  13. 18650 battery case
  14. Battery protection recovery push button
  15. Micro:bit edge connector
  16. 4x RGB pixel
  17. Servo driver (PCA9685)
  18. 2xDc/Stepper driver (DRV8833)
  19. KittenBot robot chassis mounting hole
  20. Standard LEGO hole
Specifications
  • Dimensions: 78mm x 57mm x 23mm
  • PCB Thickness: 1.5mm
  • Small mechanical hole: 3.0mm
  • Big mechanical hole: 4.8mm
  • Net weight (without packaging): 37.5g
  • 18650 battery voltage: 3.7V
  • USB input voltage: 5V
  • VM pin max output: 1A (with onboard battery)
  • External Voltage Input (the green terminal): 5V (only supports 5V input, do not connect over 5V, maximum current supports 3A)
R345.44  Inc VAT
R399.90
Raspberry Pi 400 GPIO Header Expansion Adapter 2x 40PIN (pi400 GPIO board)
*images are for reference only, RPi400 and expansion boards are NOT included.

Description:

If you are looking for easier, more visible connection to you Raspberry Pi 400? Looking to add a HAT or other add ons? This expansion board has enough place for both with 2 full sets of GPIO pins at your disposal.



Colour-coded header, easy expansion



Outline Dimensions


R104.90  Inc VAT
Raspberry Pi 400 GPIO Leaning GPIO Header Adapter (Pi400 Leaning Header)
Description:

Special Angled Header, Let The Adapter Stand At A Comfort Angle,
Make It More Convenient To Use With HATs Like SPI/DPI Display



What's in the box ?

1 x PI400 GPIO Leaning adapter

R114.90  Inc VAT
X200 EXPANSION BOARD (AW X200 EXPANSION BOARD)

Description:

The expansion board is directly connected on top of the Raspberry Pi using the board GPIO header pins, and no wiring nor soldering is required, and duplicated the 40-pin header of the R-Pi in order to support existing expansion boards. X200 is fully compatible with Raspberry Pi Model B and Pi2 model B.

The company emphasizes that their HDMI to VGA converter is not powered by the R-Pi HDMI port, as this is known to cause issues. You can find more information, including instructions to build the RTC drivers and control the servo with WiringPi, on the company’s Raspberry Pi page.

Features:

Input Voltage – 6V to 21Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi.
VGA output – HDMI to VGA converter supporting up to UXGA (1600×1200) and 1080p with 10-bit DAC
Audio – 3.5mm MIC in jack, 3.5mm stereo audio jack, SPDIF output, audio IO connector (Microphone input and stereo audio amplifier 3.3Wx2)
Wireless - WiFi (IEEE 802.11b/g/n) with antenna, IR sensor (38KHz)
USB – self-powered USB hub with 3 ports
RTC – Based on DS3231SN with included CR2032 battery
Servo support – 8-channel Darlington driver chip  (ULN2803) allowing to control electronic circuits which require more current.
I/Os – Power output connector, headers to access camera connector on top of the Raspberry Pi
Misc – DIP switch to remove connection from RPi’s pin header
Dimensions – 85 x 56mm (Same size as Raspberry Pi)

Read more :
http://www.suptronics.com/Xseries/x200.html

Package includes:

1 x Supstronics X200 Multifunction Expansion Board
1 x Case
R1,175.22  Inc VAT
2-Channel Isolated CAN FD Expansion HAT for Raspberry Pi, Multi Protections (CAN fd hat for pi)
Description:

The 2-CH CAN FD HAT is a 2-Channel CAN bus expansion HAT designed for Raspberry Pi, supports CAN FD (CAN with Flexible Data-Rate). It will enable CAN bus for your Raspberry Pi, not only the original CAN 2.0 protocol, but also the CAN FD extension, with higher data throughput.



Thanks to multi onboard protection circuits, including 500W lightningsurge, ESD protection, short circuit protection, and electrical isolation, it make the communication more safe and more reliable.

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports both traditional CAN2.0 and CAN FD protocols
  • Breakout SPI control pins, for connecting with host control boards like STM32/Arduino
  • Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability
  • Onboard lightningproof, ESD protection, short circuit protection, more safe communication
  • Onboard voltage translator, select 3.3V/5V operating voltage by jumper
  • Onboard 120Ω terminal resistor, configured by jumper
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino)


Specifications

CAN CONTROLLERMCP2518FDCAN TRANSCEIVERMCP2562FD
CONTROL BUSSPIPOWER SUPPLYExternal power supply terminal OR Raspberry Pi
SCREW TERMINALINPUT VOLTAGEDC 8~26VOPERATING VOLTAGE5V
LOGIC LEVEL3.3V/5VDIMENSIONS65.0 × 56.5mm

What Can It Do?

Enable Isolated And Stable CAN FD Capability For Your Raspberry Pi




Designed For Raspberry Pi Series

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards



2-Channel CAN Support

MCP2518FD CAN Controller MCP2562FD CAN Transceiver



Electrical Isolation Circuitry Safe & Stable

SM24CANB TVS Diode, ESD Protection, Transient Peak Voltage Protection



Flexible With Handy Jumpers

Easily Select 3.3V / 5V Operating Voltage, Or Enable/Disable 120Ω Terminal Resistor, Via Onboard Jumpers



What's On Board


  1. MCP2518FD controller
  2. MCP2562FD transceiver
  3. SI8642ED digital isolator
  4. MP1584EN power chip
  5. RT9193-33 power chip
  6. B0505LS-1W power supply isolation module
  7. Standard Raspberry Pi 40PIN GPIO header
  8. CAN bus screw terminal
  9. External power supply terminal
    8~26V DC input
  10. MCU control pins
    for use with host boards like Arduino

  1. 120Ω terminal resistor switch
  2. 3.3V/5V logic level switch
  3. CAN operating mode selection
    A: CAN_0 and CAN_1 use two separated SPI (default)
    B: CAN_0 and CAN_1 share a single SPI
  4. Power indicator
  5. 2A fast resettable fuse
  6. Power supply reverse-proof diode
  7. Power supply flow backward proof diode
  8. Freewheeling diode
  9. SM24CANB TVS diode

Pinout Definition



Outline Dimensions



Resources & Services


R1,799.90  Inc VAT
NVIDIA Jetson Nano 4GB Development / Expansion Kit (Jetson nano 4GB dev kit)
Jetson Nano Developer Kit

NVIDIA Jetson Nano Developer Kit is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing. All in an easy-to-use platform that runs in as little as 5 watts.

Jetson Nano delivers 472 GFLOPS for running modern AI algorithms fast, with a quad-core 64-bit ARM CPU, a 128-core integrated NVIDIA GPU, as well as 4GB LPDDR4 memory. It runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously.

Jetson Nano is also supported by NVIDIA JetPack, which includes a board support package (BSP), CUDA, cuDNN, and TensorRT software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The SDK also includes the ability to natively install popular open source Machine Learning (ML) frameworks such as TensorFlow, PyTorch, Caffe / Caffe2, Keras, and MXNet, enables the developers to integrate their favorite AI model / AI framework into products fast and easily.

Supports 2-lanes CSI Camera

Upgraded 2-lanes CSI, instead of the previous 1-lane, easily play around with binocular vision

Introduction



  1. Core module socket
  2. M.2 Key E connector
  3. PoE pins: PoE module is not included
  4. 40PIN GPIO header
  5. Micro USB port: for 5V power input or for USB data transmission
  6. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected
  7. 4x USB 3.0 port
  8. HDMI output port
  9. DisplayPort connector
  10. DC jack: for 5V power input
  11. 2x MIPI CSI camera connector
Specifications

GPU128-core Maxwell
CPUQuad-core ARM A57 @ 1.43 GHz
Memory4 GB 64-bit LPDDR4 25.6 GB/s
Storage16GB eMMC
Video Encoder4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
Video Decoder4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)
Camera2x MIPI CSI-2 DPHY lanes
ConnectivityGigabit Ethernet, M.2 Key E expansion connector
DisplayHDMI and DP
USB4x USB 3.0, USB 2.0 Micro-B
Extension InterfacesGPIO, I2C, I2S, SPI, UART

What's in the box?

  1.  1 x JETSON-IO-BASE-A (carrier board)
  2.  1 x Jetson Nano module
  3.  1 x Official heatsink
  4.  1 x AC8265 dual-mode NIC
  5.  1 x Cooling fan
  6.  1 x USB cable (~1.2m)
  7.  1 x 5V 4A power adapter

R4,999.90  Inc VAT
Raspberry Pi 8-channel Relay Expansion Board with DIN rail mounting brackets (DIN rail relay board)
Please note: Raspberry Pi is not included

Overview

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.

Features
  • Supports Raspberry Pi A /B /2B/3B/3B /4B
  • High quality relays, loads up to 5A 250V AC or 5A 30V DC
  • Photo coupling isolation, prevent interference from high voltage circuit
  • Standard rail mount bottom case
  • Onboard LEDs for indicating relays status
  • Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins
  • Reserved control Interface, allows to work with controllers like PLC
  • Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)
Specifications
  • Power supply voltage: 5V
  • Trigger signal: 3.3V/5V
  • Relay channels: 8-ch
  • Contact form: SPDT-NO,NC
  • Closed current: 6mA (per channel)
  • Connector: screw terminal block
  • Dimension: 232 × 72 (mm)
  • Mounting hole size: 3.0mm
Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board_(B)

R359.90  Inc VAT
cnc shield v3 engraving machine 3D Printer board 4pcs A4988 driver expansion board for Arduino UNO R3 with USB cable (uno cnc control kit)
Description:

Perfect for engravers, laser cutters, CNC machines and 3D printers. This shield simply sticks on top of your Arduino board and can control up to 4 stepper motors.

Features:
CNC Shield Board:

Latest CNC Shield Version 3.0 for Arduino.
GRBL 0.9 compatible. (Open source firmware that runs on an UNO for Arduino that turns G-code commands into stepper signals)
PWM Spindle and direction pins
4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a  full 4th axis with custom firmware using pins D12 and D13)
2 x End stops for each axis (6 in total)
Coolant enable
Uses removable A4988 or DRV8825 compatible stepper drivers
Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to  1/32 micro-stepping )
Compact design.
Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
Runs on 12-36V DC. (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)
Please note that this is an unassembled kit and Basic soldering skills are needed.

A4988 Stepper Motor Driver:

A4988 Stepper Motor Driver Board is a breakout board for Allegro’s A4988 DMOS Micro stepping Driver with Translator and Overcurrent Protection; please read the A4988 datasheet carefully before using this product.
Low RDS (On) Output
Automatic current decay mode  detection / selection
Mix with slow current decay modes
Synchronous rectification for low power dissipation
Internal UVLO
Crossover-current protection
3.3 and 5 V compatible logic supply
Thermal shutdown circuitry
Ground fault protection
Load short-circuit protection
Five selectable step modes: full,  1/2, 1/4, 1/8 and 1/16
Warning: Connecting or disconnecting a stepper motor while the driver is powered can destroy the driver. (More generally, rewiring anything while it is powered is asking for trouble).

Step 1: Download the GRBL HEX file https://github.com/gnea/grbl/releases/tag/v1.1f.20170801
Step 2: Download XLoader https://github.com/xinabox/xLoader
Step 3: Open XLoader and Load the HEX File downloaded in Step 1.
Step 4: Select the current Board - Uno(ATmega328) and COM port.
Step 5: Press Upload.
DONE!


Package Includes:
1 X cnc shield v3
4 X A4988
4 X Heatsink
1 X UNO R3
1 X USB cable
R459.90  Inc VAT
Argon One M.2 Aluminum Case For Raspberry Pi4 With M.2 Expansion Slot (Argon M.2 Pi4)

Description:

The Argon ONE M.2 Case ups the ante by providing (1) two full-sized HDMI ports, (2) Power Management Modes that allows for automatic booting, (3) Built-in IR support with streamlined options for configuration and (4) Integrated M.2 SATA SSD support through the USB 3 Ports of the Raspberry Pi 4.



Argon ONE M.2 Case extended support for M.2 SATA SSDs allows you to maximize the true potential speeds of your Raspberry Pi 4. You will now be able to boot via an M.2 SATA SSD for faster boot times and larger storage capacity compared to the traditional microSD Card.



Argon ONE M.2 is UASP Supported for the Raspberry Pi 4 which means you can maximize the transfer speeds of your M.2 SATA Drive.



It is compatible with any M.2 SATA SSD with Key-B and Key B&M.




  • M.2 SATA SSD Compatibility | Accepts any size of M.2 SATA SSD with Key-B or Key-B&M
  • UASP Supported for Raspberry Pi 4 | Maximizes the high speed data transfers for Raspberry Pi 4
  • Two Full-Sized HDMI | Improves the dual-monitor support of the Raspberry Pi 4 for its video input
  • Power Management Modes | Offers 2 power management options with automatic booting or “Always ON Mode
  • Built-in IR Support | Programmable IR support to the Raspberry Pi with streamlined options. Works out of the box with the Argon ONE Remote.
  • Active Cooling | Software Programmable 30mm FAN via the Argon ONE software
  • Passive Cooling | Aluminum alloy top case acts as a giant heatsink connected to the CPU of the Raspberry Pi 4
  • Cable Management | Repositioned all ports to the back of the Raspberry Pi 4 to highlight its sleek and modern design.
Argon ONE M.2 is UASP Supported for the Raspberry Pi 4 which means you can maximize the transfer speeds of your M.2 SATA Drive.
R899.90  Inc VAT
Per Page      1 - 19 of 19
  • 1
