•     RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
•     Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
•     264KB of SRAM, and 4MB of on-board Flash memory
•     USB-C connector, keeps it up to date, easier to use
•     Lithium battery recharge/discharge header, suitable for mobile devices
•     Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
•     Castellated module allows soldering direct to carrier boards
•     USB 1.1 with device and host support
•     Low-power sleep and dormant modes
•     Drag-and-drop programming using mass storage over USB
•     26 × multi-function GPIO pins
•     2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
•     Accurate clock and timer on-chip
•     Temperature sensor
•     Accelerated floating-point libraries on-chip
•     8 × Programmable I/O (PIO) state machines for custom peripheral support

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0 processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• USB-C connector, keeps it up to date, easier to use
• 0.96inch 160×80 pixels 65K colorful IPS LCD display
• Lithium battery recharge/discharge header, suitable for mobile devices
• Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
• Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components)
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

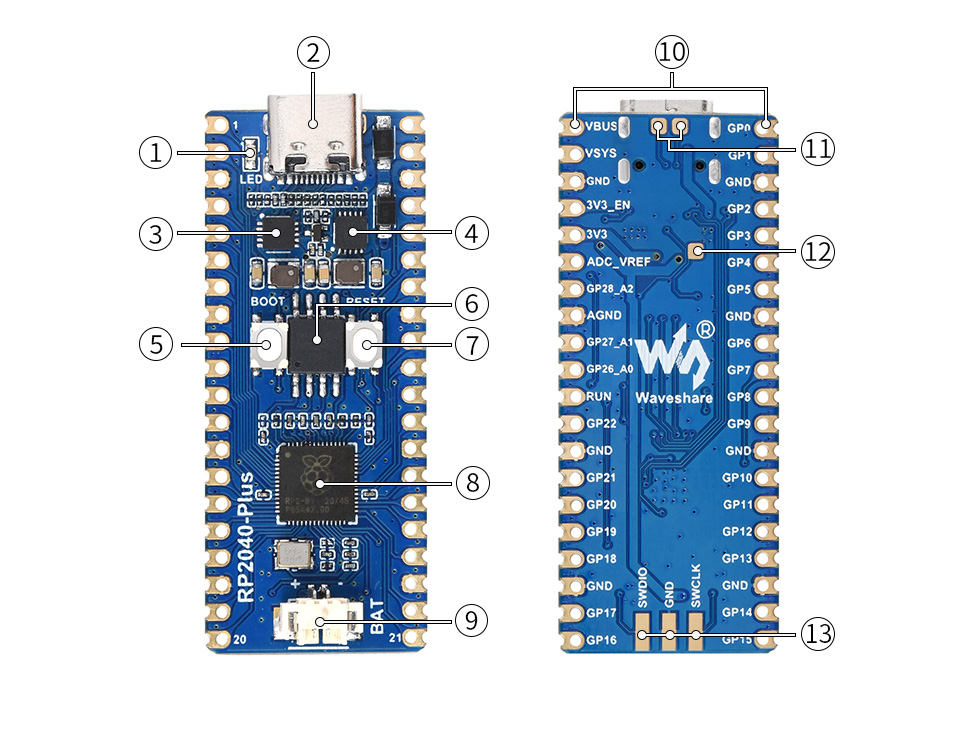

7. ETA6096 high efficiency Lithium battery recharge manager
8. RP2040 dual-core processor, up to 133MHz operating frequency
9. W25Q16JVUXIQ 2MB NOR-Flash
10. DEBUG points

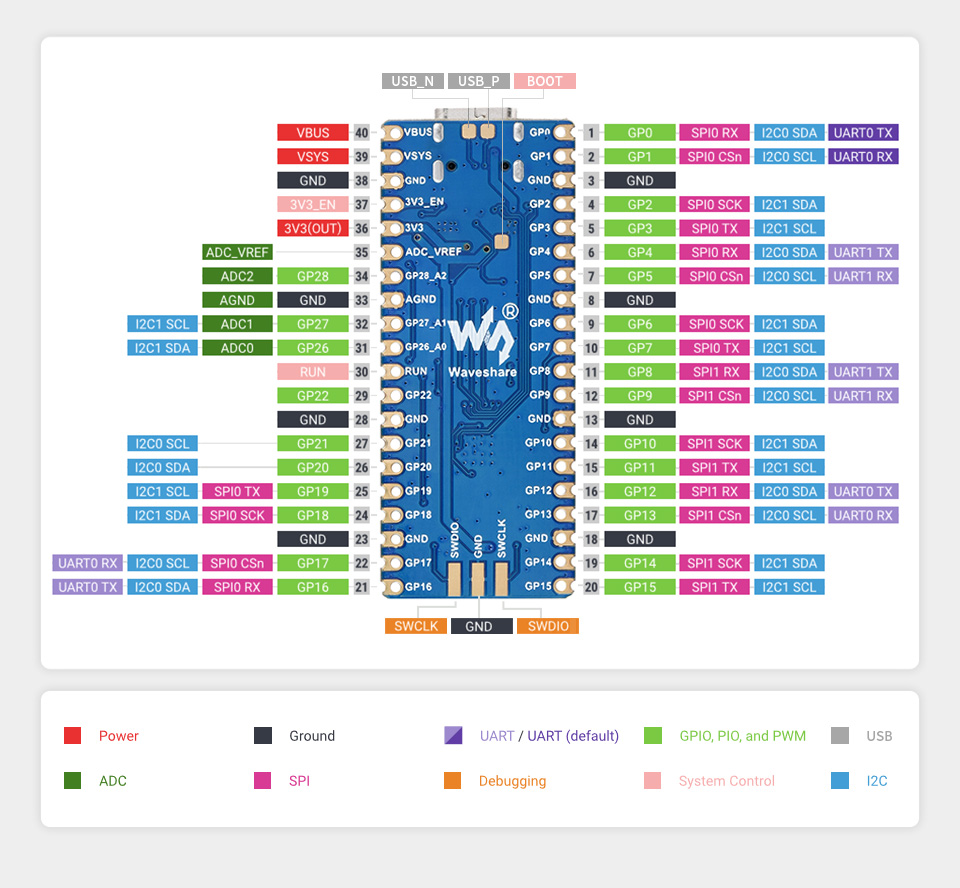

11. Pinout

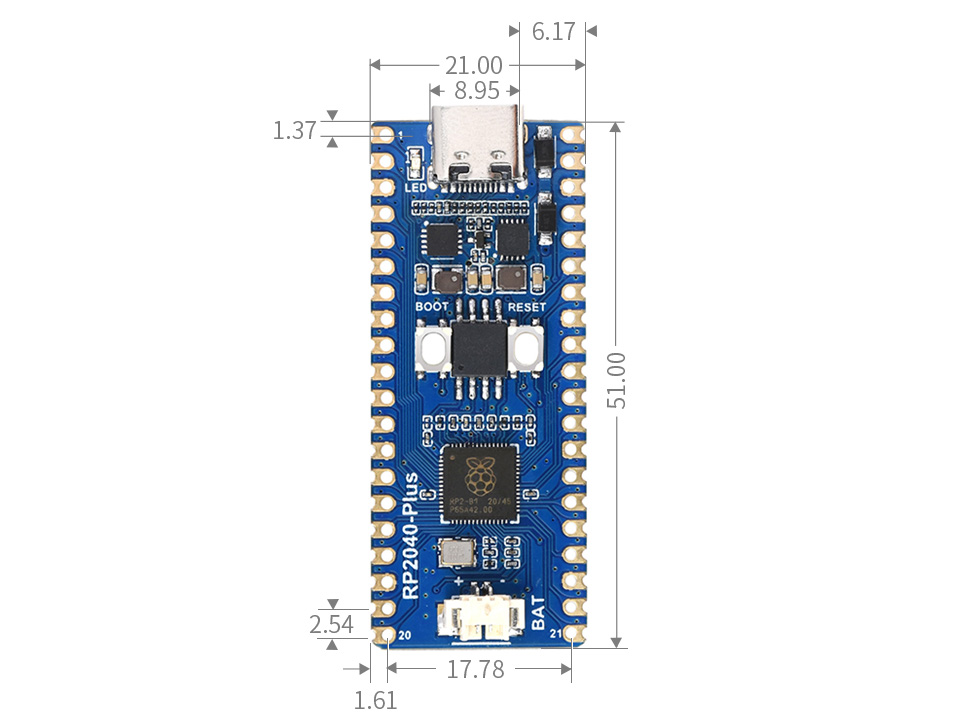

outline dimensions

Wiki: RP2040-LCD-0.96

What's in the box?

1 x RP2040-LCD with pre-soldered headers

•     RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
•     Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
•     264KB of SRAM, and 2MB of on-board Flash memory
•     USB-C connector, keeps it up to date, easier to use
•     Castellated module allows soldering direct to carrier boards
•     USB 1.1 with device and host support
•     Low-power sleep and dormant modes
•     Drag-and-drop programming using mass storage over USB
•     29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
•     2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
•     Accurate clock and timer on-chip
•     Temperature sensor
•     Accelerated floating-point libraries on-chip
•     8 × Programmable I/O (PIO) state machines for custom peripheral support

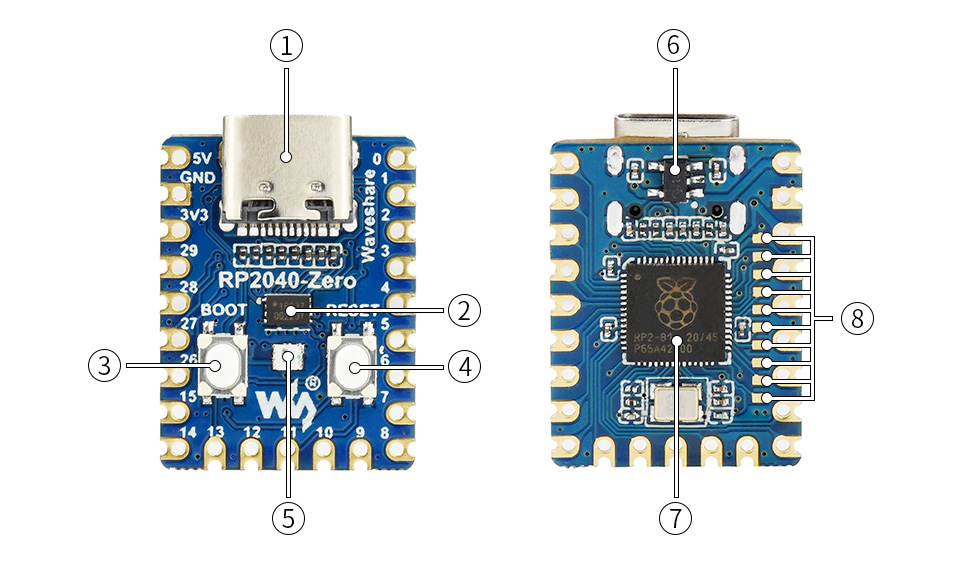

1. USB Type-C connector
2. W25Q16JVUXIQ 2MB NOR-Flash
3. BOOT button press it when resetting to enter download mode
4. RESET button
5. WS2812 cool RGB LED

6. ME621 low dropout LDO, max current 800MA
7. RP2040 dual-core processor, up to 133MHz operating frequency
8. RP2040 pins 10x solder points, 9 of which are for GPIO

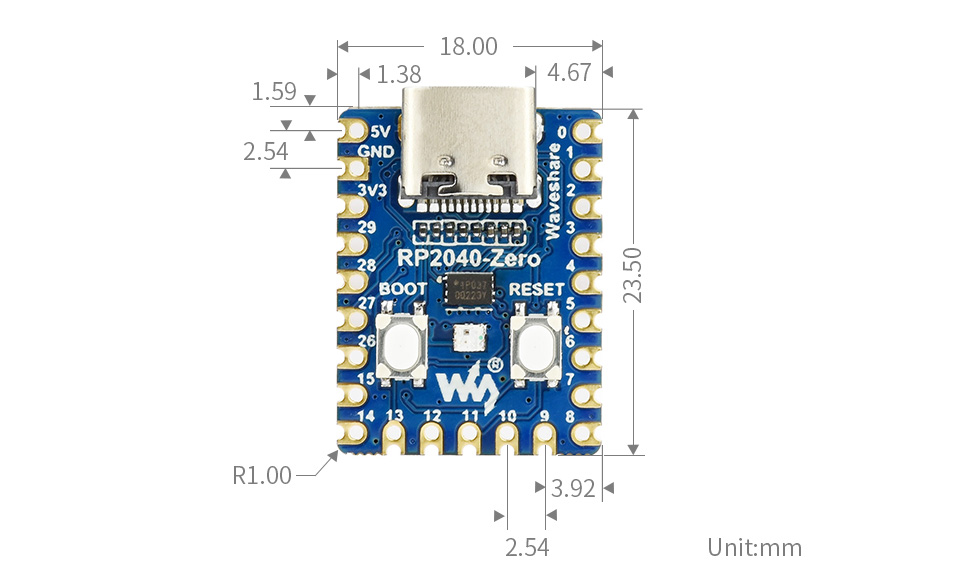

outline dimensions

• Pi Zero
• Electronic projects
• Printed circuit boards

• Gender: Male
• No. of Contacts: 20
• No. of Pins: 20
• Termination: Straight Pins Solder Tail
• Size: 2.54mm
• Row Positions: Double Row

• 40 Pins Male Standard 0.1" 2.54mm Row spacing
• Low Profile with mounting ears
• 0.1" Pin spacing 0.1" Row spacing, Mates with IDC & PCB male Receptacles
• Insulation Displacement Connector terminates to 0.050" (1.27mm) flat ribbon cable

• Arduino
• Pi Zero
• Electronic projects
• Printed circuit boards

• Gender: Male
• No. of Contacts: 20
• No. of Pins: 20
• Termination: Straight Pins Solder Tail
• Size: 2.54mm
• Row Positions: Single Row

Raspberry Pi Zero not included!

Absolutely no soldering required! All that's needed is a few gentle taps with a hammer and bazinga! Your header is securely attached to your Pi Zero or pHAT.

Male Female Installation Jig

If your soldering isn't quite up to scratch, or you just don't own a soldering iron yet, then these nifty hammer headers might be just the job. They come in male and female flavours, and use crafty little retaining nubbins to grip tightly into the holes on the PCB.

The installation jig kit contains two acrylic base pieces, onto which your Pi Zero or pHAT sits, two nylon bolts, an acrylic top piece onto which you hammer, and both a male and female header. Make sure you carefully read our guide for fitting hammer headers.

We strongly recommend using our installation jig! If you want to try without it then godspeed to you but it is a delicate and tricky process! The female headers are simpler to insert than the male headers as you can hammer straight onto the plastic of the header, but the male ones are particularly tricky without the jig.

Please note: we can't be held responsible for any damage that you may cause to your Pi Zero, pHAT, fingers, or headers while fitting them. If you follow our guide carefully then you should be fine. If this worries you, then get yourself a soldering iron instead!

Loose Male hammer headers are also available.

Tutorial on using the jig

Watch our demo of how to fit the hammer headers on Bilge Tank, below.

Absolutely no soldering required! All that's needed is a few gentle taps with a hammer and bazinga! your header is securely attached to your Pi Zero or pHAT.

If your soldering isn't quite up to scratch, or you just don't own a soldering iron yet, then these nifty hammer headers might be just the job. They come in male and female flavours, and use crafty little retaining nubbins to grip tightly into the holes on the PCB.

The installation jig kit contains two acrylic base pieces, onto which your Pi Zero or pHAT sits, two steel bolts, an acrylic top piece onto which you hammer, and both a male and female header. Make sure you carefully read our guide for fitting hammer headers.

We strongly recommend using our installation jig! If you want to try without it then godspeed to you but it is a delicate and tricky process! The female headers are simpler to insert than the male headers as you can hammer straight onto the plastic of the header, but the male ones are particularly tricky without the jig.

Please note: we can't be held responsible for any damage that you may cause to your Pi Zero, pHAT, fingers, or headers while fitting them. If you follow our guide carefully then you should be fine. If this worries you, then get yourself a soldering iron instead!

Description:

Colour-coded GPIO pins that make locating that ground or power connection you need super simple!

These 40-pin 2x20 male headers from our friends at The Pi Hut can be used on a Raspberry Pi Zero and are colour-coded for your prototyping convenience.

You'll never have to search for a ground pin again!

The colour coding is nice and simple:

• Red = 5V
• Yellow = 3V3
• Black = GND
• Blue = DNC (Reversed I2C)

For hard-mode try installing the header the wrong way round and throwing away your normal pin reference! ;-)

• Gender: Male
• No. of Contacts: 20
• No. of Pins: 20
• Termination: Straight Pins Solder Tail
• Size: 2.54mm
• Row Positions: Double Row

What's in the box:

1 x Colour-coded GPIO Header

Raspberry Pi Pico Basic Kit - with Pico and presoldered header


Description:

This is a Raspberry Pi Pico Basic Kit by Cytron for the very first MCU launched by Raspberry Pi Foundation. The kit includes almost everything you need to kickstart your way in digital making and start learning MicroPython with Raspberry Pi Pico !

Specifications:

This kit comes with Raspberry Pi Pico and presoldered header.

What's in the box ?

1   x Breadboard 16.5x5.5cm (830 Holes)
1   x Buzzer-PCB Mount
1   x Finger Adjust Preset Potentiometer 10K
2   x LED 5mm Red
2   x LED 5mm Green
2   x LED 5mm Yellow
2   x LED Super Bright 5mm Blue
2   x PIR Sensor
3   x 6x6x1 Push Button 4Pin
5   x Resistor 0.25W 5% (330R)
10 x Male to Female Jumper Wire
20 x Male to Male Jumper Wire
1 x RPi Pico with presoldered header


Resources:

- Getting Started with Raspberry Pi Pico (pdf), C/C Development with the Pico and other RP2040-based microcontroller boards.

 - Raspberry Pi Pico Datasheet (pdf), An RP2040-based microcontroller board

 - Pico Python SDK (pdf), A MicroPython Environment for the RP2040 Microcontroller

 - Pico C/C SDK (pdf), Libraries and Tools for C/C Development on the RP2040 Microcontroller

 - RP2040 Datasheet (pdf), A microcontroller by Raspberry Pi


Check out some of the video tutorials that you can learn using this kit:

Traffic Light Controller with Raspberry Pi Pico

Reaction Game using Raspberry Pi Pico

Burglar alarm using Raspberry Pi Pico

Control LED using PWM on Raspberry Pi Pico
