Building your own arcade? These joysticks are just what you need for your DIY project.
We bundled a few arcade parts in a kit and slapped some discount on for you.
Gamepad module for micro:bit with Joystick and Buttons (3A2 micro:bit gamepad)

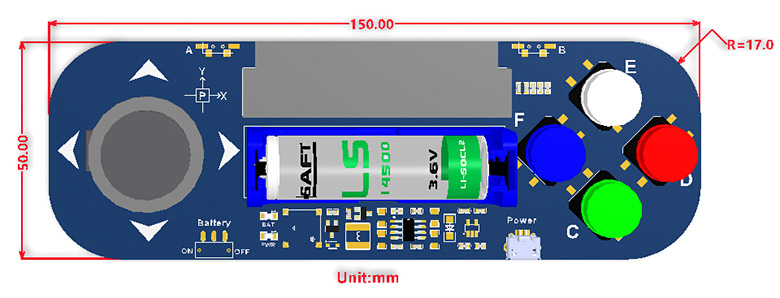

Dimensions
Overview
This little module adds arcade controls to your micro:bit, makes it possible to turn the micro:bit into a mini game console. There's onboard buzzer to play music and game background effect. It is powered from a 14500 Li-ion battery (not included), conversely, it allows to charge the battery through USB connection.
Features
- micro:bit edge connector, directly pluggable
- High quality joystick, dual channel analog outputs for precise positioning, one channel digital output for press control
- Onboard battery and charge circuitry, powered from battery, also charges the battery through USB connection
- Battery indicator, blinks 1/2/3/4 times indicates the power remains about 25%/50%/75%/100% respectively
- 4x colorful buttons
- 2x side buttons, related to the A/B buttons of micro:bit, easy to use
- Buzzer for playing music and game background effect
- Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)
Specifications
- Operating voltage: 5V
- Battery type: 14500 Li-ion
- Dimension: 150mm x 50mm
Pinouts
| SYMBOL | PIN | DESCRIPTION |
|---|---|---|
| A | 5 | Button A |
| B | 11 | Button B |
| C | 15 | Button C |
| D | 14 | Button D |
| E | 13 | Button E |
| F | 12 | Button F |
| X | 1 | Joystick X axis |
| Y | 2 | Joystick Y axis |
| P | 8 | Joystick press |
| Buzzer | 0 | Buzzer |
Dimensions
Development Resources
Mini Joystick Module (Mini Joystick Module 4B2)
Description:
This is PSgame joystick module.
Lots of control projects need joysticks. This module provides an affordable solution to that. Simply connect to two analog inputs, the robot is at your commands with X,Y control. It also has a switch that is connected to a digital pin. This joystick module can be easily connect to a micro controller via normal GPIO with jumper cables.
No soldering required, Reusable for prototyping or design applications of electronic circuits, modify or revise the circuits easily.
Accept resistors,transistors, diodes, LEDS, capacitors and other types of electronic components.
An invaluable tool for experimenting with circuit designs.
Directional movements are simply two potentiometers - one for each axis
Compatible with Arduino interface
Brand: KEYES
Model: KY-023
Specifications:
Three axis (X,Y,Z and button)
Size:37x25x32mm
Weight: 15 g
Tie-point 700
ABS plastic material
Completely reusable
Phosphor bronze nickel plated spring clips
Accepts a variety of wire sizes(29-20 AWG)
Package includes:
1 x PS2 joystick module
Getting started
This is PSgame joystick module.
Lots of control projects need joysticks. This module provides an affordable solution to that. Simply connect to two analog inputs, the robot is at your commands with X,Y control. It also has a switch that is connected to a digital pin. This joystick module can be easily connect to a micro controller via normal GPIO with jumper cables.
No soldering required, Reusable for prototyping or design applications of electronic circuits, modify or revise the circuits easily.
Accept resistors,transistors, diodes, LEDS, capacitors and other types of electronic components.
An invaluable tool for experimenting with circuit designs.
Directional movements are simply two potentiometers - one for each axis
Compatible with Arduino interface
Brand: KEYES
Model: KY-023
Specifications:
Three axis (X,Y,Z and button)
Size:37x25x32mm
Weight: 15 g
Tie-point 700
ABS plastic material
Completely reusable
Phosphor bronze nickel plated spring clips
Accepts a variety of wire sizes(29-20 AWG)
Package includes:
1 x PS2 joystick module
Getting started
Arcade Kit DIY Replacement Parts USB Encoder to PC Joystick and Buttons (C23 Arcade kit)
Joystick Size: Approx. 95x60x100mm
Encoder Board Size: Approx. 85x35mm
USB Cable Length: Approx. 1.8m
Colour: Red
We have tested this unit on Raspberry Pi using Retropie and a Windows 7 PC using MAME.
Features :
Each encoder can support one joystick.
Use them to DIY your own Arcade game machine.
The Zero Delay USB Arcade Encoder is a fully compatible plug and play solution, simply plug in your joystick and buttons into the encoder, plug the USB cable into the Pi, map your buttons in RetroPi and away you go - it really is that easy! You can use multiple encoders at the same time, so they're great for multiplayer arcade machines!
Each encoder can support one joystick.
Use them to DIY your own Arcade game machine.
The Zero Delay USB Arcade Encoder is a fully compatible plug and play solution, simply plug in your joystick and buttons into the encoder, plug the USB cable into the Pi, map your buttons in RetroPi and away you go - it really is that easy! You can use multiple encoders at the same time, so they're great for multiplayer arcade machines!
Specifications :
Joystick Size: Approx. 95x60x100mm
Encoder Board Size: Approx. 85x35mm
USB Cable Length: Approx. 1.8m
Colour: Red
We have tested this unit on Raspberry Pi using Retropie and a Windows 7 PC using MAME.
DIY Arcade 8 Way Joystick Replacement Part (3A2 DIY Joystick)
1 x Joystick
Cables not included
Learn about RetroPie
Compatible with Zero Delay Arcade USB Encoder & Wire Set (Not included)
Compatible like buttons
Features :
8 way operation.
Mountable in control panels.
Easy to operate with high sensitivity.
Use it to DIY your own Arcade gaming machine.
8 way operation.
Mountable in control panels.
Easy to operate with high sensitivity.
Use it to DIY your own Arcade gaming machine.
Specifications :
Top Ball Diameter: Approx. 35mm
Total Size: Approx. 95x60x100mm
Top Ball Diameter: Approx. 35mm
Total Size: Approx. 95x60x100mm
Package includes :
1 x Joystick
Cables not included
Learn about RetroPie
Compatible with Zero Delay Arcade USB Encoder & Wire Set (Not included)
Compatible like buttons
Spec Diagrams :
Round 8-Way ARCADE Joystick blade type (3A6 Round Joystick yellow/red)
LENGTH: 10cm
WIDTH: 9cm
CIRCUMFERENCE: 28cm
WEIGHT : 160g
This joystick works using blades instead of switches.
The blades are replaceable and available as listed parts.
Package Includes:
1 x round 8-way Joystick
Learn about RetroPie
Compatible with Zero Delay Arcade USB Encoder & Wire Set (Not included)
Compatible like buttons
WIDTH: 9cm
CIRCUMFERENCE: 28cm
WEIGHT : 160g
This joystick works using blades instead of switches.
The blades are replaceable and available as listed parts.
Package Includes:
1 x round 8-way Joystick
Learn about RetroPie
Compatible with Zero Delay Arcade USB Encoder & Wire Set (Not included)
Compatible like buttons
Building your own arcade? These joysticks are just what you need for your DIY project.
REPLACEMENT BLADES FOR ROUND 4-WAY AND ROUND 8-WAY JOYSTICKS (Blades for round arcade joystick)
Spare blades for 4-way round joysticks as well as 8-way round joysticks.
Easy to replace.
Easy to replace.
These are the replacement blades for the round joystick module.
5P Cable for Arcade Game Controller Joystick (3A5 Joystick ribbon cable)
Features:
Length: 20cm
For use with arcade joysticks that use header cables
Package Includes:
1 x 5P Cable
Length: 20cm
For use with arcade joysticks that use header cables
Package Includes:
1 x 5P Cable
For use with arcade joysticks that use header cables
Blade Type DIY Arcade Kit (Blade arcade kit)
Perfect for your DIY arcade project.
Replacement blades are available for the joystick and buttons
This kit includes:
1 x blade type 8-way arcade
1 x blade type red button
1 x blade type purple button
1 x blade type green button
1 x blade type yellow button
1 x blade type blue button
1 x blade type orange button
2 x blade type white buttons
1 x zero delay usb encoder board
1 x joystick/buttons connector cable set(You will have to change the lugs)
1 x usb connector cable
We have tested this unit on Raspberry Pi using Retropie and a Windows 7 PC using MAME.
Get Retropie on the Raspberry Pi
Replacement blades are available for the joystick and buttons
This kit includes:
1 x blade type 8-way arcade
1 x blade type red button
1 x blade type purple button
1 x blade type green button
1 x blade type yellow button
1 x blade type blue button
1 x blade type orange button
2 x blade type white buttons
1 x zero delay usb encoder board
1 x joystick/buttons connector cable set(You will have to change the lugs)
1 x usb connector cable
We have tested this unit on Raspberry Pi using Retropie and a Windows 7 PC using MAME.
Get Retropie on the Raspberry Pi
We bundled a few arcade parts in a kit and slapped some discount on for you.
Zero Delay Arcade USB Encoder & Wire Set(Lugs joystick) (3A3 Arcade lugs controller board)
Wiring guide(for ribbon type - not this kit)
Get Retropie on the Raspberry Pi
ModMyPi setup guide
Please note: cable colours will vary. Pic is for illustration purposes only.
Looking for a Rasberry Pi compatible encoder for your Arcade Project? The Zero Delay USB Arcade Encoder is what you need! It's a fully compatible plug and play solution, simply plug in your joystick and buttons into the encoder, plug the USB cable into the Pi, map your buttons in RetroPi and away you go - it really is that easy! You can use multiple encoders at the same time, so they're great for multiplayer arcade machines! This set includes all wiring hardware required to connect a 4 lug type joystick and up to 12 buttons (12 x unmapped, 4 x pre-set).
Features
- "Zero Delay" Lag-Free USB Encoder
- Plug and Play USB Encoder
- Fully Compatible with Raspberry Pi (in addition to Windows/XP etc.)
- Includes Wiring Loom
- USB to Microcontroller
- 16 x 2 Pin JST Button Wires
- Encoder Inputs
- 1 x 5 Pin Joystick Input(Cable not supplied in this kit)
- 1 x 10 Pin Joystick Input
- 12 x Unmapped Button Inputs
- 4 x Hardware Preset Button Input
- AUTO - For autofire
- TURBO - For rapidfire
- CLR - Clears AUTO/TURBO
- MODE - Sets thumb-joystick mode
- Dimensions: 85mm x 35mm x 10mm
Wiring guide(for ribbon type - not this kit)
Get Retropie on the Raspberry Pi
ModMyPi setup guide
Discontinued: Arcade LED Illuminated Joystick Switchable from 4 to 8 Way Operation (AW Illuminated joystick arcade)
Features:
1. Switchable from 8 way to 4 way
2. Powered by 12 volts
3. Fits all wood and metal type control panels - MAME and Jamma Board Ready
4. Smooth spring return-to-center
5. High Quality 5PIN Microswitches
6. Microswitches tested to 10,000,000 cycles
Specifications:
Material: Iron
Size: 345 x 335 x 530mm
Color: 7 changing colours
Package Includes:
1 x Illuminated LED Arcade Joystick clear ball
Notice:
This is a Multiple Flashing colours unit, automatically changing from one colour to another colour.
The ball itself is clear.
1. Switchable from 8 way to 4 way
2. Powered by 12 volts
3. Fits all wood and metal type control panels - MAME and Jamma Board Ready
4. Smooth spring return-to-center
5. High Quality 5PIN Microswitches
6. Microswitches tested to 10,000,000 cycles
Specifications:
Material: Iron
Size: 345 x 335 x 530mm
Color: 7 changing colours
Package Includes:
1 x Illuminated LED Arcade Joystick clear ball
Notice:
This is a Multiple Flashing colours unit, automatically changing from one colour to another colour.
The ball itself is clear.
