Please Note: You will need the newest version of NOOBS or Raspbian for the Pi4, a USB type C power supply or adapter and a micro HDMI cable or adapter
Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.
This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).
The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.
Specifications
- Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- Memory: 1GB, 2GB or 4GB LPDDR4 (depending on model)
- Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
- LAN, Bluetooth 5.0, BLE Gigabit Ethernet, 2 × USB 3.0 ports, 2 × USB 2.0 ports.
- GPIO: Standard 40-pin GPIO header (fully backwards-compatible with previous boards)
- Video & sound: 2 × micro HDMI ports (up to 4Kp60 supported), 2-lane MIPI DSI display port, 2-lane MIPI CSI camera port, 4-pole stereo audio and composite video port
- Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES, 3.0 graphics
- SD card support: Micro SD card slot for loading operating system and data storage
- Input power: 5V DC via USB-C connector (minimum 3A1), 5V DC via GPIO header (minimum 3A1)
- Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
- Environment: Operating temperature 0–50oC
- Compliance: For a full list of local and regional product approvals, please visit https://www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md
- Production lifetime: The Raspberry Pi 4 Model B will remain in production until at least January 2026.
If your new Raspberry Pi 4 is not displaying anything, but is booting:
Please change the following settings in the /boot/config.txt setting. You can access these settings in a few ways.
1. Using another display to access the file: sudo nano /boot/config.txt
2. Insert the SD card into a computer/laptop and open the boot partition
Uncomment and change or add to the bottom of the file:
hdmi_safe=1
hdmi_force_hotplug=1
hdmi_ignore_edid=0xa5000080
hdmi_group=2
hdmi_mode=81 (or 39 this will depend on the type of display)
config_hdmi_boost=9
dtoverlay=vc4-fkms-v3d
max_framebuffers=2
Not all of these settings may be necessary, this will again depend on your type of display, however adding them all and removing one by one will help find the ones you may need.
WARNINGS
• This product should only be connected to an external power supply rated at 5V/3A DC or 5.1V/ 3A DC minimum. A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total. Any external power supply used with the Raspberry Pi 4 Model B shall comply with relevant regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment and, if used inside a case, the case should not be covered.
• This product should be placed on a stable, flat, non-conductive surface in use and should not be contacted by conductive items.
• The connection of incompatible devices to the GPIO connection may affect compliance and result in damage to the unit and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to keyboards, monitors and mice when used in conjunction with the Raspberry Pi.
• Where peripherals are connected that do not include the cable or connector, the cable or connector must offer adequate insulation and operation in order that the relevant performance and safety requirements are met.
SAFETY INSTRUCTIONS
To avoid malfunction or damage to this product please observe the following:
• Do not expose to water, moisture or place on a conductive surface whilst in operation.
• Do not expose it to heat from any source; Raspberry Pi 4 Model B is designed for reliable operation at normal ambient room temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
• Avoid handling the printed circuit board whilst it is powered and only handle by the edges to minimise the risk of electrostatic discharge damage.

Please Note: You will need the newest version of NOOBS or Raspbian for the Pi4, a USB type C power supply or adapter and a micro HDMI cable or adapter
Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.
This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).
The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.
Specifications
- Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- Memory: 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on model)
- Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
- LAN, Bluetooth 5.0, BLE Gigabit Ethernet, 2 × USB 3.0 ports, 2 × USB 2.0 ports.
- GPIO: Standard 40-pin GPIO header (fully backwards-compatible with previous boards)
- Video & sound: 2 × micro HDMI ports (up to 4Kp60 supported), 2-lane MIPI DSI display port, 2-lane MIPI CSI camera port, 4-pole stereo audio and composite video port
- Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES, 3.0 graphics
- SD card support: Micro SD card slot for loading operating system and data storage
- Input power: 5V DC via USB-C connector (minimum 3A1), 5V DC via GPIO header (minimum 3A1)
- Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
- Environment: Operating temperature 0–50oC
- Compliance: For a full list of local and regional product approvals, please visit https://www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md
- Production lifetime: The Raspberry Pi 4 Model B will remain in production until at least January 2026.
If your new Raspberry Pi 4 is not displaying anything, but is booting:
Please change the following settings in the /boot/config.txt setting. You can access these settings in a few ways.
1. Using another display to access the file: sudo nano /boot/config.txt
2. Insert the SD card into a computer/laptop and open the boot partition
Uncomment and change or add to the bottom of the file:
hdmi_safe=1
hdmi_force_hotplug=1
hdmi_ignore_edid=0xa5000080
hdmi_group=2
hdmi_mode=81 (or 39 this will depend on the type of display)
config_hdmi_boost=9
dtoverlay=vc4-fkms-v3d
max_framebuffers=2
Not all of these settings may be necessary, this will again depend on your type of display, however adding them all and removing one by one will help find the ones you may need.
WARNINGS
• This product should only be connected to an external power supply rated at 5V/3A DC or 5.1V/ 3A DC minimum. A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total. Any external power supply used with the Raspberry Pi 4 Model B shall comply with relevant regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment and, if used inside a case, the case should not be covered.
• This product should be placed on a stable, flat, non-conductive surface in use and should not be contacted by conductive items.
• The connection of incompatible devices to the GPIO connection may affect compliance and result in damage to the unit and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to keyboards, monitors and mice when used in conjunction with the Raspberry Pi.
• Where peripherals are connected that do not include the cable or connector, the cable or connector must offer adequate insulation and operation in order that the relevant performance and safety requirements are met.
SAFETY INSTRUCTIONS
To avoid malfunction or damage to this product please observe the following:
• Do not expose to water, moisture or place on a conductive surface whilst in operation.
• Do not expose it to heat from any source; Raspberry Pi 4 Model B is designed for reliable operation at normal ambient room temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
• Avoid handling the printed circuit board whilst it is powered and only handle by the edges to minimise the risk of electrostatic discharge damage.
Description:
MODULAR CASE NOT INCLUDED
The Modular Raspberry Pi Case is designed to be fully customisable by the user, and adaptable to suit a range of requirements. The streamlined look, and adaptability makes it perfect for many applications, including: the hobbyist maker, digital signage, industrial protection, living-room & child-friendly media centres, classroom eduction, workshops and many more! All add-ons are designed to be interchangeable and can be added and removed when required.
The USB/HDMI security cover is a dual-use shroud that can be utilised to protect access to all the external inputs and outputs. Two covers can be used simultaneously if only very limited access is required, and “punch-out” access hatches are available for both the Ethernet and Micro USB power port if these inputs are required. Security covers are tamperproof and can only be removed from inside the case.
In addition to protecting the Raspberry Pi ports, the shroud is offset from the body by 12mm. The enables the secure, internal and protected use of up to four nano USB dongles with the cover installed.
Specifications:
- Dual-Use - Compatible with Either Set of I/O Ports e.g. HDMI or USB Side
- Secure and Tamper-Proof
- RJ45 & Micro USB Power Breakout Hatches
- Off-Set to Enable the Use & Internal Protection of up to 4 Nano USB Dongles!
Contents:
- 1 x USB/HDMI Cover
What else do I need?:
The Modular Raspberry Pi Case is designed to be fully customisable by the user, and adaptable to suit a range of requirements. The streamlined look, and adaptability makes it perfect for many applications, including: the hobbyist maker, digital signage, industrial protection, living-room & child-friendly media centres, classroom eduction, workshops and many more! All add-ons are designed to be interchangeable and can be added and removed when required.
- Dual-Use - Compatible with Either Set of I/O Ports e.g. HDMI or USB Side
- Secure and Tamper-Proof
- RJ45 & Micro USB Power Breakout Hatches
- Off-Set to Enable the Use & Internal Protection of up to 4 Nano USB Dongles!
RASPBERRY PI NOT INCLUDED
This neat little HAT case for the Raspberry Pi B+/2/3 makes accessing your Raspberry Pi HAT a breeze! The transparent top plate clips on and off so you can access the GPIO area without having to remove the Pi from the box! It's perfect for hacking and prototyping, whilst keeping your Raspberry Pi safe and snug!
It's a three part clip case, which features cut out for all the ports. Camera CSI & touchscreen DSI cables can be accessed by removing the HAT cover.
Features:
- Black Gloss Case with Transparent HAT Cover
- Fits the Raspberry Pi B+/2/3
- Port Access for all connectors. CSI and DSI Accessed via the HAT cover
- SD Card Slot
- Air Vents to keep your Pi Cool
- No Tools required for Assembly
- 3 Part Clip Case
- Includes 4 x Rubber Feet
- Dimensions: 63.9mm x 93.5mm x 26.6mm
- Raspberry Pi Embossed Lid
- Material: ABS & PC-ABS
Please note: Raspberry Pi not included
Overview
The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.
RPi Relay Board Features
- Supports Raspberry Pi A+/B+/2B/3B
- High quality relays, loads up to 250VAC/5A, 30VDC/5A
- Photo coupling isolation, prevent interference from high voltage circuit
- Onboard LEDs for indicating relays status
- Relay control jumper, allows to control the relays by custom pins other than the default pins
- Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835

What's on the RPi Relay Board

- Raspberry Pi GPIO interface: for connecting Raspberry Pi
- Relay screw terminal: for connecting target devices
- Relays
- Photocoupler: PC817
- Relay indicator
- LED on: relay NC is opened, NO is closed
- LED off: relay NC is closed, NO is opened
- Power indicator
- Relay control jumper
- short the jumper: control the relays by default I/Os used in the example code
- open the jumper: control the relays by custom I/Os through jumper wires
Development Resources
Wiki : www.waveshare.com/wiki/RPi_Relay_Board
Package Includes:
- RPi Relay Board x 1
- RPi screws pack (2pcs) x 1
Features
- Raspberry Pi Night Vision Camera, supports all revisions of the Pi
- 5 megapixel OV5647 sensor
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 2.9
- Focal Length : 3.29MM
- Diagonal : 72.4 degree
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
- Dimension : 25mm x 24mm x 6mm
Note: to use the camera with Raspberry Zero, you need to buy a specific cable: Raspberry Pi Zero Camera Cable
Raspberry Pi 2/3 ribbon cable included
Downloads
Getting started with PiCamera
Development resources:user manual, etc.
Download: www.waveshare.com/wiki/RPi_Camera_(E)
Features
- Supports any revision of Raspberry Pi (directly-pluggable)
- Provides your Pi with 16 touch keys
- Features TONTEK TonTouch touch pad detector IC TTP229-LSF, supports up to 16 keys with adjustable sensitivity and built-in LDO
- The system re-calibrates automatically when all keys are not detected touch more than about 4 seconds
Specifications
- Interface : I2C
- Keys : 16
- Sampling rate : 8Hz
- Human Body Mode : 6KV
- Operating voltage : 2.4V-5.5V
- Operating temperature : -40℃ to +85℃
- Storage temperature : -50℃ to +125℃
- Dimensions : 8.5CM × 5.6CM
How to Use
- After power-on have about 0.5sec stable-time. During the time do not touch the key pad, and all functions are disabled
Pinouts
- VCC : Power supply (2.4V-5.5V)
- GND : Ground
- SDA : I2C SDA
- SCL : I2C SCL
Dimensions

Downloads
Development resources: schematic, demo code, datasheets, etc.
Download: www.waveshare.com/wiki/RPi_Touch_Keypad
Perfect solution for all HDMI devices that need to connect to VGA devices
This product is a portable digital-analog conversion line, defined through All HDMI input sources, you can convert audio and video output for VGA +Audio.
The HDMI to VGA Adapter allows for a connection to VGA monitors and projectors supporting a maximum resolution of 1920X1080
Widely used for: Computer / DVD / digital set-top box / laptop / mobile phone / digital camera / Table PC / media player / a range of HD sources such as input devices. Audio and video signals to the TV / monitor / projector output. To solve a simple user operation of the display device connectivity solutions.
Specifications:
Flexible and functional
No external power supply needed, plug and play
Product resolution can be up to 720P/1080i/1080P
Product output audio source for: 3.5 or 3.5 audio socket to R + L
Input: HDMI Mini, HDMI Micro or HDMI
Output: VGA + Audio
Package Includes:
1 x HDMI to VGA Cable (male to female LENGTH=20CM)
1 x Micro HDMI Male to HDMI Female Adapter
1 x Mini HDMI Male to HDMI Female Adapter
*Note: Raspberry Pi 4 hardware is not included with this bookazine.
The Raspberry Pi is loved the world over by educators and makers thanks to its tiny size and endless possibilities. Find out why it's loved and how to use it with the latest official Projects Book - we’ve managed to stuff the fifth edition with another 200 pages of inspiring projects, practical tutorials, and definitive reviews.
- Learn all about the latest model: Raspberry Pi 4*
- Get involved with the amazing Raspberry Pi community
- Be inspired by incredible projects made by other people
- Learn how to make with your Raspberry Pi with our help
- Find out about the top kits and accessories for your Pi projects
- And much, much more!

Please Note: You will need the newest version of NOOBS or Raspbian for the Pi4, a USB type C power supply or adapter and a micro HDMI cable or adapter
Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.
This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).
The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.
Specifications
- Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- Memory: 1GB, 2GB or 4GB LPDDR4 (depending on model)
- Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless
- LAN, Bluetooth 5.0, BLE Gigabit Ethernet, 2 × USB 3.0 ports, 2 × USB 2.0 ports.
- GPIO: Standard 40-pin GPIO header (fully backwards-compatible with previous boards)
- Video & sound: 2 × micro HDMI ports (up to 4Kp60 supported), 2-lane MIPI DSI display port, 2-lane MIPI CSI camera port, 4-pole stereo audio and composite video port
- Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES, 3.0 graphics
- SD card support: Micro SD card slot for loading operating system and data storage
- Input power: 5V DC via USB-C connector (minimum 3A1), 5V DC via GPIO header (minimum 3A1)
- Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
- Environment: Operating temperature 0–50oC
- Compliance: For a full list of local and regional product approvals, please visit https://www.raspberrypi.org/documentation/hardware/raspberrypi/conformity.md
- Production lifetime: The Raspberry Pi 4 Model B will remain in production until at least January 2026.
If your new Raspberry Pi 4 is not displaying anything, but is booting:
Please change the following settings in the /boot/config.txt setting. You can access these settings in a few ways.
1. Using another display to access the file: sudo nano /boot/config.txt
2. Insert the SD card into a computer/laptop and open the boot partition
Uncomment and change or add to the bottom of the file:
hdmi_safe=1
hdmi_force_hotplug=1
hdmi_ignore_edid=0xa5000080
hdmi_group=2
hdmi_mode=81 (or 39 this will depend on the type of display)
config_hdmi_boost=9
dtoverlay=vc4-fkms-v3d
max_framebuffers=2
Not all of these settings may be necessary, this will again depend on your type of display, however adding them all and removing one by one will help find the ones you may need.
WARNINGS
• This product should only be connected to an external power supply rated at 5V/3A DC or 5.1V/ 3A DC minimum. A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total. Any external power supply used with the Raspberry Pi 4 Model B shall comply with relevant regulations and standards applicable in the country of intended use.
• This product should be operated in a well-ventilated environment and, if used inside a case, the case should not be covered.
• This product should be placed on a stable, flat, non-conductive surface in use and should not be contacted by conductive items.
• The connection of incompatible devices to the GPIO connection may affect compliance and result in damage to the unit and invalidate the warranty.
• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to keyboards, monitors and mice when used in conjunction with the Raspberry Pi.
• Where peripherals are connected that do not include the cable or connector, the cable or connector must offer adequate insulation and operation in order that the relevant performance and safety requirements are met.
SAFETY INSTRUCTIONS
To avoid malfunction or damage to this product please observe the following:
• Do not expose to water, moisture or place on a conductive surface whilst in operation.
• Do not expose it to heat from any source; Raspberry Pi 4 Model B is designed for reliable operation at normal ambient room temperatures.
• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.
• Avoid handling the printed circuit board whilst it is powered and only handle by the edges to minimise the risk of electrostatic discharge damage.
Description:
This is an Experimental Platform For Raspberry Pi 2/3 Model B and B+ and Arduino UNO R3
With Breadboard, Male to Female jumper cables, T type 40Pin GPIO, Ribbon Cable.
Package includes:
1 x Acrylic Platform (with Installation screws pack)
1 x Breadboard 800
10 x Male to Female jumper cables (Length: 25cm±2cm)
1 x T type 40Pin GPIO
1 x 40 pin ribbon Cable (20cm±2cm Length)
The FLIRC USB dongle allows the use of any remote control with your Raspberry Pi. Configure the device on your desktop PC, then simply plug into your Pi for a perfect media centre companion! Amaze your friends and family when the tiny box stuck to the back of your TV controls your entire media collection using an old DVD remote!
New Flirc Version 2 is smaller, lighter and much more professional!
- Setting up OSMC (XBMC) media operating system on the Raspberry Pi.
- Setting up your FLIRC module and porting it to any remote.
- Putting it all together!
- More advanced FLIRC programming - porting an entire keyboard to a remote!

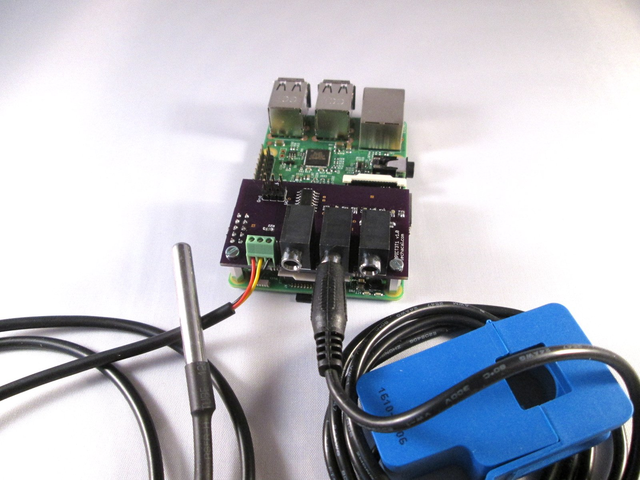

RPICT Series Documentation
RPICT3T1 Documentation
FAQ available at http://lechacal.com/wiki/index.php/Frequently_Asked

Specifications:
- 3x Current sensor ports
- 1x DS18B20 temperature port
- Arduino IDE programmable
- EmonCMS compatible.
- CSV serial output
- Attiny84 Microcontroller
- View/record data using Linux/Python/Emoncms/InfluxDB
Please Note: Raspberry Pi and sensors are not included
Package Content
- 1 RPICT3V1 Unit.
- 2 Mounting Spacers
- 4 Mounting Screws
Recommended Sensors
- Temperature: DS18B20 or the waterproof DS18B20
- Current: SCT-013-000 (100Amp)
Default Configuration
IMPORTANT NOTE: The board is sold by default with CSV output. Emoncms output will have to be configure with the utility provided in the wiki (see documentation).
Parameters:
Node ID: 11
Scan interval: 5 seconds
Output: Emoncms
Voltage: 240V
Default loaded sketch freely available on the wiki page.

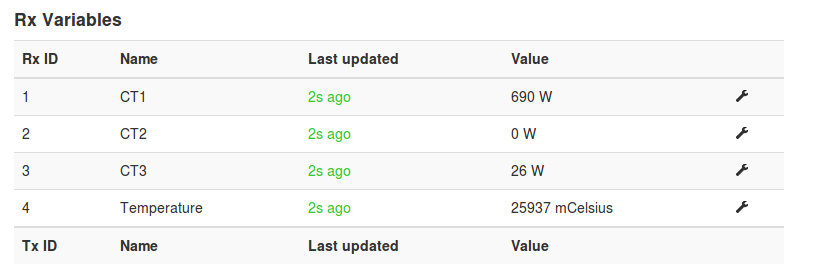

Emoncms Ouput:

RPICT Series Documentation
RPICT3T1 Documentation
FAQ available at http://lechacal.com/wiki/index.php/Frequently_Asked

Specifications:
- 3x Current sensor ports
- 1x DS18B20 temperature port
- Arduino IDE programmable
- EmonCMS compatible.
- CSV serial output
- Attiny84 Microcontroller
- View/record data using Linux/Python/Emoncms/InfluxDB
Please Note: Raspberry Pi and sensors are not included
Package Content
- 1 RPICT3V1 Unit.
- 2 Mounting Spacers
- 4 Mounting Screws
Recommended Sensors
- Temperature: DS18B20 or the waterproof DS18B20
- Current: SCT-013-000 (100Amp)
Default Configuration
IMPORTANT NOTE: The board is sold by default with CSV output. Emoncms output will have to be configure with the utility provided in the wiki (see documentation).
Parameters:
Node ID: 11
Scan interval: 5 seconds
Output: Emoncms
Voltage: 240V
Default loaded sketch freely available on the wiki page.
Emoncms Ouput:

Please Note: Raspberry Pi and sensors are not included
Raspberrypi CT Adaptor
Connect up to 7 Current and 1 voltage sensors to a Raspberry Pi 3B.(Not the 3B+)
Use with sct-013-000 split core current sensor and 230VAC to 9VAC power adapter

Description
- 7x Current sensor ports
- 1x ac Voltage sensor ports
- Arduino IDE programmable
- EmonCMS compatible.
- CSV serial output
- Atmega328 Microcontroller
- View/record data using Linux/Python/Emoncms
- Stackable - Up to 5 board stack on one Raspberrypi.
- Compatible with Raspberrypi 2 & 3.
Package Content
- 1 RPICT7V1 Master version 2 Unit.
- 4 Mounting Spacers
- 8 Mounting Screws
Recommended Sensors
- Voltage: 77DE-06-09
- Current: SCT-013-000 (100Amp)
Default Configuration
Output format is Emonhub by default. Output format configurable via serial interface.
Outputs 21 channels:
- Real Power x7 (Watts)
- Irms x7 (mAmps)
- Vrms x1 (Volts)
Parameters:
Node ID: 11
Scan interval: 5 seconds
Output: Emonhub
Default loaded sketch freely available on the wiki page.
Emoncms Ouput:
Please Note: Raspberry Pi and sensors are not included
Raspberrypi CT Adaptor
Connect up to 7 Current and 1 voltage sensors to a Raspberry Pi 3B.(Not the 3B+)

Description
- 7x Current sensor ports
- 1x ac Voltage sensor ports
- Arduino IDE programmable
- EmonCMS compatible.
- CSV serial output
- Atmega328 Microcontroller
- View/record data using Linux/Python/Emoncms
- Stackable - Up to 5 board stack on one Raspberrypi.
- Compatible with Raspberrypi 2 & 3.
Package Content
- 1 RPICT7V1 Master version 2 Unit.
- 4 Mounting Spacers
- 8 Mounting Screws
Recommended Sensors
- Voltage: 77DE-06-09
- Current: SCT-013-000 (100Amp)
Default Configuration
Output format is Emonhub by default. Output format configurable via serial interface.
Outputs 21 channels:
- Real Power x7 (Watts)
- Irms x7 (mAmps)
- Vrms x1 (Volts)
Parameters:
Node ID: 11
Scan interval: 5 seconds
Output: Emonhub
Default loaded sketch freely available on the wiki page.
Emoncms Ouput:
The RPIZ_CT3T1 is the same unit as the RPICT3T1 in the Raspberry pi Zero format.
Refer to the RPICT3T1 for full documentation.
Use with sct-013-000 split core current sensor and DS18B20 temp sensor
Please note: Raspberry Pi Zero and sensors are not included
The RPIZ_CT3T1 is the same unit as the RPICT3V1 in the Raspberry pi Zero format.
Refer to the RPICT3V1 for full documentation.
Use with sct-013-000 split core current sensor and 230VAC to 9VAC power adapter
Please note: Raspberry Pi Zero and sensors are not included
