Please Note: Raspberry Pi is not included. Picture is for illustration purpose only

Meet this super ICE Tower CPU Cooling Fan for Raspberry Pi! Tower structure, 5mm copper tube, multi-layer heat sinks, 7 blades powerful fan, all the above combinations make this super radiator for Raspberry Pi. In the case of overclocking, it can reduce the temperature of the Raspberry Pi from 80℃ to 48℃. What amazing! Best of all, this cooling fan supports the new Raspberry Pi 4 Model B. In our actual use, we found that Raspberry Pi 4 has a large amount of heat. with the help of this super fan, the powerful performance of the Raspberry Pi 4 will be fully released.

Please Note:
In the heat dissipation test mentioned above, the temperature was lowered from 80 ° C to 40 ° C. The test conditions are as follows: 1-Room temperature 25 ° C  / 2- Apply silicone grease directly to the heat sink and processor chip  / 3- Raspberry Pi 4 processor

If you use the thermal conductive tape included, you can reduce the temperature from 80 ° C to 48 ° C under the same conditions. It can be seen that the use of silicone grease is better. If you want to achieve the best heat dissipation, we recommend that you purchase silicone grease.

Video available at https://youtu.be/l5IFD2wq_gA

Features

• Support Raspberry Pi 4 Model B/ Raspberry Pi 3 Model B /Raspberry Pi 3 Model B+
• DC 5V Power in (Can be powered by the Raspberry Pi)
• Ice Tower Structure
• 5mm copper tube
• Super heat dissipation
• Rated power 0.4W @5V, 0.08A

Part List

• 2 x Steel Mounting Fixer (Fit for Raspberry Pi 3B+
• 2 x Steel Mounting Fixer (Fit for Raspberry Pi 4B)
• 1 x Ice tower CPU fan
• 4 x M2.5x6 copper columns
• 2 x M2x4 screws
• 4 x M2.5x4 screws
• 4 x Nuts
• 3 x Thermal Conductive Tape *3
• Screwdriver *1

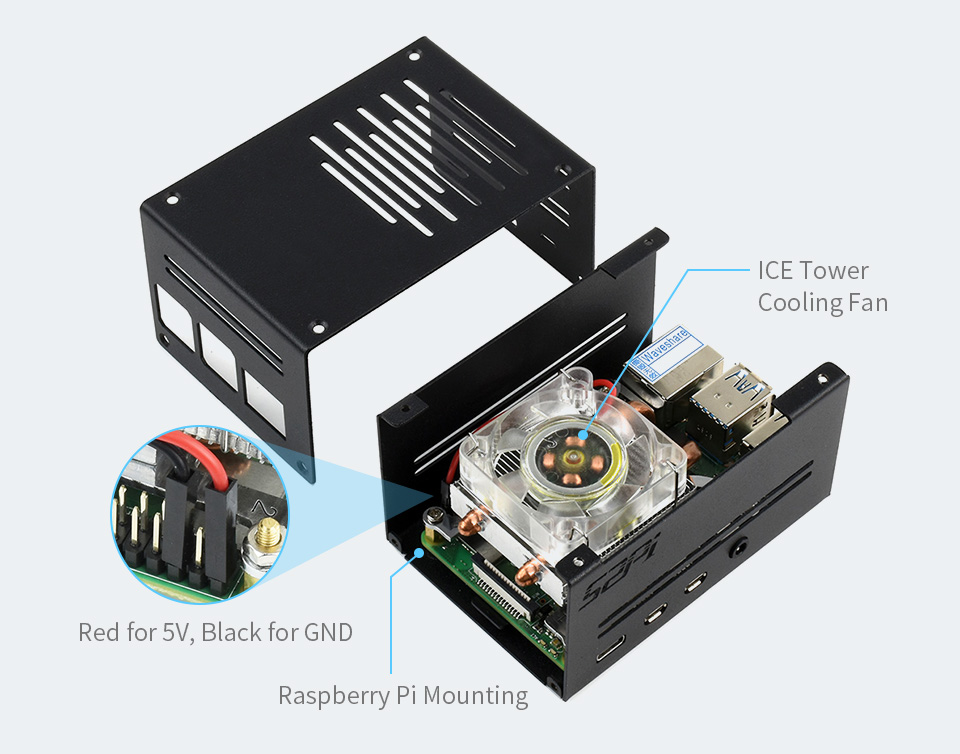

easy to setup by just fixing the screws, airflow vents all over for better cooling

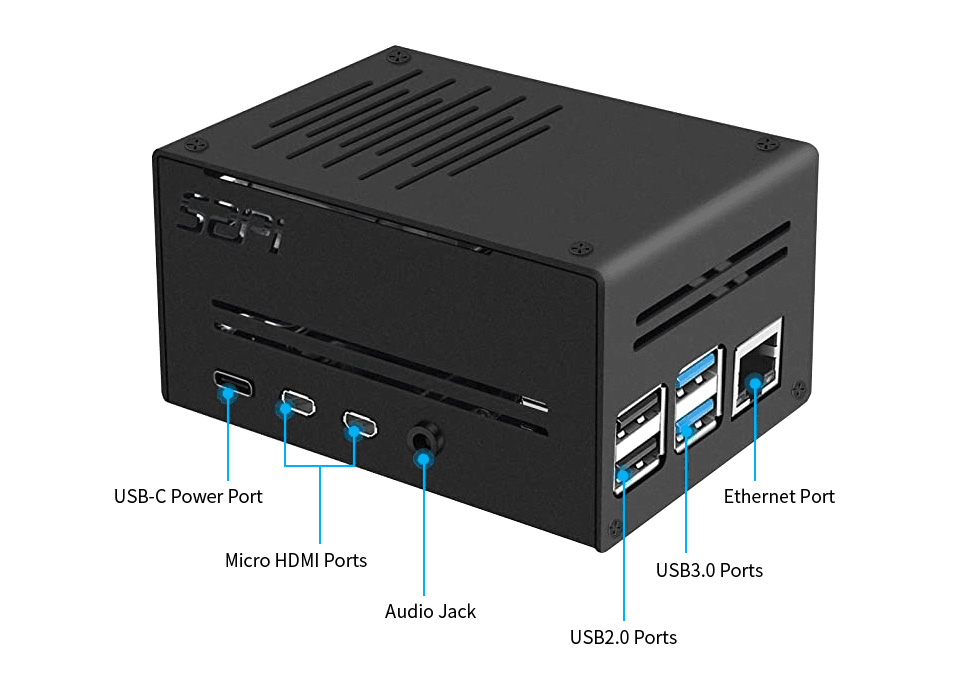

Cutouts for the ports

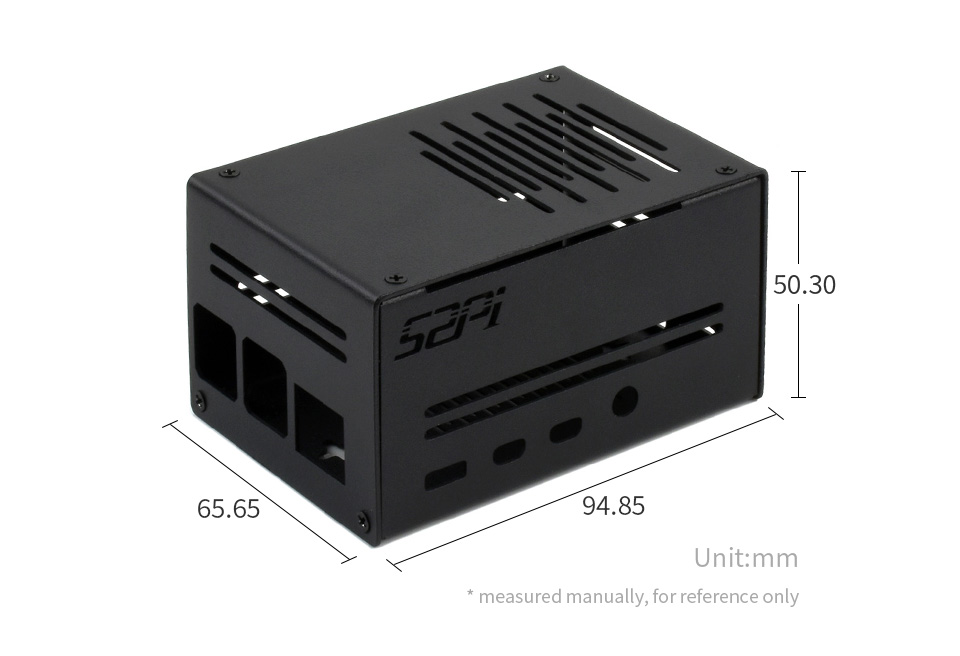

Outline Dimensions
