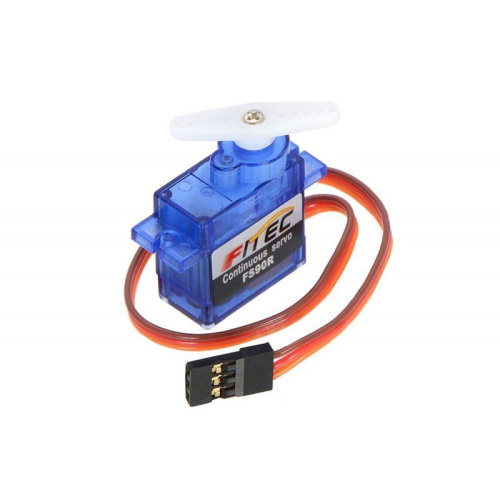

Micro 360 Degree Continuous Rotation Servo

The FS90R continuous rotation servo converts standard RC servo position pulses into continuous rotation speed. The default rest point is 1.5 ms, but this can be adjusted by using a small screwdriver to turn the middle-point adjustment potentiometer. Pulse widths above the rest point result in counterclockwise rotation, with speed increasing as the pulse width increases; pulse widths below the rest point result in clockwise rotation, with speed increasing as the pulse width decreases.

Features and Spec:

• Analog continuous rotation RC Servo
• Operating voltage: 4.8V to 6.0V
• Lead Length: 200mm
• Max Speed @ 6 V: 130 RPM
• Max Speed @ 4.8 V: 100 RPM
• Stall torque @ 6 V: 1.5kg/m
• Stall torque @ 4.8 V: 1.3kg/m
• Wiring:
  • Orange for RC Signal
  • Red for VCC (positive of power)
  • Brown for GND (negative of power)
• Weight: 9g.

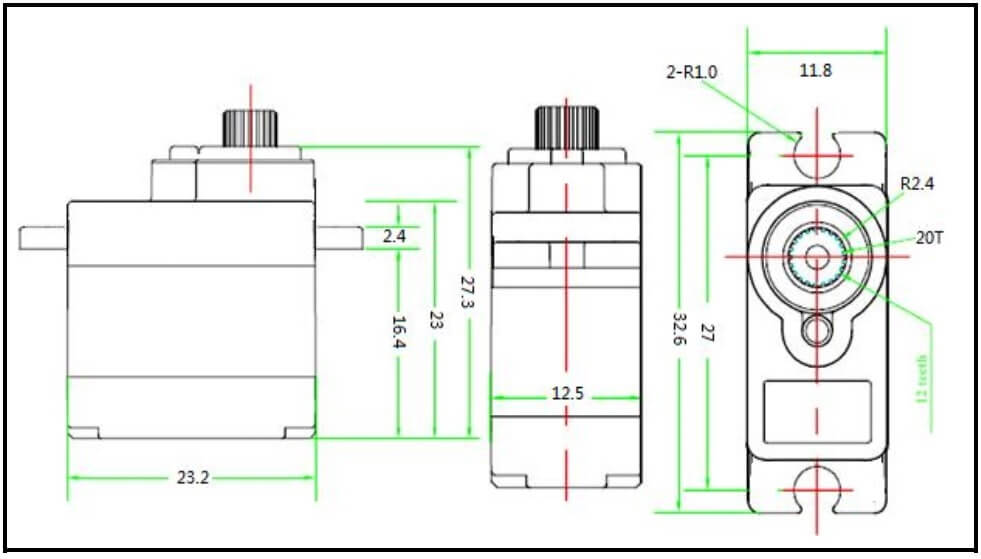

• Size: 23.2mm x 12.5mm x 22mm.

What's in the box?

1 x Micro 360 Degree Continuous Rotation Servo
