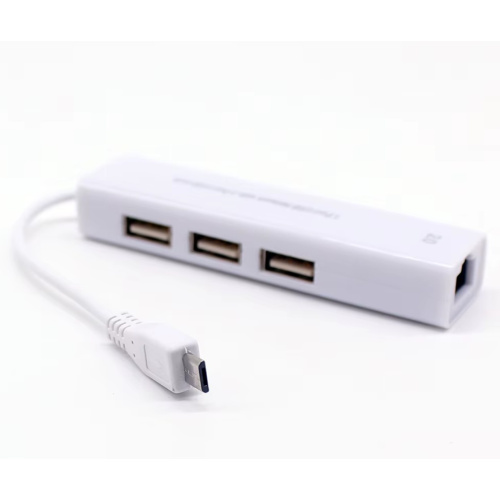

Micro B USB to Ethernet Adapter (RTL8152) with 3-Port USB 2.0 Hub

Add wired networking and extra USB ports to your Raspberry Pi Zero with one compact adapter. Its Micro-B USB connector plugs straight into the Pi Zero’s data port, so you don’t need an OTG cable. You get a 10/100Mbps RJ45 Ethernet port plus three USB 2.0 ports for a keyboard, mouse, flash drive or other accessories.

Plug-and-play with Raspberry Pi OS

The adapter uses the Realtek RTL8152 Ethernet chipset. Raspberry Pi OS already includes the driver for it, so there’s nothing to install. Plug in a network cable and the Pi Zero will connect. It suits headless setups, network projects and places where Wi-Fi is unreliable or unavailable.

Features

• Micro-B USB connector that plugs directly into the Pi Zero
• Realtek RTL8152 chipset, natively supported by Raspberry Pi OS and most Linux distributions
• Compatible with Raspberry Pi Zero, Zero W and Zero 2 W
• 10/100Mbps RJ45 Ethernet port (IEEE 802.3, 802.3u)
• 3 × USB 2.0 Type-A ports
• Bus-powered, so no external power supply is needed
• Compact white ABS housing, about 95 × 22 × 10 mm
• RoHS compliant

Specifications

• Connector: Micro-B USB (USB 2.0)
• Chipset: Realtek RTL8152
• Network speed: 10/100Mbps
• USB ports: 3 × USB 2.0 Type-A
• Standards: IEEE 802.3, IEEE 802.3u
• Material: ABS
• Colour: White
• Dimensions: 9.5 × 2.2 × 1 cm

Note: On the Pi Zero, plug the adapter into the port labelled “USB”, not “PWR”. The hub and Ethernet share a single USB 2.0 connection, and power comes from the Pi. Low-power devices like keyboards, mice and flash drives work best; high-draw devices may need a powered hub.


What's in the box?

1 x USB Hub with ethernet
