SIM7600G-H 4G / 3G / 2G / GNSS Module for Jetson Nano, LTE CAT4, Global Applicable

R1,659.90  Inc VAT
Order Quantity Price Per Item
3 R1,626.70
10 R1,601.80
30 R1,576.90
Qty:
Add to wish list - You'll need to login first.
4G/3G/2G/GNSS Expansion Board For Jetson Nano, Based On SIM7600G-H, Global Applicable.

This is a 4G/3G/2G communication and GNSS positioning module designed for Jetson Nano, it supports global LTE CAT4 up to 150Mbps for downlink data transfer, with pretty low power consumption.

Just attach it onto the Jetson Nano Developer Kit, easily enable functions like 4G high speed connection, wireless communication, remote video monitoring, making telephone call, sending SMS, global positioning, and so on.


Specifications

  • 40PIN GPIO extension header for connecting Jetson Nano
  • Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • SIM card slot, supports 1.8V/3V SIM card
  • Onboard 3.5mm audio jack with earphone and mic support, for making telephone call
  • 2x LED indicators, easy to monitor the working status
  • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
  • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
  • Autobauding baudrate: 9600bps ~ 115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • Comes with development resources and manual (examples for Jetson Nano/Raspberry Pi/Arduino/STM32)

Communication Specifications:


 LTEWCDMA / TD-SCDMA / CDMA 2000  EDGEGSM/GPRS
BandLTE-TDD B34/B38/B39/B40/B41
LTE-FDD B1/B2/B3/B4/B5/B7/B8
/B12/B13/B18/B19/B20/B25/B26/B28/B66
UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19GSM/GPRS/EDGE 850/900/1800/1900MH
Emitting power0.25W0.5W@EGSM900
0.4W@DCS1800
2W@GSM900
1W@DCS1800
Data SpeedLTE CAT 4
Uplink≤50 Mbps
Downlink≤150 Mbps
UMTS
Uplink≤384Kbps
Downlink≤384Kbps

HSPA+
Uplink≤5.76Mbps
Downlink≤42Mbps
TD-SCDMA
Uplink≤128Kbps
Downlink≤384Kbps

TD-HSDPA/HSUPA
Uplink≤2.2Mbps
Downlink≤2.8Mbps
CDMA2000/EVDO
Uplink≤1.8Mbps
Downlink≤3.1Mbps
EDGE
Uplink≤236.8kbps
Downlink≤236.8kbps
GPRS
Uplink≤85.6kbps
Downlink≤85.6kbps
SIM CardNormal SIM (Not Included)
Applicable RegionGlobal 4G/3G/2G



GNSS Specifications:

  • Receiver type
    • 16-channel
    • C/A code
  • Sensitivity
    • Tracking: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BD)
    • Cold starts: -148 dBm
  • Time-To-First-Fix (open air)
    • Cold starts: <35s
    • Hot starts: <1s
  • Accuracy
    • Position: <2.5m CEP


SMS and Audio Specifications:

  • SMS
    • Supported types: MT, MO, CB, Text, PDU
    • Storage: USIM card and ME (default)
  • Audio feature
    • Supports echo cancellation
    • Supports noise reduction

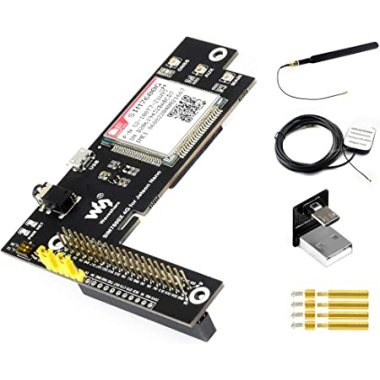

What's in the box ?

1 x SIM7600G-H 4G for Jetson Nano
1 x LTE Antenna
1 x GPS External Antenna (B)
1 x Jetson Nano USB Adapter
1 x Screws pack (2pcs)

* Jetson Nano not included, only Sim7600G-H GNSS Module.
  • Availability: 6 In Stock
  • Model: Jetson Nano Gnss Module
  • Brand: NVIDIA
