IIC/I2C/TWI/SPI Serial Port Module 5V 1602LCD For Display

R39.90  Inc VAT
Order Quantity Price Per Item
3 R39.10
Qty:
Add to wish list - You'll need to login first.

2x16 Character LCD is most popular display component for small controller like Arduino, but most of these LCD uses parallel interface. In most of the cases, you will need 10 pins to control it or to display message on it. 8-pin are for the data, Enable and Latch pin for signal control. Minimum, you will need 6-pin for 4-bit mode interface. Still a lot of pins being used up :(

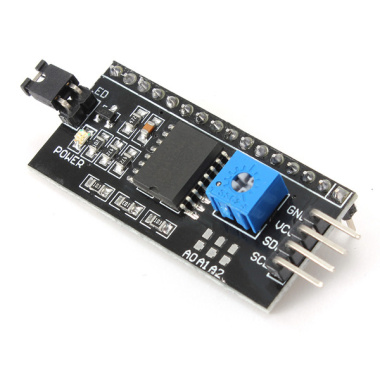

This I2C module for LCD will help you save all those precious pins. This module will only need 2 GPIO pins (specifically I2C pins) to send message to Character LCD.

This module uses an I2C communication interface. Including the I2C pins: SCL and SDA, it only require two more pins for power, VCC and GND. It saves 4 to 8 pins on Arduino or any other controller. The pins are breakout into standard right angle header (2.54mm spacing), you can connect with female jumper wires directly.

It comes with potentiometer for LCD contrast adjustment, and configurable I2C Address through A0, A1 and A2 pads. Anyway, the default address is 0x3F or 0x27. There is also a mini jumper to activate or deactivate the backlight.

Features

  • I2C connector: VCC, GND, SCL, SDA
  • Compatible with Arduino/Genuino UNO, Leonardo, Mega, 101 (Intel Curie), Micro, Nano, Mini
  • I2C Address:0x27 or 0x3F
  • Supply voltage: 5V
  • Interface:I2C/TWI x1,Gadgeteer interface x2
  • Adjustable contrast via potentiometer
  • Size:82x35x18 mm (3.2x1.4x0.7 in)


What's in the box?

1 x I2C Module for Character LCD

  • Availability: 13 In Stock
  • Model: serial adapter board
  • Brand: Generic3
