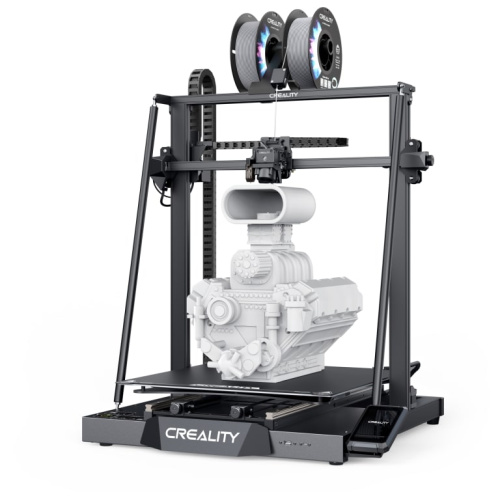

Creality CR-M4 Printer
The Creality CR-M4 3D Printer has an enormous build volume of 450 x 450 x 470mm which allows it to print large models or multiple parts in a single pass – and with little to no post-processing too!
The printer features CNC-machined linear rails made of bearing steel. The rails are wear-resistant and can withstand heavy loads. The precision linear rails optimise Y-axis movement through a powerful motor that ensures the most precise movements. Together with two support rods, the Z-axis forms a rigid triangle, which provides better stability for the upper frame. Each of the Z-axes is driven by an independent motor – resulting in more precise axis movements and generally better quality printed models.
All-metal “Sprite” Direct Dual-Gear Extruder
The all-metal “Sprite” Direct Dual-Gear Extruder developed by Creality is a dual-gear design that realises smooth filament feeding and dispensing with up to 80N of thrust. The extruder is ideal for printing flexible filaments such as TPU & TPE.
High-flow hotend for filaments with high-temperature resistance
The Creality CR-M4 hotend has been optimised with a high-flow nozzle and a 50-watt heater cartridge. This completely melts filament at 300°C, even with a filament with very high-temperature resistance, it guarantees a fluid feed.
Automatic 25-point leveling and Z-offset
The CR-M4 features fully automatic leveling with the CR-Touch through 25 points. The Z-Offset with a sensational accuracy of 0.005 mm allows a quick calibration of the distance between the nozzle and the print surface.
Remote monitoring and remote access
The Creality CR-M4 can be operated via USB drive, USB-C cable, RJ45 cable as well as WiFi. If there is a LAN connection, users can print via Creality Print. With an Internet connection, you can print via Creality Cloud App as well as monitor the ongoing print!
Technical Specs:
- Printing Technology: FDM
- Build Volume: 450mm x 450mm x 470mm
- Product Dimensions: 655mm x 700mm x 865mm
- Net Weight: 22.48 kg
- Gross Weight: 28.3 kg
- Printing Speed: ≤120mm/s
- Printing Accuracy: ±0.1mm
- Layer Height: 0.05-0.35mm
- Extruder Type: “Sprite” dual-gear direct drive extruder
- Extruder Material: All metal
- Filament Diameter: 1.75mm
- Z-axis Count: 2
- Nozzle Type: Brass nozzle
- Nozzle Diameter: Standard 0.4mm (compatible with 0.6/0.8mm)
- Max Print Temp: 300°C
- Max Bed Temp: 100℃
- Build Surface: PC spring steel sheet
- Display Screen: 4.3-inch color touchscreen
- Mainboard: Integrated 32-bit silent mainboard
- Power Loss Recovery: Yes
- Filament Runout Sensor: Yes
- Multi-printers Control: Yes
- Sleep Mode: Yes
- Rated Voltage: 100-240V~，50/60Hz
- Rated Power: 800W
- Slicing Software: Creality Print, Creality Slicer, Cura
- Supported Filaments: PLA, PETG, TPU, ABS, PLA-Wood, PA, PLA-CF
What's in the box?
1 x Creality CR-M4 Printer
