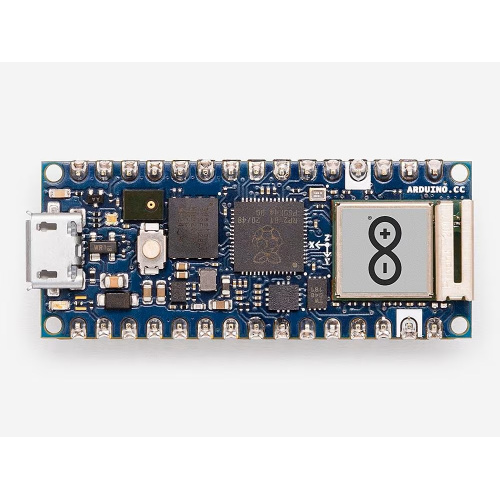

Arduino Nano RP2040 Connect with headers

R396.65  Inc VAT
R778.55
Qty:
Print
Add to wish list - You'll need to login first.

The brain of this board is the Raspberry Pi RP2040 silicon; a dual-core Arm Cortex M0 running at 133MHz. It has 264KB of SRAM, and the 16MB of flash memory is off-chip to give you extra storage.

But what’s really exciting is the on-board connectivity options. The hugely popular and highly adaptable u-blox NINA-W102 radio module is on there to make this a true IoT champion. This also means you can harness the power of the cloud, with fully Arduino Cloud compatibility.

It’s got on-board, built-in sensors to turn your builds into powerhouse projects, too. Microphone and motion sensing add a depth of possibilities that’s almost impossible to find in a board of this size.

The Arduino Nano RP2040 Connect is the premium choice for RP2040 devices, and the perfect option for upgrading your projects and unlocking the potential of new ones.


Specifications:



Board



Nano RP2040 Connect

SKU: ABX00053

Microcontroller

Raspberry Pi RP2040

USB connector

Micro USB

Pins

Built-in LED pin

13

Digital I/O Pins

20

Analog Input Pins

8

PWM pins

20 (Except A6, A7)

External interrupts

20 (Except A6, A7)





Connectivity





Wi-Fi

Nina W102 uBlox module

Bluetooth

Nina W102 uBlox module

Secure element

ATECC608A-MAHDA-T Crypto IC

Sensors

IMU

LSM6DSOXTR (6-axis)

Microphone MP34DT05

Communication

UART

Yes

I2C

Yes

SPI

Yes

Power

Circuit operating voltage

3.3V

Input Voltage (VIN)

5-21V

DC Current per I/O pin

4 mA

Clock speed

Processor

133 MHz

Memory

AT25SF128A-MHB-T

16MB Flash IC

Nina W102 uBlox module

448 KB ROM, 520KB SRAM, 16MB Flash

Dimensions

Weight

6 g

Width

18 mm

Length

45 mm



What's in the Box ?

1 x Arduino Nano RP2040

Resources

Documentation

OSH: Schematics

Arduino NanoRP2040 Connect is open-source hardware! You can build your own board using the following files:



Download the full pinout diagram as PDF here

All CAD files are available for download at the Nano RP2040 Connect's Documentation Page.

    • Availability: Out of Stock
    • Model: AR Nano Rp2040 WH
    • Brand: Arduino
