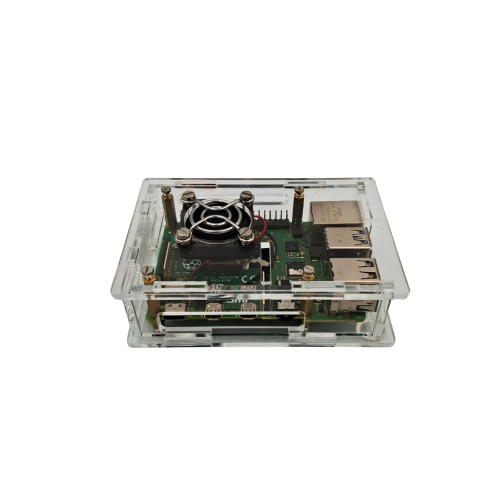

Clear Acrylic Raspberry Pi 4 Case(A), Fully closed case with fan mounting holes
We also have a more open option with no sides available.
This DIY case requires assembly. You will need a small precision flathead screwdriver.
- 40PIN GPIO
- DSI/CSI Interfaces
- Wall mounting holes
- Airflow Vents On The Top And Front
- Easy To Pull & Plug TF Card On The Bottom
- Clear 3mm Acrylic Panels to protect your Raspberry Pi 4.
What's in the box?
1 x PI4 Acrylic Case A acrylic parts(remove the protection film)
1 x Nonskid rubber pad (4PCS)
1 x Screwdriver
1 x Screws and standoffs pack
You may also want to grab a 30mm fan and 30mm grill cover. You will also need four M3x16 screws with M4 nuts to mount the fan.
Resources
The Case Consists Of 6 Layers Of Acrylic Panels. Install According To The Following Steps
1. Install the active cooler on the Raspberry Pi 5.
2. Install the short standoffs and screws onto the 1st acrylic panel, please pay attention to the orientation.
3. Install the long female to female standoffs on the RPi board
4. Install the 4 acrylic panel to the sides of the Raspberry Pi 5.
Don't forget to install the little power button first.
5. Install the top plate. This is where all the bits come together. You might experience a bit of difficulty aligning all the plates. A bit of pressure on the top plate helps to get all to pop into place.
6. Insert the top 4 screws that holds it all together. You don't have to use force to tighten them.
