CM5 To Pi 5 Adapter Board For Raspberry Pi 5, Alternative Solution for Raspberry Pi 5, Onboard Audio Header, Supports Connecting To Microphone

R601.90  Inc VAT
Qty:
Print
Add to wish list - You'll need to login first.

CM5 To Pi 5 Adapter Board

Designed for Raspberry Pi Compute Module 5

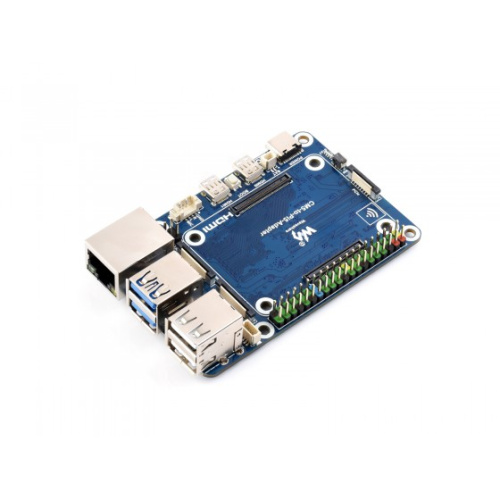

  CM5 To Pi 5 Adapter Board for Raspberry Pi, front view



Specifications
CM5 socketSuitable for all variants of Compute Module 5
NetworkingGigabit Ethernet RJ45 port
Connector16PIN PCIe (PCIe Gen2/3 × 1)
Raspberry Pi 40PIN GPIO header × 1
USBUSB 3.2 Gen1 × 2;
USB 2.0 × 2
MIPIMIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
VideoHDMI port × 2, supports dual 4K outputs
AudioOnboard audio header, comes with an audio adapter for connecting 3.5mm headphone / microphone, enabling audio input and output
StorageTF card socket for Compute Module 5 Lite (without eMMC) variants
Fan Header5V, 4PIN JST-SH PWM connector
Power inputDC 5V 5A
Dimensions85 × 56 (mm)

Check the Compute Module 5 variants

Based on the Raspberry Pi CM5

Use CM5 to reproduce the original appearance of the Pi 5 as much as possible. Compatible with the interfaces of the Raspberry Pi 5



CM5 To Pi 5 Adapter Board for Raspberry Pi, compared to the Raspberry Pi 5



  • for reference only, please refer to the package content for detailed part list.

Install CM5 Easily

Onboard 40 PIN GPIO header and Standard CM5 connector
Supports Access To Compute Module 5 Lite / eMMC Series Boards



CM5 To Pi 5 Adapter Board for Raspberry Pi, onboard 40 PIN GPIO header and standard CM5 connector



  • the CM5 is NOT included.



Onboard USB Audio Decoder Chip

Compared to the Raspberry Pi 5, the CM5-to-Pi5-Adapter adds an audio header, supports microphone input



CM5 To Pi 5 Adapter Board for Raspberry Pi, onboard USB audio decoder chip

  • for reference only, please refer to the package content for detailed part list.



What's On Board

CM5 To Pi 5 Adapter Board for Raspberry Pi, onboard components

  1. CM5 socket
    Suitable for all variants of Compute Module 5
  2. 40PIN GPIO interface
    Suitable for connecting to various HAT / HAT+ modules
  3. Power supply / Programming
    5V / 5A power supply, or used for eMMC burning
  4. STAT LED
    Dual-color LED indicator
  5. PSW power button
    Long press to force power off, short press to soft power off or on
  6. PCIe interface
    for connecting various PCIe expansion boards
  7. RTC battery header
    for connecting an external RTC battery to maintain real-time clock operation
  8. BOOT button
    Press before powering on and release after powering on to enter the burning mode
  9. Micro HDMI port × 2
    supports 4k output
  10. Extended audio interface
    Expands audio header via USB, comes with an audio adapter for connecting 3.5mm headphone/Mi
  1. PoE 4PIN header
    for connecting to PoE module
  2. Dual MIPI interfaces
    for connecting to DSI displays or CSI cameras
  3. 4PIN JST-SH PWM Fan header
    for connecting cooling fan, 5V power supply
  4. USB 2.0 port × 2
  5. USB 3.2 Gen1 port × 2
    Dual USB 3.2 Gen1 ports, supports simultaneous read and write, up to 5 Gbps speed.
  6. Gigabit Ethernet RJ45 port
    Supports 10M / 100M / 1000M network access
  7. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
  8. IO-VREF selection
    CM5 IO logic level: 3.3V (default) or 1.8V
  9. Other function pins
    Hardware disable function or write protection



Outline dimensions

CM5 To Pi 5 Adapter Board for Raspberry Pi, outline dimensions

What's in the box?
1 x CM5 To Pi 5 Adapter Board For Raspberry Pi 5
  • Availability: Out of Stock
  • Model: CM5-to-Pi5-Adapter
  • Brand: WaveShare
