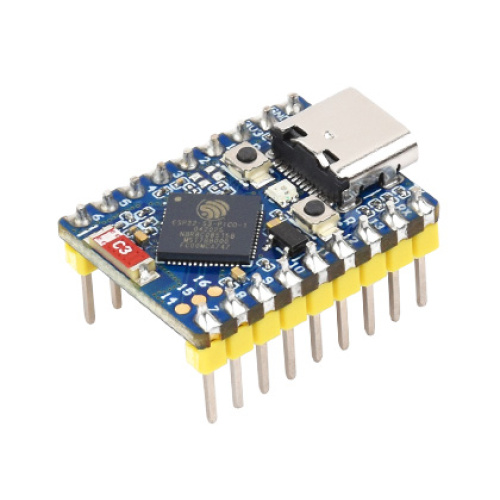

ESP32-S3 Mini

Dual Core processor, up to 240MHz Running Frequency, 2.4GHz Wi-Fi, Bluetooth 5, 8MB Flash, 8MB PSRAM, pre-soldered header
R159.90  Inc VAT
Order Quantity Price Per Item
3 R156.70
10 R154.30
Qty:
Print
Add to wish list - You'll need to login first.
Board specifications

  • Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
  • Built-in 512KB of Static RAM and 384KB ROM, options for 4MB Flash memory with 2MB PSRAM / 8MB Flash memory with 8MB PSRAM
  • Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Integrated with USB serial port full-speed controller, 24 × GPIO pins allows flexibly configuring pin functions
  • 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.



Support MicroPython、ESP-IDF、Arduino


Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

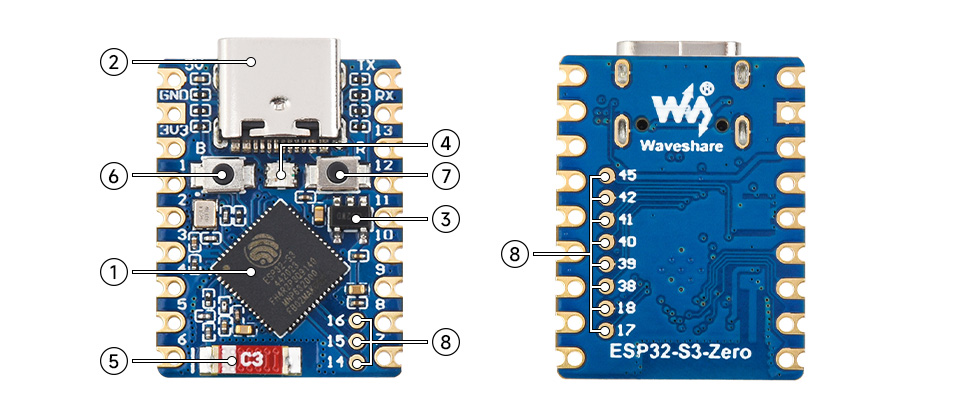

What's on board

  1. ESP32-S3 dual-core processor up to 240MHz operating frequency
  2. USB Type-C Port
  3. ME6217C33M5Glow dropout LDO, 800mA (Max)
  4. WS2812 RGB LED
  5. 2.4G ceramic antenna
  6. BOOT button -Press it and then press the RESET button to enter download mode
  7. RESET button
  8. ESP32-S3 pins

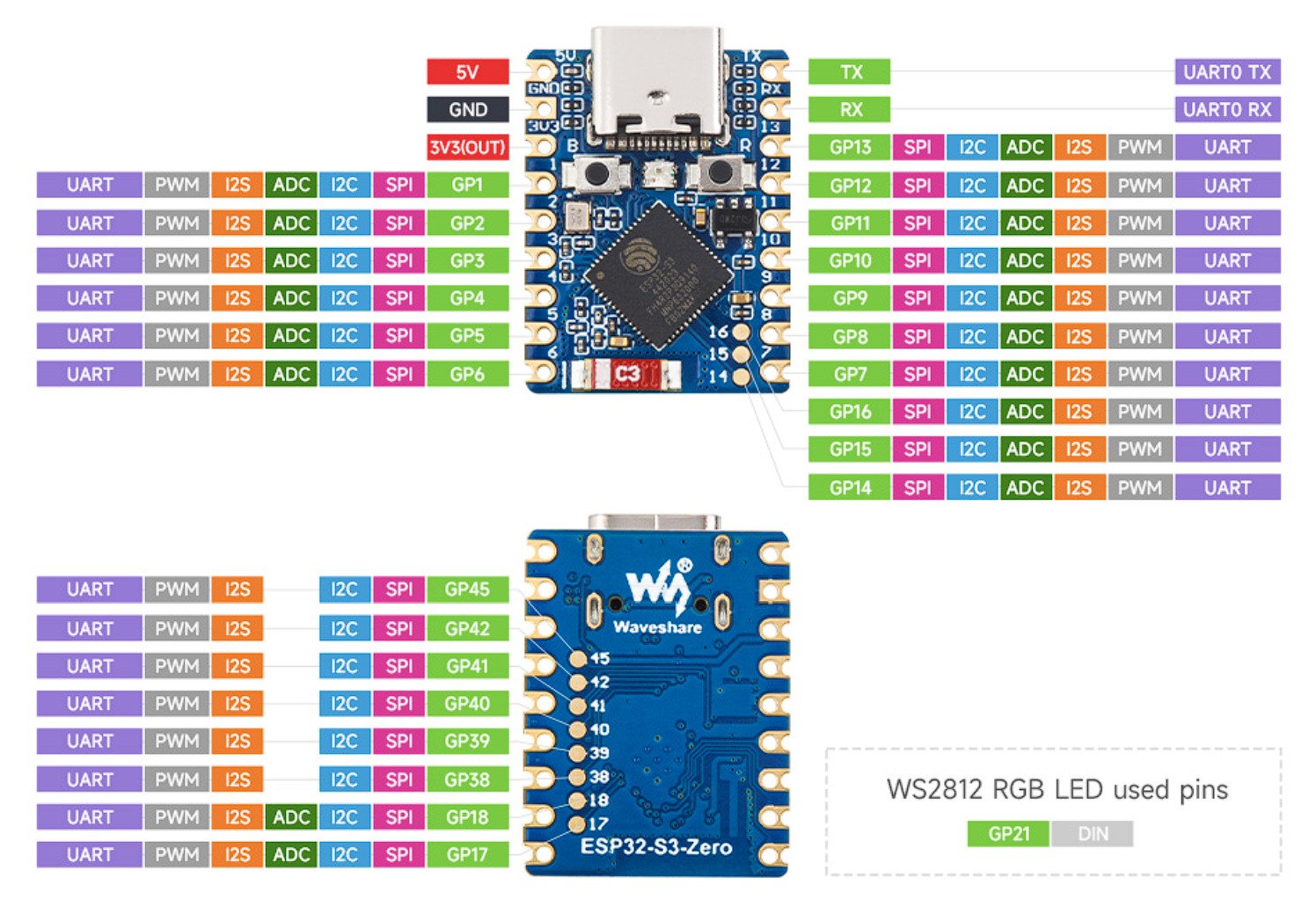

Pin definition

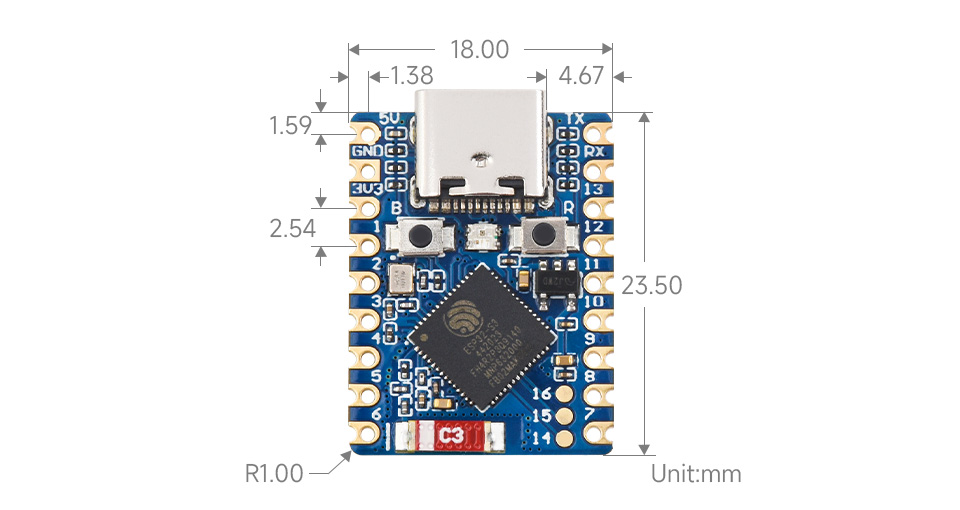

Outline dimensions

What's in the box?

1 x ESP32-S3-Zero-N8R8 with pre-soldered header

Resources

Wiki: docs.waveshare.com/ESP32-S3-Zero

  • Availability: Out of Stock
  • Model: ESP32-S3 Mini WH
  • Brand: WaveShare
