HDMI Signal Extender, 1080P High-definition & lossless transmission, transmission distance up to 50m
HDMI Signal Extender, 1080P High-definition & lossless transmission, transmission distance up to 50m via CAT-5E/6 network cable
R188.59 Inc VAT
R366.16
Specifications
| Transmission standard | HDMI1.4B |
|---|---|
| Video input | 1080p/1080i/720p/576p/576i/480p/480i |
| Signal transmission | Supports using CAT-5E/6 network cable (CAT-6 recommended) instead of HDMI cable, the distance between transmitter and receiver up to 50m |
| Power input | Type-C port (DC 5V 1A) |
| Applicable scenarios | Security monitoring, Video conference, Multimedia teaching, Home theater, etc. |

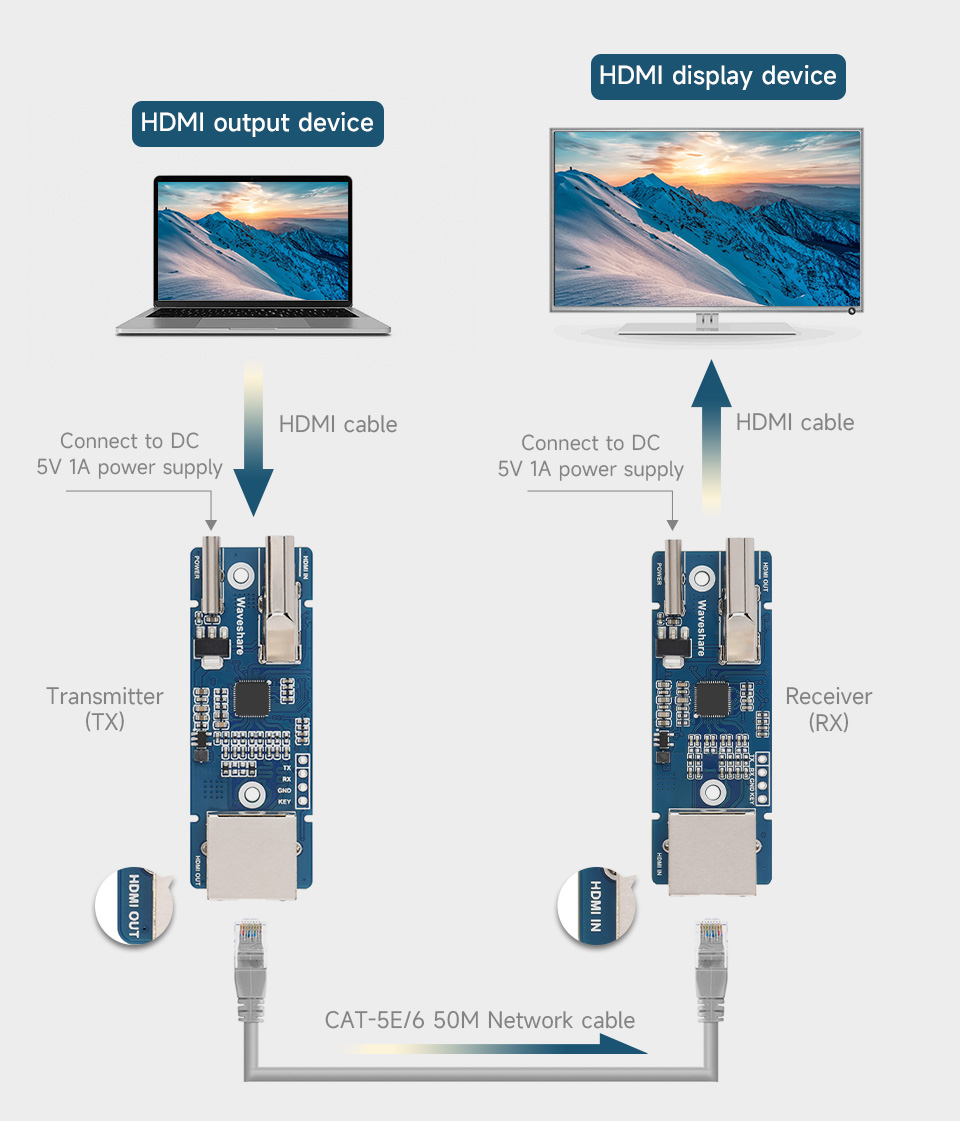

Connection Example
Note: The quality of the network cable will affect the signal transmission quality, it is recommended to use CAT-6 network cable for better transmission.

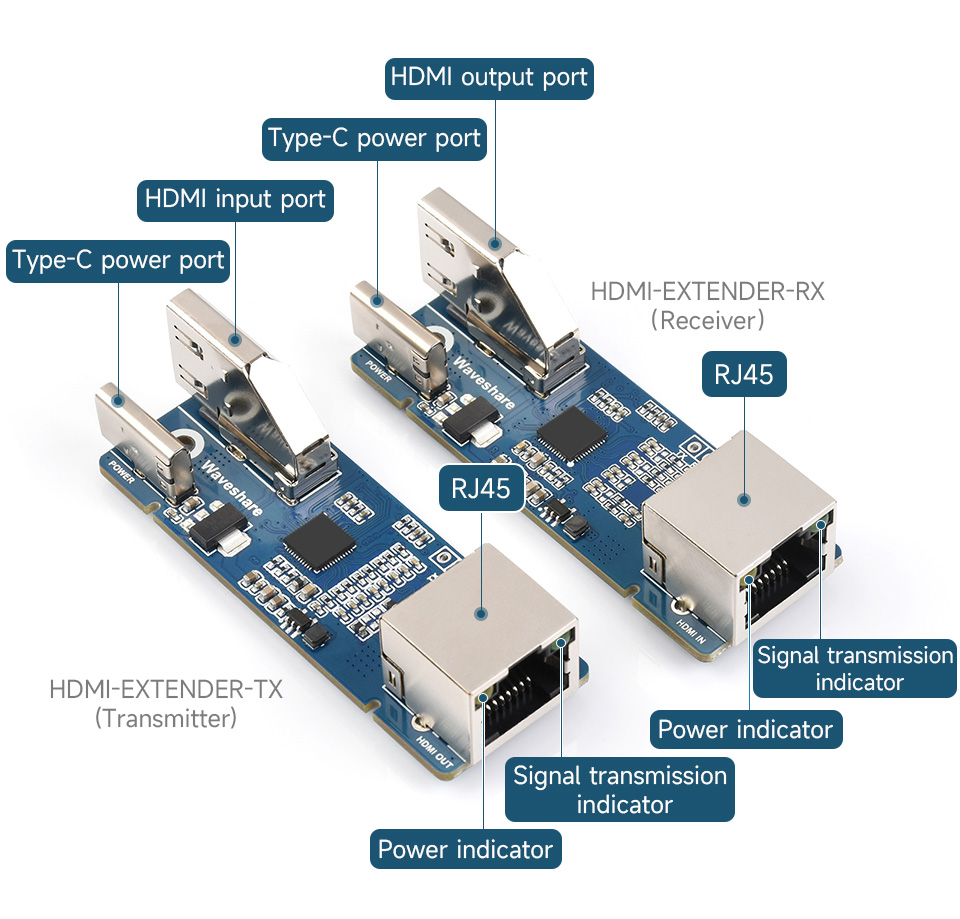

Onboard Interface

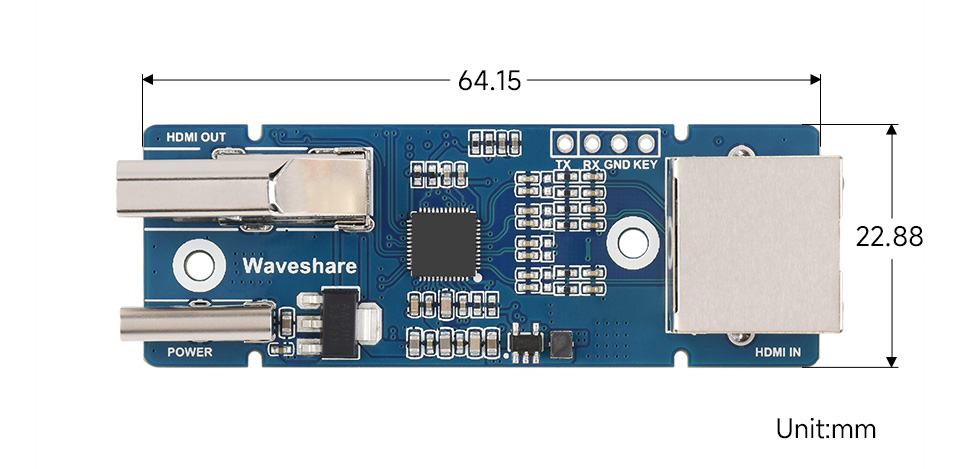

Outline dimensions
What's in the box?
1 x HDMI-EXTENDER Sender
1 x HDMI-EXTENDER Receiver
You will also need 2 x USB_C power supplies and Cat5e/6 cable
Resources
Wiki: www.waveshare.com/wiki/HDMI-EXTENDER-KIT
-
