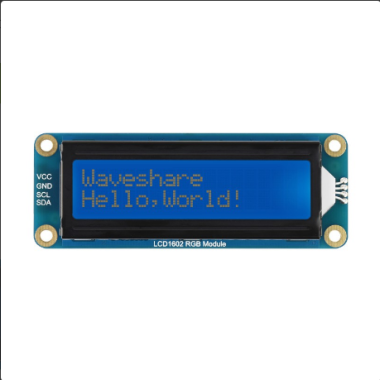

LCD1602 RGB Module, 16x2 Characters LCD, RGB Backlight, 3.3V/5V, I2C Bus

R189.90  Inc VAT
Order Quantity Price Per Item
3 R186.10
10 R183.25
30 R174.71
100 R175.66
Add to wish list - You'll need to login first.
Features at a glance:
  • Incorporates character LCD panel LCD1602
  • Adjustable RGB backlight color, up to 16M (2563) backlight colors in theory
  • I2C control interface, only two signal pins are required, saving the IO resource
  • Compatible with 3.3V/5V operating voltage
  • Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)

Operating voltage3.3 ~ 5VLCD controllerAiP31068
Communication InterfaceI2CRGB driverPCA9633
Display Panelcharacter LCDDisplay size64.5 × 16.0mm
Characters16 × 2Dimensions87.0 × 32.0 × 13.0mm
Backlight colors16MOperating voltage-20 ~ 70℃


Wiki: LCD1602_RGB_Module

Adjustable RGB backlight color - up to 16M colors available
I2C control interface

for connecting with host boards like Raspberry Pi / Arduino...

VCC3.3V ~ 5V power input
SCLI2C clock pin
SDAI2C data pin

Hardware connection

connecting with Raspberry Pi Pico

connecting with Raspberry Pi

connecting with Arduino board

connecting with Jetson Nano Developer Kit

Outline dimensions:
What's in the box?

1 x RGB 1602 LCD
  • Availability: 8 In Stock
  • Model: WS LCD1602 RGB
  • Brand: WaveShare
