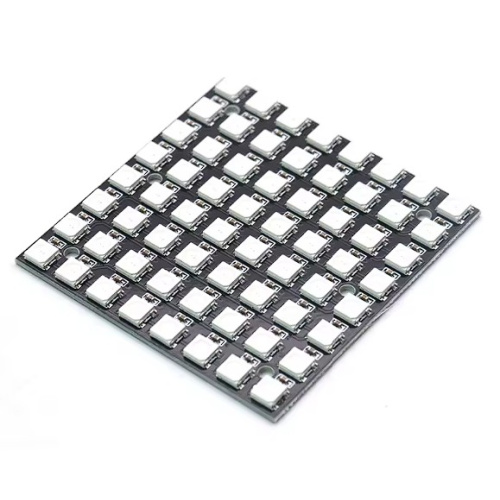

WS2812 LED 5050 RGB 8x8 LED Matrix
The IC control circuit and the LED point light source share a power supply. The control circuit and the RGB chip are integrated in a 5050 package component to form a complete externally controlled pixel point.Specifications
- Chip: WS2812B (built-in LED)
- LED: 5050 package RGB full-color highlight
- Voltage: 5V
- Port: digital
Main features
●The IC control circuit and the LED point light source share a power supply.
The control circuit and the RGB chip are integrated in a 5050 package component to form a complete externally controlled pixel point.
·Built-in signal shaping circuit, any pixel point receives the signal and then outputs it after waveform shaping, ensuring that the line waveform distortion will not accumulate.
●Built-in power-on reset and power-off reset circuits.
●The three primary colors of each pixel point can achieve 256 levels of brightness display, and complete the full-color display of 16777216 colors.
●Port scanning frequency 2KHz/S
Serial cascade interface, which can complete data reception and decoding through a signal line,
·No need to add any circuit when the transmission distance between any two points does not exceed 5 meters.
●When the refresh rate is 30 frames/second, the number of cascades is not less than 1024
Main application areas
●LED full-color luminous character light string, LED full-color soft light bar hard light bar, LED guardrail.
●LED point light source, LED pixel screen, LED special-shaped screen, various electronic products, electrical equipment marquee.
What's in the box?
1 x WS2812 LED 5050 RGB 8x8 LED Matrix board
- Availability: 7 In Stock
- Model: WS2812 RGB 8x8
-
