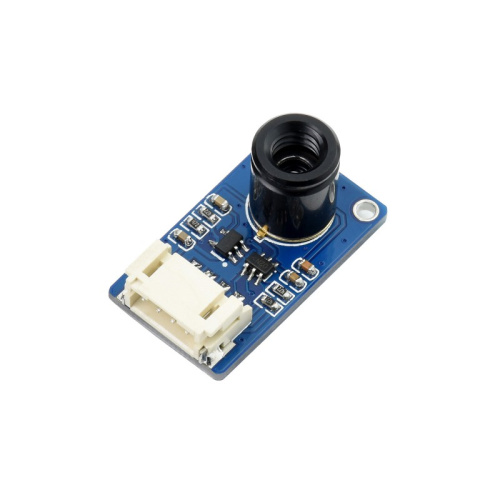

MLX90640 IR Array Thermal Imaging Camera, 32×24 Pixels, 55° FOV
A sophisticated, hackable, 32x24 pixel thermal camera breakout! Use it to monitor the temperature of your CPU or coffee pot, or to build your own heat-seeking night vision camera. Works with Raspberry Pi or Arduino.
R1,265.00 Inc VAT
Features
The MLX90640-D55 Thermal Camera is a small size, non-contact, and low cost IR array thermal imaging camera, with 32×24 pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.
- Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels
- Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
- Noise Equivalent Temperature Difference (NETD) 0.1K RMS@1Hz refresh rate
- Onboard voltage translator, compatible with 3.3V/5V operating voltage
- Programable frame rate 0.5～64Hz (0.25～32FPS)
- Comes with development resources and manual (examples for Raspberry Pi / ESP32 / STM32)
Typical applications
- High precision non-contact temperature measurements
- IR thermal imaging devices, IR thermometers
- Smart home, intelligent building, intelligent lighting
- Industrial temperature control, security & safety, intrude/movement detection
Specifications
| Operating voltage | 3.3V/5V | Current | < 23mA |
|---|---|---|---|
| Field of view (FOV) | 55° × 35° | Absolute accuracy | ±2℃ (ambient temp. 0 ~ 50℃) |
| Communication bus | I2C (0x33 by default) | Refresh rate | 0.5~64Hz (0.25～32FPS) |
| Target temperature range | -40 ~ 300℃ | Operating temperature | -40 ~ 85℃ |
| Dimensions | 28 × 16mm | Mounting hole size | 2.0mm |

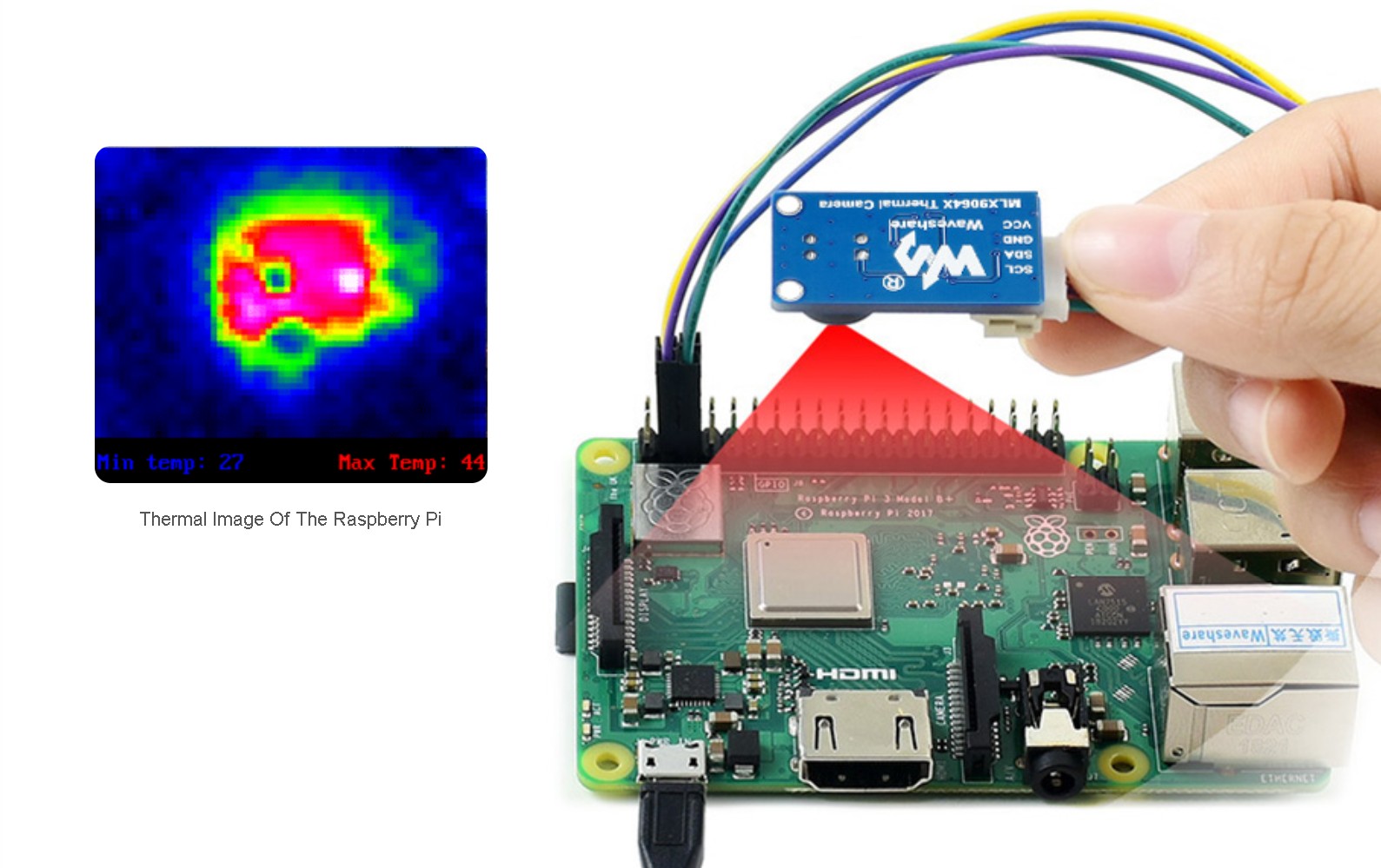

I2C control interface
supports host boards including Raspberry Pi / ESP32 / STM32...
| VCC | 3.3V/5V power input |
|---|---|
| GND | GND |
| SDA | connects to MCU I2C data pin |
| SCL | connects to MCU I2C clock pin |

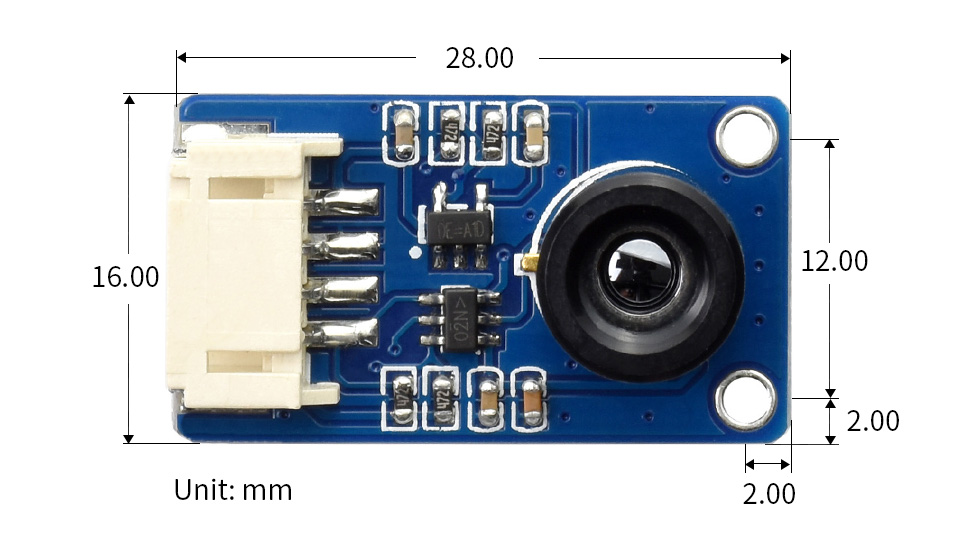

Outline Dimensions
What's in the box?
1 x MLX90640 IR Array Thermal Imaging Camera
Resources
WIKI: www.waveshare.com/wiki/MLX90640-D55_Thermal_Camera
-
Availability:
Out of Stock
- Model: MLX90640 cam55
-
