Normally Open Reed Switch MKA14103 (5 pack)

R14.89  Inc VAT
Order Quantity Price Per Item
3 R14.59
10 R14.37
30 R14.15
100 R13.78
Qty:
Print
Add to wish list - You'll need to login first.

The MKA14103 is a compact, high-reliability glass encapsulation magnetic reed switch designed for precise proximity sensing, count tracking, and non-contact limit switching. Featuring a Single-Pole Single-Throw, Normally Open (SPST-NO) configuration, the contacts close instantly when a magnetic field is introduced and open when the magnet is removed.

With its standard 10-15AT magnetic sensitivity rating, this miniature switch triggers reliably with small permanent magnets, making it an excellent choice for custom alarm systems, micro-robotics, automated flow meters, and space-constrained DIY microcontroller projects.

Key Applications

  • Security & Alarms: Concealed window and door open/close sensors.
  • Smart Meters: Pulse counting for water, gas, and electricity flow meters.
  • Industrial Automation: Pneumatic cylinder position sensing and non-contact limit switches.
  • Consumer Electronics: Lid/cover close detection for laptops and smart devices.



Specifications

  • Model: MKA14103 (MKA-14103)
  • Contact Form: Form A (SPST-NO – Normally Open)
  • Glass Length: 14 mm
  • Glass Diameter: 2.0 mm
  • Total Length (including leads): Approximately 44 mm
  • Actuation Range (Sensitivity): 10 - 15 AT(Ampere-Turns)
  • Maximum Switching Voltage: 100V DC/AC}
  • Maximum Switching Current: 0.5A
  • Maximum Contact Rating (Power): 10W
  • Contact Resistance: Less than 100mOhm



Features

  • Hermetically Sealed: The precious-metal contacts are sealed inside an inert gas atmosphere within the glass tube, protecting them from dust, humidity, and corrosion for millions of cycles.
  • Flexible Axial Leads: Tough, tin-plated leads can be easily bent or trimmed for printed circuit board (PCB) mounting or breadboard prototyping.
  • Zero Power Consumption: Requires no standby power to operate; the switch is actuated entirely by physical magnetic fields.



Installation Note: Reed switches are made of glass and are fragile. When bending or trimming the axial leads, always hold the lead securely with a pair of long-nosed pliers between the glass body and the bend point. This prevents stress from cracking the glass-to-metal seal, which can ruin the vacuum and cause the switch to fail.

What's in the box?

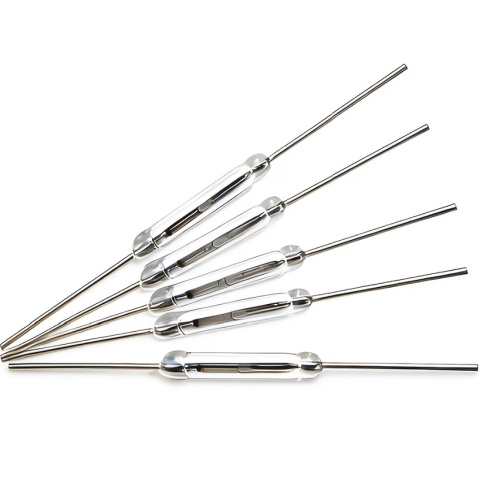

5 x Normally Open Reed Switch MKA14103

  • Availability: Out of Stock
  • Model: Reed MKA14103(5)
  • Brand: Generic2
