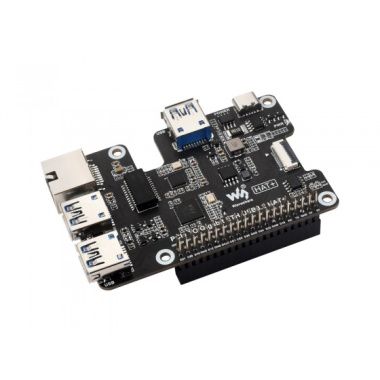

PCIe To Gigabit Ethernet And USB 3.2 Gen1
Designed For Raspberry Pi 5, Driver-Free, Plug And Play
![](resources/image/1a/44/3.jpg)
Based On 16PIN PCIe Interface Of Raspberry Pi 5
![](resources/image/1a/44/4.jpg)
* for reference only, please refer to the Package Content for detailed part list
Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals
![](resources/image/1a/44/5.jpg)
Equipped With RTL8153B High-Performance Gigabit ETH Chip, Sinking Design Of Network Port, Neat And Beautiful
![](resources/image/1a/44/6.jpg)
Supports Raspberry Pi OS / Ubuntu / OpenWRT, Etc., Stable
And Reliable Network Speed
![](resources/image/1a/44/7.jpg)
Real-Time Monitoring Of Power Status, Supports USB Port Power Control Via Software
![](resources/image/1a/44/8.jpg)
![](resources/image/1a/44/9.jpg)
- VL805
PCIe to USB 3.2 Gen1 HUB chip - RTL8153B
USB to Gigabit ETH chip - INA219
Power monitoring chip - EEPROM
for saving HAT ID and product information - 16PIN PCIe interface
for connecting to the PCIe interface of Raspberry Pi
- Raspberry Pi GPIO header
for connecting Raspberry Pi 5 - Gigabit Ethernet port
up to 1000Mbps data rate, compatible with 100Mbps - USB 3.2 Gen1 expanded ports
USB1~USB3 - Power port
for external Type-C 5V DC power supply - PWR LED
Power indicator
![](resources/image/1a/44/a.jpg)
* for reference only, the Raspberry Pi 5 and cooling fan are NOT included, please refer to the Package Content for detailed part list
![](resources/image/1a/44/b.jpg)
1 x PCIe TO Gigabit ETH USB3.2 HAT+
1 x Network cable ~1.5m
1 x 16P-Cable-40mm
1 x Standoff pack
