Raspberry Pi RP2040

https://www.raspberrypi.org/blog/raspberry-pi-silicon-pico-now-on-sale/
https://www.raspberrypi.org/products/raspberry-pi-pico/
https://www.youtube.com/watch?v=ZY-HrRGCQ4w
Add wifi to Pico using Cricket
https://www.thingsonedge.com/post/pico-cricket-blynk-phone-alerts
YouTube video on Pico by Jeff Geerling
Raspberry Pi Pico, a microcontroller board built on silicon designed here at Raspberry Pi.
Whether you choose to use our C/C++ SDK, or the official MicroPython port, everything you need to get started is here. You’ll also find links to the technical documentation for both the Raspberry Pi Pico microcontroller board and our RP2040 microcontroller chip.

Board Specifications
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
- 264kB of SRAM, and 2MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 Host and Device support
- Low-power sleep and dormant modes
- Drag & drop programming using mass storage over USB
- 26 multi-function GPIO pins
- 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating point libraries on-chip
- 8×Programmable IO (PIO) state machines for custom peripheral support
Download Pinout Diagram

Documentation
Documentation for the Raspberry Pi Pico board and the RP2040 microcontroller:
Raspberry Pi Pico Datasheet
An RP2040-based microcontroller board
RP2040 Datasheet
A microcontroller by Raspberry Pi
Hardware design with the RP2040
Using the RP2040 microcontroller to build boards and products
Getting Started with Raspberry Pi Pico
C/C++ development with the Pico and other RP2040-based microcontroller boards
Pico C/C++ SDK
Libraries and tools for C/C++ development on the RP2040 microcontroller
Pico Python SDK
A MicroPython environment for the RP2040 microcontroller
The API level Doxygen documentation for the Raspberry Pi Pico C/C++ SDK is available as a micro-site.
Description:
A postage stamp sized RP2040 development board with a USB-C connection and 8MB of flash, perfect for portable projects, wearables, and embedding into devices.
While we love the Raspberry Pi Pico we also wanted something smaller and with a bunch more flash on board. Introducing the Tiny 2040 - a teeny tiny powerhouse with the chops to realise truly ambitious projects.
Powered and programmable via USB-C, Tiny 2040 comes with 8MB of QSPI (XiP) flash on board so it can handle projects small and large with ease. The board is designed with castellated pads to allow it to be directly soldered onto a PCB or alternatively you can use pin headers to hook it up on a breadboard or directly with wires. We've even managed to fit in a programmable RGB LED, a reset button and some clever circuitry that lets you use the boot button as a user controllable switch.
It's compatible with firmware built for the Raspberry Pi Pico but offers a reduced number of pins due to its size. You can even run MicroPython on it!
Features
- Powered by RP2040
- ARM Cortex M0 running at up to 133Mhz
- 264kB of SRAM
- USB-C connector for power, programming, and data transfer
- 8MB of QSPI flash supporting XiP
- User controllable RGB LED
- Twelve IO pins (including four 12-bit ADC channels)
- Switch for basic input (doubles up as DFU select on boot)
- On-board 3V3 regulator
- Dimensions: approx 22.9 x 18.2 x 6mm (L x W x H)

About RP2040
Raspberry Pi's RP2040 microcontroller is a dual core ARM Cortex M0 running at up to 133Mhz. It bundles in 264kB of SRAM, 30 multifunction GPIO pins (including a four channel 12-bit ADC), a heap of standard peripherals (I2C, SPI, UART, PWM, clocks, etc), and USB support.
One very exciting feature of RP2040 is the programmable IOs which allow you to execute custom programs that can manipulate GPIO pins and transfer data between peripherals - they can offload tasks that require high data transfer rates or precise timing that traditionally would have required a lot of heavy lifting from the CPU.

Description:
This is an official Raspberry Pico that has had headers professionally pre-soldered on by a South African electronic manufacturing company.
Raspberry Pi Pico, a microcontroller board built on silicon designed by Raspberry Pi.
Whether you choose to use our C/C SDK, or the official MicroPython port, everything you need to get started is here. You’ll also find links to the technical documentation for both the Raspberry Pi Pico microcontroller board and our RP2040 microcontroller chip.

Board Specifications:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core ARM Cortex M0 processor, flexible clock running up to 133 MHz
- 264kB of SRAM, and 2MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 Host and Device support
- Low-power sleep and dormant modes
- Drag & drop programming using mass storage over USB
- 26 multi-function GPIO pins
- 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating point libraries on-chip
- 8×Programmable IO (PIO) state machines for custom peripheral support
Download Pinout Diagram

Documentation
Documentation for the Raspberry Pi Pico board and the RP2040 microcontroller:
Raspberry Pi Pico Datasheet
An RP2040-based microcontroller board
RP2040 Datasheet
A microcontroller by Raspberry Pi
Hardware design with the RP2040
Using the RP2040 microcontroller to build boards and products
Getting Started with Raspberry Pi Pico
C/C development with the Pico and other RP2040-based microcontroller boards
Pico C/C SDK
Libraries and tools for C/C development on the RP2040 microcontroller
Pico Python SDK
A MicroPython environment for the RP2040 microcontroller
The API level Doxygen documentation for the Raspberry Pi Pico C/C SDK is available as a micro-site.
Resources:
https://www.raspberrypi.org/blog/raspberry-pi-silicon-pico-now-on-sale/
https://www.raspberrypi.org/products/raspberry-pi-pico/
https://www.youtube.com/watch?v=ZY-HrRGCQ4w
Add wifi to Pico using Cricket
https://www.thingsonedge.com/post/pico-cricket-blynk-phone-alerts
YouTube video on Pico by Jeff Geerling
https://projects.raspberrypi.org/en/projects/getting-started-with-the-pico/1
Board specifications
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- USB-C connector, keeps it up to date, easier to use
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Comprehensive SDK, dev resources, tutorials to help you easily get started

29 × multi-function GPIO pins
configurable pin function, allows flexible development and integration

What's On Board?

- USB Type-C connector
- W25Q16JVUXIQ 2MB NOR-Flash
- BOOT button press it when resetting to enter download mode
- RESET button
- WS2812 cool RGB LED
- ME621 low dropout LDO, max current 800MA
- RP2040 dual-core processor, up to 133MHz operating frequency
- RP2040 pins 10x solder points, 9 of which are for GPIO

RP2040 MCU Board with LCD, a Pico-like MCU board based on Raspberry Pi RP2040 with pre-soldered headers. Compatible with most of the Raspberry Pi Pico add-on modules.
Board specifications
RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi's RP2040 microcontroller chip, as same as the one on Raspberry Pi Pico. For software development, either Raspberry Pi's C/C SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly.
In additional, there'rs also onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0 processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- USB-C connector, keeps it up to date, easier to use
- 0.96inch 160×80 pixels 65K colorful IPS LCD display
- Lithium battery recharge/discharge header, suitable for mobile devices
- Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
- Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components)
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Comprehensive SDK, dev resources, tutorials to help you easily get started
Pico-like lcd code found at :
sudo apt-get install p7zip-full
cd ~
sudo wget https://www.waveshare.com/w/upload/7/74/Pico_LCD_code.7z
7z x Pico_LCD_code.7z -o./Pico_LCD_code
cd ~/Pico_LCD_code
cd c/build/

26 × multi-function GPIO pins
configurable pin function, allows flexible development and integration

What's On Board

- USB Type-C connector
- BOOT button press it when resetting to enter download mode
- RESET button
- 0.96inch IPS LCD display 160 × 80 pixels, 65K colorful
- Battery header MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
- TPS63000 high efficiency DC-DC buck-boost chip
- ETA6096 high efficiency Lithium battery recharge manager
- RP2040 dual-core processor, up to 133MHz operating frequency
- W25Q16JVUXIQ 2MB NOR-Flash
- DEBUG points
- Pinout

Board specifications

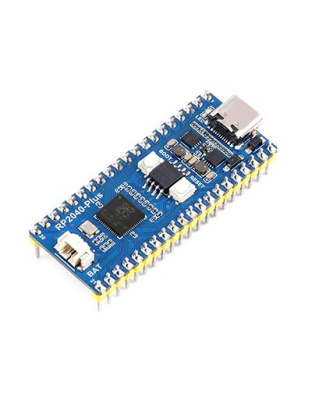

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.
Same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.
What's different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 4MB of on-board Flash memory
- USB-C connector, keeps it up to date, easier to use
- Lithium battery recharge/discharge header, suitable for mobile devices
- Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 26 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
Comprehensive SDK, dev resources, tutorials to help you easily get started

26 × multi-function GPIO pins
configurable pin function, allows flexible development and integration

What's On Board?

- LED user LED (not power indicator)
- ETA6096 high efficiency Lithium battery recharge manager
- TPS63000 high efficiency DC-DC buck-boost chip
- USB Type-C connector
- BOOT button press it when resetting to enter download mode
- W25Q32JVSSIQ 4MB NOR-Flash
- RESET button
- RP2040 dual-core processor, up to 133MHz operating frequency
- Battery header MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
- Pinout compatible with Raspberry Pi Pico
- USB test points connecting to USB interface
- BOOT test point connecting to BOOT button
- DEBUG points

It features:
• Dual-core Arm Cortex-M0 @ 133MHz
• 264KB of on-chip RAM
• Support for up to 16MB of off-chip Flash memory via a QSPI bus
• DMA controller
• Interpolator and integer divider peripherals
• 30 GPIO pins, 4 of which can be used as analogue inputs
• 2 × UARTs, 2 × SPI controllers, and 2 × I2C controllers
• 16 × PWM channels
• 1 × USB 1.1 controller and PHY, with host and device support
• 8 × Raspberry Pi Programmable I/O (PIO) state machines
• USB mass-storage boot mode with UF2 support, for drag-and-drop programming
Please see the RP2040 datasheet for more details
and Hardware Design with RP2040
To date, RP2040 has only been available on Raspberry Pi Pico, and as a component to a limited number of partners. We now cover the availability of RP2040 as a component to the broad market in single-unit quantities. Bulk quantities on reels of 500.

This is the Pico model H with pre-soldered connectors. Raspberry Pi Pico H is fitted with a pre-soldered 40-way header and 3-pin JTAG connector, for greater ease of use in hobbyist and industrial applications.
https://www.raspberrypi.org/blog/raspberry-pi-silicon-pico-now-on-sale/
https://www.raspberrypi.org/products/raspberry-pi-pico/
https://www.youtube.com/watch?v=ZY-HrRGCQ4w
YouTube video on Pico by Jeff Geerling
Raspberry Pi Pico, a microcontroller board built on silicon designed here at Raspberry Pi.
Whether you choose to use our C/C++ SDK, or the official MicroPython port, everything you need to get started is here. You’ll also find links to the technical documentation for both the Raspberry Pi Pico microcontroller board and our RP2040 microcontroller chip.
Board Specifications
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
- 264kB of SRAM, and 2MB of on-board Flash memory
- Castellated module allows soldering direct to carrier boards
- USB 1.1 Host and Device support
- Low-power sleep and dormant modes
- Drag & drop programming using mass storage over USB
- 26 multi-function GPIO pins
- 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating point libraries on-chip
- 8×Programmable IO (PIO) state machines for custom peripheral support
Download Pinout Diagram

Documentation
Documentation for the Raspberry Pi Pico board and the RP2040 microcontroller:
Raspberry Pi Pico Datasheet
An RP2040-based microcontroller board
RP2040 Datasheet
A microcontroller by Raspberry Pi
Hardware design with the RP2040
Using the RP2040 microcontroller to build boards and products
Getting Started with Raspberry Pi Pico
C/C++ development with the Pico and other RP2040-based microcontroller boards
Pico C/C++ SDK
Libraries and tools for C/C++ development on the RP2040 microcontroller
Pico Python SDK
A MicroPython environment for the RP2040 microcontroller
The API level Doxygen documentation for the Raspberry Pi Pico C/C++ SDK is available as a micro-site.
1 x Raspberry Pi Pico H
Support docs available here
Description:
Meet the only connected RP2040 board. It fits the Arduino Nano form factor, making it a small board with BIG features.
The brain of the board is the Raspberry Pi RP2040 silicon; a dual-core Arm Cortex M0 running at 133MHz. It has 264KB of SRAM, and the 16MB of flash memory is off-chip to give you extra storage.
But what’s really exciting is the on-board connectivity options. The hugely popular and highly adaptable u-blox NINA-W102 radio module is on there to make this a true IoT champion. This also means you can harness the power of the cloud, with fully Arduino Cloud compatibility.
It’s got on-board, built-in sensors to turn your builds into powerhouse projects, too. Microphone and motion sensing add a depth of possibilities that’s almost impossible to find in a board of this size.
The Arduino Nano RP2040 Connect is the premium choice for RP2040 devices, and the perfect option for upgrading your projects and unlocking the potential of new ones.
Specifications:
Board | Nano RP2040 Connect | |
SKU: ABX00052 | ||
Microcontroller | Raspberry Pi RP2040 | |
USB connector | Micro USB | |
Pins | Built-in LED pin | 13 |
Digital I/O Pins | 20 | |
Analog Input Pins | 8 | |
PWM pins | 20 (Except A6, A7) | |
External interrupts | 20 (Except A6, A7) | |
Connectivity | Wi-Fi | Nina W102 uBlox module |
Bluetooth | Nina W102 uBlox module | |
Secure element | ATECC608A-MAHDA-T Crypto IC | |
Sensors | IMU | LSM6DSOXTR (6-axis) |
Microphone | MP34DT05 | |
Communication | UART | Yes |
I2C | Yes | |
SPI | Yes | |
Power | Circuit operating voltage | 3.3V |
Input Voltage (VIN) | 5-21V | |
DC Current per I/O pin | 4 mA | |
Clock speed | Processor | 133 MHz |
Memory | AT25SF128A-MHB-T | 16MB Flash IC |
Nina W102 uBlox module | 448 KB ROM, 520KB SRAM, 16MB Flash | |
Dimensions | Weight | 6 g |
Width | 18 mm | |
Length | 45 mm |
- What's in the Box ?
1 x Arduino Nano RP2040
- Resources, troubleshooting, how to install new bootloader:
- Nano RP2040 connect Cheat Sheet
- Discover how to access the features Nano RP2040 Connect using Python scripts.
https://docs.arduino.cc/tutorials/nano-rp2040-connect/rp2040-python-api
Description:
PGA2040 is a compact RP2040 breakout intended for the most svelte and embeddable of projects. It contains only the components necessary to run the RP2040 (that's the crystal, flash, regulator and essential support circuits) and it has no fripperies like LEDs, buttons and USB connectors - you'll need to attach your own USB connector to be able to program it.
The benefits of all this drastic pruning are a tiny, 21mm square footprint and lots of exposed RP2040 pins to play with! 30 of them can be used as general purpose I/O (that's four more I/O than on a Raspberry Pi Pico) and 4 are ADC-equipped. It also has the cutest little pin labels in the known 'verse, because space is tight on this board.
Header pins are sold separately - you can solder it to standard Pico pin headers (though bear in mind you'll need 48 pins if you want to populate it fully).
Like our other RP2040 boards, PGA2040 is programmable with C , MicroPython or CircuitPython - choose your fighter!
Specifications:
- Powered by RP2040
- Dual ARM Cortex M0 running at up to 133Mhz
- 264kB of SRAM
- 8MB of QSPI flash supporting XiP
- Crystal oscillator
- On-board 3V3 regulator (max regulator current output 300mA)
- 48 pins, arranged with 2.54mm (0.1") spacing in a Pin Grid Array
- 30 multi-function General Purpose IO (4 can be used for ADC)
- 8 GND pins
- Input voltage range 3V - 5.5V (on VB pin only)
- Measurements: approx 21mm x 21mm x 3mm (L x W x H)
- Schematic
- Eagle CAD part
What's in the box ?
1 x PGA2040


Getting Started :
PGA2040 is firmware agnostic! You can program it with C/C or MicroPython in the same way as you would a Raspberry Pi Pico. You can find (lots) more information on how to do that (as well as download links for the firmware/SDK) on the RP2040 landing page.
You can also use CircuitPython on your PGA2040! CircuitPython is an easy to use, well-established ecosystem with lots of example code and drivers for interfacing with different kinds of hardware. Click here to download the CircuitPython firmware for PGA2040 and click here for a getting started guide.
To program PGA2040 via USB you will need to hook wires up to VB, GND, U and U-. Make sure that the 5v only goes to VB on PGA2040, if it ends up elsewhere it will result in a bad time. A USB breakout board is a convenient way of getting at the wires in your USB cable, check out the extras tab for some options!
To get into BOOTSEL mode so you can flash firmware to your PGA2040, connect the BS pin to ground whilst plugging the USB into your computer.
About RP2040
Raspberry Pi's RP2040 microcontroller is a dual core ARM Cortex M0 running at up to 133Mhz. It bundles in 264kB of SRAM, 30 multifunction GPIO pins (including a four channel 12-bit ADC), a heap of standard peripherals (I2C, SPI, UART, PWM, clocks, etc), and USB support.
One very exciting feature of RP2040 is the programmable IOs which allow you to execute custom programs that can manipulate GPIO pins and transfer data between peripherals - they can offload tasks that require high data transfer rates or precise timing that traditionally would have required a lot of heavy lifting from the CPU.
Cytron Maker Pi RP2040 features the first microcontroller designed by Raspberry Pi - RP2040, embedded on a robot controller board. This board comes with dual channel DC motor driver, 4 servo motor ports and 7 Grove I/O connectors, ready for your next DIY robot / motion control project. Now you can build robot, while trying out the new RP2040 chip.
The DC motor driver onboard is able to control 2x brushed DC motors or 1x bipolar/unipolar stepper motor rated from 3.6V to 6V, providing up to 1A current per channel continuously. The built-in Quick Test buttons and motor output LEDs allow functional test of the motor driver in a quick and convenient way, without the need of writing any code. Vmotor for both DC and servo motors depends on the input voltage supplied to the board.

Features:
- Powered by Rapberry Pi RP2040
- Dual-core Arm Cortex-M0 processor
- 264KB internal RAM
- 2MB of Flash memory
- the exact same specifications with Raspberry Pi Pico
- Robot controller board
- 4x Servo motors
- 2x DC motors with quick test buttons
- Versatile power circuit
- Automatic power selection: USB 5V, LiPo (1-cell) or Vin (3.6-6V)
- Built-in 1-cell LiPo/Li-Ion charger (over-charged & over-discharged protection)
- Power on/off switch
- 13x Status indicator LEDs for GPIO pins
- 1x Piezo buzzer with mute switch
- 2x Push button
- 2x RGB LED (Neopixel)
- 7x Grove ports (flexible I/O options: digital, analog, I2C, SPI, UART...)
- Preloaded with CircuitPython by default
- Mouting holes
- 4x 4.8mm mounting hole (LEGO® pin compatible)
- 6x M3 screw hole
What's in the box ?
- 1x Maker Pi RP2040
- 4x Grove to Female Header Cable
- 1x Mini Screwdriver
- 1x Silicone Rubber Feet (Pack of 4)
Resources:
- Getting Started with Maker Pi RP2040 & Example Code
- Maker Pi RP2040 Datasheet
- Maker Pi RP2040 Schematic
- Maker Pi RP2040 VS. Maker Pi Pico comparison table
- CircuitPython for Maker Pi RP2040
- 3D CAD
- Getting Started with RP2040 (Raspberry Pi official page)
- RP2040 Datasheet
Powering the Maker Pi 2040
There are three ways to supply power to the Maker Pi RP2040 - via USB (5V) socket, with a single cell LiPo/Li-Ion battery or through the VIN (3.6-6V) terminals. However only one power source is needed to power up both controller board and motors at a time. Power supply from all these power sources can all be controlled with the power on/off switch onboard.

Maker Pi RP2040 features all the goodness of Cytron's Maker series products. It too has lots of LEDs useful for troubleshooting (& visual effects), is able to make quite some noise with the onboard piezo buzzer and comes with push buttons ready to detect your touch.


Simple Robotic projects done
(* Only includes the Maker board - All other contents are for idea / advertising purposes only*)




Description
The WIZnet Ethernet HAT is a Raspberry Pi Pico add-on board that utilizes the W5100S embedded internet controller chip to provide an Ethernet connection to your Raspberry Pi Pico via SPI.
The board supports both 3.3V & 5V and can be mounted directly to your Pico as the HAT pinout matches the Raspberry Pi Pico pin footprint
About the W5100S Embedded Internet ControllerThe W5100S is an embedded Internet controller designed as a full hardwired TCP/IP with WIZnet technology. W5100S provides internet connectivity to your Pico by using SPI (Serial Peripheral Interface). SPI provides an easy connection via external MCU to W5100S. The clock speed of W5100S SPI supports up to 70MHz.
Since the W5100S integrates the hardwired TCP/IP stack with 10/100 Ethernet MAC and PHY, it is truly a one-chip solution for stable internet connectivity. WIZnet’s hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE - and it has been proven through various applications over the last decade.
The W5100S provides four independent sockets to be used simultaneously and 16KB internal memory for data communication. Users can develop an Ethernet application easily by using the simple W5100S socket program instead of handling a complex Ethernet Controller. W5100S also provides WOL (Wake on LAN) and a Power Down Mode in order to reduce power consumption.
Features- Utilises the W5100S embedded internet controller
- Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
- Supports 4 Independent Hardware SOCKETs simultaneously
- Internal 16 Kbytes Memory for TX/ RX Buffers
- Operation Voltage 3.3V / 5V
- Built-in LDO (LM8805SF5-33V)
- SPI Interface
- 5V I/O tolerance
- 10 / 100 Ethernet PHY embedded
- Supports Auto Negotiation
- Full / Half Duplex
- 10 / 100 Based
- Built-in RJ45 (RB1-125BAG1A)

Pin Description
I/O | Pin Name | Description |
P | VBUS | Power supply, 4.3~5.5 Voltage |
P | 3V3 | Power supply, 3.3 Voltage |
P | GND | Power ground |
I | INTn | W5100S Interrupt Low activity. |
I | RSTn | W5100S Reset: Low activity |
I | SPI0 TX | SPI MOSI (Master Out Slave In) |
I | SPI0 SCK | SPI Clock |
I | SPI0 CSn | SPI Slave Select |
O | SPI0 RX | SPI MISO(Master In Slave Out) |
ResourcesPackage Contents
- 1x WIZnet Ethernet HAT
- 2x 20-pin female headers
The W5100S-EVB-Pico is a microcontroller evaluation board based on the Raspberry Pi RP2040 microcontroller chip and a full hardwired TCP/IP controller W5100S chip.
As the board uses the same pin layout as the Raspberry Pi Pico and includes W5100S embedded ethernet controller, giving you the power of a Raspberry Pi Pico with Ethernet connectivity in a single board!
There's a detailed getting started guide and firmware examples, and it's also the first RP2040-based device to receive AWS IoT Core Qualification!
Don't forget to grab a micro-USB cable for programming. The board comes with a pair of male headers
Features- RP2040 microcontroller with 2MB Flash
- Dual-core Cortex M0+ at up to 133MHz
- 264kByte multi-bank high-performance SRAM
- External Quad-SPI Flash with eXecute In Place (XIP)
- High-performance full-crossbar bus fabric
- 30 multi-function General Purpose IO (4 can be used for ADC)
- 1.8-3.3V IO Voltage (NOTE. Pico IO voltage is fixed at 3.3V)
- 12-bit 500ksps Analogue to Digital Converter (ADC)
- Various digital peripherals
- 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels
- 1 × Timer with 4 alarms, 1 × Real Time Counter
- 2 × Programmable IO (PIO) blocks, 8 state machines total
- Flexible, user-programmable high-speed IO
- Can emulate interfaces such as SD Card and VGA
- Includes W5100S Embedded Ethernet Controller
- Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
- Supports 4 Independent Hardware SOCKETs simultaneously
- Internal 16 Kbytes Memory for TX/ RX Buffers
- SPI Interface
- Other Features
- Micro-USB B port for power and data (and for reprogramming the Flash)
- 40 pin 21×51 ‘DIP’ style 1mm thick PCB with 0.1″ through-hole pins also with edge castellations
- 3-pin ARM Serial Wire Debug (SWD) port
- 10 / 100 Ethernet PHY embedded
- Supports Auto-Negotiation
- Full / Half Duplex
- 10 / 100 Based
- Built-in RJ45(RB1-125BAG1A)
- Built-in LDO (LM8805SF5-33V)
Pinout

The W5100S-EVB-Pico pinout is directly connected to the GPIO of RP2040 as shown in the picture above. It has the same pinout as the Raspberry Pi Pico board. However, GPIO16, GPIO17, GPIO18, GPIO19, GPIO20, GPIO21 are connected to W5100S inside the board. These pins enable SPI communication with W5100S to use the Ethernet function.
If you are using the Ethernet function, these pins cannot be used for any other purpose.
The RP2040 GPIO used inside W5100S-EVB-Pico is as follows.
I/O | Pin Name | Description |
I | GPIO16 | Connected to MISO on W5100S |
O | GPIO17 | Connected to CSn on W5100S |
O | GPIO18 | Connected to SCLK on W5100S |
O | GPIO19 | Connected to MOSI on W5100S |
O | GPIO20 | Connected to RSTn on W5100S |
I | GPIO21 | Connected to INTn on W5100S |
I | GPIO24 | VBUS sense - high if VBUS is present, else low |
O | GPIO25 | Connected to user LED |
I | GPIO29 | Used in ADC mode (ADC3) to measure VSYS/3 |
Apart from GPIO and ground pins, there are 7 other pins on the main 40-pin interface:
Pin | Name | Description |
40 | VBUS | Micro-USB input voltage, connected to micro-USB port pin 1. Nominally 5V |
39 | VSYS | Main system input voltage, which can vary in the allowed range 4.3V to 5.5V, and is used by the on-board LDO to generate the 3.3V |
37 | 3V3_EN | Connects to the on-board LDO enable pin. To disable the 3.3V (which also de-powers the RP2040 and W5100S), short this pin low |
36 | 3V3 | Main 3.3V supply to RP2040 and W5100S, generated by the on-board LDO |
35 | ADC_VREF | ADC power supply (and reference) voltage, and is generated on W5100S-EVB-Pici by filtering the 3.3V supply |
33 | AGND | Ground reference for GPIO26-29 |
30 | RUN | RP2040 enable pin, To reset RP2040, short this pin low |
Operating Conditions
Item | Description |
Operation Temperature MAX | 85C (including self-heating) |
Operation Temperature MIN | -20C |
VBUS | DC 5V (+/- 10%) |
VSYS Min | DC 4.3V |
VSYS Max | DC 5.5V |
Recommended maximum ambient temperature of operation is 70C.
Resources- Getting Started
- Firmware Examples
- AWS Device Catalog
- Getting Started with AWS IoT Core
- RP2040 Datasheet
- W5100S Datasheet
- Schematic
- Schematic Parts List/Gerber
- 1x W5100S-EVB-Pico
- 2x 20-pin male headers
Raspberry Pi RP2040 is the first microcontroller designed in-house at Raspberry Pi (“Raspberry Silicon”).
It features:
• Dual-core Arm Cortex-M0 @ 133MHz
• 264KB of on-chip RAM
• Support for up to 16MB of off-chip Flash memory via a QSPI bus
• DMA controller
• Interpolator and integer divider peripherals
• 30 GPIO pins, 4 of which can be used as analogue inputs
• 2 × UARTs, 2 × SPI controllers, and 2 × I2C controllers
• 16 × PWM channels
• 1 × USB 1.1 controller and PHY, with host and device support
• 8 × Raspberry Pi Programmable I/O (PIO) state machines
• USB mass-storage boot mode with UF2 support, for drag-and-drop programming
Please see the RP2040 datasheet for more details
and Hardware Design with RP2040
To date, RP2040 has only been available on Raspberry Pi Pico, and as a component to a limited number of partners. We now cover the availability of RP2040 as a component to the broad market in single-unit quantities. Bulk quantities on reels of 500 and more available soon.


Description
Raspberry Pi Pico W is a microcontroller board based on the Raspberry Pi RP2040 microcontroller chip.

Raspberry Pi Pico W has been designed to be a low cost yet flexible development platform for RP2040, with a 2.4GHz wireless interface and the following key features:
• RP2040 microcontroller with 2MB of flash memory
• On-board single-band 2.4GHz wireless interfaces (802.11n)
• Micro USB B port for power and data (and for reprogramming the flash)
• 40 pin 21mmx51mm 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations
◦ Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
◦ 23 GPIO are digital-only, with three also being ADC capable
◦ Can be surface mounted as a module
• 3-pin ARM serial wire debug (SWD) port
• Simple yet highly flexible power supply architecture
◦ Various options for easily powering the unit from micro USB, external supplies or batteries
• High quality, low cost, high availability
• Comprehensive SDK, software examples and documentation
For full details of the RP2040 microcontroller please see the RP2040 Datasheet book. Key features include:
• Dual-core cortex M0+ at up to 133MHz
◦ On-chip PLL allows variable core frequency
• 264kByte multi-bank high performance SRAM
• External Quad-SPI Flash with eXecute In Place (XIP) and 16kByte on-chip cache
• High performance full-crossbar bus fabric
• On-board USB1.1 (device or host)
• 30 multi-function general purpose I/O (four can be used for ADC)
◦ 1.8-3.3V I/O voltage
• 12-bit 500ksps analogue to digital converter (ADC)
• Various digital peripherals
◦ 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels
◦ 1 × timer with 4 alarms, 1 × real time clock
• 2 × programmable I/O (PIO) blocks, 8 state machines in total
◦ Flexible, user-programmable high-speed I/O
◦ Can emulate interfaces such as SD card and VGA
NOTE - Raspberry Pi Pico W I/O voltage is fixed at 3.3V
Raspberry Pi Pico W provides a minimal yet flexible external circuitry to support the RP2040 chip: flash memory (Winbond W25Q16JV), a crystal, power supplies and decoupling, and USB connector. The majority of the RP2040 microcontroller pins are brought to the user IO pins on the left and right edge of the board. Four RP2040 I/O are used for internal functions: driving an LED, on-board switch mode power supply (SMPS) power control, and sensing the system voltages.
Pico W has an on-board 2.4GHz wireless interface using an Infineon CYW43439. The antenna is an onboard antenna licensed from ABRACON (formerly ProAnt). The wireless interface is connected via SPI to the RP2040.
Pico W has been designed to use either soldered 0.1-inch pin-headers (it is one 0.1-inch pitch wider than a standard 40-pin DIP package), or to be positioned as a surface mountable 'module', as the user I/O pins are also castellated. There
are SMT pads underneath the USB connector and BOOTSEL button, which allow these signals to be accessed if used as a reflow-soldered SMT module.

What's in the box?
1 x Raspberry Pi Pico W
Support docs available here
- 1
