Industrial 6-ch Relay Module for Raspberry Pi Zero, RS485/CAN, Isolated Protection

R799.90  Inc VAT

Industrial 6-ch Relay Module for Raspberry Pi Zero, RS485/CAN, Isolated Protections, Tailored For Raspberry Pi Zero Series also Suitable For Raspberry Pi Zero With Pre-Soldered Pin header.


Features

  • RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch
  • CAN half-duplex communication: using MCP2515 SN65HVD230 solution, SPI control
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance
  • High quality relay, contact rating: ≤10A 250V AC or ≤10A 30V DC

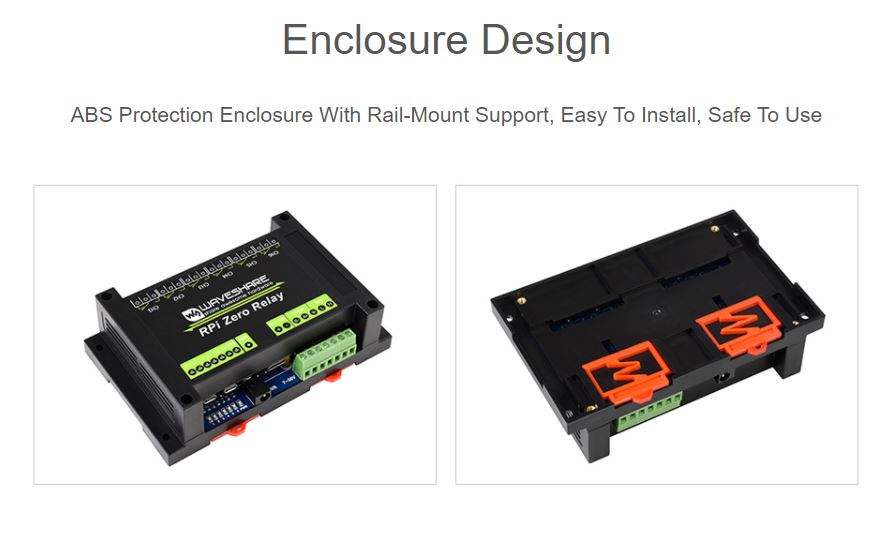

  • ABS protection enclosure with rail-mount support, easy to install, safe to use
  • Comes with development resources and manual (wiringPi and python examples)


Specifications

OPERATING VOLTAGE7V~36V (industrial input voltage compatible)RELAY CHANNEL6 ch
COMMUNICATION PROTOCOLRS485, CANCONTACT FORM1NO 1NC



What's in the box?

1 x ABS protection enclosure (top and bottom)
1 x RPi Zero Relay
1 x Screwdriver
1 x 12V 1A power adapter
1 x Screws pack

Resources

WIKI: RPi_Zero_Relay








  • Availability: 9 In Stock
  • Model: Zero 6-ch relay industrial
  • Brand: WaveShare
