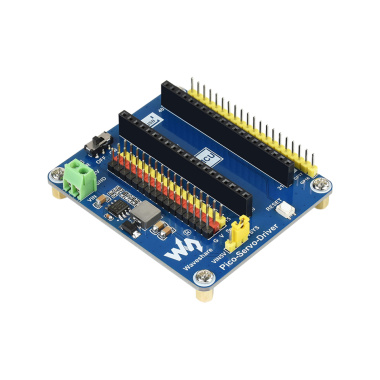

Servo Driver Module for Raspberry Pi Pico, 16-ch Outputs, 16-bit Resolution

R219.90  Inc VAT
Order Quantity Price Per Item
3 R215.50
10 R212.20
30 R208.91
Qty:
Add to wish list - You'll need to login first.

This board is ideal for controlling robotic arms or hexapod walkers

Features at a glance

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Up to 16-Channel servo/PWM outputs, 16-bit resolution for each channel
  • Integrates 5V regulator, up to 3A output current, allows battery power supply from the VIN terminal
  • Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
  • Exposes unused pins of Pico, easy expansion
  • Comes with development resources and manual (Raspberry Pi Pico C/C and MicroPython examples)

Specifications

Operating voltage5V (Pico) or 6~12V (VIN terminal)Servo voltage level5V
Logic level3.3VControl interfaceGPIO
Mounting hole size3.0mmDimensions65 × 56mm


Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico



Standard servo interface

supports common used servo like: SG90, MG90S, MG996R



Onboard 5V regulator

flexible power options: powered from Pico directly,
or from VIN battery input terminal with max 3A current output



Application example



Raspberry Pi Pico and servos are NOT included.


Pinout definition



Outline dimensions



What's in the box?

1 x Pico servo controller board

Resources



  • Availability: 6 In Stock
  • Model: WS Pico servo board
  • Brand: WaveShare
