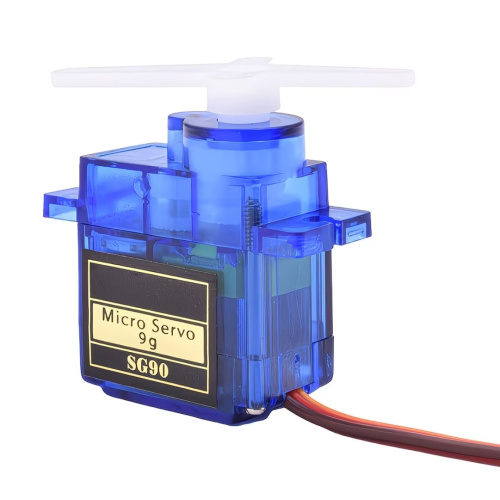

SG90 Micro 360 Degree Continuous Rotation Servo

This continuous rotation servo converts standard RC servo position pulses into continuous rotation speed.
R30.46  Inc VAT
Order Quantity Price Per Item
3 R29.85
10 R29.40
Qty:
Print
Add to wish list - You'll need to login first.

This continuous rotation servo converts standard RC servo position pulses into continuous rotation speed. The default rest point is 1.5 ms, but this can be adjusted by using a small screwdriver to turn the middle-point adjustment potentiometer. Pulse widths above the rest point result in counterclockwise rotation, with speed increasing as the pulse width increases; pulse widths below the rest point result in clockwise rotation, with speed increasing as the pulse width decreases.


Specifications

  • Product model: SG90
  • Colour: Blue
  • Dimensions: 22.8 x 22.4 x 12mm
  • Rotation Angle: 0-180°/360°( Continuous rotation)
  • Operating Speed: 0.1 second/ 60 degree(4.8V).
  • Gear Medium: NylonOperating
  • Mode: AnalogControl
  • Signal: PWMStall
  • Torque: 1.5kg/cmTemperature
  • Range: 0 ℃- 55 ℃
  • Dead Band Width: 10usec.
  • Operating Voltage: 4.8VPlug
  • Connector Wire Length: 250mm(Brown: Negative; Red: Positive; Orange: Pulse Input)
  • Accessories: Multi-arm, Fixing screws
  • Application: Mini Car / Mini Ship / Helicopter & Airplane
  • Steering Gear Control: The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.

Servo 360 Degree - The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction of the rotation. There is no 0-360 degree angle control function.

What's in the box?

1 x Micro 360 Degree Continuous Rotation Servo

  • Availability: Out of Stock
  • Model: SG90 Continuous Servo
  • Brand: Generic2
