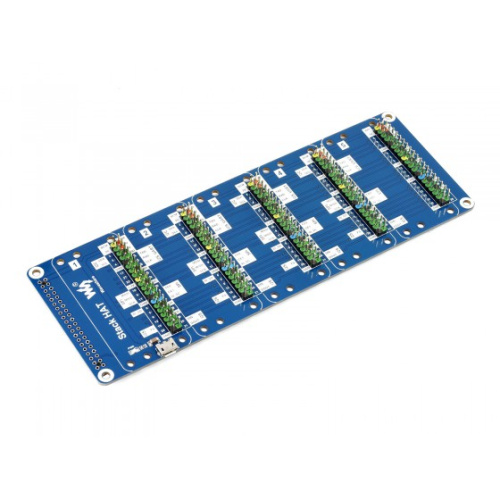

Stack HAT for Raspberry Pi, stacks up to 5 HATs at once

This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to "stack" multi different HATs together, and use them as a specific combination/project.
R299.90  Inc VAT
Order Quantity Price Per Item
3 R293.90
10 R289.40
30 R284.90
100 R277.41
Qty:
Print
Add to wish list - You'll need to login first.

Features

  • Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable
  • 5 sets of 2x20 pinheaders, connect multi HATs together
  • USB external power port, provides enough power supply for multi HATs
  • Clear and descriptive pin labels for easy use
  • Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts
  • Compatible with Raspberry Pi 2B/3B/4B/5/Zero and Zero 2



Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting.

Specifications

  • Dimension: 183mm × 65mm
  • Mounting hole size: 3mm

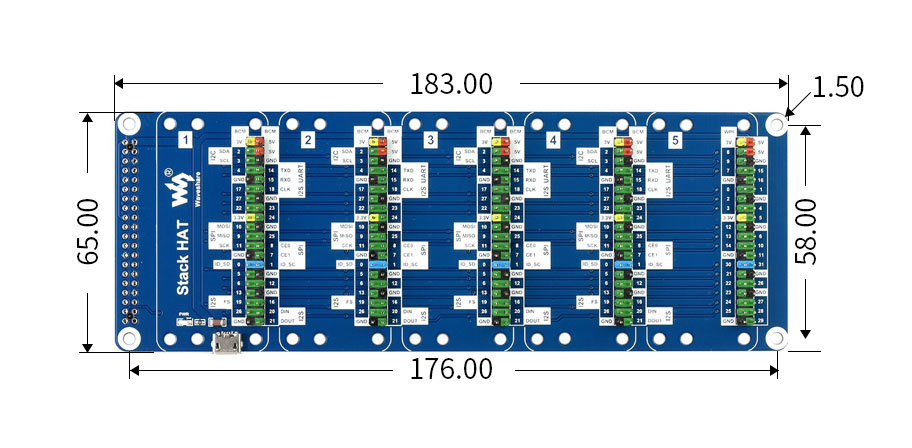

Dimensions

What's in the box?

1 x Stack HAT
1 x Ribbon cable 40PIN
1 x 2x20 male pin header
1 x RPi screws pack (4pcs)

Resources

Wiki : www.waveshare.com/wiki/Stack_HAT

  • Availability: Out of Stock
  • Model: WS Stack HATx5
  • Brand: WaveShare
