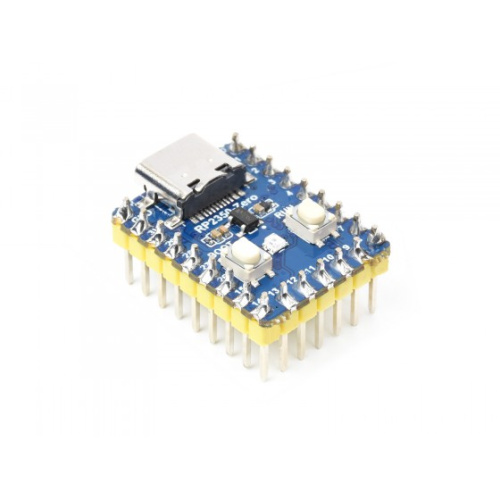

Waveshare RP2350-Zero Mini Development Board with pre-soldered headers

RP2040 MCU Board Zero, a Pico-like MCU board based on Raspberry Pi RP2040, Castellated module, suitable for SMD applications.


Board specifications

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 4MB of on-board Flash memory
• Type-C connector, keeps it up to date, easier to use
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

C/C++，MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

29 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

What's in the box?

1 x RP2040-Zero with pre-soldered headers

Resources

Wiki: www.waveshare.com/wiki/RP2350-Zero

• Availability: Out of Stock

• Model: WS RP2350-Zero WH
