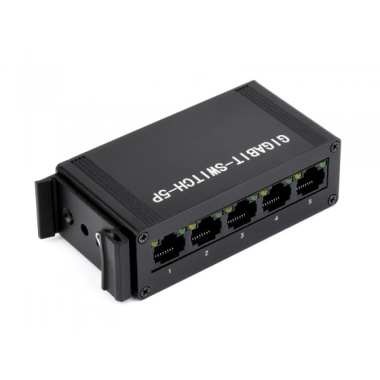

Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount

R549.90  Inc VAT
Order Quantity Price Per Item
3 R538.90
Add to wish list - You'll need to login first.

Industrial Grade 5P Gigabit Ethernet Switch, IEEE 802.3x-Compliant Full-Duplex 10/100/1000M Connection, DIN Rail Mount
Industrial 5P Gigabit Switch

Full-duplex 10/100/1000M connection


Features At A Glance
  • Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture
  • Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode)
  • Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support
  • Allow forwarding 9216 bytes huge data packet on linear speed
  • Over-voltage protection, effectively preventing damages caused by other high voltage power supply
  • Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installing

Robust Alloy Body

DIN Rail Mount Support

Compatible With 25mm Standard Rail

Wide Range Supply, Multiple Protections

5~36V Wide Voltage Range Power Supply, Dual Power Inputs (DC Jack And Screw Terminal)
Onboard Over-Voltage Protection And Reverse-Proof Protection

Plug & Play

5x 10/100/1000M Ethernet Ports With Auto MDI/MDI-X Support,
No Extra Configuration Required, Plug And Play

Application Examples

Interface Introduction

Outline Dimensions


Weight: 0.211 kg

  1. Gigabit-Switch-5P x1
  2. Power supply screw terminal x1
  3. 12V 1A power adapter x1
1    2   3

Resources & Services

  • Availability: 24 In Stock
  • Model: din rail ethernet switch
  • Brand: WaveShare
