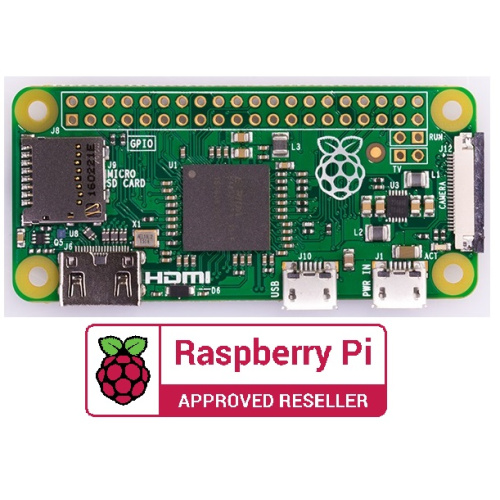

Raspberry Pi Zero v1.3

This is the Raspberry Pi board only. You will need a Power Supply, micro SD, HDMI Cable, Display, Input devices and Case as well
R205.85  Inc VAT
Qty:
(This product has a limit set to 1 item(s) per order)
Add to wish list - You'll need to login first.

This is the first release of Raspberry Pi Zero and doesn't have onboard Wifi or BLE.

The Raspberry Pi Zero features a BCM2835 chipset, overclocked to 1Ghz with 512MB RAM, and the same 1080p video output, so there's plenty of oomph in that little board. It also features the same 40 pin GPIO layout as the Raspberry Pi 2/B /A , which you'll need to solder your own headers to. With it's small form factor and reduction in connectors, the Raspberry Pi Zero only uses ~ 140mA at 5V!

Unlike it's larger brothers and sisters, the Raspberry Pi Zero has an unpopulated GPIO, unpopulated composite (RCA) header and an unpopulated reset header. There's also no DSI screen port, no ethernet, no analogue audio and no full sized USB ports. Instead, the Pi Zero features a micro-USB power port, a micro USB OTG host port (for peripherals e.g. WiFi dongle), and a mini HDMI port for video.

HAT Compatibility Note

The Pi Zero is fully compatible with all HAT breakout boards, as it features the same 40 Pin GPIO as the Raspberry Pi 2/B /A

Raspberry Pi Zero Features

  • BCM2835 chipset, Overclocked to 1Ghz
  • 512MB RAM
  • Tiny Form Factor: 65mm x 30mm x 5mm
  • Fully HAT compatible
  • 40pin GPIO (Unpopulated)
  • Stream and watch Hi-definition video output at 1080P
  • Micro SD Slot for OS
  • Tiny Current Draw ~ 140mA at 5V!
  • Mini-HDMI for Video
  • Micro-USB OTG Host for Data
  • Micro-USB for Power
  • Micro-CSI Camera Port

What's in the box?

1 x Raspberry Pi Zero

You might also need...

The Raspberry Pi board comes without the below items. Have a look at what else you still need to get.



Resources

  • Availability: Out of Stock
  • Model: RPi Zero v1.3 board
  • Brand: Raspberry Pi
