Overall Evaluation Board for Raspberry Pi Pico

R799.90  Inc VAT
Order Quantity Price Per Item
3 R783.90
10 R771.90
Qty:
Add to wish list - You'll need to login first.

The Pico-Eval-Board is an overall evaluation solution designed for Raspberry Pi Pico.


Description:

The Pico-Eval-Board is an overall evaluation solution designed for Raspberry Pi Pico. With 3.5inch 65K colorful LCD display and misc helpful onboard components, this evaluation board allows you to try almost every on-chip peripheral of the RP2040, eliminating the messy wiring. It is an ideal choice for users to fast get started with the Raspberry Pi Pico, as well as the RP2040 chip.



Specifications:

Operating voltage: 5V

  • Touch Type: Resistive
  • Communication bus: SPI
  • Display panel: IPS
  • Controller: ILI9488/XPT2046
  • Resolution: 480×320 Pixels
  • Display colors: 65K colorful
  • Pixel size: 0.153 × 0.153 mm
  • Display size: 73.44 × 48.96 mm
  • Dimensions: 86.00 × 57.20 mm

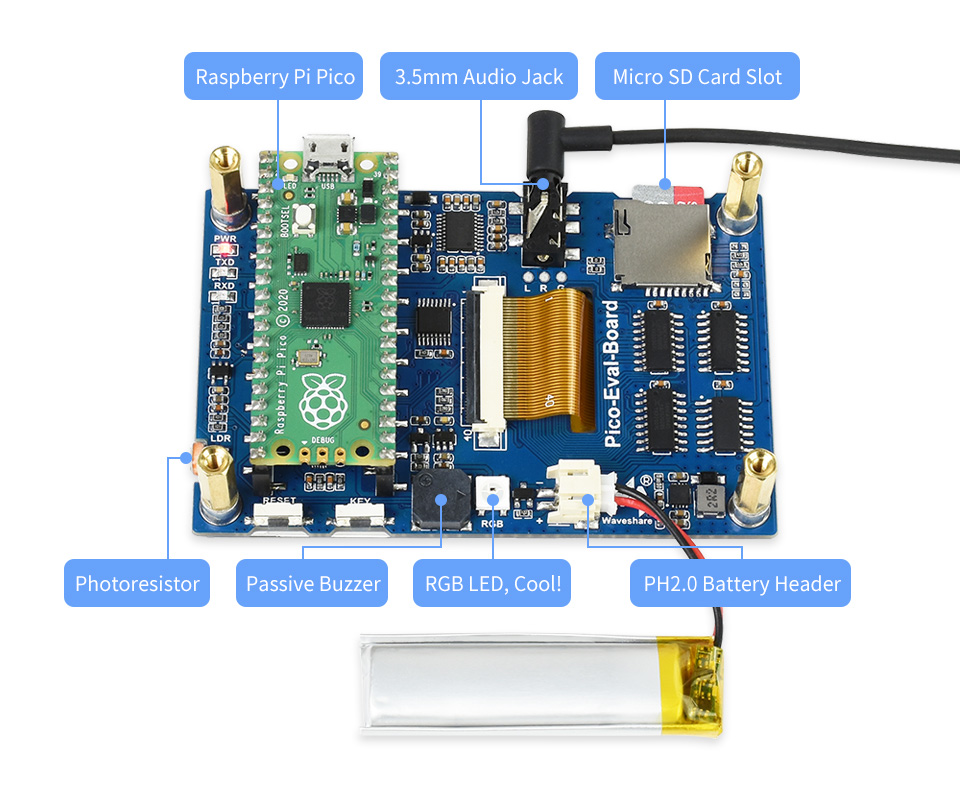

Features

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • 3.5inch resistive touch screen, 65K colorful, bringing clear and vivid display effect
  • Standard 3.5mm audio jack, for headphone or other audio peripherals
  • Micro SD card slot through the SDIO interface, faster access speed than SPI interface
  • Integrates battery header and recharge circuit, allows it keep running without wired power supply
  • Other rich resources like buzzer, photoresistor, and RGB LED.
  • Comes with development resources and manual (Raspberry Pi Pico C/C and MicroPython examples)



What's in the box ?

1 x Overall Evaluation Board for Raspberry Pi Pico



Resources :

Wiki for Evaluation Board for Raspberry Pi Pico






With 3.5inch 65K colorful LCD display and misc helpful onboard components, this evaluation board allows you to try almost every on chip peripheral of the RP2040, eliminating the mess wiring.

It is an ideal choice for user to fast get started with the Raspberry Pi Pico, as well as the RP2040 chip.






  • Availability: 14 In Stock
  • Model: Overall Evaluation Board for Pico
  • Brand: WaveShare
